odometer ACURA NSX 2022 Owners Manual

103
uuGauges and Displays uDriver Information Interface
Continued

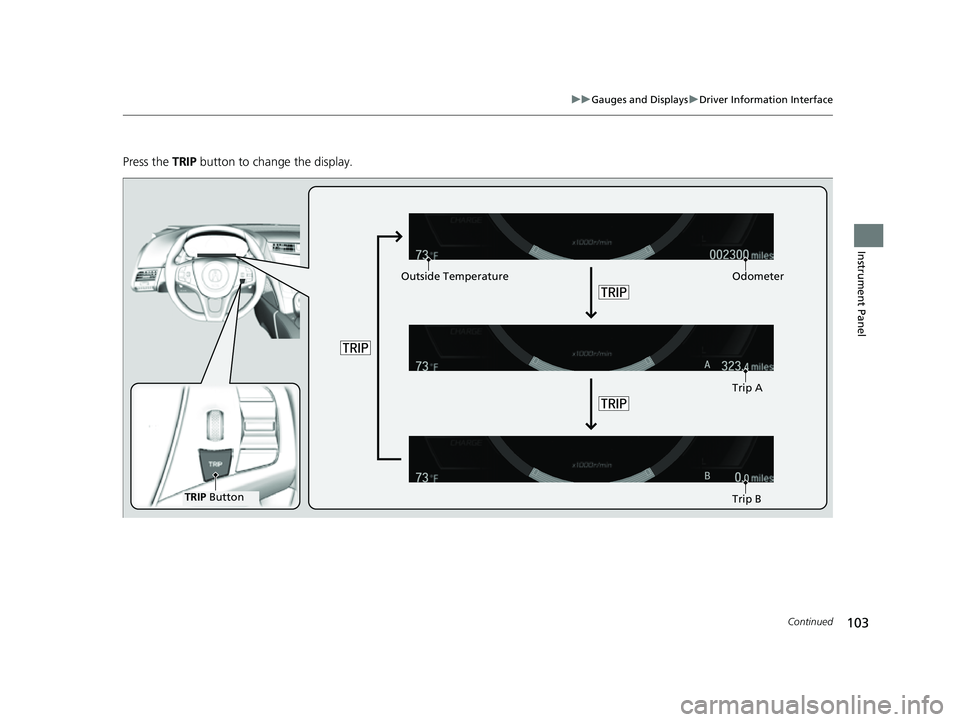

Instrument Panel
Press the TRIP button to change the display.
Odometer
Trip A
Trip B
TRIP Button
Outside Temperature
22 ACURA NSX PMC-31T6N6500.book 103 ページ ２０２１年９月２８日　火曜日　午後４時７分

uuGauges and Displays uDriver Information Interface
104
Instrument Panel
Shows the total number of miles or kilome ters that your vehicle has accumulated.
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
■Resetting a trip meter
To reset a trip meter, display it, then press and hold the TRIP button. The trip meter
is reset to 0.0.
When a trip meter is reset, the average fuel economy, the elapsed time, and the
average speed are also reset.
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading up to ± 5° F or ± 3°C if the temperature reading
seems incorrect.
■Odometer
■Trip Meter
■Outside Temperature
1 Trip Meter
Switch between trip meter A and trip meter B by
pressing the TRIP button.
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
Use the audio system’s customized features to
correct the temperature.
2 Customized Features P. 243
22 ACURA NSX PMC-31T6N6500.book 104 ページ ２０２１年９月２８日　火曜日　午後４時７分

481
Information
Client Service Information
Authorized Acura NSX dealership personnel are trained professionals who should be
able to deal with any problems you may en counter with your vehicle. If, however,
you are faced with a problem that they cannot resolve to your satisfaction, contact
Acura Client Relations/Services.
U.S. Owners Canadian Owners
American Honda Motor Co., Inc. Honda Canada Inc.
Acura Client Relations Acura Client Services
Mail Stop CHI-4 180 Honda Boulevard
1919 Torrance Blvd. Markham, ON
Torrance, CA 90501-2746 L6C 0H9
Tel: 1-844-68-ACURA Tel: 1-888-9-ACURA-9
(1-844-682-2872) 1-844-9-MYNSX-9 (NSX-
specific)
Fax: 1-877-939-0909
E-mail: [email protected]
In Puerto Rico and the U.S. Virgin Islands
Bella International
P.O. Box 190816
San Juan, PR 00919-0816
Tel: 1 (787) 620-75461 Client Service Information
When you call or write, please give us the following
information:
•Vehicle Identification Number
2Vehicle Identification Number (VIN),
Engine Number, Motor Number, and
Transmission Number P. 472
•Date of purchase•Odometer reading of your vehicle
•Your name, address, and telephone number
•A detailed description of the problem•Name of the authorized Ac ura NSX dealer who sold
the vehicle to you
22 ACURA NSX PMC-31T6N6500.book 481 ページ ２０２１年９月２８日　火曜日　午後４時７分

487
Index
Mirrors...................................................... 144
Adjusting ................................................ 144
Door ....................................................... 145
Exterior ................................................... 145
Interior Rearview ..................................... 144
Modifications (and Accessories) .............. 428
MP3 ........................................................... 208
Multi-View Rear Camera ......................... 367
N
Numbers (Identification)......................... 472
O
Odometer................................................. 104
Oil (Engine) ...................................... 390, 471
Adding ................................................... 394
Check Engine Oil Level Warning.............. 459
Checking ................................................ 391
Displaying Oil Life ................................... 380
Low Oil Pressure Indicator ......................... 74
Recommended Engine Oil ............... 390, 471
Viscosity.......................................... 390, 471
Open Source Licenses .............................. 241
Opening
Hatch...................................... 122, 387, 467
Opening/Closing Hatch.............................................. 122, 387
Hood ...................................................... 388
Power Windows...................................... 128 Operating the Switches Around the Steering
Wheel ...................................................... 130
Outside Temperature Display .................. 104
Overheating .............................................. 452
P
Paddle Shifters (Sequential Mode) .......... 332
Pandora® ................................................. 206
Panic Mode ............................................... 127
Parking ...................................................... 362
Parking Brake ........................................... 355
Parking Sensor System ............................. 363
Passenger Airbag Off Indicator ................. 58
Passing Indicators ..................................... 134
POWER Button .......................................... 130
Power System Turning on .............................................. 319
POWER SYSTEM Indicator .......................... 78
Power Windows ........................................ 128
Precautions While Driving
In Snow and Ice ....................................... 322
Rain ......................................................... 322
Pregnant Women ....................................... 43
Puncture (Tire) .......................................... 435
R
Radio (FM)................................................. 188
Radio (SiriusXM ®) ..................................... 192
Radio Data System (RDS) .......................... 191Range
........................................................ 105
RDS (Radio Data System) ......................... 191
Readiness Codes (Emissions Testing) ....... 475
READY Indicator ......................................... 78
Rear Defogger/Heated Door Mirror
Button ..................................................... 139
Rearview Mirror ....................................... 144
Refueling .................................................. 369
Fuel Gauge................................................ 99
Gasoline .......................................... 369, 470
Low Fuel Indicator ..................................... 81
Regenerative Energy and Regenerative Braking ...................................................... 14
Regulations ............................... 352, 410, 473
Remote Transmitter ................................. 115
Replacement Battery .................................................... 418
Bulbs ....................................................... 401
Fuses ....................................... 460, 462, 463
Tires ........................................................ 413
Wiper Blade Rubber ................................ 404
Reporting Safety Defects ......................... 474
Resetting a Trip Meter ............................. 104
Reverse Tilt Door Mirror .......................... 145
Right Selector Wheel ............................... 102
S
Safe Driving................................................ 33
Safety Check ............................................... 37
Safety Labels ............................................... 71
22 ACURA NSX PMC-31T6N6500.book 487 ページ ２０２１年９月２８日　火曜日　午後４時７分
