To reset a trip meter, display it, and
then press and hold the Select/Reset
knob until the number resets to ‘‘0.0’’.
When you reset Trip A, AVG. FUEL
A is reset at the same time. When
you reset Trip B, AVG. FUEL B is
reset.
This shows your vehicle’s average
f uel economy in mpg (U.S. models)
or
/100 km (Canadian models)
since you last reset the Trip A or
Trip B. If the outside temperature is
incorrectly displayed, you can adjust
it up 5°F in U.S. models ( 3°C in
Canadian models) warmer or cooler.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
When the temperature reaches the
desired value, release the Select/
Reset knob. You should see the new
outside temperature displayed.
The average f uel mileage will be
reset when you reset the trip meter,
or if the vehicle’s battery goes dead
or is disconnected. This shows the outside temperature
in Fahrenheit (U.S. models), or in
Centigrade (Canadian models).
The temperature sensor is in the
f ront bumper. The temperature
reading can be affected by heat
ref lection f rom the road surf ace,
engine heat, and the exhaust f rom
surrounding traf f ic. This can cause
an incorrect temperature reading
when your vehicle speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not f ully
acclimatized, theref ore it may take
several minutes until the proper
temperature is displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
To adjust the outside temperature
indicator, press and hold the Select/
Reset knob f or 10 seconds. The
f ollowing sequence will appear f or 1
secondeach:0,1,2,3,4,5, 5, 4,
3, 2, 1, 0 (U.S.) or 0, 1, 2, 3,
3, 2, 1, 0 (Canada).
CONT INUED
Gauges
AVG. FUEL A/B Out side T emperat ure Indicat or
Inst rument s and Cont rols
77
——
y

y
() yy

This shows the temperature of the
engine’s coolant. During normal
operation, the reading should rise
from the ‘‘C (Cold)’’ mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the reading may rise to near
the ‘‘H (Hot)’’ mark of the gauge. If
it re aches the ‘‘H’’ mark, pull safely
to the side of the road. See page for instructions and precautions
on checking the engine’s coolant
system. The information display in the
instrument panel shows you the
engine oil life and maintenance
service items when the ignition
switch is in the ON (II) position. This
information helps to keep you aware
of the periodic maintenance your
vehicle needs for continued trouble-
free
driving. Refer to page for
more information. If
your fuel fill cap is loose or
missing, a ‘‘CHECK FUEL CAP’’
messa ge appears on the information
display after you start the engine.
For more information, see page .
391 330280
Gauges
T emperat ure Gauge
Check Fuel Cap Message
Maint enance Minder
78
——
y

y
() yy

Û
Ý To change the display, press the
SEL/RESET button or INFO ( /
)buttononthesteeringwheel
repeatedly until the desired
information appears (see page ).
You can also change the display by
pressing the Select/Reset knob in
the instrument panel.
The
multi -information display in the
instrument panel displays various
inform ation and messages when the
ignition switch is in the ON (II)
position. Some of the messages help
you operate your vehicle more
comfortably.
Others help to keep you aware of the
periodic maintenance your vehicle
needs for continued trouble-free
driving.
When you open the driver’s door, a
‘‘Welcome’’ message is shown on the
multi-info rmation display. When you
turn the ignition switch from the ON
(II) position to the ACCESSORY (I)
position, a ‘‘Goodbye’’ message is
shownonthedisplay. Wh
en you turn the ignition switch to
the ON (II) position, what you last
selected is displayed.
In the multi-information display, the
system message is also displayed
(see page ) and you can
cu stomize your vehicle control
settings (see page ).
80 84
87
CONT INUED
On RDX with Technology Packagemodel
Multi-Inf ormation Display
Inst rument s and Cont rols
79
SEL/RESET
BUTTON
INFO BUTTONS
——
y
y
() yy

ÛÝ
Multi-Inf ormation Display
80
U.S. model is shown.: Press the INFO( / ) Button
: Press the SEL/
RESET Button IGNITION OFF
IGNITION ON
——
y
y
() yy

The odometer shows the total
distance your vehicle has been
driven. It measures miles in U.S.
models and kilometers in Canadian
models. It is illegal under U.S.
federal law and Canadian provincial
regulations to disconnect, reset, or
alter the odometer with the intent to
ch ange the number of miles or
kilometers indicated.
This meter shows the number of
miles (U.S.) or kilometers (Canada)
driven since you last reset it. There
are two trip meters: Trip A and Trip
B. Each trip meter works
independently, so you can keep track
of two different distances. When
you reset Trip A, AVG.
FUEL A is reset at the same time.
When you reset Trip B, AVG.
FUEL B is reset. The
temperature sensor is in the
front bumper. The temperatu re
reading can be affected by heat
reflection from the road surface,
engine heat, and the exhaust from
surrounding traffic. This can cause
an incorrect temperature reading
when your vehicle speed is under
19 mph (30 km/h). When you start
your trip, the sensor is not fully
acclimatized, therefore it may take
several minutes until the proper
te mperature is displayed.
In certain weather conditions,
temperature readings near freezing
(32°F, 0°C) could mean that ice is
forming on the road surface.
To reset a trip meter, display it, then
press and hold the SEL/RESET
button until the number resets to
‘‘0.0’’. You
can adjust the outside
temperature in the multi-info rmation
display (see page ).
You
can customize the Trip A and
AVG. FUEL A reset condition in the
multi-info rmation display (see page
).
This shows the outside temperature
in Fahrenheit (U.S. models), or in
Centigrade (Canadian models). 98
96
Multi-Inf ormation Display
Odometer
Trip MeterOutside Temperature Display
Inst rument s and Cont rols
81
——
y


y
() yy

This shows the estimated distance
you can travel on the fuel rema ining
in the fuel tank. This distan ce is
estimated from the fuel economy
you received over the last several
miles(U.S.) or kilometers (Canada),
so it will vary with changes in speed,
traffic, etc.
This shows the time traveled since
you last reset it. When you turn the
ignition switch to the ON (II)
pos ition, ELAPSED TIME is reset.
You can customize the ELAPSED
TIME reset condition in the multi-
info rmation display (see page ).You
can customize the Trip A and
AVG. FUEL A reset condition in the
multi-info rmation display (see page
).
This
shows your vehicle’s average
fuel economy in mpg (U.S. model s)
or
/100 km (Canadian models)
since you last reset the Trip A or
Trip B.
When
you reset Trip A, AVG.
SPEED is also reset.
This
shows the average speed you
are traveling in miles per hour (mph)
forU.S.modelsorkilometersper
hour (km/h) for Can adian models.
When the battery is disconnect ed, or
you refuel, RANGE is also reset.
The
multi -information display in the
instrument panel shows you the
engine oil life and maintenance
service items when the ignition
switch is in the ON (II) position. This
information helps to keep you aware
of the periodic maintenance your
vehicle needs for continued trouble-
free driving. Refer to page for
more inf ormation.
This shows your current f uel
mileage.
When you turn of f the engine, INST.
MPG or INST. L/100 km is also
reset.
The average f uel mileage will be
reset when you reset the trip meter,
or if the vehicle’s battery goes dead
or is disconnected.98
100
330
Multi-Inf ormation Display
RANGE
EL A PSED T IME
AVG. FUEL A/B A VG. SPEED
Maintenance Minder
INST.MPG(U.S.models)/INST.
L /100km (Canadian models)
82
——
y
y
() yy

This monitor shows how much
to rque is being delivered to each
wheel. For more information, see
page .
You can see the pressure of each tire
in this monito r. If one or more tire
pressure are low, inflate them to the
correct pressure. For more
info rmation, see page . This
shows the temperature of the
engine’s coolant. During normal
operation, the reading should rise
from the ‘‘C (Cold)’’ mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the reading may rise to near
the ‘‘H (Hot)’’ mark of the gauge. If
it re ac hes the ‘‘H’’ mark, pull safely
to the side of the road. See page
for instructions and precautions
on checking the engine’s coolant
system. You
can receive or make phone calls
from your cellphone through your
vehicle’s HandsFreeLink (HFL)
system without touching your
cellphone.
To use the system, your cellphone
and the HFL system must be linked.
Not all cellphones are compatible
with this system. Ref er to page for instructions on how to link
your cellphone to the HFL and how
to receive or make phone calls, or
visit the handsf reelink.com website.
391
303
312 262
SH-AWD T orque Distribution
Monitor
Tire Pressure Monitor
T emperature Gauge
HandsFreeL ink
Multi-Inf ormation Display
Inst rument s and Cont rols
83
TM
——
y

y
() yy

If there is a problem with your
vehicle, for example, the engine oil
level is low or a door is not fully
closed, the multi-info rmation display
will show you the problem. It does
this by interrupting the current
display with one or more messages.
Here is a list of messages shown on
the multi-information display: See p
age
12
See page
394
See p
age
393
See p
age
393
See p
age
20
See p age
395 See p
age
313
See p age
312
See p age
68
See p ages
395, 396
Multi-Inf ormation Display
System Messages
84
U.S. Canada
Canada
U.S.
Canada
U.S.
——
y

y
() yy

CONTINUED
See page
12
See
page
295
See page
304
See page
304
See page
33
See page
307 See
page
315
See page
33
See page
123
See page
69 See
page
281
See page
353
See page
334
See page
130
Multi-Inf ormation Display
Inst rument s and Cont rols
85
U.S. Canada
——
y

y
() yy

ÛÝÛÝ
ÛÝ
ÛÝ

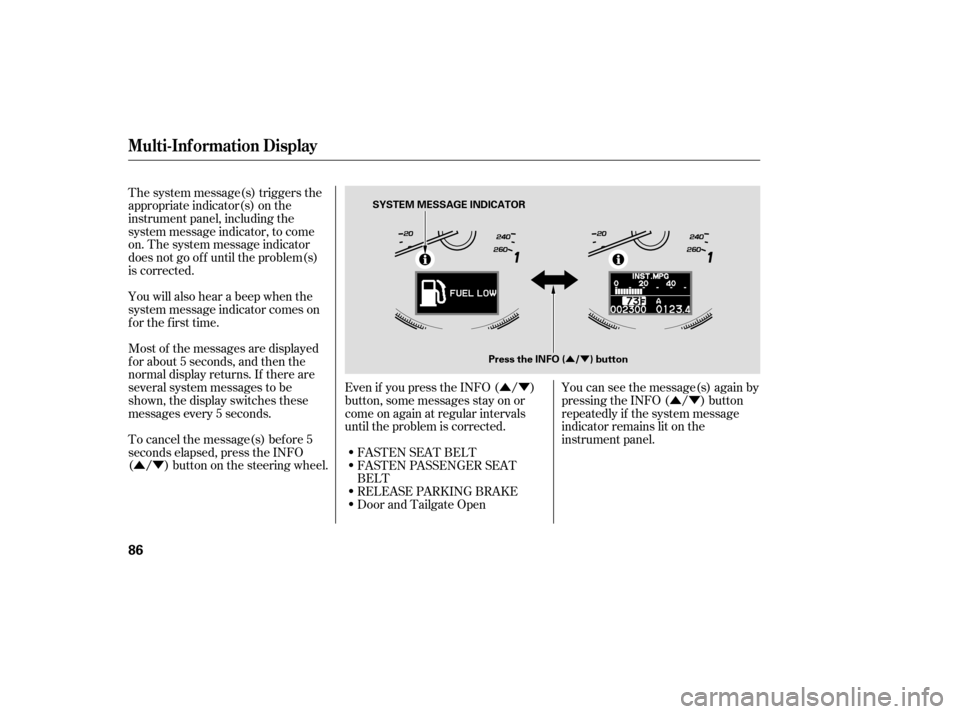

The system message(s) triggers the
appropriate indicator(s) on the
instrument panel, including the
system message indicator, to come
on. The system message indicator
does not go of f until the problem(s)
is corrected.
You will also hear a beep when the
system message indicator comes on
for the first time.
Most of the messages are displayed
f or about 5 seconds, and then the
normal display returns. If there are
several system messages to be
shown, the display switches these
messages every 5 seconds.
To cancel the message(s) bef ore 5
seconds elapsed, press the INFO
( / ) button on the steering wheel. Even if you press the INFO ( / )
button, some messages stay on or
come on again at regular intervals
until the problem is corrected.
You can see the message(s) again by
pressing the INFO ( / ) button
repeatedly if the system message
indicator remains lit on the
instrument panel.
FASTEN SEAT BELT
FASTEN PASSENGER SEAT
BELT
RELEASE PARKING BRAKE
Door and Tailgate Open
Multi-Inf ormation Display
86
SYSTEM MESSAGE INDICATOR
Press the INFO ( / ) button
——
y
y
() y
y
