Acura RDX 2007 Owner's Manual

ÛÝ

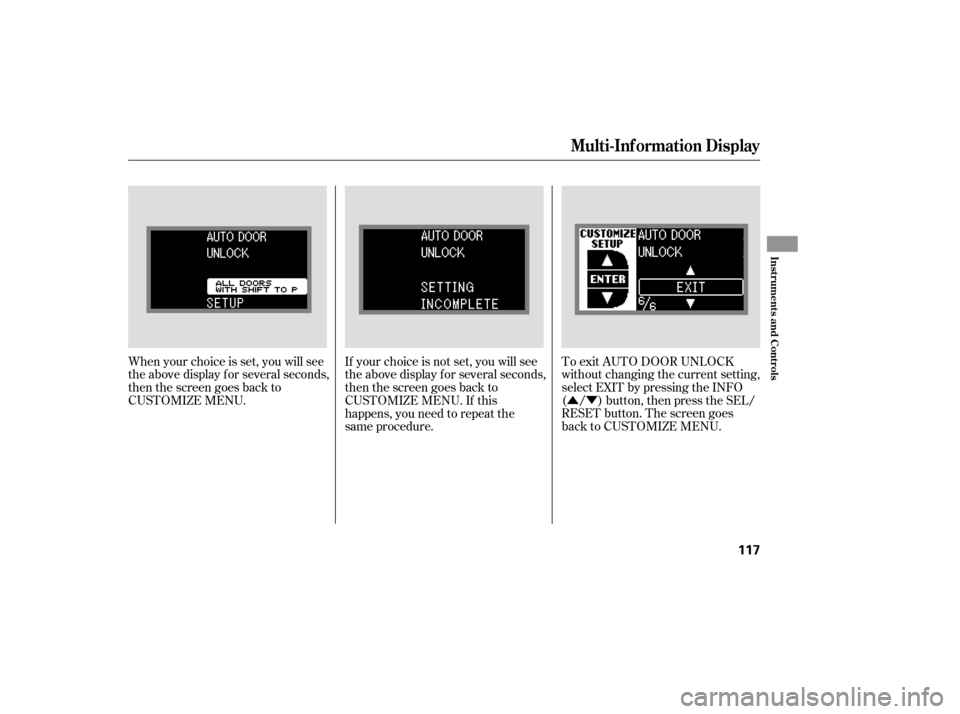

To exit AUTO DOOR UNLOCK
without changing the current setting,
select EXIT by pressing the INFO
( / ) button, then press the SEL/
RESET button. The screen goes
back to CUSTOMIZE MENU.
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU.
If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
Multi-Inf ormation Display
Inst rument s and Cont rols
117
——
yy
() y
y

ÎÎÎ Î
Î Î
ÎÎ
Î
Î
Î
Î
Î To use the horn, press the center pad of the steering wheel.
Ref er to the navigation system manual. On RDX model only
1:
2:
3:
4: On RDX with Technology Package model only
Controls Near the Steering Wheel
118
HAZARD WARNING BUTTON
CRUISE CONTROL
BUTTONS SEAT HEATER SWITCHES
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH
MIRROR CONTROLS
PASSENGER AIRBAG
OFF INDICATOR
REAR WINDOW DEFOGGER/
HEATED MIRROR BUTTON(P.179)
(P.125/156) (P.230)
ACCESSORY POWER
SOCKET
(P.164)
PADDLE SHIFTERS
(P.299)
(P.241)(P.150)
(P.237)
(P.125)
(P.34)
(P.178)
STEERING WHEEL
ADJUSTMENT
REMOTE AUDIO CONTROL
BUTTONS
(P.121/122)
(P.126)
VOICE CONTROL
BUTTONS
HANDSFREELINK
BUTTONS MULTI-INFORMATION
BUTTONS
(P.79)
HORN (P.119/120)
UPPER DISPLAY
NAVIGATION SYSTEM /
CENTER DISPLAY
AUXILIARY INPUT JACK
(P.316)
(P.155)
(P.258)
HEADLIGHTS/TURN SIGNAL/
FOG LIGHTS
WINDSHIELD
WIPERS/WASHERS/
REAR WINDOW
WIPER/WASHER
3, 4
TM
3 3
1 3
3, 4
2
——
y


y
() y
y

µ
µ
µ
µ
µ µ
µ
µ µ
Push the right lever up or down to
select a position. The wipers run at high
speed until you release the lever.
The wipers are not activated.
MIST
OFF
INT Intermittent
LO Low speed
HI High speed
Windshield washers The length of the wiper
interval is varied automatically
according to the vehicle’s speed.
Vary the delay by turning the INT
TIME ring. If you turn it to the
shortest delay, the wiper speed will
increase to low speed operation
when the vehicle speed exceeds 12
mph (20 km/h).
While the vehicle is stopped and in
gear, the wipers sweep the
windshield whenever you remove
your f oot f rom the brake pedal. The wipers run at low speed.
The wipers run at high speed. Pull the
wiper control lever toward you,
andholdit.Thewashersspray
until you release the lever. The
wipers run at low speed, then
complete one more sweep af ter
you release the lever.
1.
2.
3.
4.
5.
6. Windshield Wiper MIST
OFF
INT LO
HI
Windshield Washers
Windshield Wipers and Washers
Inst rument s and Cont rols
119
——
y
y
() y
y

µµ
µ µ
ON
OFF
Rear Window Wiper and Washer
Rear Window Washer The wiper is not activated.
When you turn the wiper switch to
OFF while the rear window wiper is
in action, it will return to its parked
position. Hold past ON to turn the rear
window wiper on and to spray the
rear window washer. The rear
window wiper makes one more
sweep after you release the switch.
Rotate the switch clockwise
to turn the rear window wiper ON.
The wiper operates intermittently. When the wiper control lever
position is INT, the rear wiper
operates intermittently. When it is
LO or HI, the rear wiper operates
continuously.
Rotate
the switch counterclockwise from
OFF to spray the window washer
without activating the wiper. The
washer will operate until you release
the switch.
Therearwindowwasherusesthe
same f luid reservoir as the wind-
shield washer.
When you shif t the transmission to
the reverse position with the f ront
windshield wipers activated, the rear
window wiper operates automatically.
1.
2.
3.
4. Rear Window Wiper and Washer OFF Rear Window Wiper and Washer
ON Rear Window Washer
Windshield Wipers and Washers
120
——
y

y
() y
y

µµPush down on the
lever to signal a lef t turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn. Turning the switch to
the ‘‘ ’’ position turns on the
parking lights, taillights, instrument
panel lights, side-marker lights, and
rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights.
When the light switch is in the
‘‘ ’’ or ‘‘ ’’ position, the
lights on indicator comes on as a
reminder. This indicator stays on if
you leave the light switch on and
turn the ignition switch to the
ACCESSORY (I) or the LOCK (0)
position.
Turn signal
Of f
Parking and interior lights
Headlights
High beams
Flashhighbeams
Fog lights of f
Fog lights on
If you leave the lights on with the
key removed f rom the ignition
switch, you will hear a reminder
beeper when you open the driver’s
door.
1.
2.
3.
4.
5.
6.
7.
8.
CONT INUED
Turn Signal and Headlights
Turn Signal
Headlights
Inst rument s and Cont rols
121
——
y


y
() y
y

µThis feature turns off the headlights,
parking lights, taillights, side marker
lights, license plate lights, and
instrument panel lights within 15
seconds of removing the key from
the ignition switch and closing the
driver’s door.
This feature activates if you leave
the headlight switch in the or
position, remove the key, then
open and close the driver’s door.
If you remove the key from the
ignition switch with the headlight
switch on, but do not open the door,
the lights will turn off after 10
minutes.
Push the lever
f orward and the high beam indicator
will come on (see page ). Pull it
back to return to low beams.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back. Turn the f og lights on and of f by
turning the switch next to the
headlight switch.
You can use the f og lights only when
the headlights are on low beam.
They will go of f when the headlights
are turned of f .
70
Automatic Lighting Of f Feature
High Beams Fog Lights
Headlights
122
——
y

y
() y
y

The lights will turn on again when
you unlock or open the driver’s door.
If you unlock the door, but do not
open it within 15 seconds, the lights
will go off. With the driver’s door
open, you will hear a lights on
reminder beeper. Wi
th the headlight switch off or in
the position, the high beam
headlights and the high beam
indicator come on with reduced
brightness when you turn the
ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch off, even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
You can change the ‘‘HEADLIGHT
AUTO OFF TIMER’’ setting on the
multi-inf ormation display (see page
).
105
On RDX with Technology Package
model
Daytime Running L ights
Headlights
Inst rument s and Cont rols
123
——
y

y
() y
y

The level of brightness is shown on
the multi-information display while
you adjust it. It goes out 5 seconds
af ter you f inish adjusting.
The knob on the instrument panel
controls the brightness of the instru-
ment panel lights. Turn the knob to
adjust the brightness.
Separate adjustments can be made
when the headlights are on and of f . To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to the
or position.
The level of brightness is shown in
the inf ormation display while you
adjust it. It goes out 5 seconds af ter
you f inish adjusting.
You will hear a beep when maximum
or minimum brightness is reached.
You will also hear a beep when the
maximum level is canceled by
turning the knob a click to the lef t.
On RDX with Technology Package
model
On RDX model
Instrument Panel Brightness
124
INSTRUMENT PANEL BRIGHTNESS
CONTROL KNOB U.S. model is shown
U.S. model is shown
——
y

y
() y
y

The rear window def ogger clears f og,
frost,andthinicefromthewindow.
Push the def ogger button to turn it
onandoff.Pushingthisbuttonalso
turns the mirror heaters on and of f .
The indicator in the button comes on
to show the def ogger is on.If you do not turn it of f , the def ogger
will automatically shut itself of f af ter
a certain period depending on the
ambient temperature. It also shuts
of f when you turn of f the ignition
switch. You have to turn it on again
when you restart the vehicle.
In cold weather, the def ogger will
not automatically shut itself of f . You
must manually shut of f the rear
window def ogger when it is no
longer needed.
Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side-to-side. Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
Push the button between the center
vents to turn on the hazard warning
lights (f our-way f lashers). This
causes all outside turn signals and
both indicators in the instrument
panel to f lash. Use the hazard
warning lights if you need to park in
a dangerous area near heavy traffic,
or if your vehicle is disabled.
Rear Window Def ogger
Hazard Warning Button
Rear Window Def ogger, Hazard Warning Button
Inst rument s and Cont rols
125
——
y

y
() y
y

Make any steering wheel adjustment
bef ore you start driving.Push the lever under the steering
column all the way down.
Move the steering wheel so it
points toward your chest, not
toward your f ace. Make sure you
can see the instrument panel
gauges and indicators. The master key fits all the locks on
your vehicle. The valet key works
only in the ignition and the door
locks. You can keep the glove box
and console compartment locked
when you leave your vehicle and the
valet key at a parking f acility.
Push the lever up to lock the
steering wheel in position.
Make sure you have securely
locked the steering wheel in place
by trying to move it up, down, in,
and out.
1.
2. 3.
4.
Steering Wheel A djustment, K eys and L ocks
Steering Wheel A djustment
K eys
126
LEVERVALET KEY
(Light Gray)
KEY
NUMBER
TAG MASTER KEYS
WITH REMOTE
TRANSMITTER
Adjusting the steering wheel
position while driving may
cause you to lose control of the
vehicle and be seriously injured
inacrash.
Adjust the steering wheel only
when the vehicle is stopped.
——
