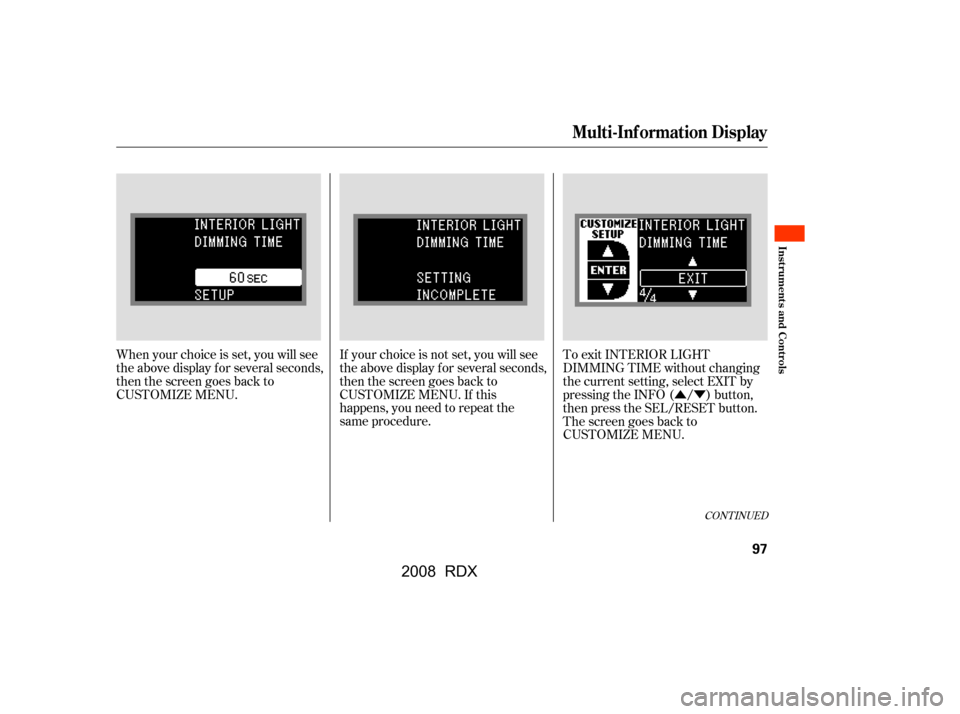

To exit INTERIOR LIGHT
DIMMING TIME without changing
the current setting, select EXIT by
pressing the INFO ( / ) button,
then press the SEL/RESET button.
The screen goes back to
CUSTOMIZE MENU.
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU.
If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
CONT INUED
Multi-Inf ormation Display
Inst rument s and Cont rols
97
\f—\f—\f
y
y
()
\fy\f
\fy
2008 RDX

ÛÝ ÛÝ

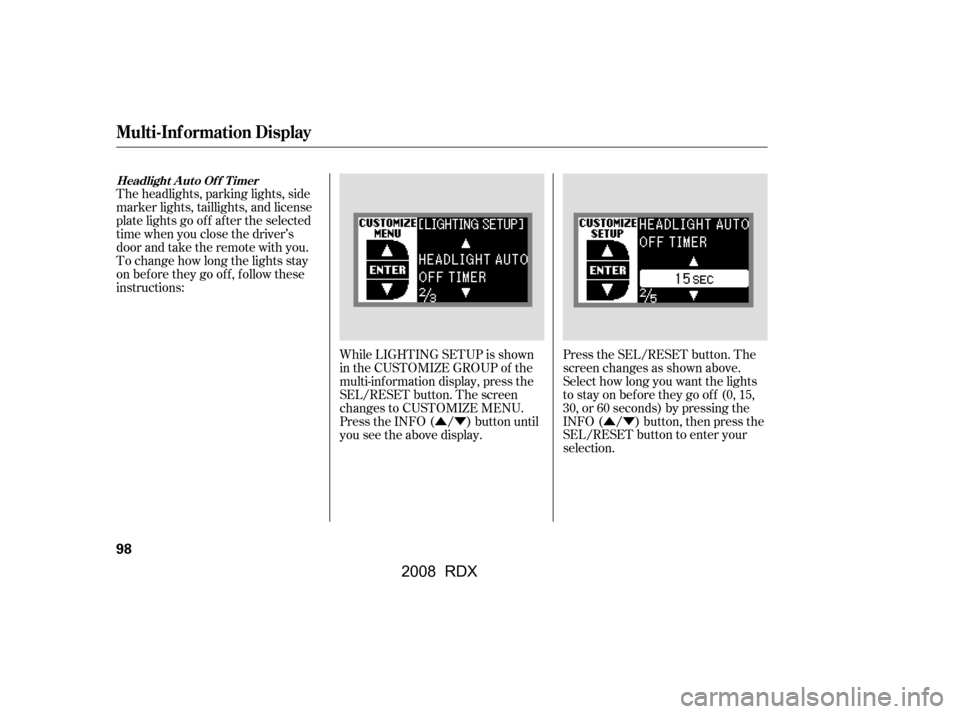

The headlights, parking lights, side
marker lights, taillights, and license
plate lights go of f af ter the selected
time when you close the driver’s
door and take the remote with you.
To change how long the lights stay
on before they go off, follow these
instructions:
While LIGHTING SETUP is shown
in the CUSTOMIZE GROUP of the
multi-inf ormation display, press the
SEL/RESET button. The screen
changes to CUSTOMIZE MENU.
Press the INFO ( / ) button until
you see the above display.Press the SEL/RESET button. The
screen changes as shown above.
Select how long you want the lights
to stay on bef ore they go of f (0, 15,
30, or 60 seconds) by pressing the
INFO ( / ) button, then press the
SEL/RESET button to enter your
selection.
Headlight A uto Of f T imer
Multi-Inf ormation Display
98
\f—\f—\f
y
y
()
\fy\f
\fy
2008 RDX

ÛÝ
To exit HEADLIGHT AUTO OFF
TIMER without changing the
current setting, select EXIT by
pressing the INFO ( / ) button,
then press the SEL/RESET button.
The screen goes back to
CUSTOMIZE MENU.
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU.
If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
Multi-Inf ormation Display
Inst rument s and Cont rols
99
\f—\f—\f
y
y
()
\fy\f
\fy
2008 RDX

ÛÝÛ
Ý
ÛÝ
ÛÝ
There are five settings to choose
f rom in the door setup:AUTO DOOR LOCK
DOOR LOCK MODE
SECURITY RELOCK TIMER
AUTO DOOR UNLOCK
While CUSTOMIZE GROUP is
shown in the multi-inf ormation
display, select DOOR SETUP by
pressing INFO ( / ) button, then
press the SEL/RESET button.
Each time you press the INFO ( / ) button, the screen changes as
shown in the illustration. Press the
INFO ( / ) button until you see
the setting you want to customize,
then press the SEL/RESET button
to enter your selection. KEYLESS LOCK
ACKNOWLEDGEMENT
Door Setup
Multi-Inf ormation Display
100
: Press the SEL/
RESET button
or the Select/
Reset knob
: Press the INFO ( / ) button or
rotate the
Select/Reset knob See page101
Seepage103
Seepage105 Seepage107
Seepage109
\f—\f—\f
y
\fy
()
\fy\f
\fy
2008 RDX

µµ ÛÝ
µ

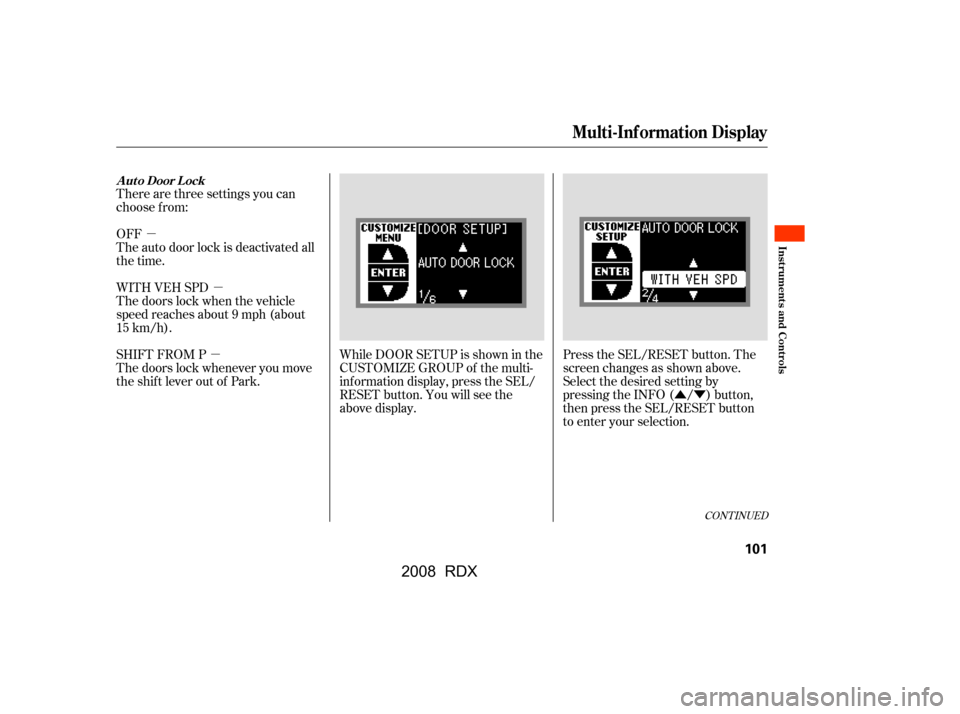

There are three settings you can
choose f rom:
OFF
The auto door lock is deactivated all
the time.
SHIFT FROM P
The doors lock whenever you move
the shift lever out of Park.
Press the SEL/RESET button. The
screen changes as shown above.
Select the desired setting by
pressing the INFO ( / ) button,
then press the SEL/RESET button
to enter your selection.
While DOOR SETUP is shown in the
CUSTOMIZE GROUP of the multi-
inf ormation display, press the SEL/
RESET button. You will see the
above display.
WITH VEH SPD
The doors lock when the vehicle
speed reaches about 9 mph (about
15 km/h).
CONT INUED
A ut o Door L ock
Multi-Inf ormation Display
Inst rument s and Cont rols
101
\f—\f—\f
y


y
()
\fy\f
\fy
2008 RDX

ÛÝ

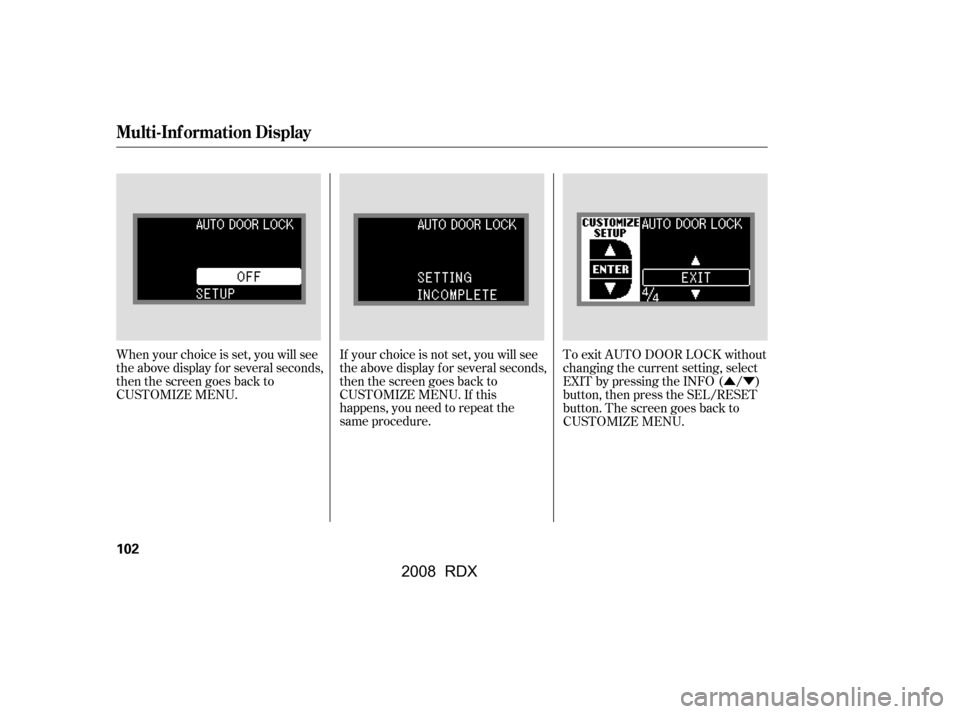

To exit AUTO DOOR LOCK without
changing the current setting, select
EXIT by pressing the INFO ( / )
button, then press the SEL/RESET
button. The screen goes back to
CUSTOMIZE MENU.
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU.
If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
Multi-Inf ormation Display
102
\f—\f—\f
y

y
()
\fy\f
\fy
2008 RDX

Û
Ý
ÛÝ Press the SEL/RESET button. The
screen changes as shown above.
Select DRIVER DOOR or ALL
DOORS by pressing the INFO ( /
) button, then press the SEL/
RESET button to enter your
selection.
While DOOR SETUP is shown in the
CUSTOMIZE GROUP of the multi-
inf ormation display, press the SEL/
RESET button. The screen changes
to CUSTOMIZE MENU. Press the
INFO ( / ) button until you see
the above display.
To select whether the driver’s door
unlocks or all the doors unlock when
you unlock the doors with the
remote transmitter or the key, follow
these instructions.
CONT INUED
Door L ock Mode
Multi-Inf ormation Display
Inst rument s and Cont rols
103
\f—\f—\f
y
y
()
\fy\f
\fy
2008 RDX

ÛÝ

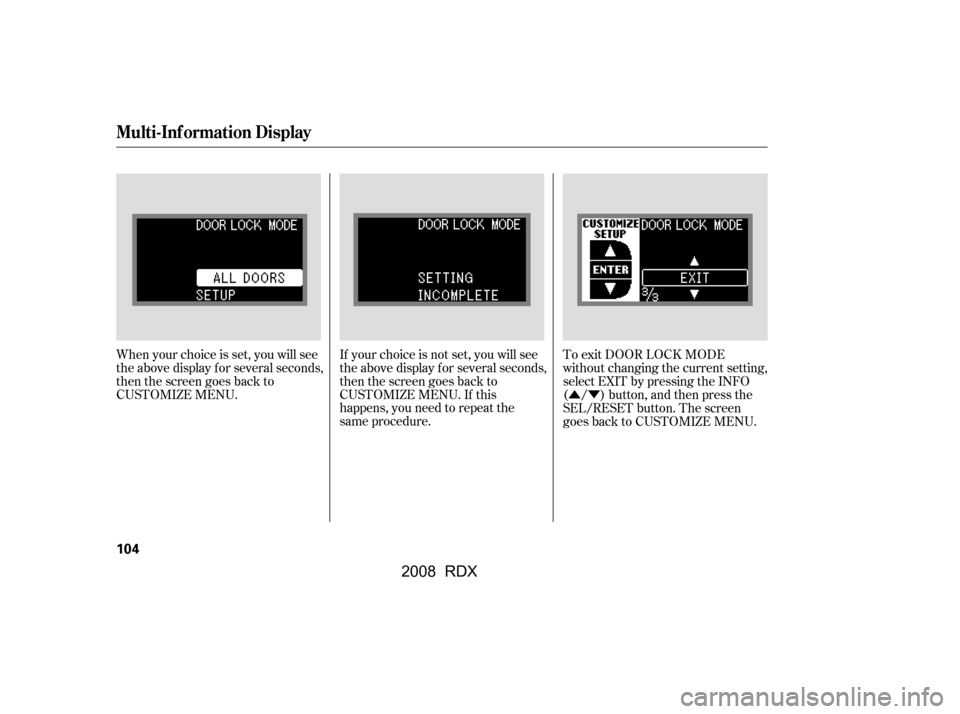

To exit DOOR LOCK MODE
without changing the current setting,
select EXIT by pressing the INFO
( / ) button, and then press the
SEL/RESET button. The screen
goes back to CUSTOMIZE MENU.
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU.
If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
Multi-Inf ormation Display
104
\f—\f—\f
y
y
()
\fy\f
\fy
2008 RDX

ÛÝ
ÛÝ Press the SEL/RESET button. The
screen changes as shown above.
Select ON or OFF by pressing the
INFO ( / ) button, then press the
SEL/RESET button to enter your
selection.
While DOOR SETUP is shown in the
CUSTOMIZE GROUP of the multi-
inf ormation display, press the SEL/
RESET button. The screen changes
to CUSTOMIZE MENU. Press the
INFO ( / ) button until you see
the above display.
When you press the UNLOCK
button on the remote transmitter to
unlock the doors and the tailgate, the
exterior lights blink twice to verif y
that the doors and the tailgate are
unlocked and the security system is
turned off.
When you push the LOCK button on
the remote transmitter, some
exterior lights f lash, and a beeper
sounds when you push the LOCK
button again within 5 seconds to
verify that the doors and the tailgate
arelockedandthesecuritysystem
has set (see page ). You can
customize the exterior lights not to
f lash and the beeper not to sound.
127
CONT INUED
Multi-Inf ormation Display
K eyless L ock A cknowledgement
Inst rument s and Cont rols
105
\f—\f—\f
y
y
()
\fy\f

\fy
2008 RDX

ÛÝ
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU. If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.To exit KEYLESS LOCK
ACKNOWLEDGEMENT without
changing the current setting, select
EXIT by pressing the INFO ( / )
button, then press the SEL/RESET
button. The screen goes back to
CUSTOMIZE MENU.
Multi-Inf ormation Display
106
\f—\f—\f
y
y
()
\fy\f


y
