Acura RDX 2008 Owners Manual

ÛÝ
There are three language selections
you can make: English, French, and
Spanish. To choose the language you
want, f ollow these instructions:
While METER SETUP is shown in
the CUSTOMIZE GROUP of the
multi-inf ormation display, press the
SEL/RESET button. You will see the
above display.Select the desired language by
pressing the INFO ( / ) button,
then enter your selection by pressing
the SEL/RESET button.
CONT INUED
L anguage Select ion
Multi-Inf ormation Display
Inst rument s and Cont rols
87
\f—\f—\f
y
y
()
\fy\f\fy
2008 RDX

ÛÝ
To exit LANGUAGE SELECTION
without changing the current setting,
select EXIT by pressing the INFO
( / ) button, then press the SEL/
RESET button. The screen goes
back to CUSTOMIZE MENU.
All messages on the multi-
inf ormation display will be shown in
the language you selected.
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU. If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
Multi-Inf ormation Display
88
\f—\f—\f
y
y
()
\fy\f\fy
2008 RDX

Û
Ý
ÛÝ Press the SEL/RESET button. The
screen changes as shown above. The
highlighted number is the current
setting above or below the outside
temperature. Press the INFO ( /
) button repeatedly until the
number you want appears, then
press the SEL/RESET button to
enter your selection.
If you sometimes f ind that the
temperature reading is a f ew
degrees above or below the actual
temperature, you can adjust it by
f ollowing these instructions:
While METER SETUP is shown in
the CUSTOMIZE GROUP of the
multi-inf ormation display, press the
SEL/RESET button. The screen
changes to CUSTOMIZE MENU.
Press the INFO ( / ) button until
you see the above display.
CONT INUED
A djust Outside T emp. Display
Multi-Inf ormation Display
Inst rument s and Cont rols
89
U.S.
Canada
\f—\f—\f
y
y
()
\fy\f\fy
2008 RDX

ÛÝ
To exit ADJUST OUTSIDE TEMP.
DISPLAY without changing the
current setting, select EXIT by
pressing the INFO ( / ) button,
then press the SEL/RESET button.
The screen goes back to
CUSTOMIZE MENU.
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU.
If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
Multi-Inf ormation Display
90
U.S.
Canada
\f—\f—\f
y
y
()
\fy\f\fy
2008 RDX

ÛÝÛÝ
While METER SETUP is shown in
the CUSTOMIZE GROUP of the
multi-inf ormation display, press the
SEL/RESET button. The screen
changes to CUSTOMIZE MENU.
Press the INFO ( / ) button until
you see the above display.
To cause Trip A and AVG. FUEL A
to reset every time you ref uel your
vehicle, f ollow these instructions:
Press the SEL/RESET button. The
screen changes as shown above.
Select ON or OFF by pressing the
INFO ( / ) button, then press the
SEL/RESET button to enter your
selection.
CONT INUED
T rip A & A vg. Fuel Reset wit h Ref uel
Multi-Inf ormation Display
Inst rument s and Cont rols
91
\f—\f—\f
y
\fy
()
\fy\f\fy
2008 RDX

ÛÝ
To exit TRIP A & AVG. FUEL
RESET with REFUEL without
changing the current setting, select
EXIT by pressing the INFO ( / )
button, then press the SEL/RESET
button. The screen goes back to
CUSTOMIZE MENU.
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU.
If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
Multi-Inf ormation Display
92
\f—\f—\f
y
\fy
()
\fy\f\fy
2008 RDX

ÛÝ
µ
µ
ÛÝ
µ
While METER SETUP is shown in
the CUSTOMIZE GROUP of the
multi-inf ormation display, press the
SEL/RESET button. The screen
changes to CUSTOMIZE MENU.
Press the INFO ( / ) button until
you see the above display.
TRIP A The elapsed time is reset
when the Trip A is reset.
TRIP B The elapsed time is reset
when the Trip B is reset.
Press the SEL/RESET button. The
screen changes as shown above.
Select the desired setting by
pressing the INFO ( / ) button,
then press the SEL/RESET button
to enter your selection.
There are three elapsed time reset
choices you can make:
IGN RESET The elapsed time is
reset when you turn the ignition
switch to the LOCK (0) position.
CONT INUED
Elap. T ime Reset Condit ion
Multi-Inf ormation Display
Inst rument s and Cont rols
93
\f—\f—\f
y

y
()
\fy\f\fy
2008 RDX

ÛÝ
When your choice is set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU. If your choice is not set, you will see
the above display f or several seconds,
then the screen goes back to
CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.To exit ELAP. TIME RESET
CONDITION without changing the
current setting, select EXIT by
pressing the INFO ( / ) button,
then press the SEL/RESET button.
The display goes back to
CUSTOMIZE MENU.
Multi-Inf ormation Display
94
\f—\f—\f
y
y
()
\fy\f\fy
2008 RDX

ÛÝÛ
Ý
ÛÝ
ÛÝ
There are two settings in the lighting
setup:INTERIOR LIGHT
DIMMING TIME
HEADLIGHT AUTO OFF TIMER
While CUSTOMIZE GROUP is
shown on the multi-inf ormation
display, select LIGHTING SETUP by
pressing the INFO ( / ) button,
then press the SEL/RESET button.
Each time you press the INFO ( / ) button, the screen changes as
shown in the illustration. Press the
INFO ( / ) button until you see
the setting you want to customize,
then press the SEL/RESET button
to enter your selection.
CONT INUED
Lighting Setup
Multi-Inf ormation Display
Inst rument s and Cont rols
95
: Press the SEL/RESET button or the Select/Reset
knob : Press the INFO ( / )
button or rotate the
Select/Reset knob See
page
96
See
page
98
\f—\f—\f
y
y
()
\fy\f
\f\fy
2008 RDX

ÛÝ

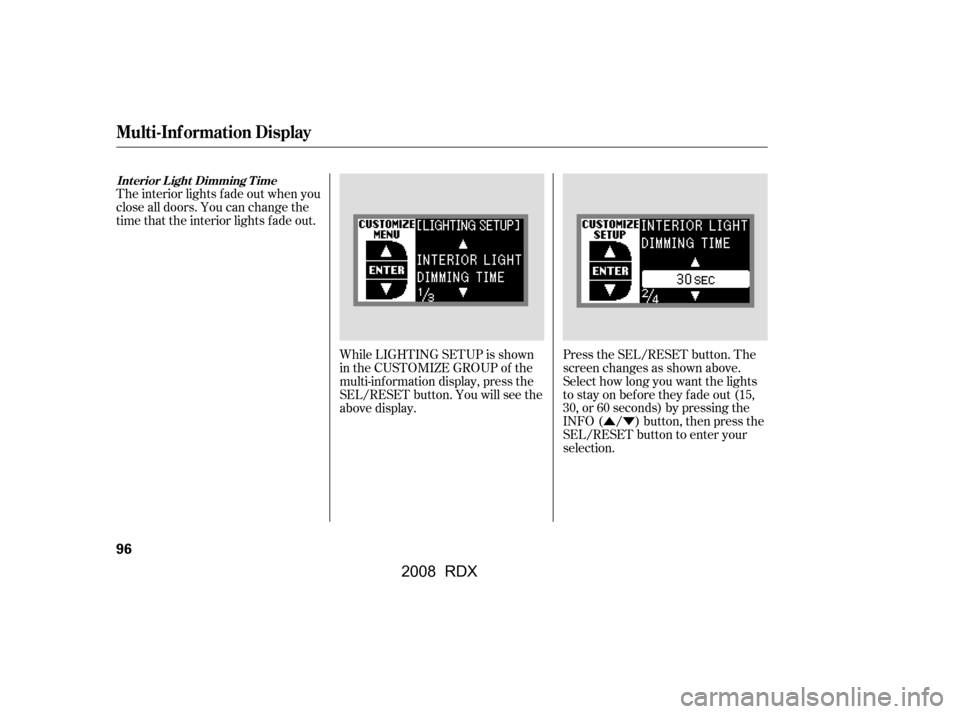

While LIGHTING SETUP is shown
in the CUSTOMIZE GROUP of the
multi-inf ormation display, press the
SEL/RESET button. You will see the
above display.
Press the SEL/RESET button. The
screen changes as shown above.
Select how long you want the lights
to stay on bef ore they f ade out (15,
30, or 60 seconds) by pressing the
INFO ( / ) button, then press the
SEL/RESET button to enter your
selection.
The interior lights f ade out when you
close all doors. You can change the
time that the interior lights fade out.
Int erior L ight Dimming T ime
Multi-Inf ormation Display
96
\f—\f—\f
y
y
()
\fy\f
\f
y
2008 RDX
