If you cannot drive the vehicle
without f ixing the problem, and you
do not have a spare fuse, take a fuse
of the same rating or a lower rating
f rom one of the other circuits. Make
sureyoucandowithoutthatcircuit
temporarily (such as the accessory
power socket or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.
Look f or a blown wire inside the
f use. If it is blown, replace it with
oneof thesparefusesof thesame
rating or lower. The spare f uses
are provided back of the under-
hood f use cover.
Check the smaller f uses in the
under-hood f use box and all the
fuses in the interior fuse boxes by
pulling out each one with the f use
pullerprovidedonthebackof the
under-hood f use box cover.
4. 5.
Fuses
T aking Care of t he Unexpect ed
387
BLOWN
FUSE PULLER
\f—\f—\f
y

y
()
\fy\fy
2008 RDX

If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your vehicle.
Leave the blown fuse in that
circuit and have your vehicle
checked by a qualif ied technician.
If the audio f use is removed, the
audio system will disable itself . The
next time you turn on the audio you
will see ‘‘ ’’ on the display.
Use the preset bars or buttons
(depending on models) to enter the
f ive-digit code (see page ).
When the audio system is disabled,
the clock setting in the audio system
will be canceled. You will need to
reset the clock (see page ). If the navigation system f use is
removed, the navigation system will
disableitself.Thenexttimeyouturn
on the ignition switch, the system
will require you to enter a PIN
bef ore it can be used. Ref er to the
Navigation System Owner’s Manual.
6.
232188
On RDX model On RDX with technology Package
model
Fuses
388
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a
replacement f use with the proper rating
f or the circuit, install one with a lower
rating.
\f—\f—\f
y

y
()
\fy\fy
2008 RDX

´
µ
µ
µ
µ
No. No. Circuits ProtectedNo. Circuits Protected
Circuits Protected
Amps. Amps. Amps.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15 RR Wiper
OPDS
Meter
SRS
Right Headlight High
Left Headlight High
Small Lights (Interior)
Small Lights (Exterior) 16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38Right Headlight Low
Left Headlight Low
Headlight High Main
Small Lights Main
TPMS
Headlight Low Main
Not Used
Not Used
Moonroof
Door Lock
Driver’s Power Window
Not Used
Accessory Socket (Console
Compartment)
BACC
Passenger’s Power Window
Radio Amplifier
Right Rear Power Window
Left Rear Power Window
Not Used
Radio
HAC
Daytime Running Light
FR Wiper
SH-AWD
Fuel Pump
ACG
ABS/VSA
Heated Seat
FR Fog Lights
Driver’s Power Seat Lumbar
Support
7.5 A
20 A
15 A
7.5 A 15 A
20 A
7.5 A 10 A
7.5 A
7.5 A 10 A
10 A
10 A
7.5 A 15 A 15 A
15 A
20 A
20 A
7.5 A 30 A
20 A
20 A
20 A
15 A
15 A
20 A
20 A
20 A
20 A
7.5 A 10 A
7.5 A 30 A
Fuse Locations
T aking Care of t he Unexpect ed
389
INTERIOR FUSE BOX
\f—\f—\f
y


y
()
\fy\fy
2008 RDX

µ
µ
No. No.
No. Circuits Protected Circuits Protected Circuits Protected
Amps.
Amps.
Amps.
1
2
3
4
5
6
7
8
9
10 11
12
13
14
15
16
17
18
19
20
21
22
23
1 Electric Vacuum Pump Main Fuse
SH-AWD
Option Main
Ignition Switch Main
ABS/VSA Fail Safe
ABS/VSA Motor
Headlight Main
Power Window Main
Not Used
Main Fan Motor
Sub Fan Motor
Rear Defogger
Blower
Hazard
LAF
Stop & Horn
Power Seat (Recline)
Power Seat (Slide)
IGPS Oil Level
Not Used
Electric Vacuum Pump
IG Coil
FI Main
MG Clutch
DBW
Interior Light
Back Up
15 A
15 A
20 A
20 A
7.5 A
15 A
15 A
15 A
7.5 A 15 A
7.5 A 10 A
7.5 A
100 A
30 A
80 A
50 A
20 A
40 A
50 A
40 A
30 A
30 A
30 A
40 A
15 A
Fuse Locations
390
Primary Fuse Box
Secondary Fuse Box
UNDER-HOOD FUSE BOXES
PRIMARY
SECONDARY
\f—\f—\f
y

y
()
\fy\fy
2008 RDX

The operator will load
your vehicle on the back of a truck.
Any other method of towing will
damage the drive system. When you
contact the towing agency, inf orm
them a f lat-bed is required.
If your vehicle needs to be towed,
call a prof essional towing service or
organization. Never tow your vehicle
with just a rope or chain. It is very
dangerous.
The only way you can saf ely tow
your vehicle is with f lat-bed
equipment.
Emergency Towing
T aking Care of t he Unexpect ed
391
Towing with only two tires on the
ground will damage parts of the
all-wheel-drive system. Your vehicle
should be transported on a f lat-bed
truck or trailer.
\f—\f—\f
y
\fy
()
\fy\fy
2008 RDX

392
\f—\f—\f
y
\fy
()
\fy\fy
2008 RDX

µ
Thediagramsinthissectiongive
you the dimensions and capacities of
your vehicle and the locations of the
identif ication numbers. It also
includes inf ormation you should
know about your vehicle’s tires and
emissions control systems.
................
Identif ication Numbers .394
................................
Specif ications .396
DOT Tire Quality Grading
......................
(U.S. Vehicles) .398
Unif orm Tire Quality ..................................
Grading .398
.................................
Treadwear .398
......................................
Traction .398
.............................
Temperature .399
.................................
Tire Labeling .400
Tire Pressure Monitoring System
(TPMS) Required Federal ............................
Explanation .401 .......................
Emissions Controls .403
.....................
The Clean Air Act .403
Crankcase Emissions Control
....................................
System .403
Evaporative Emissions Control ....................................
System .403
Onboard Ref ueling Vapor ................................
Recovery .403
...
Exhaust Emissions Controls .404
....................
PGM-FI System .404
Ignition Timing Control
................................
System .404
Three Way Catalytic ...........................
Converter .404
....................
Replacement Parts .404
..
Three Way Catalytic Converter .405
........................
Emissions Testing .406
T echnical Inf ormation
Technical Inf ormation
393
\f—\f—\f
y

\fy
()
\fy\fy
2008 RDX

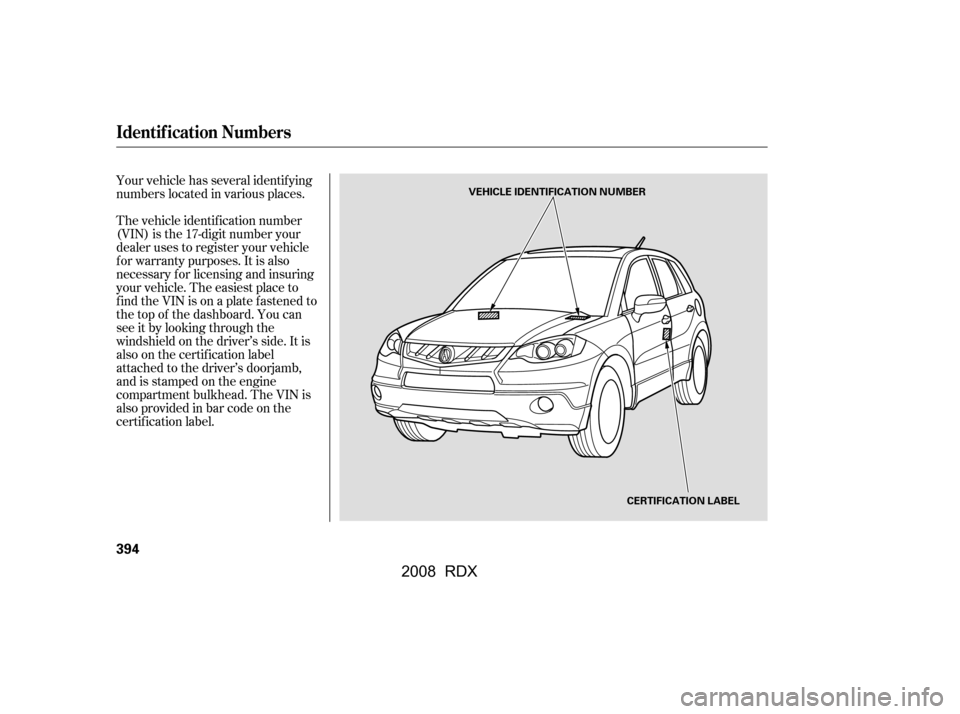

Your vehicle has several identif ying
numbers located in various places.
The vehicle identif ication number
(VIN) is the 17-digit number your
dealer uses to register your vehicle
f or warranty purposes. It is also
necessary f or licensing and insuring
your vehicle. The easiest place to
find the VIN is on a plate fastened to
the top of the dashboard. You can
seeitbylookingthroughthe
windshield on the driver’s side. It is
also on the certification label
attached to the driver’s doorjamb,
and is stamped on the engine
compartment bulkhead. The VIN is
also provided in bar code on the
certif ication label.
Identif ication Numbers
394
VEHICLE IDENTIFICATION NUMBERCERTIFICATION LABEL
\f—\f—\f
y

y
()
\fy\fy
2008 RDX

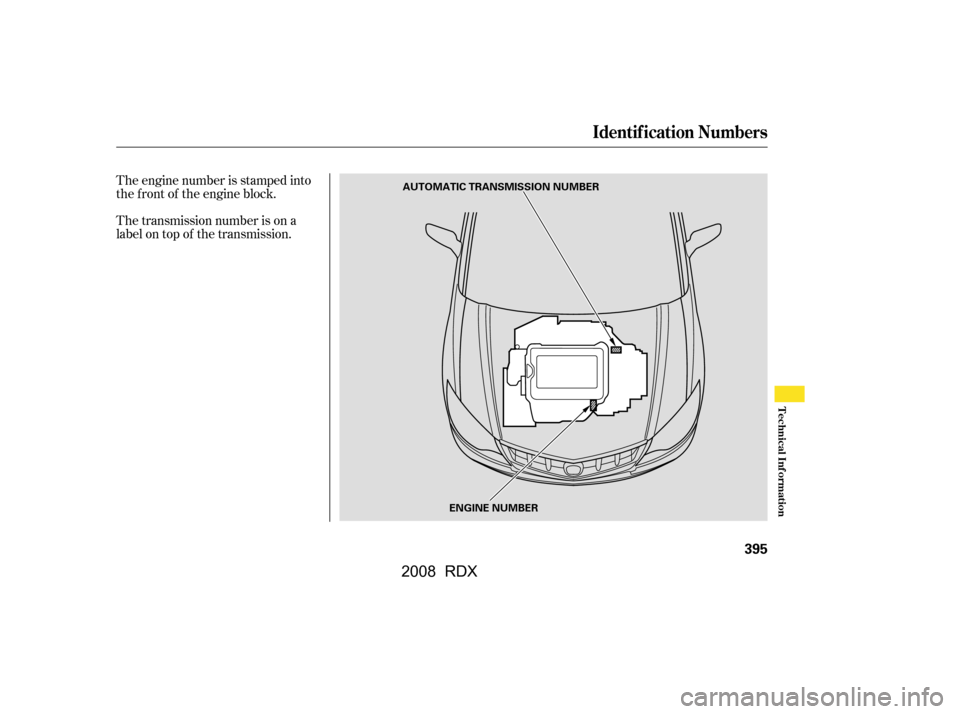

The transmission number is on a
label on top of the transmission.
The engine number is stamped into
the f ront of the engine block.
Identif ication Numbers
Technical Inf ormation
395
AUTOMATIC TRANSMISSION NUMBERENGINE NUMBER
\f—\f—\f
y

y
()
\fy\f\f\fy
2008 RDX

ÃŽ
ÃŽ
ÃŽ
ÃŽ
Specif ications
396
Dimensions
Weights
Engine
Seating CapacitiesCapacities
Length
Width
Height
Wheelbase
Track 65.2 in (1,655 mm)
104.3 in (2,650 mm)
61.9 in (1,572 mm)
62.6 in (1,590 mm)
Gross vehicle weight rating See the certification label attached to the driver’s doorjamb.
Type
BorexStroke
Displacement
Compression ratio
Spark plugs 3.39 x 3.90 in (86.0 x 99.0 mm)
140.4 cu-in (2,300 cm
)
8.8 : 1
180.7 in (4,590 mm)
73.6 in (1,870 mm)
SILKR8A-S 4.8 US qt (4.5
)
2.6 US qt (2.5)
2.9 US qt (2.7
)
2.6 US qt (2.5)
8.2 US qt (7.8
)
3.5 US qt (3.3)
2.22 US gal (8.4)
1.85 US gal (7.0)
18.0 US gal (68
)
5.0 US qt (4.7
)
4.8 US qt (4.5)
6.1 US qt (5.8)
Excluding the oil remaining in the engine
Including the coolant in the reserve tank and that remaining in the
engine
Reserve tank capacity:
0.18 US gal (0.7
)
Total
Front
Rear 0.45 US qt (0.43
)
0.48 US qt (0.45)
5
2
3 Fuel tank
Engine oil
Engine
coolant
Automatic
transmission
fluid
Rear
differential
fluid
Transfer
assembly
fluid
Windshield
washer
reservoir
Water cooled 4-stroke DOHC
i-VTEC 4-cylinder gasoline engine with turbo charger, intercooler Approx.
Front
Rear
1:
2:
(NGK) Change
Total
Change
Total
Change
Total
Change
Total
U.S. Vehicles
Canada
Vehicles
Change
Including filter
Without filter
Total
2
1
\f—\f—\fy
\fy
()
\fy\f\f
y
