Attach the tether strap hook to the
tether anchor, then tighten the
strap as instructed by the child
seat maker.
Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure.To install a LATCH-compatible child
seat in the rear center seating
position, use the center lower
anchorsasshownabove.
Follow step 1 through 8 as described
previously to secure the child seat.
When you install the child seat in the
rear center seating position, you
cannotusetheseatbeltbehindthe
driver’s seat.
Remove the head restraint (see page
).Make sure the removed head
restraint is secured in the cargo area.
Reinstall the head restraint when the
child seat is removed.
7.
8.
134
CONT INUED
Using t he Cent er L A T CH
Installing a Child Seat
Driver and Passenger Saf ety
47

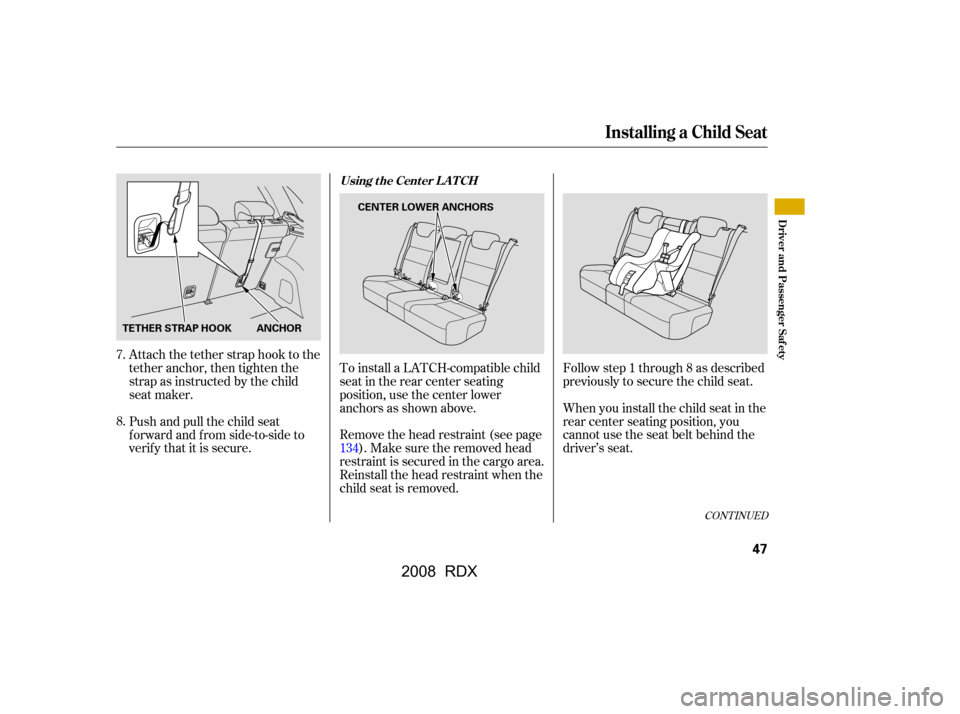

CENTER LOWER ANCHORS
TETHER STRAP HOOK ANCHOR
\f—\f—\f
y
\fy
()
\fy\f\fy
2008 RDX

If you want to install two child seats
in the back seats, place each child
seat in the outer seat, as shown in
the above illustration.Do not attach two child seat
connectors to a single lower anchor
at a time.
The LATCH system or the child
seats might be damaged if you try to
install three child seats in the rear
seats.
Installing a Child Seat
48
\f—\f—\f
y
y
()
\fy\f\fy
2008 RDX

When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/

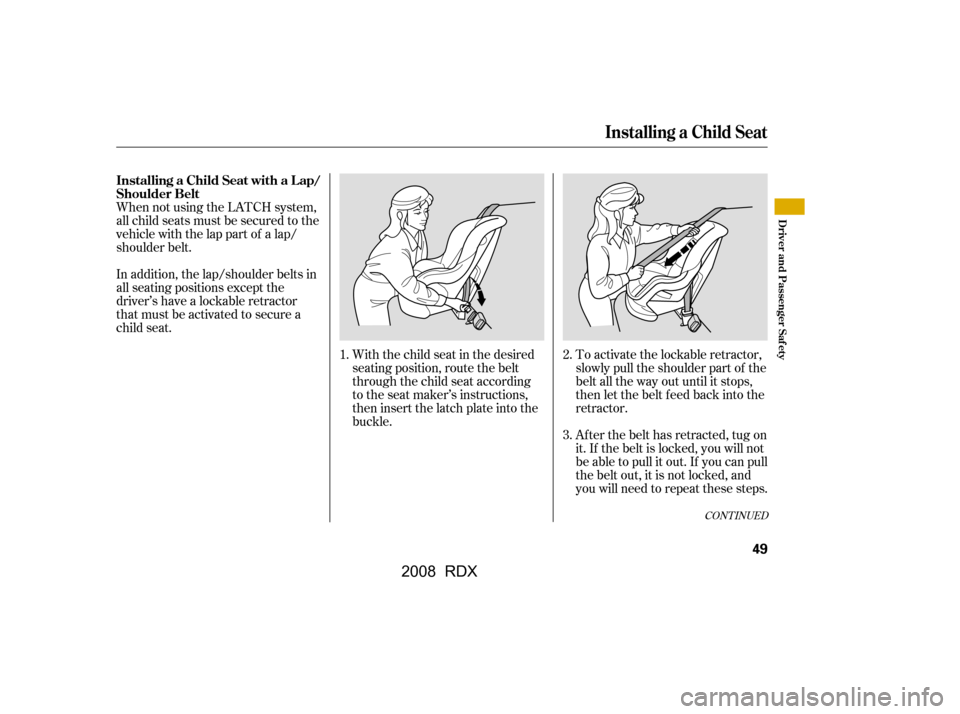

shoulder belt.With the child seat in the desired
seating position, route the belt
through the child seat according
to the seat maker’s instructions,
then insert the latch plate into the
buckle.To activate the lockable retractor,
slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt f eed back into the
retractor.
Af ter the belt has retracted, tug on
it. If the belt is locked, you will not
be able to pull it out. If you can pull
thebeltout,itisnotlocked,and
you will need to repeat these steps.
In addition, the lap/shoulder belts in
all seating positions except the
driver’s have a lockable retractor
that must be activated to secure a
child seat.
2.
1.
3.
CONT INUED
Installing a Child Seat with a L ap/
Shoulder Belt
Installing a Child Seat
Driver and Passenger Saf ety
49
\f—\f—\f
y
\fy
()
\fy\f\fy
2008 RDX

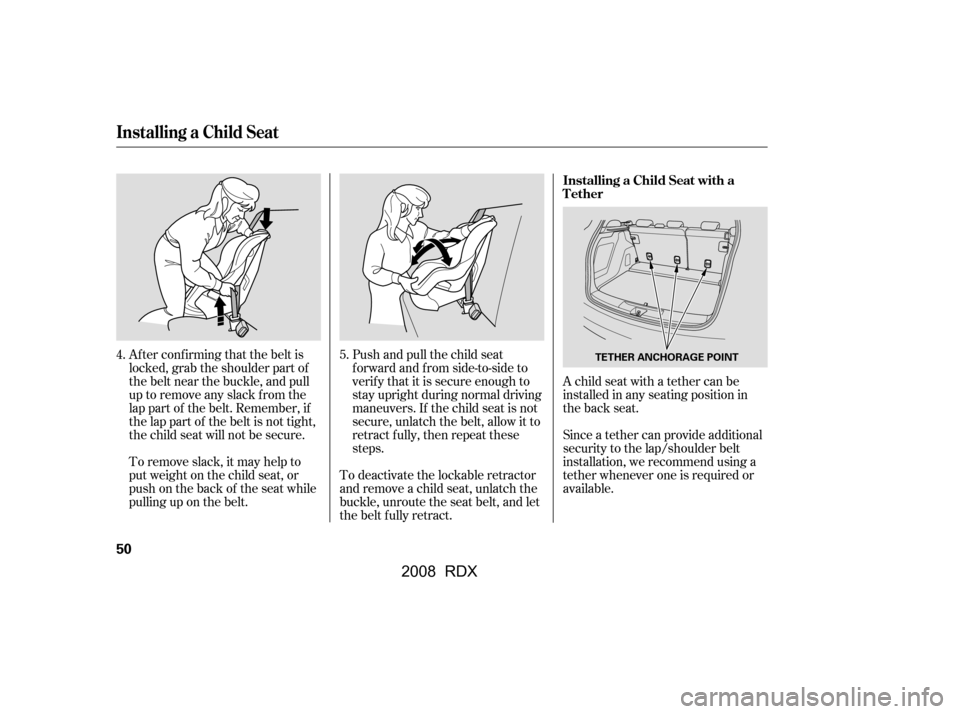

Af ter conf irming that the belt is
locked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.Push and pull the child seat
f orward and f rom side-to-side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract f ully, then repeat these
steps.
To remove slack, it may help to
putweightonthechildseat,or
push on the back of the seat while
pulling up on the belt. To deactivate the lockable retractor
and remove a child seat, unlatch the
buckle, unroute the seat belt, and let
the belt fully retract. A child seat with a tether can be
installed in any seating position in
the back seat.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.
4. 5.
Installing a Child Seat
Installing a Child Seat with a
Tether
50
TETHER ANCHORAGE P
OINT
\f—\f—\f
y

\fy
()
\fy\f\fy
2008 RDX

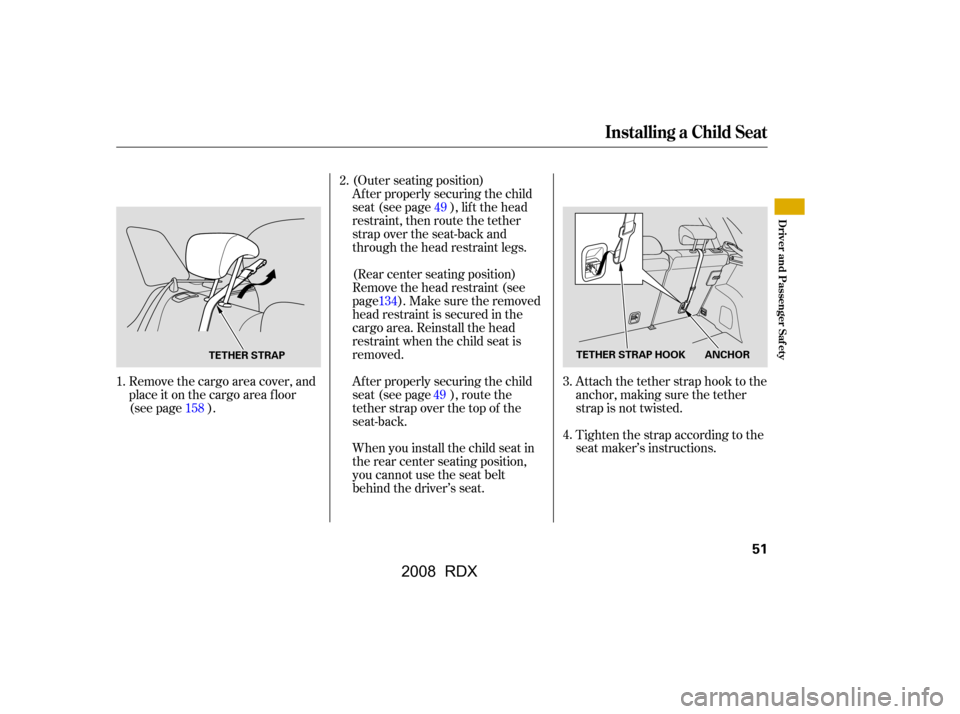

Tighten the strap according to the
seat maker’s instructions.
Attach the tether strap hook to the
anchor, making sure the tether
strap is not twisted.
Remove the cargo area cover, and
place it on the cargo area f loor
(see page ). Af ter properly securing the child
seat (see page ), lif t the head
restraint, then route the tether
strap over the seat-back and
through the head restraint legs.
Remove the head restraint (see
page). Make sure the removed
head restraint is secured in the
cargo area. Reinstall the head
restraint when the child seat is
removed.
Af ter properly securing the child
seat (see page ), route the
tether strap over the top of the
seat-back.
When you install the child seat in
the rear center seating position,
you cannot use the seat belt
behind the driver’s seat.
1.
4.
2.
3.
(Outer seating position)
(Rear center seating position)
158 49
134 49
Installing a Child Seat
Driver and Passenger Saf ety
51
TETHER STRAP HOOK
TETHER STRAP ANCHOR
\f—\f—\f
y

y
()
\fy\f\fy
2008 RDX

When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster seat and wear a lap/shoulder
belt.
The f ollowing pages give
instructions on how to check proper
seat belt f it, what kind of booster
seat to use if one is needed, and
important precautions f or a child

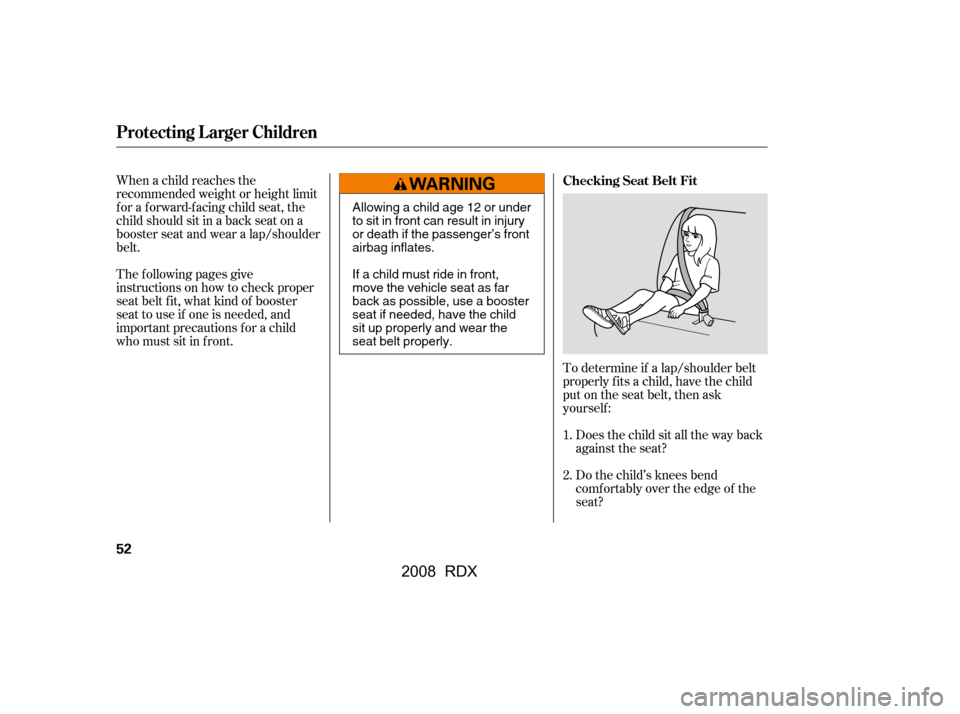

who must sit in f ront.To determine if a lap/shoulder belt
properly f its a child, have the child
put on the seat belt, then ask
yourself :Does the child sit all the way back
against the seat?
Do the child’s knees bend
comf ortably over the edge of the
seat?
1.
2.
Checking Seat Belt Fit
Protecting L arger Children
52
Allowing a child age 12 or under
to sit in front can result in injury
or death if the passenger’s front
airbag inflates.
If a child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.
\f—\f—\f
y
y
()
\fy\f\fy
2008 RDX

CONT INUED
Does the shoulder belt cross
between the child’s neck and arm?
Is the lap part of the belt as low as
possible, touching the child’s
thighs?
Will the child be able to stay
seated like this f or the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the
child needs to ride on a booster seat. A child who has outgrown a f orward- f acing child seat should ride in a
back seat and use a booster seat
until the lap/shoulder belt f its them
properly without the booster.Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
f ederal saf ety standards (see page
) and that you f ollow the booster
seat maker’s instructions. Some states and Canadian provinces
also require children to use a booster
seat until they reach a given age or
weight (e.g., 6 years or 60 lbs). Be
sure to check current laws in the
states or provinces where you intend
to drive.
3.
4.
5.
43
Protecting L arger Children
Using a Booster Seat
Driver and Passenger Saf ety
53
——
y
y
()
yy
2008 RDX

If a child who uses a booster seat
must ride in f ront, move the vehicle
seat as far back as possible and be
sure the child is wearing the seat
belt properly.
A child may continue using a booster
seat until the tops of their ears are
even with the top of the vehicle’s or
booster’s seat-back. A child of this
height should be tall enough to use
the lap/shoulder belt without a
booster seat.The National Highway Traffic Safety
Administration and Transport
Canada recommend that all children
aged 12 and under be properly
restrained in a back seat.
If the passenger’s front airbag
inf lates in a moderate to severe
f rontal collision, the airbag can cause
serious injuries to a child who is
unrestrained, improperly restrained,
sitting too close to the airbag, or out
of position.
A side airbag also poses risks. If any
part of a larger child’s body is in the
path of a deploying side airbag, the
child could receive possibly serious
injuries.Of course, children vary widely. And
while age may be one indicator of
when a child can saf ely ride in f ront,
there are other important f actors you
should consider.
Physically, a child must be large
enough f or the lap/shoulder belt to
properly f it (see pages and ). If
the seat belt does not f it properly,
with or without the child sitting on a
booster seat, the child should not sit
in f ront.
To saf ely ride in f ront, a child must
be able to f ollow the rules, including
sitting properly, and wearing the seat
belt properly throughout a ride.
1452
When Can a L arger Child Sit in
Front
Physical Size
Maturity
Protecting L arger Children
54
\f—\f—\f
y
y
()
\fy\f\fy
2008 RDX

If you decide that a child can saf ely
ride up f ront, be sure to:Caref ully read the owner’s manual,
and make sure you understand all
seat belt instructions and all saf ety
inf ormation.
Have the child sit up straight, back
against the seat, and feet on or
near the f loor.
Move the vehicle seat to the rear-
most position. Devices intended to
improve a child’s comf ort or
reposition the shoulder part of a
seat belt can make the belt less
ef f ective and increase the chance
of serious injury in a crash.
This could result
in serious neck injuries during a
crash.
Check that the child’s seat belt is
properly and securely positioned. If they do, they could be very seriously injured in a
crash.This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
Supervise the child. Even mature
children sometimes need to be
reminded to f asten the seat belts
or sit properly.Do not put any accessories on a seat belt.
Do not let a child wear a seat belt
across t he neck.
T wo children should never use thesame seat belt .
Do not let a child put the shoulder
part of a seat belt behind t he backor under t he arm.Additional Saf ety Precautions
Protecting L arger Children
Driver and Passenger Saf ety
55
\f—\f—\f
y

y
()
\fy\f\f\fy
2008 RDX

Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
f ollow the inf ormation on this page.
Have the exhaust system inspected
f or leaks whenever:High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in an accident
that may have damaged the
underside. With the tailgate open, airflow can
pull exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
tailgate open, open all the windows,
and set the climate control system as
shown below.
If you must sit in your parked vehicle
with the engine running, even in an
unconfined area, adjust the climate
control system as f ollows:
Select the f resh air mode.
Select the mode.
Set the f an speed to high.
Set the temperature control to a
comfortable setting.
1.
2.
3.
4.
Carbon Monoxide Hazard
56
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
\f—\f—\f
y
\f\fy
()
\fy\f\f
y
2008 RDX
