Acura RDX 2009 Owner's Manual

·µ
CONT INUED
The HomeLinkUniversal
Transceiver built into your vehicle
canbeprogrammedtooperateupto
three remote controlled devices
around your home, such as garage
doors, lighting, or home security
systems.
Bef ore programming your
HomeLink to operate a garage door
opener, conf irm that the opener has
an external entrapment protection
system, such as an ‘‘electronic eye,’’
or other saf ety and reverse stop
f eatures.
If your garage door was
manuf actured bef ore April 1, 1982,
you may not be able to program
HomeLink to operate it. These units
do not have safety features that
cause the motor to stop and reverse
it if an obstacle is detected during
closing, increasing the risk of injury.
Do not use HomeLink with any garage door opener that lacks saf ety
stop and reverse f eatures.
Units manuf actured between April 1,
1982 and January 1, 1993 may be
equipped with saf ety stop and
reverse f eatures. If your unit does
not have an external entrapment
protection system, an easy test to
conf irm the f unction and
perf ormance of the saf ety stop and
reverse f eature is to lay a 2 4
under the closing door. The door
should stop and reverse upon
contacting the piece of wood.
As an additional safety feature,
garage door openers manuf actured
af ter January 1, 1993 are required to
have external entrapment protection
systems, such as an electronic eye,
which detect an object obstructing
the door.
Refer to the safety information that
came with your garage door openerto test that the safety features are
f unctioning properly. If you do not
have this information, contact the
manuf acturer of the equipment.
Bef ore programming HomeLink to a
garage door or gate opener, make
sure that people and objects are out
of thewayof thedevicetoprevent
potential injury or damage.

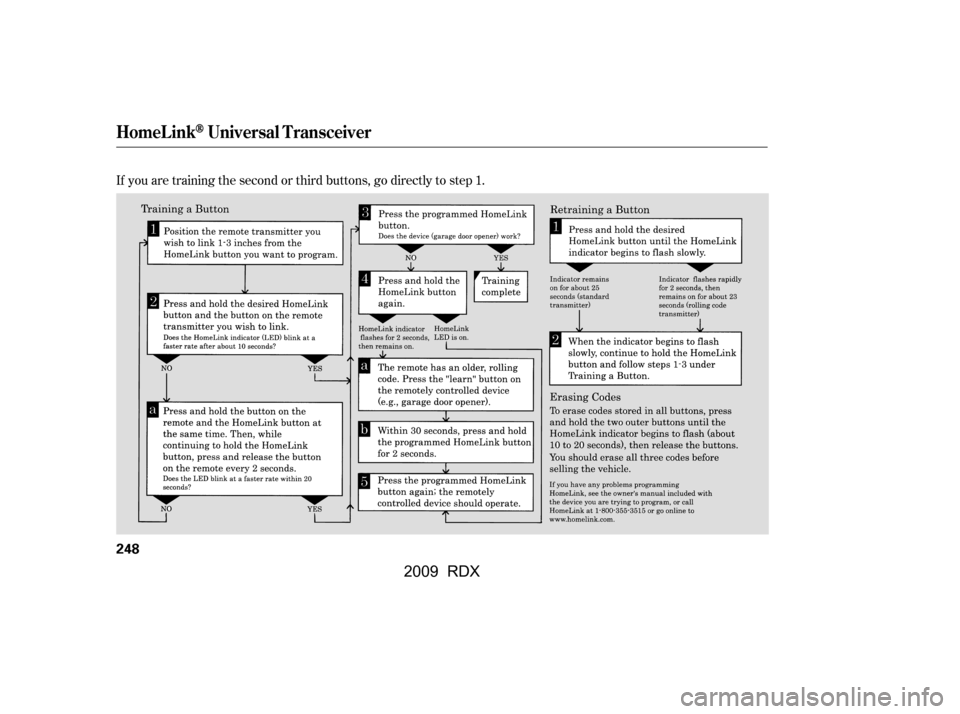

When programming a garage door
opener, park just outside the garage.
If you just
received your vehicle and have not
trained any of the buttons in
HomeLink bef ore, you should erase
any previously learned codes bef ore
training the first button.
Todothis,pressandholdthetwo
outside buttons on the HomeLink
transceiver for about 20 seconds,
until the red indicator f lashes.
Release the buttons, then proceed to
step 1.
HomeL inkUniversal Transceiver
General Saf ety Inf ormation
Important Saf ety PrecautionsT raining HomeL ink
Bef ore you begin
Features
247
\f—\f—

y
y
() \fy\fy
2009 RDX

If you are training the second or third buttons, go directly to step 1.
HomeL inkUniversal Transceiver
248
\f—\f—

y
y
() \fy\fy
2009 RDX

HomeLinkis a registered
trademark of Johnson Controls, Inc.As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
HomeL inkUniversal Transceiver
Features
249
\f—\f—

y
y
() \fy\fy
2009 RDX

Your vehicle is equipped with
Bluetooth
HandsFreeLink(HFL).
HFL uses Bluetooth
technology to
link your cell phone to your vehicle.
With HFL, you can place and receive
calls through your vehicle’s audio
system, without the distraction of
handling your cell phone. To use this
f eature, you need a Bluetooth-
compatible cell phone with the
Hands Free Prof ile. For more
inf ormation, and a list of compatible
cell phones, visit
, or call 1-888-528-7876.
In Canada, visit , or call
1-888-9-ACURA-9. The HFL is
available in English on U.S. models,
andinbothEnglishandFrenchon
Canadian models. To change the
language, see page . HFL recognizes simple voice
commands, such as phone numbers
and names. It uses these commands
to automatically dial, receive, and
store numbers. For more
inf ormation on voice control, see
UsingVoiceControlonpage.
Here are the main features of the
HFL. Instructions f or using the HFL
begin on page . Bluetooth is the wireless technology
that links your phone to the HFL.
TheHFLusesaClass2Bluetooth,
which means the maximum range
between your phone and vehicle is
30 f eet (10 meters).
Bluetooth
is a registered trademark
of Bluetooth SIG, Inc.
To use the HFL, your phone must
have approved Bluetooth capability
along with the Hands Free Prof ile.
This type of phone is available
through many phone makers and
cellular carriers. You can also find an
approved phone by visiting ,orby
calling the HandsFreeLink
consumer support at 1-888-528-7876.
In Canada, visit , or call
1-888-9-ACURA-9.
The HFL can store up to 50 names
and phone numbers in its phonebook.
Withalinkedphone,youcanthen
automatically dial any name or
number in the phonebook.
Here are the main components of
the HFL:
The HFL microphone is on the
ceiling console. The microphone is
shared with the navigation system.
With a linked phone, the HFL allows
you to send and receive calls in your
vehicle without holding the phone.
268
251 253
www.acura.com/
handsf reelink www.acura.ca www.acura.com/handsfree
link
www.acura.ca
BluetoothHandsFreeL ink
Voice Control
Bluetooth
Wireless Technology
Microphone
Phonebook
Incoming/Outgoing Calls
250
\f—\f—

y
y
() \fy\fy
2009 RDX

Here is the function of each HFL
button:
HFLTalk:Thisbuttonisusedbefore
you give a command, to answer
incoming calls, and to conf irm
system inf ormation.
HFLBack:Thisbuttonisusedto
end a call, go back to the previous
voice control command, and to
cancel an operation.
To operate the HFL, use the HFL
Talk and Back buttons on the left
side of the steering wheel.
Below the HFL buttons is another
set of voice control buttons f or the
navigation, climate control, and audio
systems. To use the voice control
system, ref er to the navigation
system manual.
When the HFL is in use, the sound
comes through the vehicle’s f ront
audio system speakers. If the audio
system is in use while operating
either of the HFL buttons or making
a call, the HFL over-rides the audio
system. To change the volume level,
use the audio system volume knob,
or the steering wheel volume
controls.
On RDX with Technology Package
model
HFL Buttons
Audio System
BluetoothHandsFreeL ink
Features
251
HFL BACK
BUTTON
VOICE CONTROL BUTTONS HFL TALK
BUTTON
\f—\f—

y
\fy
() \fy\fy
2009 RDX

Î
ΠΠε
µ µ µ
µ
Î
Signal Strength Indicates the
network signal strength of the
current phone. Five bars equals
f ull strength.
ROAM Status Indicates your
phone is roaming.
Battery Level Status Indicates
the power currently remaining in
your phone’s battery. Five bars
equals f ull battery strength.
When you are operating the HFL, or
when you manually select HFL in the
multi-inf ormation display, you will
see this inf ormation in the display: HFL Mode Message Indicates
when you are dialing and receiving
calls.
Some phones do not send this
inf ormation to the HFL.
You will also see a ‘‘HANDS
FREELINK’’ and ‘‘ ’’ indicator
on the upper display (on RDX with
Technology Package model), or
center display (on RDX model). Phone Dialing Indicates the
number you entered, or the
number of the incoming call.
:
Multi-Inf ormation Display
BluetoothHandsFreeL ink
252
SIGNAL
STRENGTH
PHONE DIALING
ROAM
STATUS HFL MODE
MESSAGE
BATTERY
LEVEL
STATUS
\f—\f—

y

\fy
() \fy\fy
2009 RDX

TheHFLisoperatedbytheHFL
Talk and Back buttons on the left
side of the steering wheel. The next
f ew pages provide instructions f or all
basic f eatures of the HFL. Many commands can be spokentogether. For example, you can
say, ‘‘Dial 123-456-7891.’’
To enter a string of numbers in a
Call or Dial command, you can say
them all at once, or you can
separate them in blocks of 3, 4, 7,
10, or 11.
To skip a voice prompt, press the
Talk button while the HFL is
speaking. The HFL will then begin
listening f or your next command.
Here are some guidelines f or using
voice control:
To enter a command, press the
Talk button. Then, af ter the beep,
say your command in a clear,
natural tone.
For best system operation, set the
climate control f an speed to low,
and direct the center vents away
f rom the microphone in the ceiling.
If the HFL does not recognize a
command, its response is, ‘‘Pardon.’’
If it doesn’t recognize the
command a second time, its
response is, ‘‘Please repeat.’’ If it
doesn’t recognize the command a
third time, it plays the Help
prompt. To hear a list of available options
at any time, press the Talk button,
wait f or the beep, and say, ‘‘Hands
f ree link help.’’
CONT INUED
How to Use the HFL Using Voice Control
A ll phones may not
operate identically, and some
may cause inconsistent
operation of the HFL .
BluetoothHandsFreeL ink
Features
253
NOTE:
\f—\f—

y
y
() \fy\fy
2009 RDX

To go back one step in a command
process, say, ‘‘Go back,’’ or press
the Back button.When you f inish a command
sequence, the HFL goes back to
its main menu. For example, when
you store the name, ‘‘Eric,’’ the
HFL response is, ‘‘Eric has been
stored.’’ The next time you press
the Talk button, you will be at the
main menu.
If nothing is said while the HFL is
listening f or a command, the HFL
will time out and stop its voice
recognition. The next time you
press the Talk button, the HFL
begins listening f rom the point at
which it timed out.
To end a command sequence at
any time, press and hold the Back
button, or press and release the
Talk button, wait f or the beep, and
say, ‘‘Cancel.’’ The next time you
press the Talk button, the HFL
begins f rom its main menu. Thevoiceof theHFLcanbesetto
male or f emale (U.S. models only).
Also, the incoming notif ication can
be set to a ring tone, a prompt, or no
notification.
Press and release the Talk button.
Af ter the beep, say ‘‘System.’’ The
HFL response is, ‘‘System options
are setup and clear.’’ Press and release the Talk button.
Af ter the beep, say ‘‘Setup.’’ The
HFL response is ‘‘Would you like
male or f emale prompts?’’
Press and release the Talk button.
Af ter the beep, say ‘‘Male’’ or
‘‘Female,’’ depending on the
system voice you want. The HFL
response is, ‘‘Male (Female)
prompts have been selected.
Would you like an audible
notif ication of an incoming call?’’
1. 2.
3.
To set up the system, do this:
Setting Up the System
BluetoothHandsFreeL ink
254
\f—\f—

y
y
() \fy\fy
2009 RDX

The HFL will accept a numeric, f our-
digit passcode that you can use f or
security purposes.Press and release the Talk button.
Af ter the beep, say the f our-digit
passcode you want to use. For
example,say‘‘1,2,3,4.’’TheHFL
responseis‘‘1,2,3,4.Isthis
correct?’’
Press and release the Talk button.
If you say ‘‘Yes’’ af ter the beep, the
HFL system response is, ‘‘Would
you like the notification to be a
ring tone or a prompt?’’ If you say
‘‘No’’ af ter the beep, the HFL
system returns to its main menu.
Saying ‘‘No’’ will result in no ring
tone or prompt playback during an
incoming call. The audio system
will be mute, and a message will
be displayed.
The HFL response continues ‘‘A
security option is available to lock
the HFL system. Each time the
vehicle is turned on, a passcode
would be required to use this
system. Would you like this
security option turned on?’’ If you
say ‘‘Yes,’’ you can set your
passcode. Ref er to the setting
procedure in the next column.
Follow the system setup
procedure as described previously.
Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’
The HFL response is ‘‘What is the
f our-digit number you would like
to set as your passcode?’’
Press and release the Talk button.
Af ter the beep, say ‘‘Ring tone’’ or
‘‘Prompt.’’ The HFL response is ‘‘A
ring tone will be used’’ or ‘‘An
incoming call prompt will be used.’’
If you choose ‘‘Ring tone,’’ you will
hear a ring tone through the audio
speakers to announce an incoming
call. If you choose ‘‘Prompt,’’ you
will hear this message to
announce an incoming call: ‘‘You
have an incoming call.’’
4.
5.
4.
1.
2.
3.
6.
To set your passcode, do this:
CONT INUED
Setting Your Passcode
BluetoothHandsFreeL ink
Features
255
\f—\f—
y

\fy
() \fy\f\fy
2009 RDX

Press and release the Talk button.
If you say ‘‘No’’ af ter the beep, the
HFL system response is, ‘‘Security
willnotbeused.Thesystemsetup
is complete.’’
Press and release the Talk button.
Af ter the beep, say ‘‘Yes.’’ The
HFL response is ‘‘Security is on.
Each time the vehicle is turned on,
the passcode will be required to
use the system. The system setup
is complete. Returning to the main
menu.’’Press and release the Talk button.
Af ter the beep, say your f our-digit
passcode.Forexample,say‘‘1,2,3,
4.’’
If the passcode is correct, the HFL
response is ‘‘Main menu.’’ If the
passcode is not correct, the HFL
responseis‘‘1,2,3,4isincorrect.
Pleasetryagain.’’Gobacktothe
step 2.
If you f orget your passcode and you
cannot activate the HFL, consult
your dealer to cancel the passcode.
Once a passcode is set, you can lock
the HFL so it only operates after the
passcode is entered.
The HFL will prompt you f or your
passcode each time the ignition
switch is turned to the ON (II)
position and you press the Talk
button. You will only be asked f or
thepasscodeonceperignition
cycle. If the passcode is set, its
response is ‘‘The system is locked.
What is the f our-digit passcode?’’ 2.
3.
5.
6.
1.
To enter your passcode, do this;
BluetoothHandsFreeL ink
256
\f—\f—

y
y
() \fy\f
y
2009 RDX
