This monitor shows how much
torque is being delivered to each
wheel. For more inf ormation, see
page .
You can see the pressure of each tire
in this monitor. If one or more tire
pressure are low, inflate them to the
correct pressure. For more
inf ormation, see page .This shows the temperature of the
engine’s coolant. During normal
operation, the reading should rise
f rom the ‘‘C (Cold)’’ mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the reading may rise to near
the ‘‘H (Hot)’’ mark of the gauge. If
it reaches the ‘‘H’’ mark, pull saf ely
to the side of the road. See page
f or instructions and precautions
on checking the engine’s coolant
system. You can receive or make phone calls
f rom your cell phone through your
vehicle’s Bluetooth
HandsFreeLink(HFL) system
without touching your cell phone.
To use the system, your cell phone
and the HFL system must be linked.
Not all cell phones are compatible
with this system. Ref er to page for instructions on how to link
your cell phone to the HFL and how
to receive or make phone calls, or
visit the handsf reelink.com website.
301
308379 257
SH-AWD T orque Distribution
Monitor
Tire Pressure Monitor
Temperature Gauge Bluetooth
HandsFreeL ink
Multi-Inf ormation Display
76
\f—\f—
y
y
() \fy\f\f
y
2009 RDX
Page 275 of 433
Bef ore you begin driving your
vehicle, you should know what
gasoline to use and how to check the
levels of important f luids. You also
need to know how to properly store
luggage or packages. The
inf ormation in this section will help
you. If you plan to add any
accessories to your vehicle, please
read the information in this section
first..............................
Break-in Period .272
.................
Fuel Recommendation .272
.........
Service Station Procedures .273
....................................
Ref ueling .273
.....
Tighten Fuel Cap Message .274
Opening and Closing
................................
the Hood .275
...................................
Oil Check .276
.............
Engine Coolant Check .277
...............................
Fuel Economy .278
...
Accessories and Modif ications .281
.............................
Carrying Cargo .283
Bef ore Driving
Bef ore Driving
271
\f—\f—
y
\fy
() \fy\fy
2009 RDX
Page 281 of 433
Make sure the ‘‘UP’’ mark on the
loop is f acing up when you insert
the dipstick.
Remove the dipstick again, and
check the level. It should be
between the upper and lower
marks.
If it is near or below the lower mark,
see on page . Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
on page f or
inf ormation on adding the proper
coolant. Refer to
on page f or inf ormation
about checking other items on your
vehicle.
4. 336 340333
Service Station Procedures
A dding Engine Oil
A dding
Engine Coolant
Engine Coolant Check Owner’s Maintenance
Checks
Bef ore Driving
277
UPPER MARK RESERVE TANK
MAX MIN
LOWER MARK
‘‘UP’’ MARK
\f—\f—
y
\fy
() \fy\fy
2009 RDX
Page 329 of 433
This section explains why it is
important to keep your vehicle well
maintained and how to f ollow basic
maintenance saf ety precautions.
This section also includes
instructions on how to read the
maintenance minder messages on
the multi-information display, and
instructions f or simple maintenance
tasks you may want to take care of
yourself .
If you have the skills and tools to
perf orm more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page f or inf ormation on how to
obtain a copy, or see your dealer.......................
Maintenance Saf ety .326
....................
Maintenance Minder .327
..............................
Fluid Locations .335
........................
Adding Engine Oil .336
.................
Required Engine Oil .336
Changing the Engine Oil and ...........................................
Filter .338
..............................
Engine Coolant .340
....................
Windshield Washers .342
....
Automatic Transmission Fluid .343
....................................
Brake Fluid .345
....................
Power Steering Fluid .346
.............................................
Lights .347
................
Cleaning the Seat Belts .354
.....................................
Floor Mats .354
..............................
Audio Antenna .355
.....................................
Intercooler .355
..................
Dust and Pollen Filter .355
.................................
Wiper Blades .356
...........................................
Wheels .359
...............................................
Tires .360
...................
Checking the Battery .366
.............................
Vehicle Storage .368
413
Maintenance
Maint enance
325
\f—\f—
y
\fy
() \fy\f\fy
2009 RDX
Page 337 of 433
µµµ µ
µ
µ
Ì
U.S. Vehicles:
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the appropriate
page listed.
Engine oil level Check every
time you fill the fuel tank. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .
Automatic transmission Check
the f luid level monthly. See page . Brakes Check the f luid level
monthly. See page .
Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page
.
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
and license plate lights monthly.
See page .
According to state and federal
regulations, f ailure to perf orm
maintenance on the items marked
with will not void your emissions
warranties. However, Acura
recommends that all maintenance
services be perf ormed in accordance
with the intervals indicated by the
multi-inf ormation display. 276
343 277345
361
347
Maintenance,
replacement, or repair of
emissions control devices and
systems may be done by any
automotive repair establishment
or individual using parts that are
‘‘certif ied’’ to EPA standards. Owner’s Maintenance Checks
Maintenance Minder
Maint enance
333
\f—\f—
y
y
() \fy\fy
2009 RDX
Page 338 of 433
Î
Î
Ì Ì
Ì
Î
Maintenance Minder
334
:
If the message ‘‘SERVICE DUE NOW’’ does not appear more than 12 months
after the display is reset, change the engine oil every year.
See information on maintenance and emissions warranty on page.
Independent of the maintenance items in the information display, replace
the brake fluid every 3 years.
Inspect idle speed every 160,000 miles (256,000 km).
Adjust the valves during services A, B, 1, 2, or 3 only if they are noisy.
NOTE: 1:
333
Maintenance Main Items
Replace engine oil
Replace engine oil and oil filter
Inspect front and rear brakes
Check parking brake adjustment
Inspect these items: Tie rod ends, steering gear box, and boots
Suspension components
Driveshaft boots
Brake hoses and lines (including ABS)
All fluid levels and condition of fluids
Exhaust system
Fuel lines and connections Maintenance Sub Items
Rotate tires
Replace air cleaner element If you drive in dusty conditions, replace
every 15,000 miles (24,000 km).
Replace dust and pollen filter If you drive primarily in urban areas that have high
concentrations of soot in the air from industry and
from diesel-powered vehicles, replace every 15,000
miles (24,000 km).
Inspect drive belt
Replace transmission and transfer fluid Driving in mountainous areas at very low vehicle
speeds or trailer towing results in higher
transmission and transfer temperatures. This
requires transmission and transfer fluid changes
more frequently than recommended by the
Maintenance Minder. If you regularly drive your
vehicle under these conditions, have the transmission
and transfer fluid changed at 60,000 miles
(100,000 km), then every 30,000 miles (48,000 km).
Replace spark plugs
Inspect valve clearance
Replace engine coolant
Replace rear differential fluid Driving in mountainous areas at very low vehicle
speeds or trailer towing results in higher level of
mechanical (shear) stress to fluid. This requires
differential fluid changes more frequently than
recommended by the Maintenance Minder. If you
regularly drive your vehicle under these conditions,
have the differential fluid changed at 7,500 miles
(12,000 km), then every 15,000 miles (24,000 km).
A
B
Symbol
Symbol
1
2
3
4
5
61
1
Maintenance Minder
\f—\f—
y
\fy
() \fy\fy
2009 RDX
Page 339 of 433
Fluid Locations
Maint enance
335
AUTOMATIC
TRANSMISSION
FLUID DIPSTICK
(Yellow loop)
BRAKE FLUID
(Black cap)
ENGINE OIL
DIPSTICK
(Orange loop)
ENGINE OIL
FILL CAP
WASHER FLUID
(Blue cap)
POWER STEERING
FLUID
(Red cap)
ENGINE
COOLANT
RESERVOIR
RADIATOR CAP
\f—\f—
y
y
() \fy\f\fy
2009 RDX
Page 344 of 433
If Honda antif reeze/coolant is not
available, you may use another
major-brand non-silicate coolant as a
temporaryreplacement.Makesureit
is a high-quality coolant
recommended f or aluminum engines.
Continued use of any non-Honda
coolant can result in corrosion,
causing the cooling system to
malf unction or f ail. Have the cooling
system f lushed and ref illed with
Honda antif reeze/coolant as soon as
possible.If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system f or leaks. Always use Honda Long-lif e Anti-
f reeze/Coolant Type 2. This coolant
is pre-mixed with 50 percent
antif reeze and 50 percent water.
Never add straight antifreeze or
plain water.
A dding Engine Coolant
Engine Coolant
340
RESERVE TANK
MAX
MIN
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.
\f—\f—
y
y
() \fy\fy
2009 RDX
Page 345 of 433

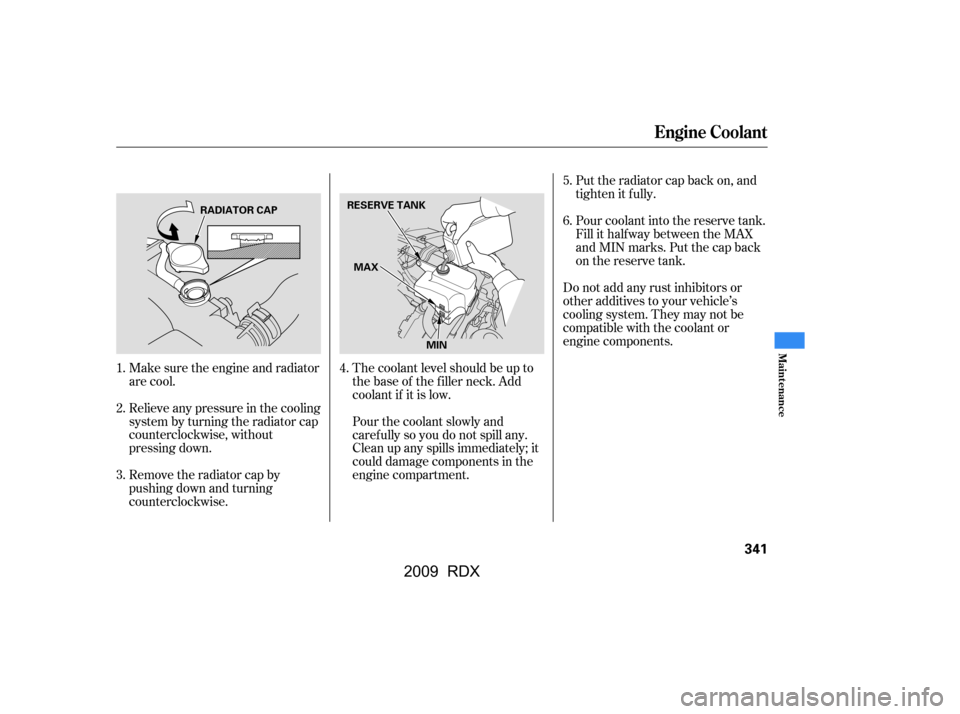

The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.Do not add any rust inhibitors or
other additives to your vehicle’s
cooling system. They may not be
compatible with the coolant or
engine components.Pour coolant into the reserve tank.
Fill it half way between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Make sure the engine and radiator
are cool.
Relieve any pressure in the cooling
system by turning the radiator cap
counterclockwise, without
pressing down.
Remove the radiator cap by
pushing down and turning
counterclockwise. Put the radiator cap back on, and
tighten it fully.
Pourthecoolantslowlyand
caref ully so you do not spill any.
Clean up any spills immediately; it
could damage components in the
engine compartment.
2.
1. 4. 5.
6.
3.
Engine Coolant
Maint enance
341
RESERVE TANK
RADIATOR CAP
MAX
MIN
\f—\f—
y
\fy
() \fy\fy
2009 RDX
Page 383 of 433
CONT INUED
If the temperature gauge reading
stays at the H (Hot) mark, turn of f
the engine.
If you do not see steam or spray,
leave the engine running and
watch the temperature gauge. If
the high heat is due to overloading,
the engine should start to cool
down almost immediately. If it
does, wait until the temperature
gauge comes down to the midpoint,
then continue driving.
If you see steam and/or spray
coming f rom under the hood, turn
of f the engine. Wait until you see
no more signs of steam or spray,
then open the hood.
Saf ely pull to the side of the road.
Put the transmission in Park, and
set the parking brake. Turn of f all
accessories, and turn on the
hazard warning indicators.
The reading of the vehicle’s
temperature gauge on the multi-
inf ormation display should stay in
the midrange. If it climbs to the H
(Hot) mark, you should determine
the reason (hot day, driving up a
steep hill, etc.).
If the coolant temperature rises to
224°F (118°C) or more, the
temperature gauge will appear on
the display and blink for several
times. At the same time, the beeper
will sound once.
If your vehicle overheats, you should
take immediate action. The only
indication may be the temperature
gauge climbing to the H (Hot) mark.
Or you may see steam or spray
coming f rom under the hood.
1.2.
3.
4.
If theEngineOverheats
T aking Care of t he Unexpect ed
379
Steam and spray from an
overheated engine can
seriously scald you.
Do not open the hood if steam
is coming out.
Driving with the temperature gauge
reading at the H (Hot) mark can cause
serious damage to the engine.
\f—\f—
y
y
() \fy\fy
2009 RDX
