ACURA RDX 2010 Owners Manual

Keyless Lock AcknowledgementWhen you press the UNLOCK
button on the remote transmitter to
unlock the doors and the tailgate, the
exterior lights blink twice to verify
that the doors and the tailgate are
unlocked and the security system is
turned off.
When you push the LOCK button on
the remote transmitter, some
exterior lights flash, and a beeper
sounds when you push the LOCK
button again within 5 seconds to
verify that the doors and the tailgate
are locked and the security system
has set (see page130). You can
customize the exterior lights not to
flash and the beeper not to sound.
While DOOR SETUP is shown in the
CUSTOMIZE GROUP of the multi-
information display, press the SEL/
RESET button. The screen changes
to CUSTOMIZE MENU. Press the
INFO (
/
) button until you see the
above display.
Press the SEL/RESET button. The
screen changes as shown above.
Select ON or OFF by pressing the
INFO (
/
) button, then press the
SEL/RESET button to enter your
selection.
CONTINUED
Multi-Information Display
107
Instruments and Controls
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

When your choice is set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU.
If your choice is not set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
To exit KEYLESS LOCK
ACKNOWLEDGEMENT without
changing the current setting, select
EXIT by pressing the INFO (
/
)
button, then press the SEL/RESET
button. The screen goes back to
CUSTOMIZE MENU.
Multi-Information Display10809/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

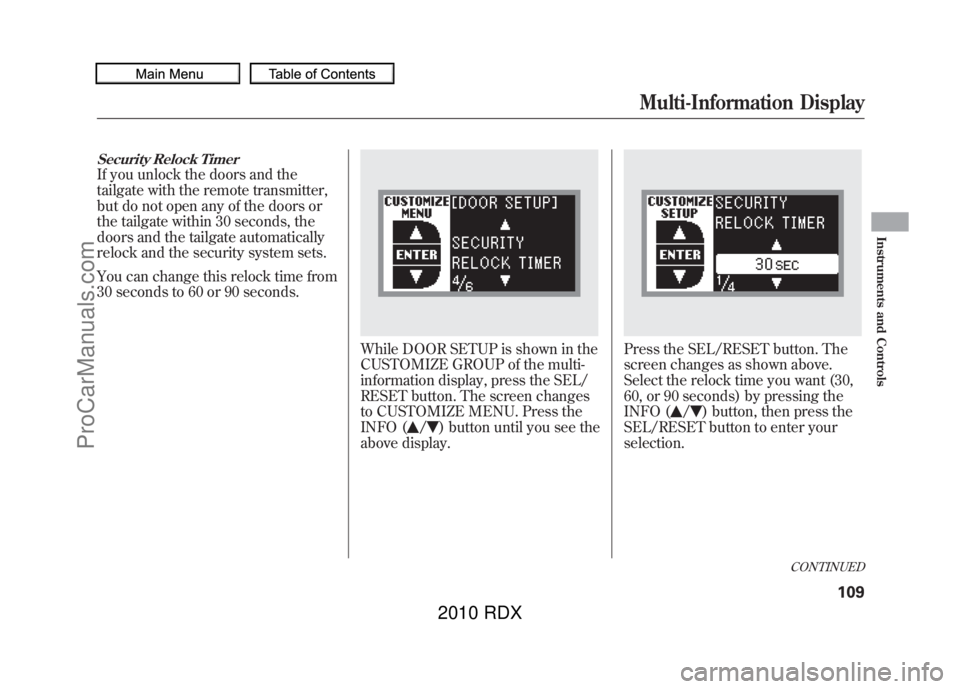

Security Relock TimerIf you unlock the doors and the
tailgate with the remote transmitter,
but do not open any of the doors or
the tailgate within 30 seconds, the
doors and the tailgate automatically
relock and the security system sets.
You can change this relock time from
30 seconds to 60 or 90 seconds.
While DOOR SETUP is shown in the
CUSTOMIZE GROUP of the multi-
information display, press the SEL/
RESET button. The screen changes
to CUSTOMIZE MENU. Press the
INFO (
/
) button until you see the
above display.
Press the SEL/RESET button. The
screen changes as shown above.
Select the relock time you want (30,
60, or 90 seconds) by pressing the
INFO (
/
) button, then press the
SEL/RESET button to enter your
selection.
CONTINUED
Multi-Information Display
109
Instruments and Controls
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

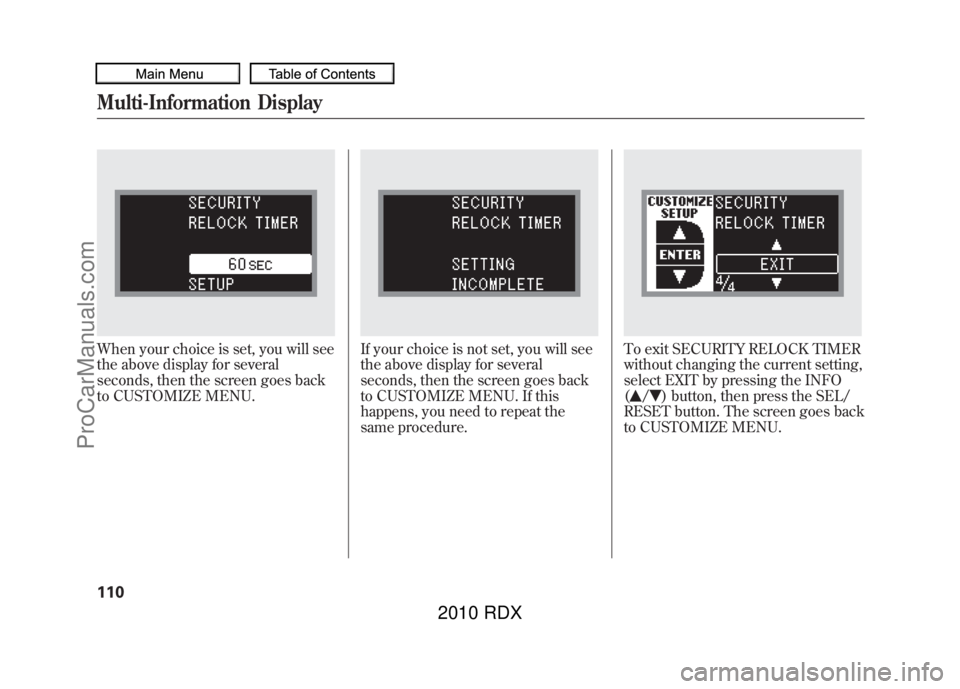

When your choice is set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU.
If your choice is not set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
To exit SECURITY RELOCK TIMER
without changing the current setting,
select EXIT by pressing the INFO
(
/
) button, then press the SEL/
RESET button. The screen goes back
to CUSTOMIZE MENU.
Multi-Information Display11009/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

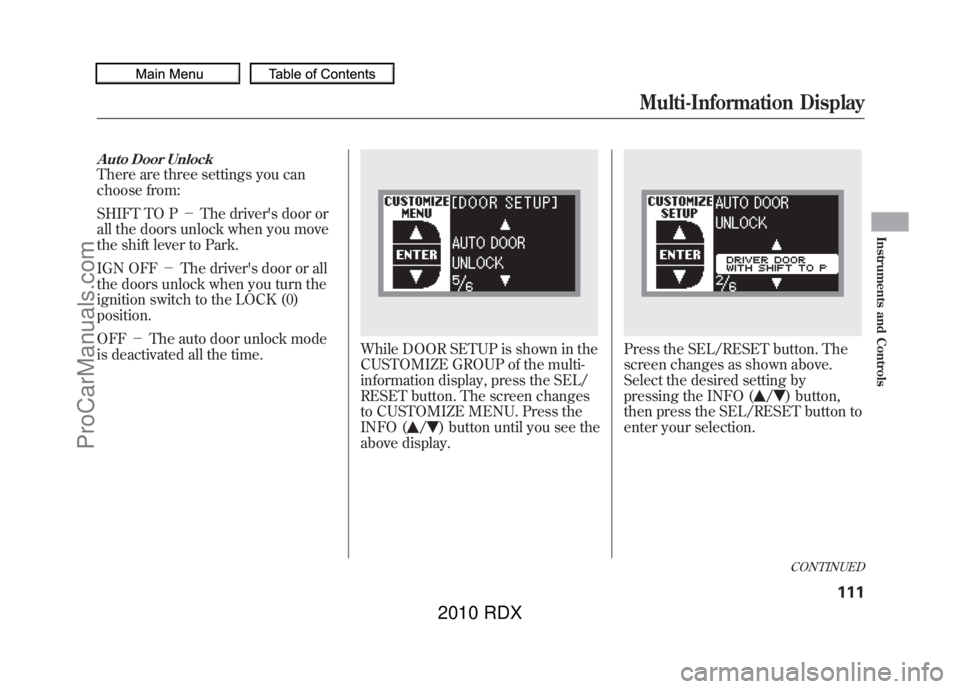

Auto Door UnlockThere are three settings you can
choose from:
SHIFT TO P－The driver's door or
all the doors unlock when you move
the shift lever to Park.
IGN OFF －The driver's door or all
the doors unlock when you turn the
ignition switch to the LOCK (0)
position.
OFF －The auto door unlock mode
is deactivated all the time.
While DOOR SETUP is shown in the
CUSTOMIZE GROUP of the multi-
information display, press the SEL/
RESET button. The screen changes
to CUSTOMIZE MENU. Press the
INFO (
/
) button until you see the
above display.
Press the SEL/RESET button. The
screen changes as shown above.
Select the desired setting by
pressing the INFO (
/
) button,
then press the SEL/RESET button to
enter your selection.CONTINUED
Multi-Information Display
111
Instruments and Controls
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

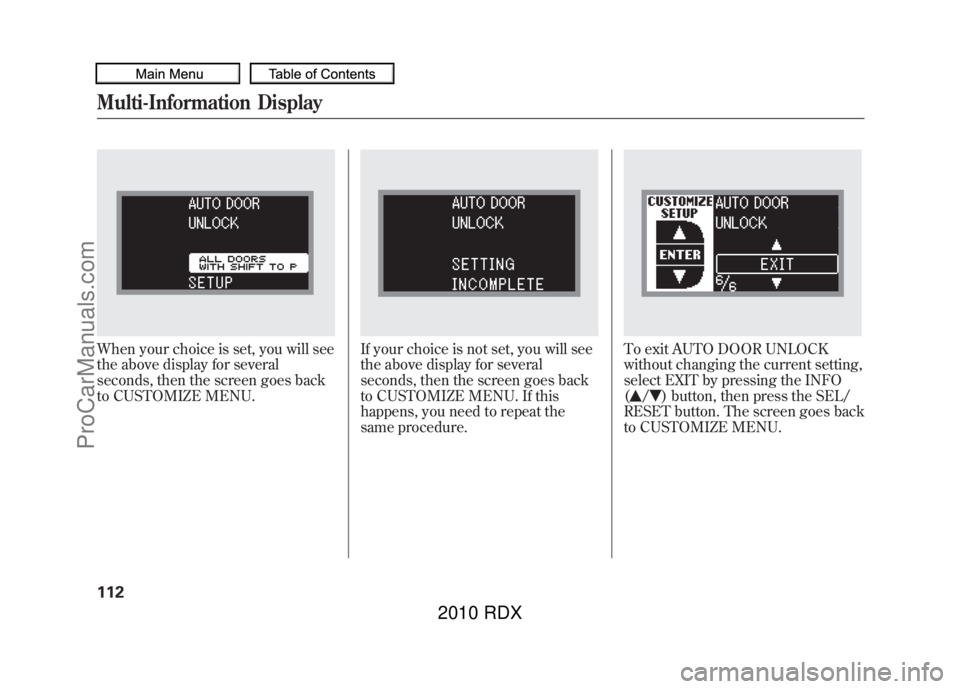

When your choice is set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU.
If your choice is not set, you will see
the above display for several
seconds, then the screen goes back
to CUSTOMIZE MENU. If this
happens, you need to repeat the
same procedure.
To exit AUTO DOOR UNLOCK
without changing the current setting,
select EXIT by pressing the INFO
(
/
) button, then press the SEL/
RESET button. The screen goes back
to CUSTOMIZE MENU.
Multi-Information Display11209/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

ꭧ1: To use the horn, press the center pad of the steering wheel.
ꭧ 2: On models without navigation system.
ꭧ 3: Only on vehicles equipped with navigation system. Refer to the navigation system manual.BLUETOOTH HANDSFREELINK
BUTTONS (P. 306) HORN
ꭧ
1
STEERING WHEEL
ADJUSTMENTS (P. 122)MULTI-INFORMATION
BUTTONS (P.
74)CRUISE CONTROL
BUTTONS (P.
300)SEAT HEATER SWITCHES
(P.
141)
HEADLIGHTS/TURN
SIGNAL/FOG LIGHTS
(P.
116/119)
REMOTE AUDIO CONTROL
BUTTONS (P. 289)
VEHICLE STABILITY
ASSIST (VSA) OFF
SWITCH
(P. 396)
MIRROR CONTROLS
(P. 146)
VOICE CONTROL
BUTTONS
ꭧ 3
HAZARD WARNING BUTTON
(P. 121)
PADDLE SHIFTERS
(P.
380) WINDSHIELD
WIPERS/WASHERS/
REAR WINDOW
WIPER/WASHER
(P.
114/115) NAVIGATION SYSTEM
ꭧ
3/
CENTER DISPLAY
ꭧ 2
(P. 172)
PASSENGER AIRBAG
OFF INDICATOR (P. 33)
REAR WINDOW
DEFOGGER/
HEATED MIRROR
BUTTON
(P. 121/147)
AUXILIARY INPUT JACK
(P. 291)
ACCESSORY POWER
SOCKET
(P. 157)
UPPER DISPLAY
ꭧ
3
(P. 173)
Vehicle with navigation system is shown.
Controls Near the Steering Wheel
113
Instruments and Controls
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

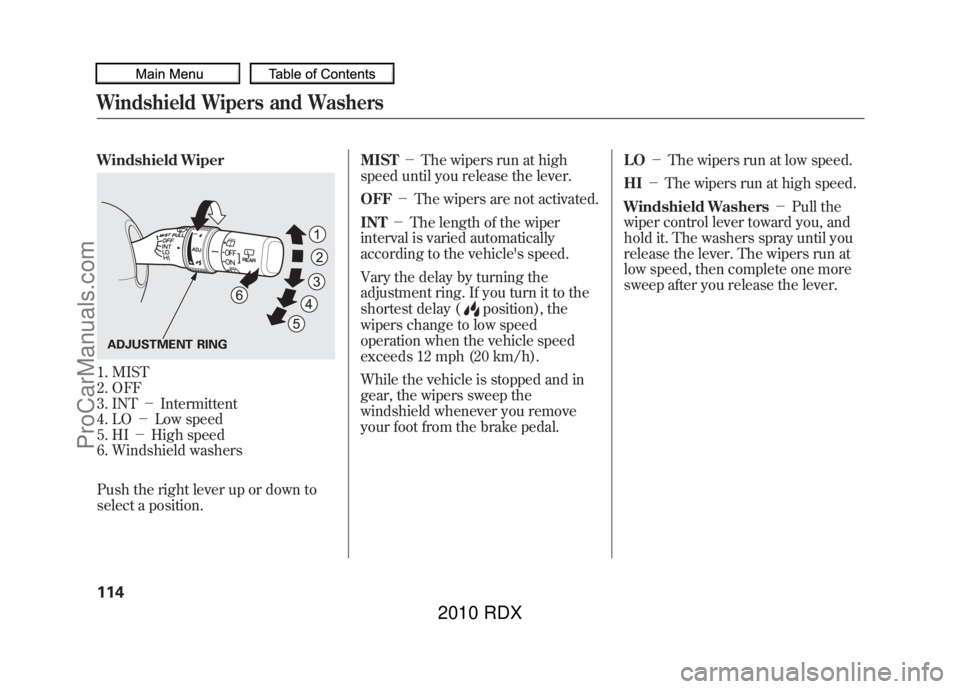

Windshield Wiper1. MIST
2. OFF
3. INT－Intermittent
4. LO －Low speed
5. HI －High speed
6. Windshield washers
Push the right lever up or down to
select a position. MIST
－The wipers run at high
speed until you release the lever.
OFF －The wipers are not activated.
INT －The length of the wiper
interval is varied automatically
according to the vehicle's speed.
Vary the delay by turning the
adjustment ring. If you turn it to the
shortest delay (
position), the
wipers change to low speed
operation when the vehicle speed
exceeds 12 mph (20 km/h).
While the vehicle is stopped and in
gear, the wipers sweep the
windshield whenever you remove
your foot from the brake pedal. LO
－The wipers run at low speed.
HI －The wipers run at high speed.
Windshield Washers －Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
ADJUSTMENT RING ADJUSTMENT RINGWindshield Wipers and Washers11409/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

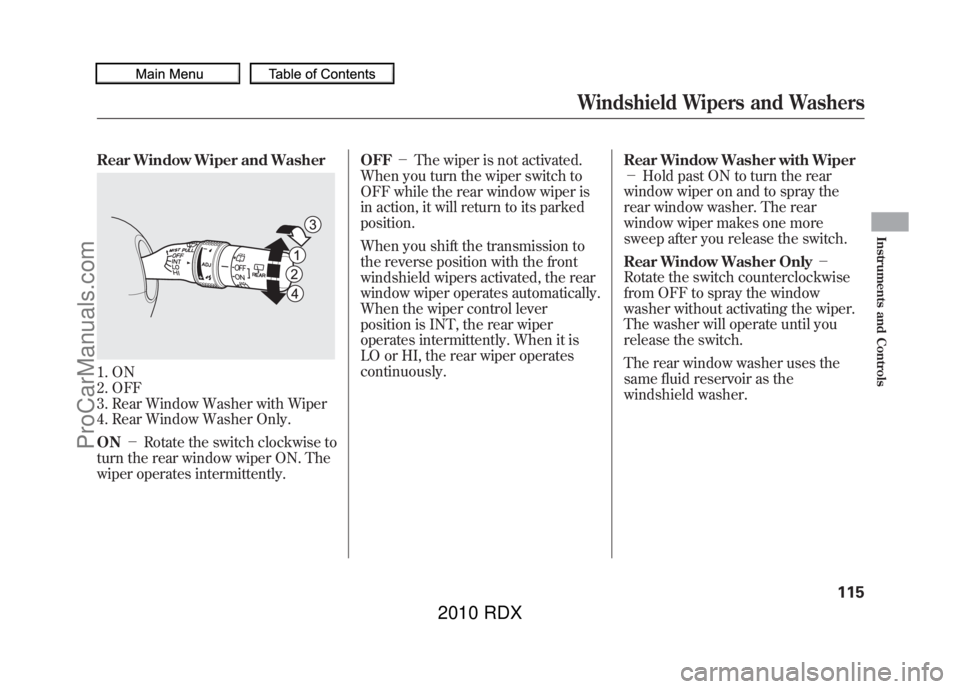

Rear Window Wiper and Washer1. ON
2. OFF
3. Rear Window Washer with Wiper
4. Rear Window Washer Only.
ON－Rotate the switch clockwise to
turn the rear window wiper ON. The
wiper operates intermittently. OFF
－The wiper is not activated.
When you turn the wiper switch to
OFF while the rear window wiper is
in action, it will return to its parked
position.
When you shift the transmission to
the reverse position with the front
windshield wipers activated, the rear
window wiper operates automatically.
When the wiper control lever
position is INT, the rear wiper
operates intermittently. When it is
LO or HI, the rear wiper operates
continuously. Rear Window Washer with Wiper
－
Hold past ON to turn the rear
window wiper on and to spray the
rear window washer. The rear
window wiper makes one more
sweep after you release the switch.
Rear Window Washer Only －
Rotate the switch counterclockwise
from OFF to spray the window
washer without activating the wiper.
The washer will operate until you
release the switch.
The rear window washer uses the
same fluid reservoir as the
windshield washer.
Windshield Wipers and Washers
115
Instruments and Controls
09/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX

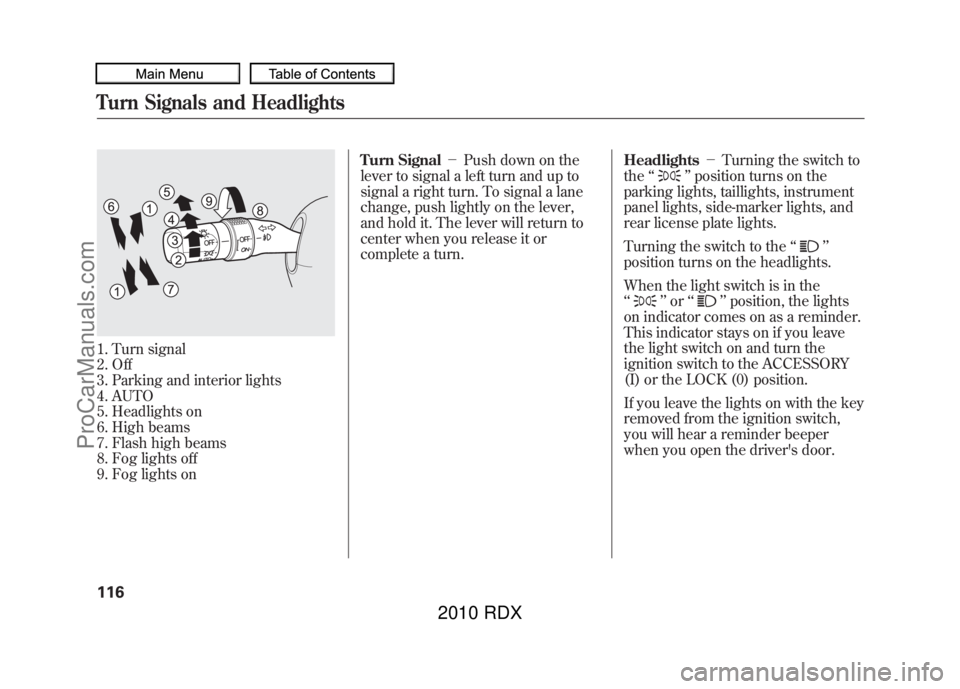

1. Turn signal
2. Off
3. Parking and interior lights
4. AUTO
5. Headlights on
6. High beams
7. Flash high beams
8. Fog lights off
9. Fog lights onTurn Signal
－Push down on the
lever to signal a left turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn. Headlights
－Turning the switch to
the ‘‘
’’position turns on the
parking lights, taillights, instrument
panel lights, side-marker lights, and
rear license plate lights.
Turning the switch to the ‘‘
’’
position turns on the headlights.
When the light switch is in the
‘‘
’’ or ‘‘
’’position, the lights
on indicator comes on as a reminder.
This indicator stays on if you leave
the light switch on and turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position.
If you leave the lights on with the key
removed from the ignition switch,
you will hear a reminder beeper
when you open the driver's door.
Turn Signals and Headlights11609/07/07 15:02:04 10 ACURA RDX MMC North America Owner's M 50 31STK630 enu
ProCarManuals.com
2010 RDX
