Acura RDX 2011 Owner's Manual

Beverage Holders
Be careful when you are using the
beverage holders. A spilled liquid
that is very hot can scald you or your
passengers. Spilled liquids can
damage the upholstery, carpeting,
and electrical components in the
interior.

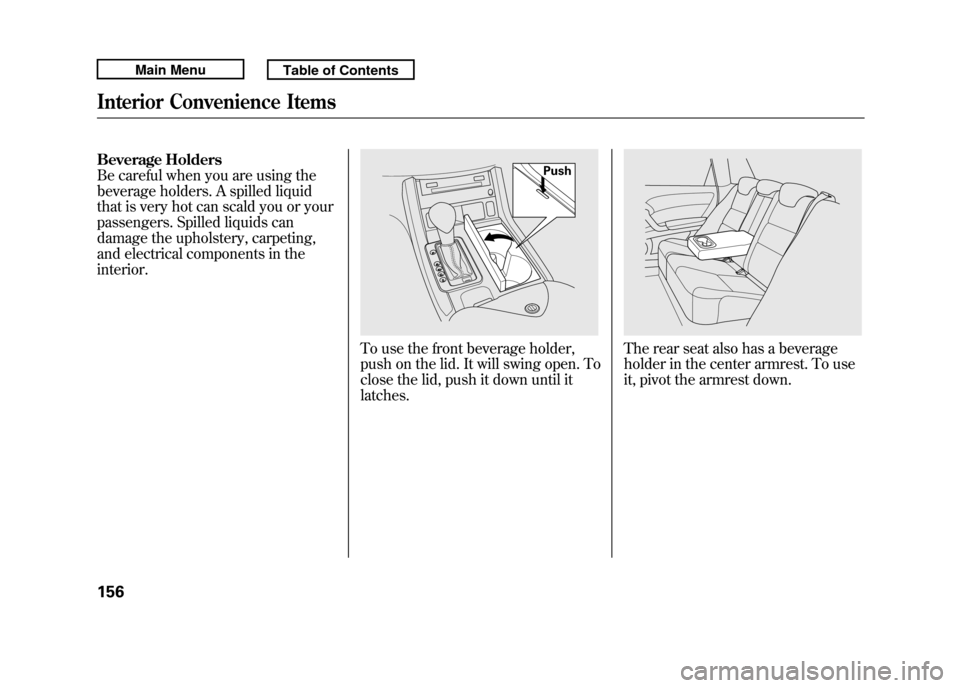

To use the front beverage holder,
push on the lid. It will swing open. To
close the lid, push it down until it
latches.
The rear seat also has a beverage
holder in the center armrest. To use
it, pivot the armrest down.
Push
Interior Convenience Items15610/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Accessory Power SocketsTo use the accessory power socket,
pull up the cover. The ignition switch
must be in the ACCESSORY (I) or
ON (II) position.
These sockets are intended to supply
power for 12 volt DC accessories that
are rated 120 watts or less (10 amps).
None of the sockets will power an
automotive type cigarette lighter
element. When both sockets are
being used, the combined power
rating of the accessories should be
120 watts or less (10 amps).Sun Visor
To use the sun visor, pull it down.
You can also use the sun visor at the
side window. Remove the support
rod from the clip and swing the sun
visor toward the side window.
Make sure you put the sun visor
back in place when you are getting
into or out of the vehicle.
Front
COVER
Console Compartment
COVER
Interior Convenience Items
157
Instruments and Controls
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Vanity MirrorTo use the vanity mirror on the back
of the sun visor, pull up the cover.
The light comes on when you pull up
the cover.Console Compartment
Your vehicle has a multi-function
console compartment. It includes an
armrest, a coin holder, a pen holder,
a card holder, a removable tray, and
a console compartment with two
separable shelves.
To open the console compartment,
push the button and lift the lid.
To close, lower the lid, and push it
down until it latches.
You can lock or unlock the console
compartment lid with the master key.
VANITY MIRROR
MASTER KEY
Close LID
Push BUTTON
Interior Convenience Items15810/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

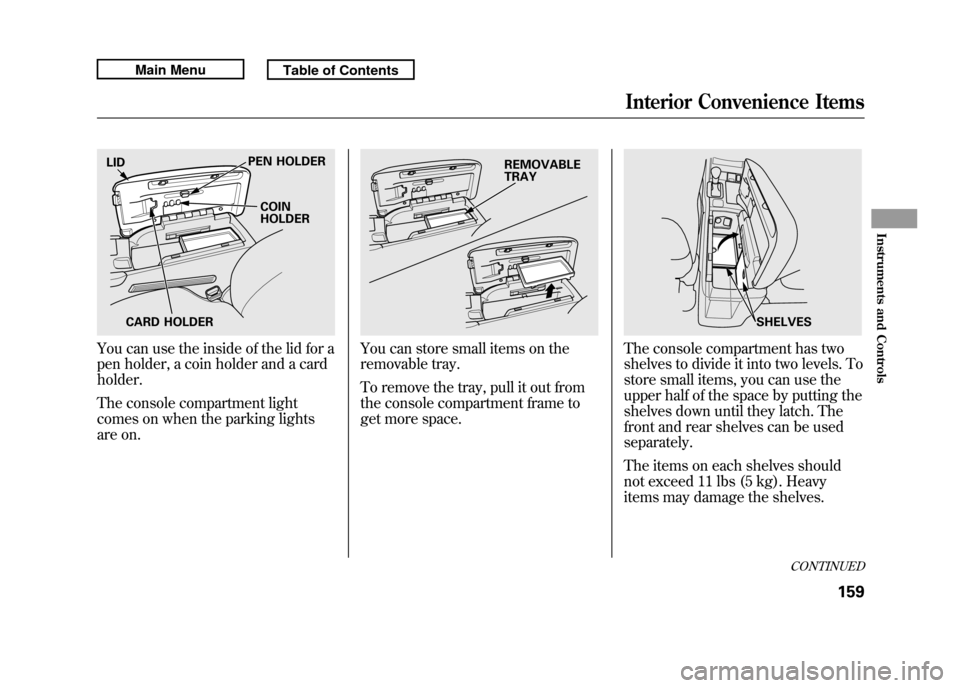

You can use the inside of the lid for a
pen holder, a coin holder and a card
holder.
The console compartment light
comes on when the parking lights
are on.
You can store small items on the
removable tray.
To remove the tray, pull it out from
the console compartment frame to
get more space.
The console compartment has two
shelves to divide it into two levels. To
store small items, you can use the
upper half of the space by putting the
shelves down until they latch. The
front and rear shelves can be used
separately.
The items on each shelves should
not exceed 11 lbs (5 kg). Heavy
items may damage the shelves.
LIDPEN HOLDER
COIN
HOLDER
CARD HOLDER
REMOVABLE
TRAY
SHELVES
CONTINUED
Interior Convenience Items
159
Instruments and Controls
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

When you store a large item like a
briefcase, lift the shelves up to create
a large space.
The maximum dimensions of the
item you can store in the console
compartment are:
Length: 16.9 in (430 mm)
Height: 12.2 in (310 mm)
Width: 5.5 in (140 mm)Cargo Area Cover
Your vehicle has a cargo area cover
to conceal your luggage and protect
them from direct sunlight.
Do not put any items on top of the
cargo area cover. They can block
your view and be thrown around the
vehicle during a crash.
The cargo area cover may be
removed to give you more cargo
space.
To remove it:
1. Open the tailgate. Remove the
hook from the tab on the tailgate.
Make sure you use both hands to
prevent the cargo area cover from
falling accidentally.
2. Lift and pull the rear edge of the cargo area cover slightly to unlock
it from the hanger bars, then
remove it straight out.
CARGO
AREA
COVER
HOOK TAB
HANGER BAR
Interior Convenience Items16010/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

3. Place the cargo area cover on thecargo area floor.
Make sure the cargo area cover is
securely placed so it will not move
while you are driving.
Reverse this procedure to install the
cargo area cover. Coat Hook
To use a coat hook, pull it down.
Make sure the coat hook is pulled up
when you are not using it. This hook
is not designed for large or heavy
items.COAT HOOK
Interior Convenience Items
161
Instruments and Controls
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

16210/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

The climate control system in your vehicle
provides a comfortable driving
environment in all weather conditions.
The standard audio system has many
features. This section describes those
features and how to use them.
Your vehicle has an anti-theft audio system
that requires a code number to enable it.
The security system helps to discourage
vandalism and theft of your vehicle.On models with navigation systemThe climate control system and the audiosystem have a voice control feature. Referto the navigation system manual for more
information.Climate Control System
....................
164
Dual Temperature Control
.............
169
Climate Control Sensors
................
171
Audio System
..................................
172
Playing the FM/AM Radio (Models without navigation system)
........
174
To Play the Radio
.........................
174
Adjusting the Sound
.....................
177
Playing the XM
®Radio (Models
without navigation system)
............
179
Playing Discs (Models without navigation system)
.......................
185 Disc Changer Error Messages
(Models without navigationsystem)
..................................
195
Playing an iPod
®(Models without
navigation system)
.......................
197
iPod
®Error Messages (Models
without navigation system)
............
203
Playing a USB Flash Memory Device (Models without navigationsystem)
..................................
204
USB Flash Memory Device Error Messages (Models without
navigation system)
...................
211
Bluetooth
®Audio System (Models
without navigation system)
............
212
Audio System (Models with navigation system)
..................................
216
Interface Dial
..............................
216
Playing the FM/AM Radio (Models
with navigation system)
.............
217
Adjusting the Sound
.....................
224
Playing the XM
®Radio (Models with
navigation system)
.......................
228
Playing Discs (Models with navigation system)
......................................
239
Disc Changer Error Messages
(Models with navigationsystem)
..................................
255 Protecting Your Discs
.......................
257
Playing an iPod
®(Models with
navigation system)
.......................
260
iPod
®Error Messages (Models with
navigation system)
.......................
269
Playing a USB Flash Memory Device (Models with navigation
system)
..................................
270
USB Flash Memory Device Error Messages (Models with navigation
system)
..................................
279
Bluetooth
®Audio System (Models with
navigation system)
.......................
280
FM/AM Radio Reception
..................
287
Remote Audio Controls
.....................
289
Auxiliary Input Jack
..........................
291
Radio Theft Protection
......................
292
Setting the Clock
.............................
293
Security System
...............................
294
Compass
........................................
295
Compass Operation
....................
295
Cruise Control
.................................
300
HomeLink
®Universal Transceiver
......
303
Bluetooth
®HandsFreeLink
®..............
306
AcuraLink
®(U.S. models only)
...........
332
Rearview Mirror with Rearview
Camera Display
...........................
348
Features
163
Features
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

OFF BUTTON
DUAL BUTTON
FAN CONTROL BUTTONS Models without navigation system
AUTO BUTTON
DRIVER'S SIDE
TEMPERATURE
DISPLAY
RECIRCULATION BUTTON
DRIVER'S SIDE
TEMPERATURE
CONTROL BUTTONS
U.S. model is shown. AIR CONDITIONING (A/C) BUTTONPASSENGER'S SIDE
TEMPERATURE
CONTROL BUTTONS
PASSENGER'S SIDE
TEMPERATURE DISPLAY
PASSENGER
’S SIDE
TEMPERATURE DISPLAY
MODE INDICATOR DRIVER'S SIDE
TEMPERATURE DISPLAY
Models with navigation system
MODE INDICATOR
REAR WINDOW DEFOGGER/HEATED MIRROR BUTTON
WINDSHIELD DEFROSTER BUTTON
MODE BUTTON
Climate Control System16410/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Proper use of the climate control
system can make the interior dry and
comfortable, and keep the windows
clear for best visibility.
For the climate control system to
provide heating and cooling, the
engine must be running.
You can adjust the temperatures of
the driver's side and the passenger's
side independently (see page 169).
Voice Control SystemOn models with navigation systemThe climate control system can also
be operated by voice control. See the
navigation system manual for
complete details.Using Automatic Climate Control
The automatic climate control system
adjusts the fan speed and airflow
levels to maintain the interior
temperature you select.
On models with navigation systemIn AUTO mode, the vehicle's interior
temperature is independently
regulated for the driver and
passenger, based on inputs from
sunlight and temperature sensors
(see page 171). If one side of the
vehicle is getting too much sun, the
system lowers the temperature only
on that side.
1. Press the AUTO button. The
indicator in the button comes on. 2. Set the desired temperature by
pushing the driver's side
temperature control buttons (
or
). The selected temperature will
show in the display.
When you push the passenger's side
temperature control buttons, the
indicator in the DUAL button comes
on and the driver's side and
passenger's side temperature can be
controlled independently (see page
169).
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature to your preference.
CONTINUED
Climate Control System
165
Features
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu
