Acura RDX 2011 Owner's Manual

When you set the temperature to its
lowest limit (
) or its highest
limit (
), the system runs at full
cooling or heating only. It does not
regulate the interior temperature.
In cold weather, the fan will not come
on automatically until the heater
starts to develop warm air. Semi-automatic Operation
You can manually select various
functions of the climate control
system when it is in the AUTO mode.
All other features remain
automatically controlled.
Fan Control
Select the fan speed by pressing the
fan control buttons (
or
).
The fan speed is represented by
vertical bars in the display.
Temperature Control
To adjust the desired temperature,
push the temperature control buttons
(
or
). Dual Button
Press the DUAL button to select dual
temperature control mode (see page
169). The indicator in the DUAL
button comes on.
When you press the DUAL button
again (indicator turns off), both sides
adjust to the driver's side
temperature.
Air Conditioning (A/C) Button
Press the A/C button to turn the air
conditioning on and off. You will see
A/C ON or A/C OFF in the display.
When you turn the A/C off, the
system cannot regulate the inside
temperature if you set the
temperature control below the
outside temperature.
Climate Control System16610/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Recirculation ButtonWhen the indicator in the button is
on, air from the vehicle's interior is
sent through the system again.
When the indicator is off, air is
brought in from the outside of the
vehicle (fresh air mode).
The outside air intakes for the
climate control system are at the
base of the windshield. Keep this
area clear of leaves and other debris.
The system should be left in fresh air
mode under almost all conditions.
Keeping the system in recirculation
mode, particularly with the A/C off,
can cause the windows to fog up.
Switch to recirculation mode when
driving through dusty or smoky
conditions, then return to fresh air
mode.Windshield Defroster Button
This button turns the windshield
defroster on and off.
When you push this button, air flows
from the defroster vents at the base
of the windshield, and the system
automatically switches to fresh air
mode and turns on the A/C. When
the indicator in the button is on, the
passenger's temperature cannot be
set separately from the driver's.
Rear Window Defogger
Button
This button turns the rear window
defogger on and off. Pushing this
button also turns the mirror heaters
on and off (see page 121).
CONTINUED
Climate Control System
167
Features
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Mode Button
Use the MODE button to select the
vents the air flows from. Some air will
flow from the dashboard corner
vents in all modes.
The mode indicator in the display
changes to the current mode each
time you press the button.
Air flows from the center and
corner vents in the dashboard.Airflow is divided between the
vents in the dashboard and the floor
vents.Air flows from the floor vents.Airflow is divided between the
floor vents and the defroster vents at
the base of the windshield. To Turn Everything Off
If you press the OFF button, the
climate control system shuts off
completely.
●Keep the system off for short
periods only.●To keep stale air and mustiness
from collecting, you should have
the fan running at all times.
When the climate control system is
turned off, the temperature in the
display will also turn off.
Climate Control System16810/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Dual Temperature Control
Your vehicle has four temperature
control buttons, two for the driver,
and two for the front passenger.
The driver's side and the passenger's
side can be controlled independently
by adjusting these buttons when the
indicator in the DUAL button is lit.
Temperature Control Buttons
To set the driver's side temperature
to a different value than the
passenger's, press the DUAL button,
then press the temperature control
buttons (
or
) on the driver's side.
To set the passenger's side to a
different value than the driver's,
press the temperature control
buttons (
or
) on the passenger's
side. You can adjust the passenger's
side without pressing the DUAL
button first.
Models without navigation system Models with navigation system
DRIVER'S SIDE
TEMPERATURE
DISPLAY PASSENGER'S
SIDE
TEMPERATURE
DISPLAY
DRIVER'S SIDE
TEMPERATURE
DISPLAY PASSENGER'S SIDE
TEMPERATURE DISPLAY
DRIVER'S SIDE
TEMPERATURE
CONTROL
BUTTONS DUAL BUTTON PASSENGER'S
SIDE
TEMPERATURE
CONTROL
BUTTONS
U.S. model is shown.
CONTINUED
Climate Control System
169
Features
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

When you set the temperature to its
lower or upper limit, it is displayed as
or
.
Push AUTO or
. The selected
temperatures appear in the display.
When the indicator in the DUAL
button is off, you can adjust both
sides to the same temperature by
adjusting the driver's side
temperature control buttons (
or
).

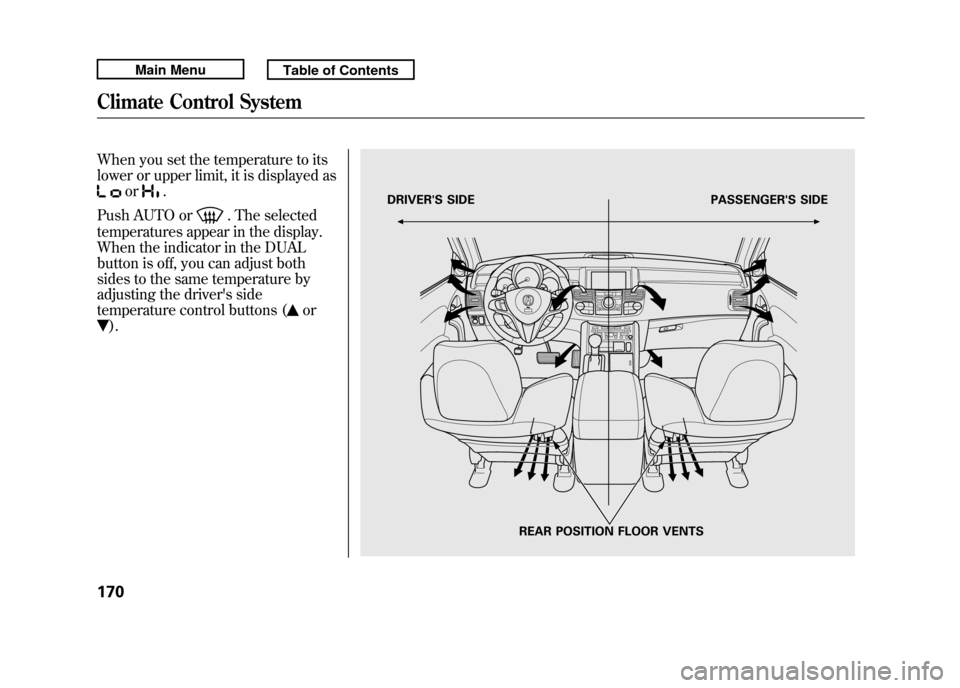

DRIVER'S SIDE PASSENGER'S SIDE
REAR POSITION FLOOR VENTS
Climate Control System17010/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Climate Control SensorsThe climate control system has two
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.SUNLIGHT SENSOR
TEMPERATURE SENSOR
Climate Control System
171
Features
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Read the appropriate pages in this
section for operation of the audio
systems installed in your vehicle.●For vehicles without navigation
system, see pages 174 thru 215.●For vehicles with navigation
system, see page 216 thru 286.
Models without navigation systemU.S. model is shown.
Audio System17210/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Models with navigation systemU.S. model is shown.
Audio System
173
Features
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

To Play the Radio
The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Turn the system on by
pushing the PWR/VOL knob, or the
AM or FM button. Adjust the volume
by turning the PWR/VOL knob.
The band and frequency that the
radio was last tuned to is displayed.
To change bands, press the AM or
FM button. On the FM band,‘‘ST ’’
will be shown on the center display if
the station is broadcasting in stereo.
Stereo reproduction on AM is not
available.
XM Radio information is available on
page 179.
SCAN
INDICATOR
A.SEL
INDICATOR
AM BUTTON A.SEL/RDM BUTTON
TUNE/FOLDER BAR
PWR/VOL KNOB
PRESET BARS
U.S. model is shown. SEEK/SKIP BAR
SCAN BUTTON
FM BUTTON STEREO
INDICATOR
Playing the FM/AM Radio (Models without navigation system)17410/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

To Select a Station
You can use any of five methods to
find radio stations on the selected
band: tune, seek, scan, the preset
bars, and auto select.
TUNE－Use the TUNE/FOLDER
bar to tune the radio to a desired
frequency. Press the
side of the
bar to tune to a higher frequency,
and the
side of the bar to tune to
a lower frequency.
If you press and hold the
or
side of the bar, the frequency will
begin to change rapidly. It will stop
when you release it.
SEEK －The SEEK function
searches up and down from the
current frequency to find a station
with a strong signal. To activate it,
press the
or
side of the
SEEK/SKIP bar, then release it. SCAN
－The SCAN function
samples all stations with strong
signals on the selected band. To
activate it, press the SCAN button,
then release it. You will see ‘‘SCAN ’’
on the center display. When it finds a
strong signal, it will stop and play
that station for about 10 seconds.
If you do nothing, the system will
then scan for the next strong station
and play it for 10 seconds. When it
plays a station you want to listen to,
press the SCAN button again. Preset
－Each side of the bars
(1 － 6) can store one frequency on
AM and two frequencies on FM.
1. Select the desired band, AM or FM. FM1 and FM2 let you store
two frequencies with each side of
the preset bar.
2. Use the TUNE, SEEK, or SCAN function to tune the radio to a
desired station.
3. Pick the preset number (1－ 6), for
the station you want to store. Press
the left or right side of the bar, and
hold it until you hear a beep.
4. Repeat steps 1 through 3 to store a total of six stations on AM and
twelve stations on FM.
CONTINUED
Playing the FM/AM Radio (Models without navigation system)
175
Features
