adding oil Acura RDX 2011 Owner's Manual

Make sure the‘‘UP ’’mark on the
loop is facing up when you insert
the dipstick.
4. Remove the dipstick again, and check the level. It should be
between the upper and lower
marks.
If it is near or below the lower mark,
see Adding Engine Oil on page 420.Engine Coolant Check
Look at the coolant level in the
radiator reserve tank. Make sure it is
between the MAX and MIN lines. If
it is below the MIN line, see
Adding
Engine Coolant on page 424 for
information on adding the proper
coolant. Refer to
Owner's Maintenance
Checks on page 417 for information
about checking other items on your
vehicle.
‘‘ UP’’ MARK
UPPER MARK
LOWER MARK
RESERVE TANK
MAX MIN
Service Station Procedures
357
Before Driving
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

This section explains why it is
important to keep your vehicle well
maintained and how to follow basic
maintenance safety precautions.
This section also includes
instructions on how to read the
maintenance minder messages on
the multi-information display, and
instructions for simple maintenance
tasks you may want to take care of
yourself.
If you have the skills and tools to
perform more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page 497 for information on how to
obtain a copy, or see your dealer.U.S. Vehicles:
Maintenance,
replacement, or repair of
emissions control devices and
systems may be done by any
automotive repair establishment
or individual using parts that are
‘‘certified’’ to EPA standards. Maintenance Safety
.....................
410
Maintenance Minder ™
................
411
Fluid Locations
...........................
419
Adding Engine Oil
......................
420
Required Engine Oil
...............
420
Changing the Engine Oil and
Filter
.......................................
422
Engine Coolant
...........................
424
Windshield Washers
...................
426
Automatic Transmission Fluid
....
427
Brake Fluid
.................................
429
Power Steering Fluid
..................
430
Lights
..........................................
431
Cleaning the Seat Belts
...............
438
Floor Mats
..................................
438
Audio Antenna
............................
439
Intercooler
..................................
439
Dust and Pollen Filter
.................
439
Wiper Blades
..............................
440
Wheels
........................................
443
Tires
...........................................
444
Checking the Battery
..................
450
Vehicle Storage
...........................
451
Interior Care
...............................
452
Maintenance
409
Maintenance
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Unscrew and remove the engine oil
fill cap on top of the valve cover. Pour
in the oil slowly and carefully so you
do not spill any. Clean up any spills
immediately. Spilled oil could
damage components in the engine
compartment.Reinstall the engine oil fill cap, and
tighten it securely. Wait a few
minutes, and recheck the oil level on
the engine oil dipstick. Do not fill
above the upper mark; you could
damage the engine.
Required Engine Oil
Oil is a major contributor to your
engine's performance and longevity.
Your vehicle is equipped with a high-
performance turbocharged engine
that requires the use of synthetic
motor oil. Always use Mobil 1
®
5W-30 or an equivalent oil that meets
the Acura HTO-06 standard. Not all
synthetic oils will meet this standard.
Only use oils that display the HTO-06
standard on the label.
Failure to use Mobil 1
®or an
equivalent oil that meets the HTO-06
standard can lead to a reduction in
engine performance or durability,
and can cause engine damage not
covered by your warranty.
ENGINE OIL FILL CAPAdding Engine Oil42010/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

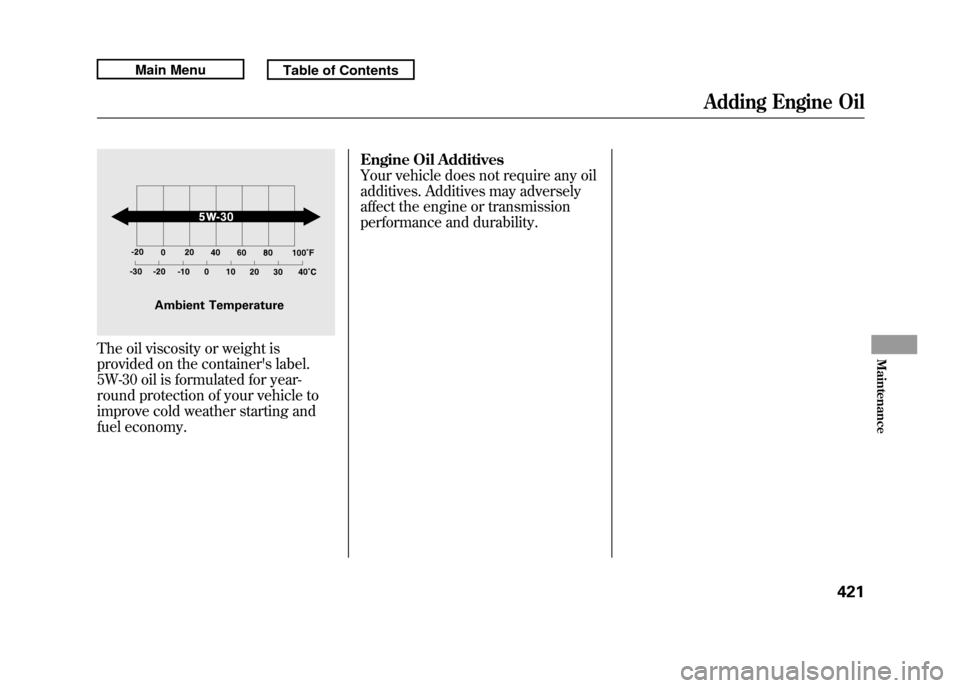

The oil viscosity or weight is
provided on the container's label.
5W-30 oil is formulated for year-
round protection of your vehicle to
improve cold weather starting and
fuel economy.Engine Oil Additives
Your vehicle does not require any oil
additives. Additives may adversely
affect the engine or transmission
performance and durability.
Ambient Temperature
Adding Engine Oil
421
Maintenance
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Bulb ReplacementBack-up Lights
........................
433
Brake Lights
...........................
433
Fog Lights
...............................
435
Front Parking Lights
...............
432
Front Side Marker Lights
........
432
Headlights
..............................
431
High-mount Brake Light
.........
436
Rear Bulbs
......................
433, 434
Rear License Plate Lights........
437
Specifications
..........................
481
Taillights
.........................
433, 434
Turn Signal Lights
..........
432, 433
Bulbs, Halogen
..........................
431
C
Capacities Chart
.........................
480
Carbon Monoxide Hazard
............
57
Cargo
.........................................
364
Cargo Area Cover
.......................
160
Cargo Area Light
........................
153
Cargo, How to Carry
..................
364
Carrying Cargo
..........................
364
CAUTION, Explanation of
............
iii CD Care
.....................................
257
Ceiling Lights
.............................
151
Certification Label
......................
478
Chains, Tires
..............................
449
Changing a Flat Tire
..................
455
Changing Oil How to
....................................
422
When to
..................................
411
Charging System Indicator
...........................
65, 465
Checklist, Before Driving
...........
373
Childproof Door Locks
...............
127
Child Safety
..................................
36
Booster Seats
...........................
54
Child Seats
....................
41, 42, 44
Important Safety Reminders
.....
40
Infants
......................................
41
Larger Children
.......................
53
LATCH
.....................................
46
Risks with Airbags
...................
37
Small Children
.........................
42
Tethers
....................................
51
Warning Labels
........................
38
Where Should a Child Sit?
........
37
Child Seats
...................................
44
LATCH Anchorage Points
........
46 Tether Anchorage Points
.........
51
Cleaning the Seat Belts
..............
438
Client Service Information
..........
494
Climate Control Sensors
............
171
Climate Control System
.............
164
Clock
..........................................
293
Coat Hook
..................................
161
Code, Audio System
...................
292
CO in the Exhaust
................
57, 487
Cold Weather, Starting in
...........
374
Compact Spare Tire
....................
454
Compass Operation
..................
295
Console Compartment
...............
158
Consumer Information
...............
494
Controls, Instruments and
............
61
Coolant Adding
....................................
424
Checking
................................
357
Proper Solution
.......................
424
Courtesy Lights
..........................
153
Crankcase Emissions Control
System
...................................
487
Cruise Control Indicator
...............
69
Cruise Control Operation
...........
300
Cruise Main Indicator
..................
69
Cup Holders
...............................
156
IndexII10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

EngineAdding Engine Coolant
...........
424
If it Won't Start
........................
459
Malfunction Indicator
Lamp
.............................
65, 466
Oil Life Indicator
.....................
411
Oil Pressure Indicator
.......
65, 465
Overheating
............................
463
Specifications
..........................
480
Speed Limiter
..........................
378
Starting
...................................
374
Engine Coolant
..........................
424
Engine Number
.........................
479
Ethanol in Gasoline
....................
352
Evaporative Emissions Controls
..................................
487
Exhaust Emissions Controls
......
488
Exhaust Fumes
............................
57
Expectant Mothers, Use of Seat Belts by
....................................
18
F
Fan, Interior
...............................
166
Features
.....................................
163 Filters
Dust and Pollen
.......................
439
Oil
...........................................
422
Flashers, Hazard Warning
.........
121
Flat Tire, Changing a
.................
455
Floor Mats
.................................
438
Fluids Automatic Transmission
.........
427
Brake
......................................
429
Location
..................................
419
Power Steering
........................
430
Windshield Washer
.................
426
FM/AM Radio Reception
...........
287
Fog Lights
..................................
119
Folding the Rear Seats Down
.....
138
Four-way Flashers
......................
121
Front Airbags
.........................
10, 26
Front Door Pockets
....................
155
Front Seat Heaters
...................................
141
Front Seat Power
Adjustments
...........................
134
Fuel
............................................
352
Economy
.................................
358
Fill Door and Cap
....................
353
Gauge
......................................
73 Low Fuel Indicator
...................
68
Octane Requirement
...............
352
Reserve Indicator
.....................
68
Tank, Filling the
......................
353
Tighten Fuel Cap
....................
354
Fuel Economy
............................
358
Fuses, Checking the
..................
470
G
Gas Mileage, Improving
.............
359
Gasoline
.....................................
352
Low Fuel Indicator
...................
68
Octane Requirement
...............
352
Tank, Refueling
.......................
353
Gas Station Procedures
..............
353
Gauges Fuel
..........................................
73
Speedometer
............................
73
Tachometer
..............................
73
Turbo Boost Meter
..................
73
Gearshift Lever Positions Automatic
Transmission
...............
376, 377
Glove Box
..................................
155
IndexIV10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu
