fold seats Acura RDX 2011 Owner's Manual

Additional Safety Precautions●Never let passengers ride in thecargo area or on top of a folded-
down back seat.
If they do, they
could be very seriously injured in a
crash.
●Passengers should not stand up or change seats while the vehicle is
moving.
A passenger who is not
wearing a seat belt during a crash
or emergency stop can be thrown
against the inside of the vehicle,
against other occupants, or out of
the vehicle.
●Two people should never use the
same seat belt.
If they do, they
could be very seriously injured in a
crash.
●Do not put any accessories on seat
belts.
Devices intended to improve
occupant comfort or reposition the
shoulder part of a seat belt can
reduce the protective capability of
the belt and increase the chance of
serious injury in a crash.
●Do not place hard or sharp objects between yourself and a front
airbag.
Carrying hard or sharp
objects on your lap, or driving with
a pipe or other sharp object in your
mouth, can result in injuries if your
front airbag inflates.
●Keep your hands and arms away
from the airbag covers.
If your
hands or arms are close to an
airbag cover, they could be injured
if the airbag inflates.
●Do not attach or place objects on
the front airbag covers.
Objects on
the covers marked ‘‘SRS AIRBAG ’’
could interfere with the proper
operation of the airbags or be
propelled inside the vehicle and
hurt someone if the airbags inflate.
●Do not attach hard objects on or
near a door.
If a side airbag or a
side curtain airbag inflates, a cup
holder or other hard object
attached on or near the door could
be propelled inside the vehicle and
hurt someone.
●Do not cover or replace front seat-back covers withoutconsulting your dealer.Improperly replacing or covering
front seat-back covers can prevent
your side airbags from inflating
during a side impact.
Protecting Adults and Teens
19
Driver and Passenger Safety
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

This section gives information about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach.
Control Locations
..........................
62
Instrument Panel
..........................
63
Instrument Panel Indicators
..........
64
Gauges
..........................................
73
Turbo Boost Meter
...................
73
Fuel Gauge
...............................
73
Multi-Information Display
.............
74
System Messages
.....................
79
Customized Settings
.................
82
Controls Near the Steering
Wheel
.....................................
113
Windshield Wipers and
Washers
..............................
114
Rear Window Wiper and Washer
...............................
115 Turn Signals and Headlights
.......
116
Instrument Panel Brightness
......
120
Rear Window Defogger
...............
121
Hazard Warning Button
..............
121
Steering Wheel Adjustments
.......
122
Keys and Locks
...........................
122
Immobilizer System
....................
124
Ignition Switch
............................
125
Door Locks
.................................
126
Power Door Locks
..................
126
Childproof Door Locks
............
127
Tailgate
.......................................
128
Remote Transmitter
....................
130
Seats
...........................................
134
Front Seat Power
Adjustments
........................
134
Head Restraints
.......................
135
Armrests
.................................
138
Folding the Rear Seats Down
..................................
138
Seat Heaters
................................
141
Power Windows
..........................
142
Moonroof
....................................
144 Mirrors
.......................................
146
Adjusting the Power
Mirrors
...............................
146
Reverse Tilt Door Mirror
........
147
Heated Mirrors
.......................
147
Driving Position Memory
System
....................................
148
Parking Brake
.............................
150
Interior Lights
.............................
151
Ceiling Lights
.........................
151
Individual Map Lights
.............
152
Courtesy Lights
......................
153
Cargo Area Light
.....................
153
Interior Convenience Items
.........
154
Glove Box
...............................
155
Front Door Pockets
.................
155
Beverage Holders
...................
156
Accessory Power Sockets
.......
157
Sun Visor
................................
157
Vanity Mirror
..........................
158
Console Compartment
............
158
Cargo Area Cover
...................
160
Coat Hook
...............................
161
Instruments and Controls
61
Instruments and Controls
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

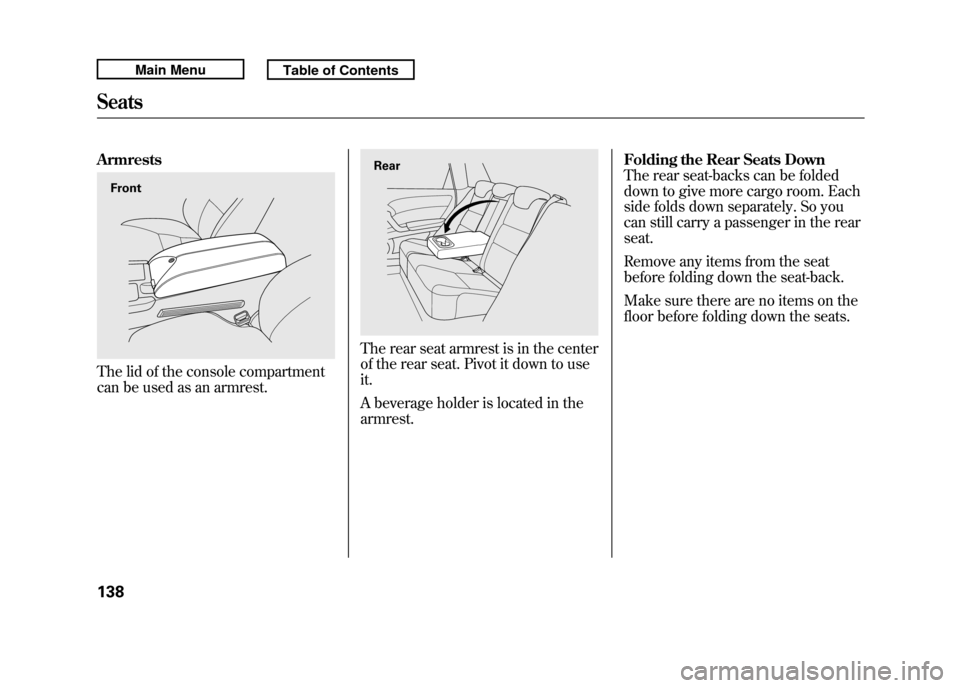

ArmrestsThe lid of the console compartment
can be used as an armrest.
The rear seat armrest is in the center
of the rear seat. Pivot it down to use
it.
A beverage holder is located in the
armrest.Folding the Rear Seats Down
The rear seat-backs can be folded
down to give more cargo room. Each
side folds down separately. So you
can still carry a passenger in the rear
seat.
Remove any items from the seat
before folding down the seat-back.
Make sure there are no items on the
floor before folding down the seats.
Front
Rear
Seats13810/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

1. Move the front seats as far forwardas possible. Make sure the front
seat-backs are in the upright
positions.
2. Store the center seat belt buckle into the pocket in the rear seat-
back.
3. Lower the head restraints to their lowest positions.
4. Push the armrest back in place.
5. Lift the front edge of the rear seatcushion, then pull up on the rear of
the seat cushion, then fold the
cushion forward.
6. Pull up the release lever on theoutside of the seat-back.
Fold the seat-back forward.
7. Move the front seats backward to the desired position.
BUCKLE
RELEASE LEVER
CONTINUED
Seats
139
Instruments and Controls
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Do not put any heavy items on the
seat-back when it is folded down.
Make sure all items in the cargo area
are secured. Loose items can fly
forward and cause injury if you have
to brake hard (SeeCarrying Cargo
on page 364).
Make sure that the folded down rear
seat does not interfere with the front
passenger's seat-back. This will
cause the front passenger's weight
sensors and the front passenger's
seat belt reminder indicator to work
improperly (see pages 21 and 33).
Also check the passenger airbag off
indicator to assure proper operation
of the passenger's front airbag.

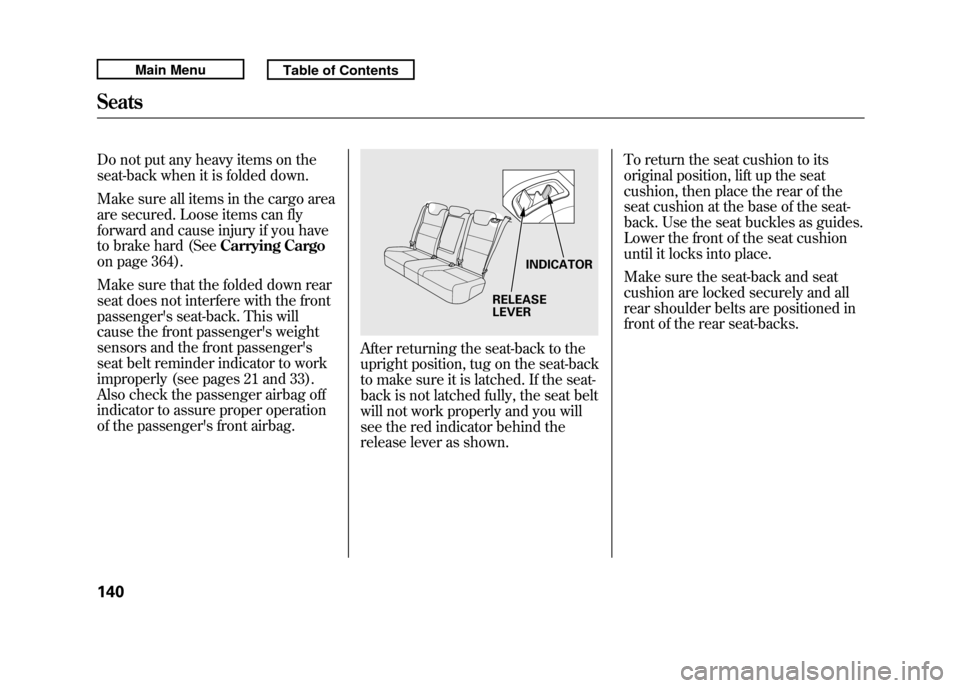

After returning the seat-back to the
upright position, tug on the seat-back
to make sure it is latched. If the seat-
back is not latched fully, the seat belt
will not work properly and you will
see the red indicator behind the
release lever as shown. To return the seat cushion to its
original position, lift up the seat
cushion, then place the rear of the
seat cushion at the base of the seat-
back. Use the seat buckles as guides.
Lower the front of the seat cushion
until it locks into place.
Make sure the seat-back and seat
cushion are locked securely and all
rear shoulder belts are positioned in
front of the rear seat-backs.
RELEASE
LEVER
INDICATOR
Seats14010/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Your vehicle has several convenient
storage areas:●Glove box●Front door pockets●Door lining pockets●Seat-back pockets●Center pocket●Console compartment●Cargo area, including the rear
seats when folded down.●Roof-rack (if equipped)
However, carrying too much cargo,
or improperly storing it, can affect
your vehicle's handling, stability,
stopping distance, and tires, and
make it unsafe. Before carrying any
type of cargo, be sure to read the
following pages.
DOOR LINING POCKETS
FRONT DOOR POCKETCENTER POCKET
GLOVE BOX
CONSOLE COMPARTMENT
CARGO AREA
SEAT BACK POCKETS
CARGO HOOKS
Carrying Cargo36410/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Carrying Cargo in the Passenger
Compartment●Store or secure all items that could
be thrown around and hurt
someone during a crash.●Be sure items placed on the floor
behind the front seats cannot roll
underneath and interfere with the
proper operation of the seats, the
sensors under the seats, or the
driver's ability to operate the
pedals.
●If you fold the rear seats down, tie
down items that could be thrown
about the vehicle during a crash or
sudden stop. Also, keep all cargo
below the bottom of the windows.
If it is higher, it could interfere
with the proper operation of the
side curtain airbags.●Keep the glove box closed while
driving. If it is open, a passenger
could injure their knees during a
crash or sudden stop.●Do not put any items on top of the
cargo area cover. They can block
your view and be thrown around
the vehicle during a crash.Carrying Cargo in the Cargo Area
or on a Roof Rack
●Distribute cargo evenly on the
floor of the cargo area, placing the
heaviest items on the bottom and
as far forward as possible. Tie
down items that could be thrown
about the vehicle during a crash or
sudden stop.●If you fold the rear seats down, tie
down items that could be thrown
about the vehicle during a crash or
sudden stop. Keep all cargo below
the bottom of the windows. If it is
higher, it could interfere with the
proper operation of the side
curtain airbags.
CONTINUED
Carrying Cargo
367
Before Driving
10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

EngineAdding Engine Coolant
...........
424
If it Won't Start
........................
459
Malfunction Indicator
Lamp
.............................
65, 466
Oil Life Indicator
.....................
411
Oil Pressure Indicator
.......
65, 465
Overheating
............................
463
Specifications
..........................
480
Speed Limiter
..........................
378
Starting
...................................
374
Engine Coolant
..........................
424
Engine Number
.........................
479
Ethanol in Gasoline
....................
352
Evaporative Emissions Controls
..................................
487
Exhaust Emissions Controls
......
488
Exhaust Fumes
............................
57
Expectant Mothers, Use of Seat Belts by
....................................
18
F
Fan, Interior
...............................
166
Features
.....................................
163 Filters
Dust and Pollen
.......................
439
Oil
...........................................
422
Flashers, Hazard Warning
.........
121
Flat Tire, Changing a
.................
455
Floor Mats
.................................
438
Fluids Automatic Transmission
.........
427
Brake
......................................
429
Location
..................................
419
Power Steering
........................
430
Windshield Washer
.................
426
FM/AM Radio Reception
...........
287
Fog Lights
..................................
119
Folding the Rear Seats Down
.....
138
Four-way Flashers
......................
121
Front Airbags
.........................
10, 26
Front Door Pockets
....................
155
Front Seat Heaters
...................................
141
Front Seat Power
Adjustments
...........................
134
Fuel
............................................
352
Economy
.................................
358
Fill Door and Cap
....................
353
Gauge
......................................
73 Low Fuel Indicator
...................
68
Octane Requirement
...............
352
Reserve Indicator
.....................
68
Tank, Filling the
......................
353
Tighten Fuel Cap
....................
354
Fuel Economy
............................
358
Fuses, Checking the
..................
470
G
Gas Mileage, Improving
.............
359
Gasoline
.....................................
352
Low Fuel Indicator
...................
68
Octane Requirement
...............
352
Tank, Refueling
.......................
353
Gas Station Procedures
..............
353
Gauges Fuel
..........................................
73
Speedometer
............................
73
Tachometer
..............................
73
Turbo Boost Meter
..................
73
Gearshift Lever Positions Automatic
Transmission
...............
376, 377
Glove Box
..................................
155
IndexIV10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu

Protecting Children
......................
36
General Guidelines
..................
36
Protecting Infants
.....................
41
Protecting Larger Children
......
53
Protecting Small Children
........
42
Using Child Seats with Tethers
.................................
51
Using LATCH
..........................
46
R
Radiator Overheating
.................
463
Radio/CD Sound System
...........
172
Radio Theft Protection
...............
292
Readiness Codes
........................
490
Rear Lights, Bulb Replacement
...........................
433
Rear Seat Folding Down
.............
138
Rearview Mirror
.........................
146
Rearview Mirror with Rearview Camera Display
......................
348
Rear Window Defogger
..............
121
Rear Window Wiper and
Washer
...................................
115 Recalling a Memorized Driving
Position
..................................
133
Reclining the Seat Backs
............
134
Refueling
....................................
353
Reminder Indicators
.....................
64
Remote Audio Controls
..............
289
Remote Transmitter
...................
130
Replacement Information Dust and Pollen Filter
.............
439
Engine Oil and Filter
...............
422
Fuses
......................................
469
Light Bulbs
.............................
431
Schedule
.................................
418
Spark Plugs
.............................
480
Tires
.......................................
447
Wiper Blades
..........................
440
Replacing Seat Belts After a Crash
........................................
23
Reporting Safety Defects (U.S. only)
.......................................
496
Required Engine Oil
..................
420
Reserve Tank, Engine Coolant
............................
357, 424
Restraint, Child
............................
36
Reverse Gear Position
................
377
Reverse Tilt Door Mirror
...........
147 Rotation, Tire
.............................
447
S
Safety Belts
..............................
9, 20
Safety Defects, Reporting (U.S. only)
.......................................
496
Safety Features
..............................
8
Airbags
...............................
10, 24
Door Locks
..............................
12
Head Restraints
........................
15
Seat Belts
........................
9, 15, 20
Seats & Seat-Backs
..............
13, 14
Safety Labels, Location of
.............
58
Safety Messages
..........................
iii
Seat Belts
.................................
9, 20
Additional Information
.............
20
Advice for Pregnant Women
....
18
Automatic Seat Belt Tensioners
...........................
22
Cleaning
..................................
438
Lap/Shoulder Belt
..............
15, 21
Maintenance
............................
23
Reminder Indicator and Beeper
.............................
20, 64
IndexVIII10/06/08 17:42:32 11 ACURA RDX MMC North America Owner's M 50 31STK640 enu
