After selecting a proper child seat
and a good place to install the seat,
there are three main steps in
installing the seat:1.Properly secure the child seat to the vehicle.
All child seats must be
secured to the vehicle with the lap
part of a lap/shoulder belt or with
the LATCH (Lower Anchors and
Tethers for CHildren) system. A
child whose seat is not properly
secured to the vehicle can be
endangered in a crash.
2.
Make sure the child seat is firmly secured.
After installing a child
seat, push and pull the seat
forward and from side-to-side to
verify that it is secure. A child seat secured with a seat belt
should be installed as firmly as
possible. However, it does not need
to be
‘‘rock solid. ’’Some side-to-side
movement can be expected and
should not reduce the child seat's
effectiveness.
If the child seat is not secure, try
installing it in a different seating
position, or use a different style of
child seat that can be firmly secured. 3.
Secure the child in the child seat.Make sure the child is properly
strapped in the child seat
according to the child seat maker's
instructions. A child who is not
properly secured in a child seat
can be seriously injured in a crash.
The following pages provide
guidelines on how to properly install
a child seat. A forward-facing child
seat is used in all examples, but the
instructions are the same for rear-
facing child seats.
Installing a Child Seat
45
Driver and Passenger Safety
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Installing a Child Seat with
LATCH
Your vehicle is equipped with
LATCH (Lower Anchors and Tethers
for CHildren) at the rear seats to
secure a child seat in any seating
position: one in each outer seating
position, or one in the center.
The five lower anchors are located
between the seat-back and seat
bottom, and are to be used only with
a child seat designed for use with
LATCH.
The location of each lower anchor is
indicated by a small button above the
anchor point.
When you install a child seat in the
rear center seating position, use the
center LATCH as shown in the
illustration. To install a child seat in
the outer seating position, use either
LATCH. You can install up to two
child seat at a time with outer
LATCH.
Using the Outer LATCHTo install a LATCH-compatible child
seat in either of the rear outer seats:
1. Move the seat belt buckle ortongue away from the lower
anchors.
2. Make sure there are no objects near the anchors that could
prevent a secure connection
between the child seat and the
anchors.
BUTTON LOWER ANCHORS
FOR CENTER LATCH
LOWER ANCHORS
FOR OUTER LATCH
OUTER LOWER ANCHORS
Installing a Child Seat4611/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

3. Place the child seat on the vehicleseat, then attach the seat to the
lower anchors according to the
child seat maker's instructions.
Some LATCH-compatible seats
have a rigid-type connector as
shown above.
Other LATCH-compatible seats have
a flexible-type connector as shown
above.
4. Whatever type you have, follow the
child seat maker's instructions for
adjusting or tightening the fit.
5. Remove the cargo area cover, and place it on the cargo area floor (see
page 160).
6. Lift the head restraint (see page135), then route the tether strap
through the legs of the head
restraint and over the seat-back,
making sure the strap is not
twisted.
Rigid type
Flexible type
TETHER STRAP
CONTINUED
Installing a Child Seat
47
Driver and Passenger Safety
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

7. Attach the tether strap hook to thetether anchor, then tighten the
strap as instructed by the child
seat maker.
8. Push and pull the child seat forward and from side-to-side to
verify that it is secure.
Using the Center LATCHTo install a LATCH-compatible child
seat in the rear center seating
position, use the center lower
anchors as shown above.
Remove the head restraint (see page
136). Make sure the removed head
restraint is secured in the cargo area.
Reinstall the head restraint when the
child seat is removed.
Follow step 1 through 8 as described
previously to secure the child seat.
When you install the child seat in the
rear center seating position, you
cannot use the seat belt behind the
driver's seat.
TETHER STRAP HOOK ANCHOR
CENTER LOWER ANCHORS
Installing a Child Seat4811/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

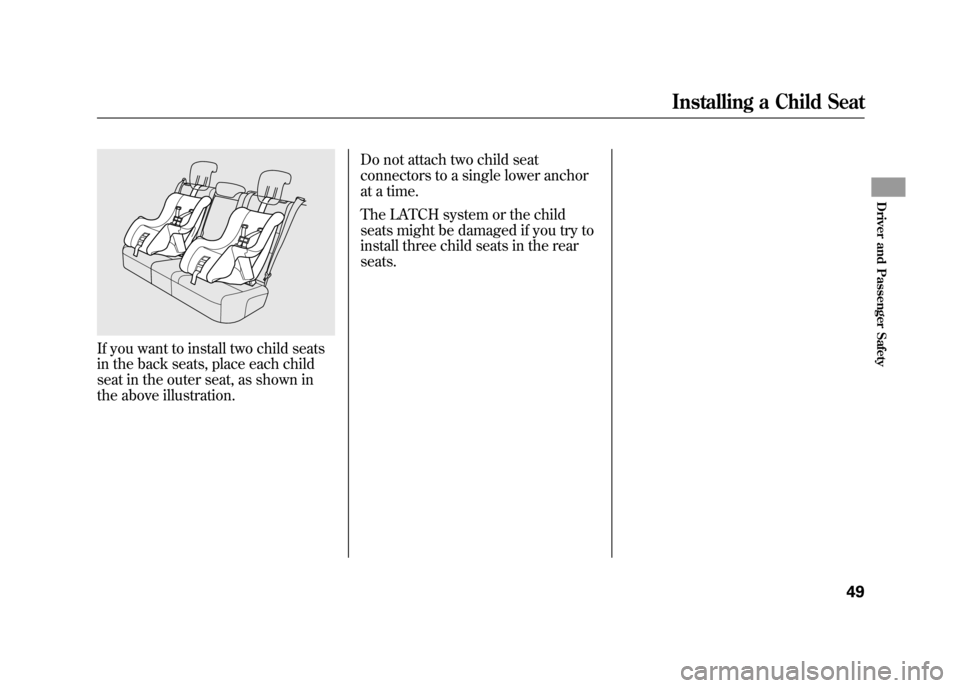

If you want to install two child seats
in the back seats, place each child
seat in the outer seat, as shown in
the above illustration.Do not attach two child seat
connectors to a single lower anchor
at a time.
The LATCH system or the child
seats might be damaged if you try to
install three child seats in the rear
seats.
Installing a Child Seat
49
Driver and Passenger Safety
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

Installing a Child Seat with a Lap/
Shoulder Belt
When not using the LATCH system,
all child seats must be secured to the
vehicle with the lap part of a lap/
shoulder belt.
In addition, the lap/shoulder belts in
all seating positions except the
driver's have a lockable retractor that
must be activated to secure a child
seat.

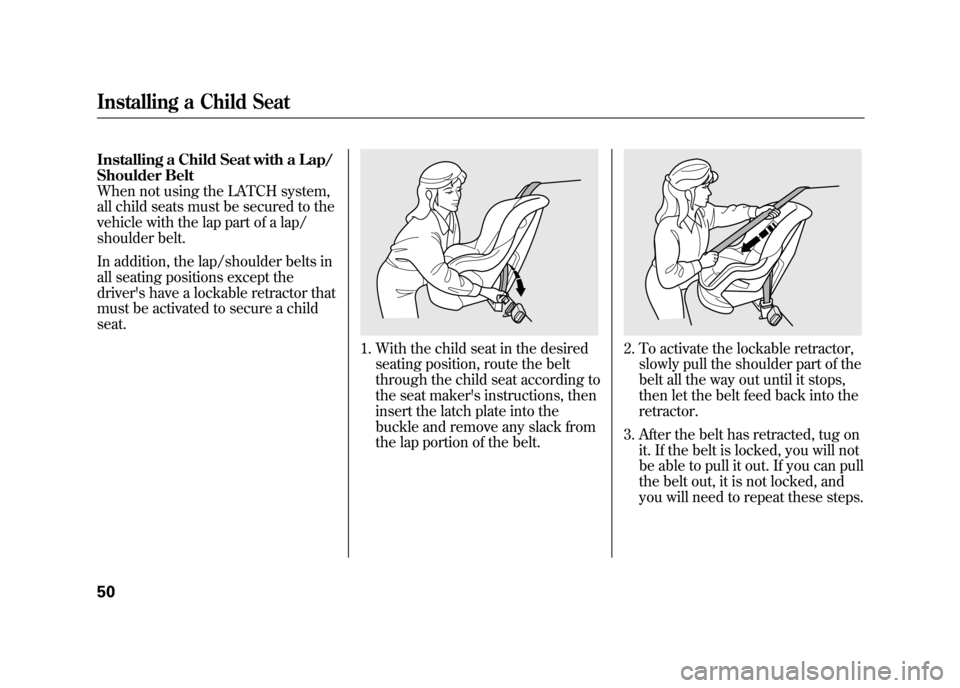

1. With the child seat in the desiredseating position, route the belt
through the child seat according to
the seat maker's instructions, then
insert the latch plate into the
buckle and remove any slack from
the lap portion of the belt.
2. To activate the lockable retractor,slowly pull the shoulder part of the
belt all the way out until it stops,
then let the belt feed back into the
retractor.
3. After the belt has retracted, tug on it. If the belt is locked, you will not
be able to pull it out. If you can pull
the belt out, it is not locked, and
you will need to repeat these steps.
Installing a Child Seat5011/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

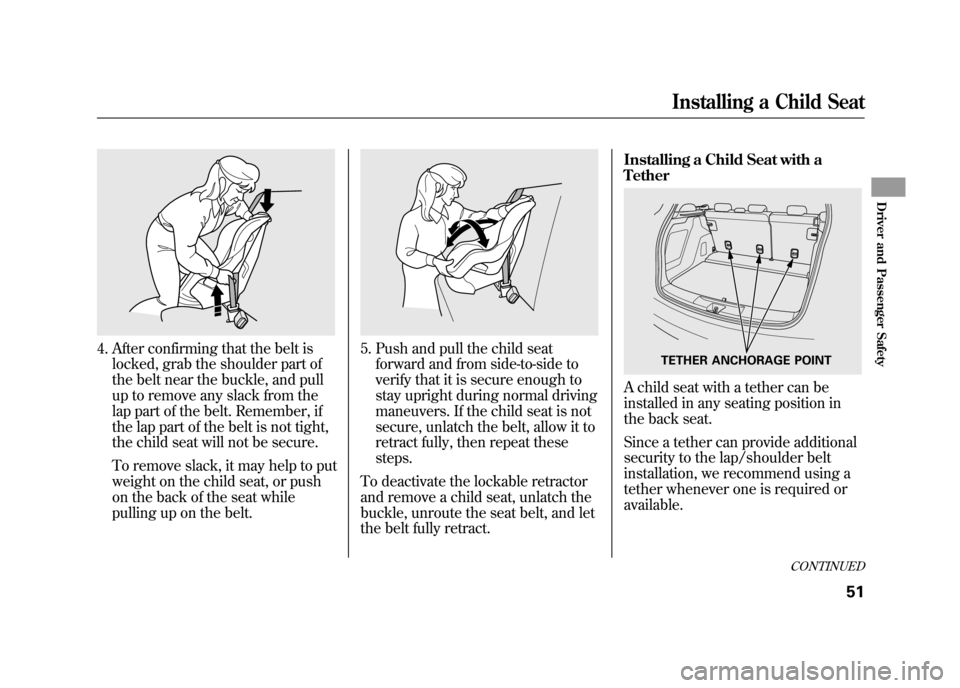

4. After confirming that the belt islocked, grab the shoulder part of
the belt near the buckle, and pull
up to remove any slack from the
lap part of the belt. Remember, if
the lap part of the belt is not tight,
the child seat will not be secure.
To remove slack, it may help to put
weight on the child seat, or push
on the back of the seat while
pulling up on the belt.
5. Push and pull the child seatforward and from side-to-side to
verify that it is secure enough to
stay upright during normal driving
maneuvers. If the child seat is not
secure, unlatch the belt, allow it to
retract fully, then repeat these
steps.
To deactivate the lockable retractor
and remove a child seat, unlatch the
buckle, unroute the seat belt, and let
the belt fully retract. Installing a Child Seat with a
Tether
A child seat with a tether can be
installed in any seating position in
the back seat.
Since a tether can provide additional
security to the lap/shoulder belt
installation, we recommend using a
tether whenever one is required or
available.
TETHER ANCHORAGE POINT
CONTINUED
Installing a Child Seat
51
Driver and Passenger Safety
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

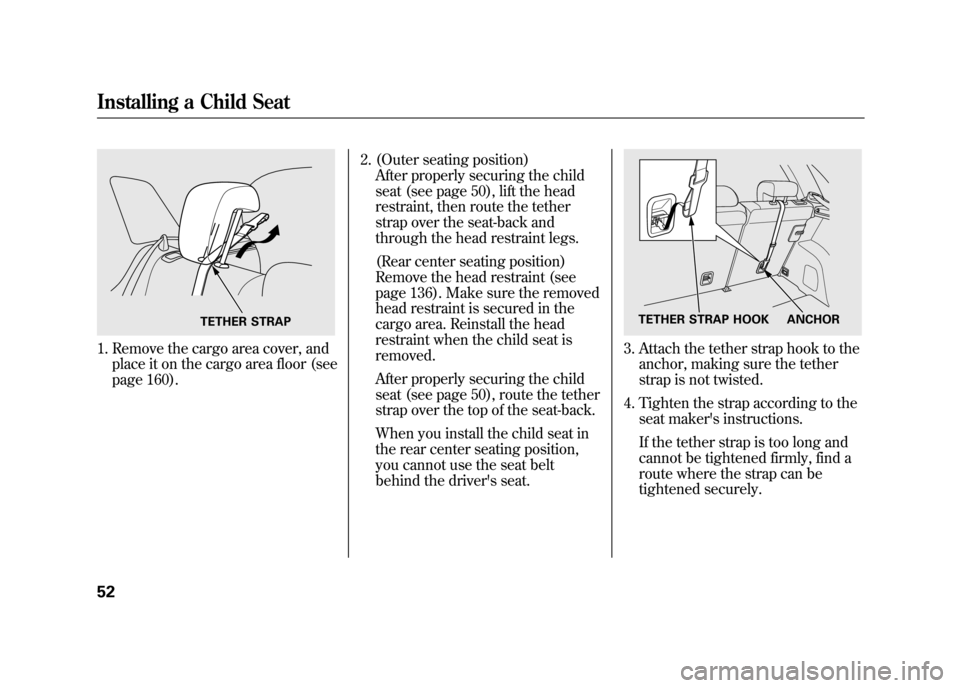

1. Remove the cargo area cover, andplace it on the cargo area floor (see
page 160). 2. (Outer seating position)
After properly securing the child
seat (see page 50), lift the head
restraint, then route the tether
strap over the seat-back and
through the head restraint legs.
(Rear center seating position)
Remove the head restraint (see
page 136). Make sure the removed
head restraint is secured in the
cargo area. Reinstall the head
restraint when the child seat is
removed.
After properly securing the child
seat (see page 50), route the tether
strap over the top of the seat-back.
When you install the child seat in
the rear center seating position,
you cannot use the seat belt
behind the driver's seat.
3. Attach the tether strap hook to theanchor, making sure the tether
strap is not twisted.
4. Tighten the strap according to the seat maker's instructions.
If the tether strap is too long and
cannot be tightened firmly, find a
route where the strap can be
tightened securely.
TETHER STRAP
TETHER STRAP HOOK ANCHOR
Installing a Child Seat5211/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

When a child reaches the
recommended weight or height limit
for a forward-facing child seat, the
child should sit in a back seat on a
booster seat and wear a lap/shoulder
belt.
The following pages give instructions
on how to check proper seat belt fit,
what kind of booster seat to use if
one is needed, and important
precautions for a child who must sit
in front.
Allowing a child age 12 or under
to sit in front can result in injury
or death if the passenger's front
airbag inflates.
If a child must ride in front,
move the vehicle seat as far
back as possible, use a booster
seat if needed, have the child
sit up properly and wear the
seat belt properly.Checking Seat Belt Fit
To determine if a lap/shoulder belt
properly fits a child, have the child
put on the seat belt, then ask
yourself:
1. Does the child sit all the way back
against the seat?
2. Do the child's knees bend comfortably over the edge of the
seat?
CONTINUED
Protecting Larger Children
53
Driver and Passenger Safety
11/06/16 17:42:51 12 ACURA RDX MMC North America Owner's M 50 31STK650 enu

3. Does the shoulder belt crossbetween the child's neck and arm?
4. Is the lap part of the belt as low as possible, touching the child's
thighs?
5. Will the child be able to stay seated like this for the whole trip?
If you answer yes to all these
questions, the child is ready to wear
the lap/shoulder belt correctly. If
you answer no to any question, the

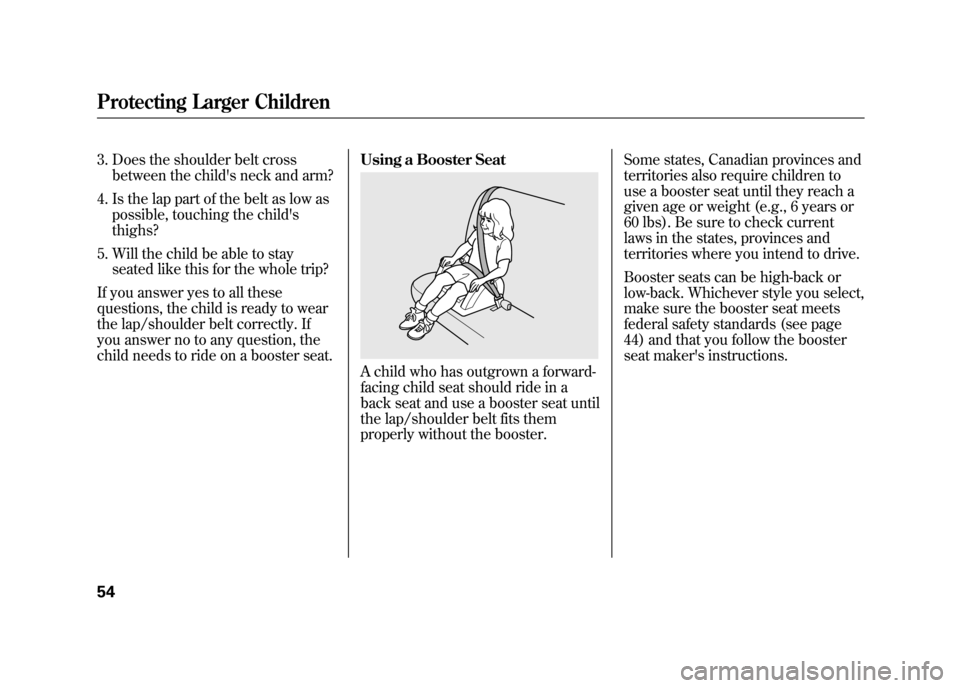

child needs to ride on a booster seat. Using a Booster Seat
A child who has outgrown a forward-
facing child seat should ride in a
back seat and use a booster seat until
the lap/shoulder belt fits them
properly without the booster.Some states, Canadian provinces and
territories also require children to
use a booster seat until they reach a
given age or weight (e.g., 6 years or
60 lbs). Be sure to check current
laws in the states, provinces and
territories where you intend to drive.
Booster seats can be high-back or
low-back. Whichever style you select,
make sure the booster seat meets
federal safety standards (see page
44) and that you follow the booster
seat maker's instructions.
