and Acura RDX 2017 Navigation Manual

272
uuBluetooth ® HandsFreeLink ®u Phonebook Phonetic Modification
Bluetooth ® HandsFreeLink ®

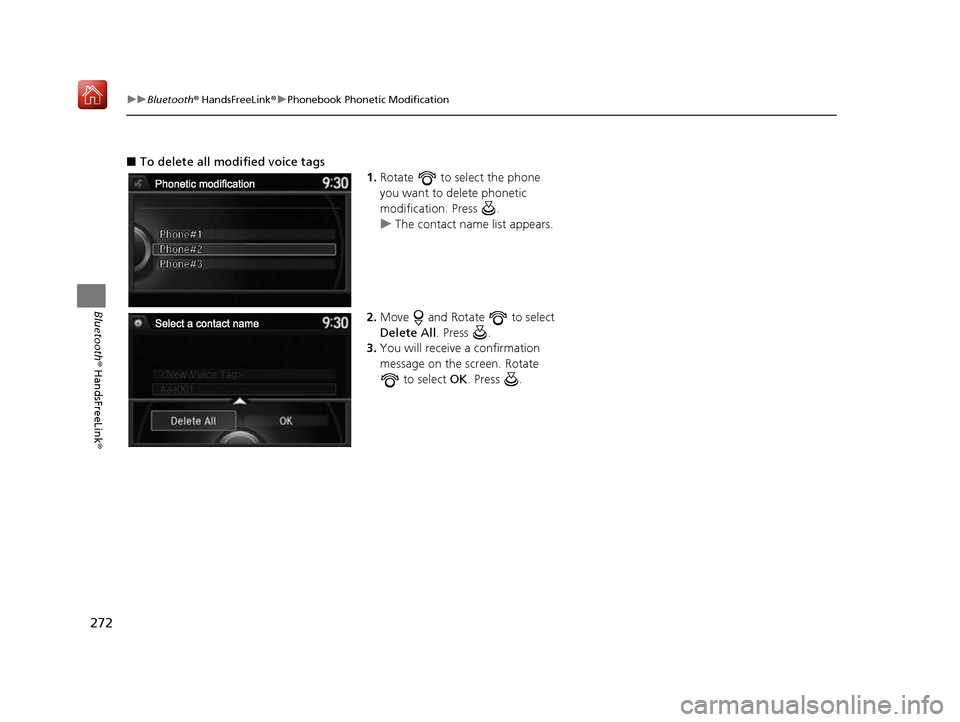

■To delete all mo dified voice tags
1.Rotate to select the phone
you want to delete phonetic
modification. Press .
u The contact name list appears.
2. Move and Rotate to select
Delete All . Press .
3. You will receive a confirmation
message on the screen. Rotate
to select OK . Press .
16 ACURA RDX NAVI-31TX48300.book 272 ページ ２０１５年８月５日　水曜日　午後４時１２分

273
uuBluetooth ® HandsFreeLink ®u Phone Settings
Continued
Bluetooth ® HandsFreeLink ®
Phone Settings
Set HFL options and features.
HSETTINGS button uPhone Settings uBluetooth Device List
You can protect each of the six mob ile phones with a security PIN.
1.Rotate to select the phone
you want to add a security PIN to.
Press .
2. Rotate to select Edit PIN.
Press .
3. Enter a new four-digit number.
Rotate to select OK to enter
the security PIN.
u Move to delete.
4. Re-enter the four-digit number.
u The screen returns to the screen
in step 4.
■Editing a Security PIN1
Editing a Security PIN
If the phone is already secu rity PIN protected, you
need to enter the current security PIN before clearing
the PIN or creating a new one.
You can use the keyboard on the On Demand Multi-
Use Display
TM to input numbers.
Select numbers, then OK.
16 ACURA RDX NAVI-31TX48300.book 273 ページ ２０１５年８月５日　水曜日　午後４時１２分

uuBluetooth ® HandsFreeLink ®u Phone Settings
274
Bluetooth ® HandsFreeLink ®
HSETTINGS buttonuPhone Settings uBluetooth Device List
Edit the user name of a paired phone as follows: 1.Rotate to select a phone you
want to edit. Press .
2. Rotate to select Edit Device
Name. Press .
3. Enter a new name of the phone.
u Rotate or move to select
OK to enter the name. Press
.
u Move to delete.
■Editing User Name1
Editing User Name
You can use the keyboard on the On Demand Multi-
Use Display
TM to input lett ers and numbers.
16 ACURA RDX NAVI-31TX48300.book 274 ページ ２０１５年８月５日　水曜日　午後４時１２分

275
uuBluetooth ® HandsFreeLink ®u Phone Settings
Continued
Bluetooth ® HandsFreeLink ®

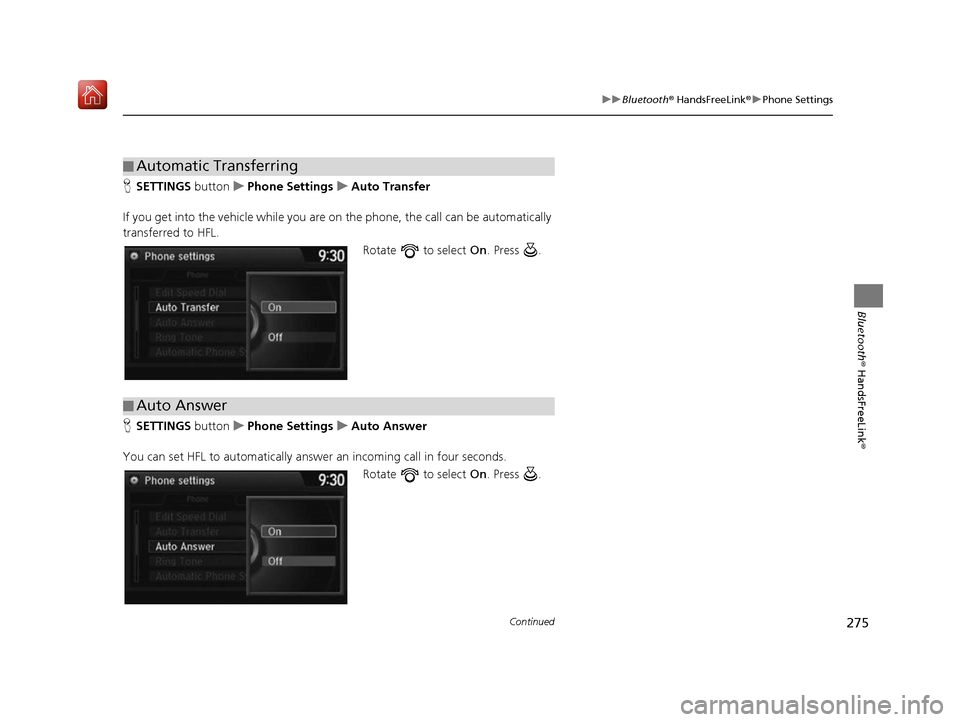

HSETTINGS button uPhone Settings uAuto Transfer
If you get into the vehicle while you are on the phone, the call can be automatically
transferred to HFL. Rotate to select On. Press .
H SETTINGS button uPhone Settings uAuto Answer
You can set HFL to automatically answer an incoming call in four seconds. Rotate to select On. Press .
■Automatic Transferring
■Auto Answer
16 ACURA RDX NAVI-31TX48300.book 275 ページ ２０１５年８月５日　水曜日　午後４時１２分

276
uuBluetooth ® HandsFreeLink ®u Phone Settings
Bluetooth ® HandsFreeLink ®

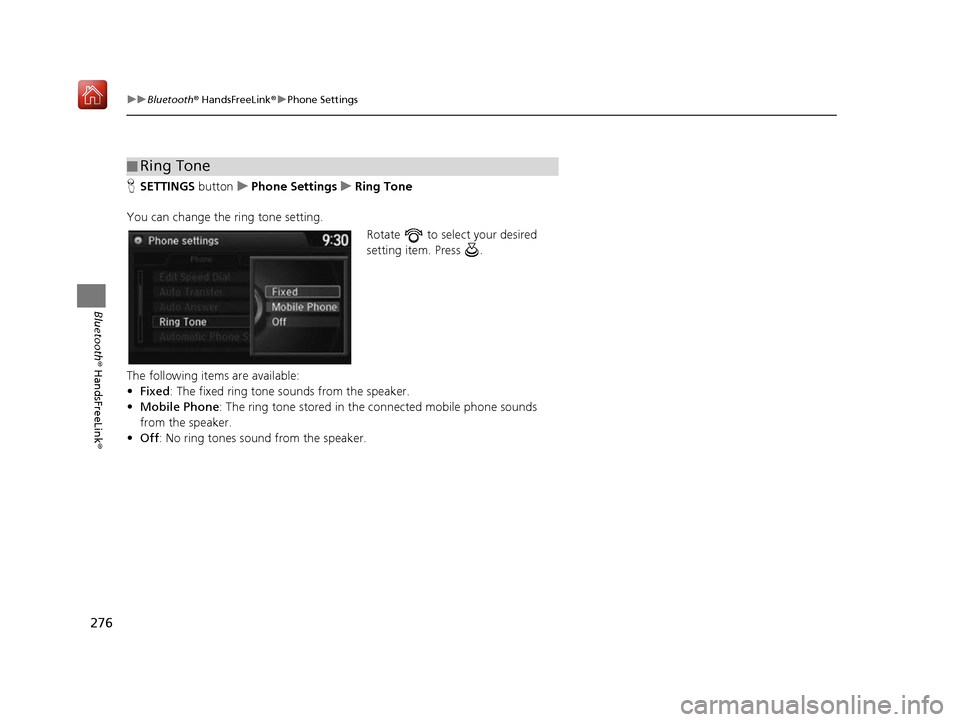

HSETTINGS buttonuPhone Settings uRing Tone
You can change the ring tone setting. Rotate to select your desired
setting item. Press .
The following items are available:
• Fixed : The fixed ring tone sounds from the speaker.
• Mobile Phone : The ring tone stored in the connected mobile phone sounds
from the speaker.
• Off : No ring tones sound from the speaker.
■Ring Tone
16 ACURA RDX NAVI-31TX48300.book 276 ページ ２０１５年８月５日　水曜日　午後４時１２分

277
uuBluetooth ® HandsFreeLink ®u Phone Settings
Bluetooth ® HandsFreeLink ®
HSETTINGS button uPhone Settings uAutomatic Phone Sync
Rotate to select On or Off. Press
.
H SETTINGS button uPhone Settings uUse Contact Photo
You can display a caller's picture on an incoming call screen. Rotate to select On. Press .
■Automatic Phone Sync Setting1
Automatic Phone Sync Setting
Select On if you want your call history and
phonebook automatically imported to HFL. If
prompted by your phone, please accept the import
request.
Not all phones require this additional step.
■ Use Contact Photo
16 ACURA RDX NAVI-31TX48300.book 277 ページ ２０１５年８月５日　水曜日　午後４時１２分

278
uuBluetooth ® HandsFreeLink ®u Making a Call
Bluetooth ® HandsFreeLink ®
Making a Call
You can make calls by inputting any phone number, or by using the imported
phonebook, call history, speed dial entries, or redial.1Making a Call
Any voice-tagged speed di al entry, phonebook name,
or number can be dialed by voice from most screens.
Press the (Talk) button and say ” Call“ and the
voice tag name, ” Call by name“ and the phonebook
name, or ” Call“ and the phone number.
The maximum range be tween your phone and
vehicles is 30 ft (10 m).
Once a call is connected, you can hear the voice of
the person you are call ing through the audio
speakers.
16 ACURA RDX NAVI-31TX48300.book 278 ページ ２０１５年８月５日　水曜日　午後４時１２分

Continued279
uuBluetooth ® HandsFreeLink ®u Making a Call
Bluetooth ® HandsFreeLink ®
HMENU button (on Phone screen) uPhonebook
1.The phonebook is stored
alphabetically. Move to Search.
u You can use the keyboard on
the touchscreen for an
alphabetical search.
2. Rotate to select a number.
Press .
u Dialing starts automatically.
■Using the Phonebook1
Using the Phonebook
This function is disabled while the vehicle is moving.
However, you can call a stored voice-tagged speed
dial number, phonebook name, or number using
voice commands. 2 Limitations for Manual Operation P. 254
2 Setting Up Speed Dialing P. 262
You can use the keyboard on the On Demand Multi-
Use Display
TM for an alphabetical search.
16 ACURA RDX NAVI-31TX48300.book 279 ページ ２０１５年８月５日　水曜日　午後４時１２分

uuBluetooth ® HandsFreeLink ®u Making a Call
280
Bluetooth ® HandsFreeLink ®
HMENU button (on Phone screen) uDial
1.Rotate to select a number.
Press .
2. Rotate to select . Press .
■Entering a Phone Number1
Entering a Phone Number
This function is disabled while the vehicle is moving.
However, you can call a stored voice-tagged speed
dial number, phonebook name, or number using
voice commands. 2 Limitations for Manual Operation P. 254
2 Setting Up Speed Dialing P. 262
You can use the keyboard on the On Demand Multi-
Use Display
TM to input numbers. Select numbers, then
to start dialing.
16 ACURA RDX NAVI-31TX48300.book 280 ページ ２０１５年８月５日　水曜日　午後４時１２分

281
uuBluetooth ® HandsFreeLink ®u Making a Call
Continued
Bluetooth ® HandsFreeLink ®
HMENU button (on Phone screen) uRedial
You can display a caller's picture on an incoming call screen. Rotate to select Dial. Press .
u Dialing starts automatically.
■Using Redial
16 ACURA RDX NAVI-31TX48300.book 281 ページ ２０１５年８月５日　水曜日　午後４時１２分
