service indicator Acura RDX 2018 Owner's Manual

20
Quick Reference Guide
Handling the Unexpected (P 395)
Flat Tire (P 397)
● Park in a safe location and repair the flat
tire using the tire repair kit.
● Park in a safe location and replace the
flat tire with the compact spare tire in the
cargo area.
Indicators Come On (P 422)
● Identify the indicator and consult the
owner’s manual.
Vehicles with tire repair kit
Vehicles with a compact spare tire
Engine Won’t Start (P 414)
● If the battery is dead, jump start using a
booster battery.
Blown Fuse (P 426)
● Check for a blown fuse if an electrical
device does not operate.
Overheating (P 420)
● Park in a safe location. If you do not see
steam under the hood, open the hood,
and let the engine cool down.
Emergency Towing (P 429)
● Call a professional towing service if you
need to tow your vehicle.

85
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
*1:On the left: Models wi thout full color display
On the right: Models with full color display
Message*1ConditionExplanation
●Appears when the scheduled maintenance is
due soon.
●Consequently, SERVICE DUE NOW /
Maintenance Due Soon and SERVICE PAST
DUE /Maintenance Past Due follow.2Maintenance Minder Messages on the
Multi-Information Display P. 350
●Appears when the engine coolant
temperature gets abnormally high.
2Overheating P. 420
●Appears when there is a problem with the
power tailgate system.●Manually open or close the power tailgate.●Have the vehicle checked by a dealer.
—
U.S.U.S.
Canada

341
Driving
Refueling
Fuel Information
■Fuel recommendation
Use of lower octane gasoline can cause occasional metallic knocking noise in the
engine and will result in decreased engine performance.
Use of gasoline with a pump octane less than 87 can lead to engine damage.
■Top tier detergent gasoline
Because the level of detergency and additi ves in gasoline vary in the market, Acura
endorses the use of “TOP TIER Detergent Gasoline” where available to help
maintain the performance and reliability of your vehicle. TOP TIER Detergent
Gasoline meets a new gasoline standard jointly established by leading automotive
manufacturers to meet the needs of today’s advanced engines.
Qualifying gasoline retailers will, in most cases, identify their gasoline as having met
“TOP TIER Detergent Gasoline” standards at the retail location. This fuel is
guaranteed to contain the proper level of de tergent additives and be free of metallic
additives. The proper level of detergent ad ditives, and absence of harmful metallic
additives in gasoline, help avoid build-up of deposits in your engine and emission
control system.
For further important fuel-related information for your vehicle, or on information on
gasoline that does not contain MMT, visit Acura Owners at owners.acura.com In
Canada, visit www.acura.ca for additional informati on on gasoline. For more
information on top tier gasoline, visit www.toptiergas.com.
■Fuel tank capacity: 16 US gal (60.5 liters)
Unleaded premium gasoline, pump octane number 91 or higher
1Fuel Information
NOTICE
We recommend quality ga soline containing
detergent additives that help prevent fuel system and
engine deposits. In addition, in order to maintain
good performance, fuel economy, and emissions
control, we strongly reco mmend the use of gasoline
that does NOT contain harmful manganese-based
fuel additives such as MMT, if such gasoline is
available.
Use of gasoline with these additives may adversely
affect performance, a nd cause the malfunction
indicator lamp on your inst rument panel to come on.
If this happens, contact a dealer for service. Some
gasoline today is blended with oxygenates such as
ethanol. Your vehicle is designed to operate on
oxygenated gasoline containing up to 15% ethanol
by volume. Do not use gaso line containing methanol.
If you notice any undesira ble operating symptoms, try
another service station or sw itch to another brand of
gasoline.

345
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 346
Safety When Performing Maintenance..... 347Parts and Fluids Used in Maintenance Service ........................................... 348
Maintenance Minder
TM..................... 349
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 353Opening the Hood ........................... 354
Recommended Engine Oil ................ 355
Oil Check ......................................... 356
Adding Engine Oil ............................ 357
Changing the Engine Oil and Oil Filter ..... 358
Engine Coolant ................................ 360
Transmission Fluid ............................ 362
Brake Fluid ....................................... 363
Refilling Window Washer Fluid......... 364
Replacing Light Bulbs ....................... 365
Checking and Maintaining Wiper Blades.... 372Checking and Maintaining Tires
Checking Tires ................................. 376
Tire and Loading Information Label ...... 377Tire Labeling .................................... 377DOT Tire Quality Grading (U.S. Vehicles)....... 379Wear Indicators................................ 381
Tire Service Life ................................ 381 Tire and Wheel Replacement ........... 382
Tire Rotation .................................... 383
Winter Tires ..................................... 384
Battery ............................................... 385
Remote Transmitter Care Replacing the Button Battery ........... 386
Climate Control System Maintenance..... 388Cleaning
Interior Care .................................... 389
Exterior Care.................................... 391
Accessories and Modifications ........ 394

350

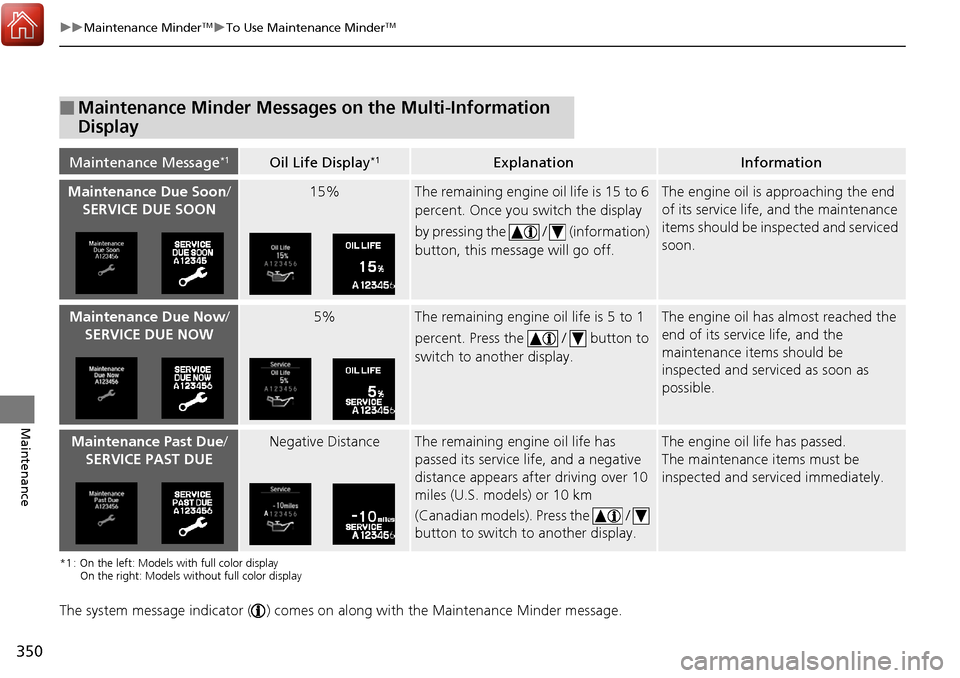

uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
*1 : On the left: Models with full color display
On the right: Models without full color display
The system message indicator ( ) comes on along with the Maintenance Minder message.
■Maintenance Minder Messages on the Multi-Information
Display
Maintenance Message*1Oil Life Display*1ExplanationInformation
Maintenance Due Soon/
SERVICE DUE SOON15%The remaining engine oil life is 15 to 6
percent. Once you switch the display
by pressing the / (information)
button, this message will go off.The engine oil is approaching the end
of its service life, and the maintenance
items should be inspected and serviced
soon.
Maintenance Due Now /
SERVICE DUE NOW5%The remaining engine oil life is 5 to 1
percent. Press the / button to
switch to another display.The engine oil has almost reached the
end of its service life, and the
maintenance items should be
inspected and serviced as soon as
possible.
Maintenance Past Due /
SERVICE PAST DUENegative DistanceThe remaining engine oil life has
passed its service life, and a negative
distance appears after driving over 10
miles (U.S. models) or 10 km
(Canadian models). Press the /
button to switch to another display.The engine oil life has passed.
The maintenance items must be
inspected and serviced immediately.
A

351
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items1Maintenance Service Items
•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.
•Inspect idle speed every 16 0,000 miles (256,000 km).
•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System
Message
Indicator Sub Items
Main
Item
*1: If message,
SERVICE DUE NOW does not appear more than 12 months after the display is reset,
change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check parking brake adjustment●Check expiration date for Temporary Tire Repair Kit bottle (If
equipped)
●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lin es (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher transmission and transfer temperatures. This requires transmission and transfer fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions, have
the transmission fluid changed at 60,000 miles (100,000 km), then every 30,000 miles (48,000 km).
*5: If you drive regularly in very high temperatures (over 110 °F, 43 °C), in very low temperatures (under -
20 °F, -29 °C), replace every 60,000 miles/100,000 km.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission and transfer* fluid*4
4●Replace spark plugs●Replace timing belt an d inspect water pump*5
●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*
Models with full
color displayModels without
full color display
Sub
Items
Main Item
* Not available on all models

381

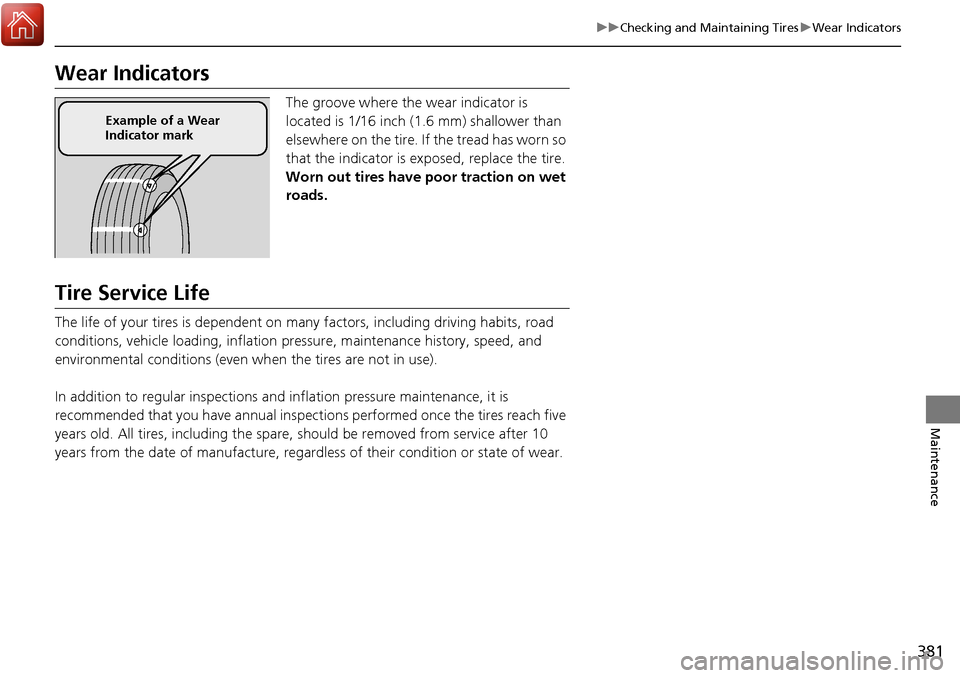

uuChecking and Maintaining Tires uWear Indicators
Maintenance
Wear Indicators
The groove where the wear indicator is
located is 1/16 inch (1.6 mm) shallower than
elsewhere on the tire. If the tread has worn so
that the indicator is ex posed, replace the tire.
Worn out tires have po or traction on wet
roads.
Tire Service Life
The life of your tires is dependent on many factors, including driving habits, road
conditions, vehicle loading, inflation pressure, maintenance history, speed, and
environmental conditions (even wh en the tires are not in use).
In addition to regular inspections and inflation pressure maintenance, it is
recommended that you have annual inspections performed once the tires reach five
years old. All tires, including the spare, should be removed from service after 10
years from the date of manufacture, regardle ss of their condition or state of wear.
Example of a Wear
Indicator mark

444
Index
Bluetooth® HandsFreeLink ®..................... 226
Booster Seats (For Children) ....................... 63
Brake System ............................................. 320
Anti-lock Brake System (ABS) ................... 322
Brake Assist System ................................. 323
Fluid ........................................................ 363
Foot Brake ............................................... 321
Indicator ............................................ 68, 424
Parking Brake .......................................... 320
Brightness Control (Instrument Panel) .... 156
BSI (Blind spot information) System ........ 313
Bulb Replacement ..................................... 365
Back-Up Light and Taillight ...................... 370
Brake Light/Taillight/Rear Side Marker Light and
Rear Turn Signal Light Bulbs ................... 368
Fog Lights ................................................ 365
Front Turn Signal Light /Parking Light/Daytime
Running Light and Front Side Marker Light
Bulbs ..................................................... 367
Headlights ............................................... 365
High-Mount Brake Light .......................... 371
Rear License Plate Light............................ 371
Side Turn Signal Light /Emergency Indicator
Light ...................................................... 366
Bulb Specifications .................................... 432
C
Carbon Monoxide Gas ................................ 64
Cargo Hook ............................................... 177
Carrying Cargo .................................. 259, 261 CD Player
................................................... 204
Certification Label .................................... 434
Changing Bulbs ........................................ 365
Charging System Indicator ................. 70, 422
Child Safety ................................................. 52
Childproof Door Locks............................. 131
Child Seat .................................................... 52
Booster Seats ............................................ 63
Child Seat for Infants................................. 54
Child Seat for Small Children ..................... 55
Installing a Child Seat with a Lap/Shoulder Seat
Belt ......................................................... 59
Larger Children ......................................... 62
Rear-facing Child Seat ............................... 54
Selecting a Child Seat ................................ 56
Childproof Door Locks ............................. 131
Cleaning the Exterior ............................... 391
Cleaning the Interior ................................ 389
Client Service Information ....................... 442
Climate Control System ............................ 182
Changing the Mode ................................ 182
Defrosting the Windshield and
Windows ............................................... 183
Dust and Pollen Filter............................... 388
Recirculation/Fresh Air Mode ................... 182
Sensors ................................................... 185
Synchronized Mode................................. 184
Using Automatic Climate Control ............ 182
Clock .......................................................... 120
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................. 324 Coat Hook
................................................ 177
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 324
Compact Spare Tire .......................... 397, 433
Compass .................................................... 255
Console Compartment ............................. 174
Controls .................................................... 119
Coolant (Engine) ...................................... 360
Adding to the Radiator ........................... 361
Adding to the Reserve Tank .................... 360
Overheating ............................................ 420
Creeping (Automatic Transmission) ........ 276
Cross Traffic Monitor ............................... 337
Cruise Control .......................................... 281
Indicator ................................................... 78
Cup Holders .............................................. 175
Customized Features ....................... 102, 108
D
Daytime Running Lights .......................... 152
Dead Battery ............................................ 417
Defrosting the Windshield and Windows ................................................. 183
Detachable Anchor .................................... 36
Devices that Emit Radio Waves ............... 435
Dimming
Headlights .............................................. 149
Rearview Mirror ...................................... 161
Dipstick (Engine Oil) ................................ 356
Directional Signals (Turn Signal) ............. 149

447
Index
System Message ....................................... 77
Transmission ............................................. 70
Turn Signal ............................................... 75
Vehicle Stability Assist (VSA®)
System ............................................ 73, 311
VSA ® OFF.......................................... 73, 312
Information .............................................. 431
Instrument Panel ........................................ 67
Brightness Control .................................. 156
Interior Lights ........................................... 171
Interior Rearview Mirror ......................... 161
iPod ®......................................................... 207
J
Jack (Wheel Nut Wrench) ........................ 400
Jump Starting ........................................... 417
K
Key Number Tag ...................................... 123
Keyless Access System .............................. 125
Keyless Lockout Prevention ..................... 128
Keys ........................................................... 121
Lockout Prevention ................................. 128
Number Tag............................................ 123
Rear Door Won’t Open ........................... 131
Remote Transmitter ................................ 127
Two-way Keyless Access
Remote ................................. 121, 129, 272
Types and Functions................................ 121 Kickdown (Automatic Transmission)
....... 276
L
Lane Departure Warning (LDW).............. 299
Lane Keeping Assist System (LKAS) ......... 303
Language (HFL) ......................................... 227
LATCH (Child Seats) .............................. 57, 60
LDW (Lane Departure Warning) .............. 299
Lights ................................................. 149, 365
Automatic ............................................... 150
Bulb Replacement .................................... 365
Daytime Running Lights ........................... 152
Fog Lights ................................................ 152
High Beam Indicator .................................. 75
Interior .................................................... 171
Light Switches ......................................... 149
Lights On Indicator .................................... 76
Turn Signals and Hazard Warning ............ 149
Load Limits ................................................ 261
Locking/Unlocking .................................... 121
Auto Door Locking/Unlocking .................. 132
Childproof Door Locks ............................. 131
From Inside .............................................. 130
From Outside ........................................... 125
Keys ........................................................ 121
Using a Key ............................................. 128
Lockout Prevention System ...................... 128
Low Battery Charge .................................. 422
Low Fuel Indicator ...................................... 71
Low Oil Pressure Indicator ................. 69, 422Lower Anchors
...................................... 57, 60
Luggage (Maximum Load Limit) ............. 261
Lumbar Support ....................................... 164M
Maintenance............................................. 345
Battery .................................................... 385
Brake Fluid .............................................. 363
Cleaning ................................................. 389
Climate Control System ........................... 388
Coolant ................................................... 360
Maintenance Minder
TM............................ 349
Oil ........................................................... 356
Precautions ............................................. 346
Radiator .................................................. 361
Remote Transmitter ......................... 386, 387
Replacing Light Bulbs .............................. 365
Safety...................................................... 347
Service Items ........................................... 351
Tires ........................................................ 376
Transmission Fluid ................................... 362
Under the Hood ...................................... 353
Malfunction Indicator Lamp .............. 69, 423
Map Lights ................................................ 171
Maximum Load Limit ............................... 261
Meters, Gauges ........................................... 95
