Acura RDX 2019 Owner's Manual

250
uuAudio System Basic Operation uAudio/Information Screen
Features
■Navigation*
Displays the navigation screen.
2 Refer to the Navigation System Manual
■Phone
Displays the HFL information.
2 Bluetooth® HandsFreeLink ® P. 358
■FM Radio/AM Radio/SiriusXM/USB Audio/Bluetooth Audio/AUX Input
Displays the each audio information.
■Settings
Enters the customiz ing menu screen.
2Customized Features P. 332
■Apple CarPlay
Displays the Apple CarPlay screen.
2Apple CarPlayTM P. 303
■System Updates
Updates the software version of the audio system.
2 System Updates P. 263
■Messages
Displays the text message screen.
2 Text Message P. 376
* Not available on all models
19 ACURA RDX-31TJB6000.book 250 ページ ２０１８年４月２６日　木曜日　午後４時５１分

251
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features

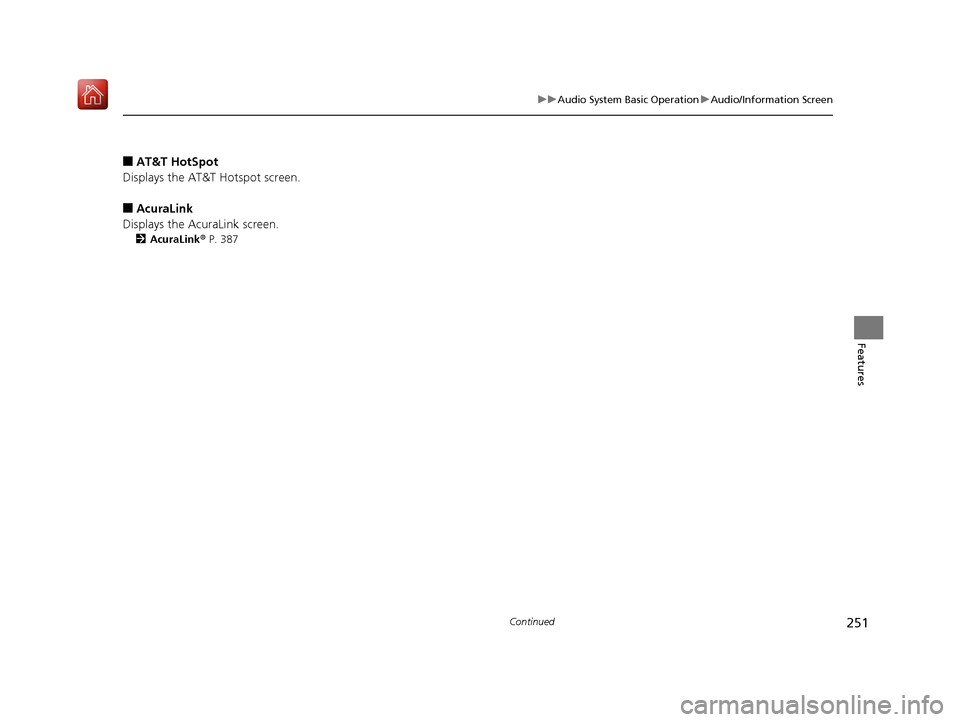

■AT&T HotSpot
Displays the AT&T Hotspot screen.
■AcuraLink
Displays the AcuraLink screen.
2 AcuraLink ® P. 387
19 ACURA RDX-31TJB6000.book 251 ページ ２０１８年４月２６日　木曜日　午後４時５１分

uuAudio System Basic Operation uAudio/Information Screen
252
Features
You can see the audio, HFL information, navigation mini map*, and clock
information on the secondary information area using the true touchpad B.
■Switching the card
Swipe up or down the true touchpad B to cycle through the following screen.
■Secondary Information Area1Secondary Information Area
SiriusXM ® radio service notifications are displayed in
the secondary information area.
Secondary Information Area
1 Switching the card
The card in the secondary information area will
change depending on the sc reen displayed in the
primary information area.
Now Playing Audio
Navigation*
Clock
* Not available on all models
19 ACURA RDX-31TJB6000.book 252 ページ ２０１８年４月２６日　木曜日　午後４時５１分

253
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features

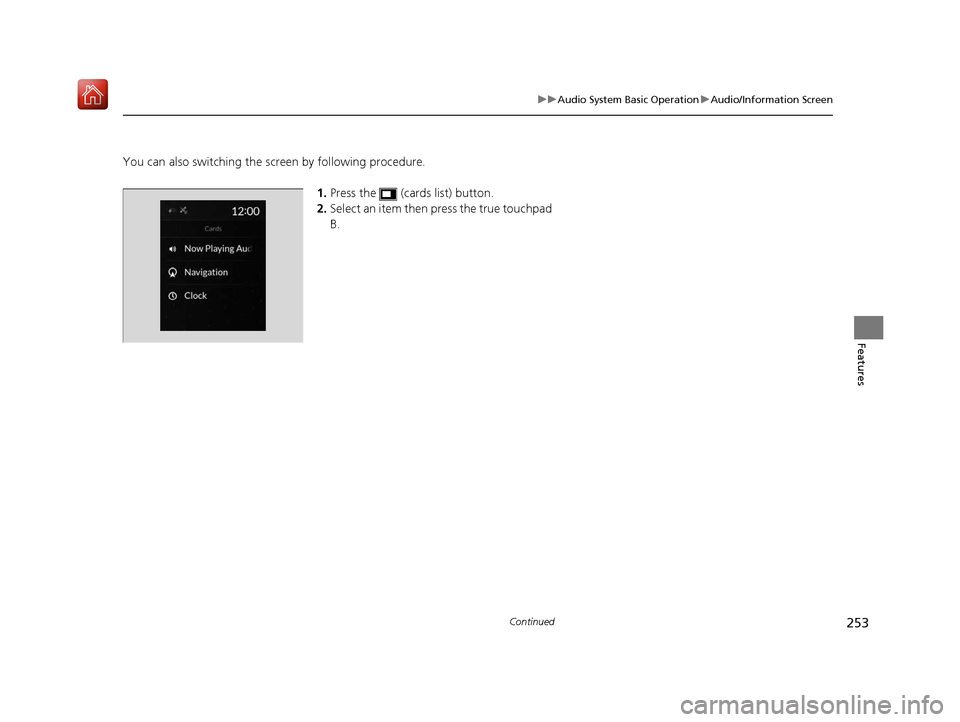

You can also switching the screen by following procedure.
1.Press the (cards list) button.
2. Select an item then press the true touchpad
B.
19 ACURA RDX-31TJB6000.book 253 ページ ２０１８年４月２６日　木曜日　午後４時５１分

uuAudio System Basic Operation uAudio/Information Screen
254
Features
■To change to a next screen
Swiping true touchpad A left or right takes you to the next screen.
■Home Screen1 Home Screen
The home screen has 2 pages. You can add up to 8
pages.
Press the (home) button to go directly back to
the first page of the home screen from any page.
Current page position
True Touchpad A
Swipe left to go to
the additional pages
of the home screen.Swipe right to
display the All Apps
screen.
19 ACURA RDX-31TJB6000.book 254 ページ ２０１８年４月２６日　木曜日　午後４時５１分

Continued255
uuAudio System Basic Operation uAudio/Information Screen
Features

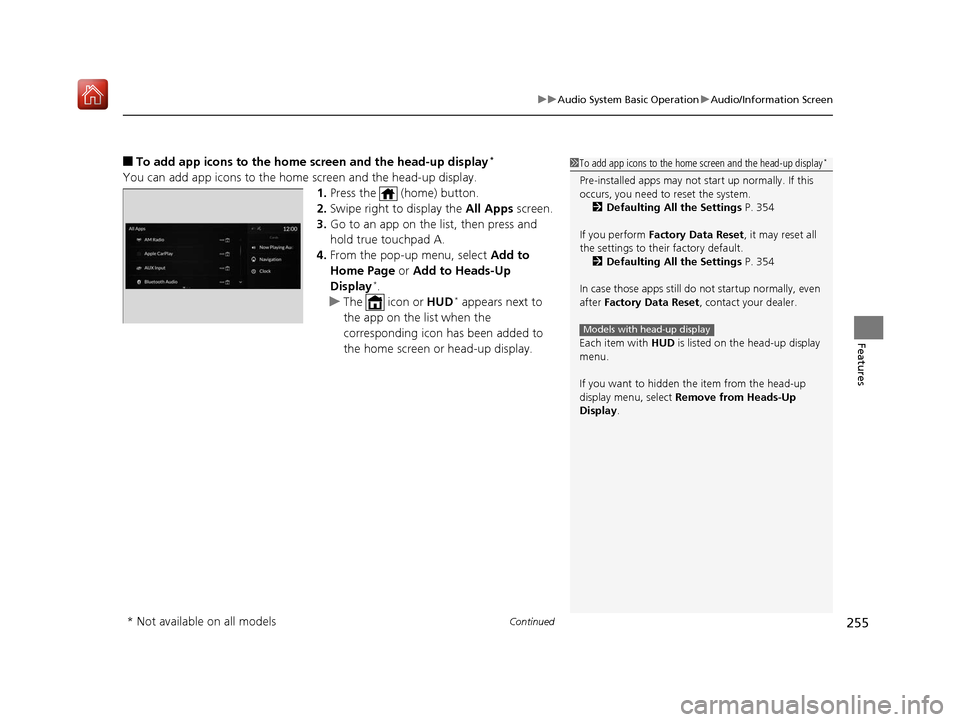

■To add app icons to the home screen and the head-up display*
You can add app icons to the home screen and the head-up display.
1. Press the (home) button.
2. Swipe right to display the All Apps screen.
3. Go to an app on the list, then press and
hold true touchpad A.
4. From the pop-up menu, select Add to
Home Page or Add to Heads-Up
Display
*.
u The icon or HUD* appears next to
the app on the list when the
corresponding icon has been added to
the home screen or head-up display.
1 To add app icons to the home screen and the head-up display*
Pre-installed apps may not start up normally. If this
occurs, you need to reset the system.
2 Defaulting All the Settings P. 354
If you perform Factory Data Reset , it may reset all
the settings to their factory default. 2 Defaulting All the Settings P. 354
In case those apps still do not startup normally, even
after Factory Data Reset , contact your dealer.
Each item with HUD is listed on the head-up display
menu.
If you want to hidden the item from the head-up
display menu, select Remove from Heads-Up
Display.
Models with head-up display
* Not available on all models
19 ACURA RDX-31TJB6000.book 255 ページ ２０１８年４月２６日　木曜日　午後４時５１分

uuAudio System Basic Operation uAudio/Information Screen
256
Features

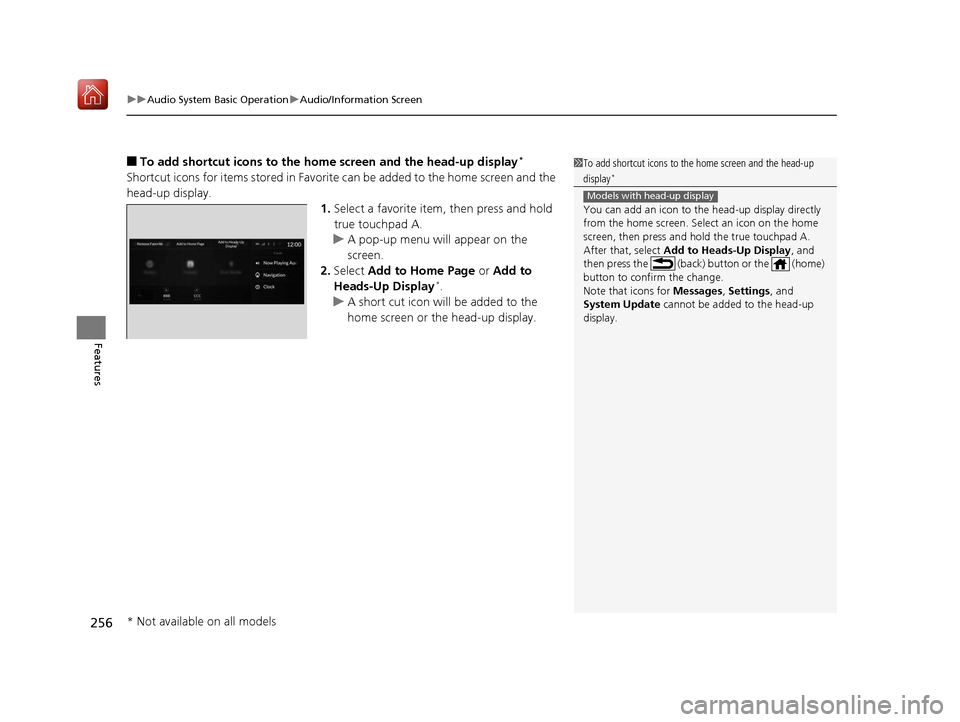

■To add shortcut icons to the home screen and the head-up display*
Shortcut icons for items stored in Favorite can be added to the home screen and the
head-up display.
1.Select a favorite item, then press and hold
true touchpad A.
u A pop-up menu will appear on the
screen.
2. Select Add to Home Page or Add to
Heads-Up Display
*.
u A short cut icon will be added to the
home screen or the head-up display.
1To add shortcut icons to the home screen and the head-up
display*
You can add an icon to the head-up display directly
from the home screen. Select an icon on the home
screen, then press and hold the true touchpad A.
After that, select Add to Heads-Up Display , and
then press the (back) button or the (home)
button to confirm the change.
Note that icons for Messages, Settings, and
System Update cannot be added to the head-up
display.
Models with head-up display
* Not available on all models
19 ACURA RDX-31TJB6000.book 256 ページ ２０１８年４月２６日　木曜日　午後４時５１分

Continued257
uuAudio System Basic Operation uAudio/Information Screen
Features

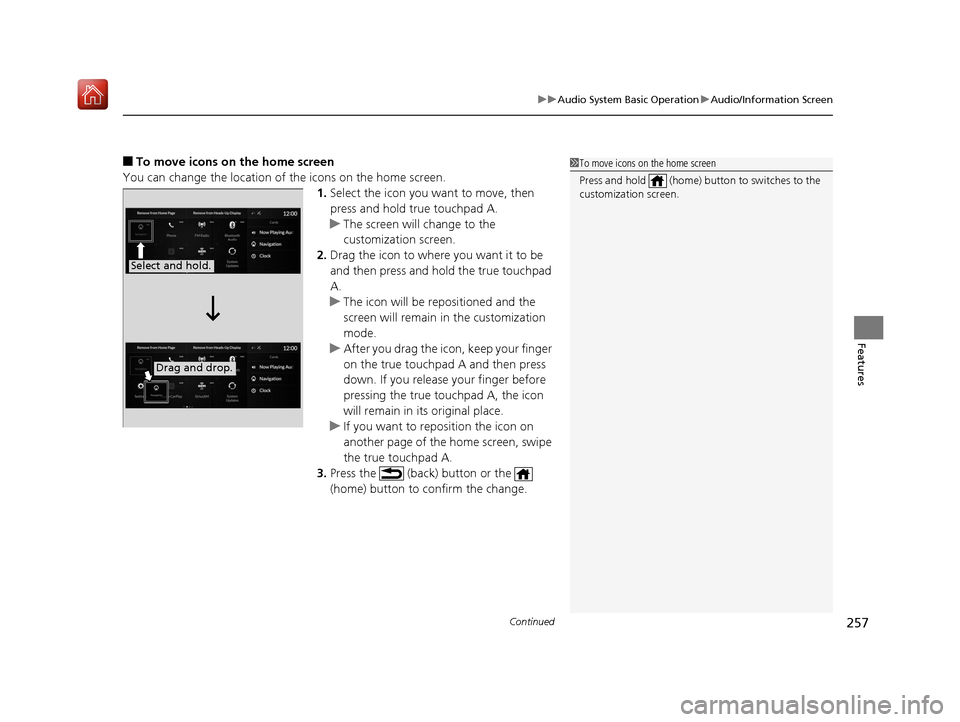

■To move icons on the home screen
You can change the location of the icons on the home screen. 1.Select the icon you wa nt to move, then
press and hold true touchpad A.
u The screen will change to the
customization screen.
2. Drag the icon to where you want it to be
and then press and hold the true touchpad
A.
u The icon will be repositioned and the
screen will remain in the customization
mode.
u After you drag the icon, keep your finger
on the true touchpad A and then press
down. If you release your finger before
pressing the true touchpad A, the icon
will remain in its original place.
u If you want to reposition the icon on
another page of the home screen, swipe
the true touchpad A.
3. Press the (back) button or the
(home) button to confirm the change.1To move icons on the home screen
Press and hold (home) button to switches to the
customization screen.
Select and hold.
Drag and drop.
19 ACURA RDX-31TJB6000.book 257 ページ ２０１８年４月２６日　木曜日　午後４時５１分

uuAudio System Basic Operation uAudio/Information Screen
258
Features

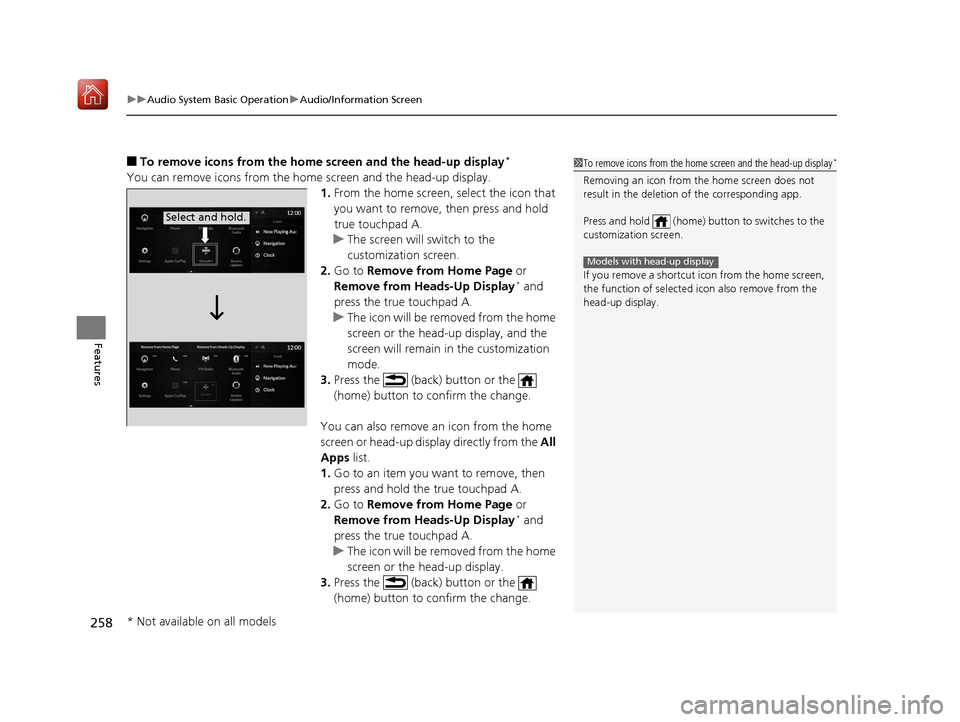

■To remove icons from the home screen and the head-up display*
You can remove icons from the home screen and the head-up display.
1.From the home screen, select the icon that
you want to remove, then press and hold
true touchpad A.
u The screen will switch to the
customization screen.
2. Go to Remove from Home Page or
Remove from Heads-Up Display
* and
press the true touchpad A.
u The icon will be removed from the home
screen or the head-up display, and the
screen will remain in the customization
mode.
3. Press the (back) button or the
(home) button to confirm the change.
You can also remove an icon from the home
screen or head-up display directly from the All
Apps list.
1. Go to an item you want to remove, then
press and hold the true touchpad A.
2. Go to Remove from Home Page or
Remove from Heads-Up Display
* and
press the true touchpad A.
u The icon will be removed from the home
screen or the head-up display.
3. Press the (back) button or the
(home) button to confirm the change.
1To remove icons from the home screen and the head-up display*
Removing an icon from the home screen does not
result in the deletion of the corresponding app.
Press and hold (home) button to switches to the
customization screen.
If you remove a shortcut icon from the home screen,
the function of selected icon also remove from the
head-up display.
Models with head-up display
Select and hold.
* Not available on all models
19 ACURA RDX-31TJB6000.book 258 ページ ２０１８年４月２６日　木曜日　午後４時５１分

259
uuAudio System Basic Operation uAudio/Information Screen
Continued
Features
1. Select the system stat us area, then press
true touchpad B.
u The status items will appear in the
primary information area.
2. Select an item to see the details.
u Select Dismiss to delete the detail.
u Press the (back) button or select
status area again to close the status list.
■Status Area
System Status Area
Status Items
19 ACURA RDX-31TJB6000.book 259 ページ ２０１８年４月２６日　木曜日　午後４時５１分
