Acura RDX 2020 Owner's Manual

uuInterior Lights/Interior Convenience Items uInterior Lights
220
Controls

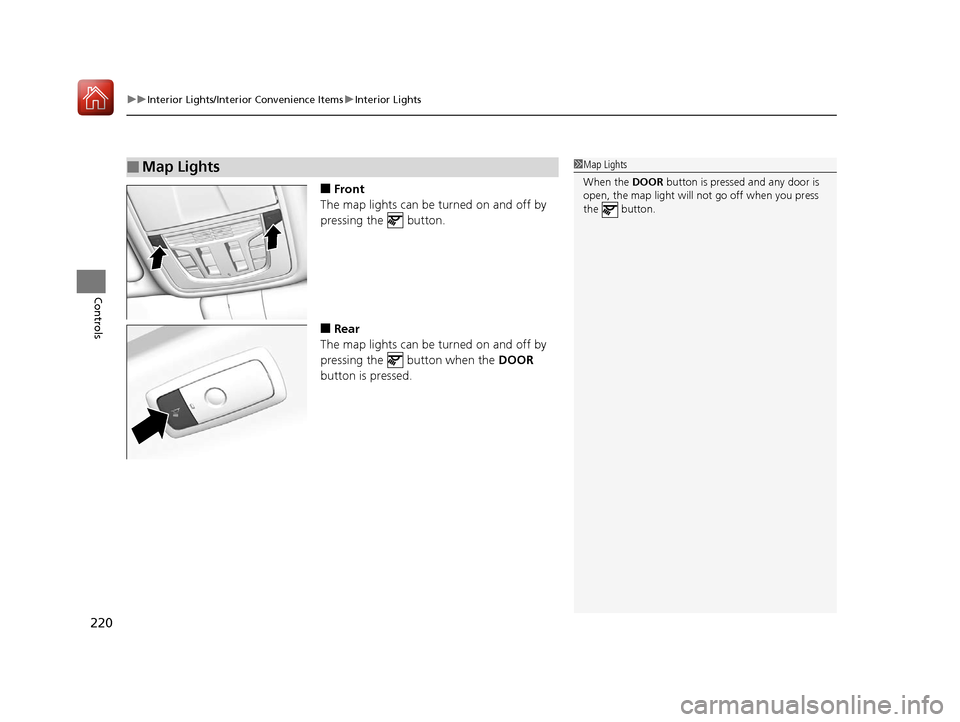

■Front
The map lights can be turned on and off by
pressing the button.
■Rear
The map lights can be turned on and off by
pressing the button when the DOOR
button is pressed.
■Map Lights1 Map Lights
When the DOOR button is pressed and any door is
open, the map light will not go off when you press
the button.
20 ACURA RDX-31TJB6111.book 220 ページ ２０２０年２月１１日　火曜日　午後２時６分

221
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Interior Convenience Items
Press the button to open the glove box. You
can lock the glove box with the built-in key.
■Removable shelf
The shelf in the glove box is detachable. To
remove it, disengage the tabs.
The removable shelf can be stored upside
down in the glove box.
■Glove Box1 Glove Box
The glove box light comes on when the parking lights
are on.
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock
Shelf
Tabs
20 ACURA RDX-31TJB6111.book 221 ページ ２０２０年２月１１日　火曜日　午後２時６分

222
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

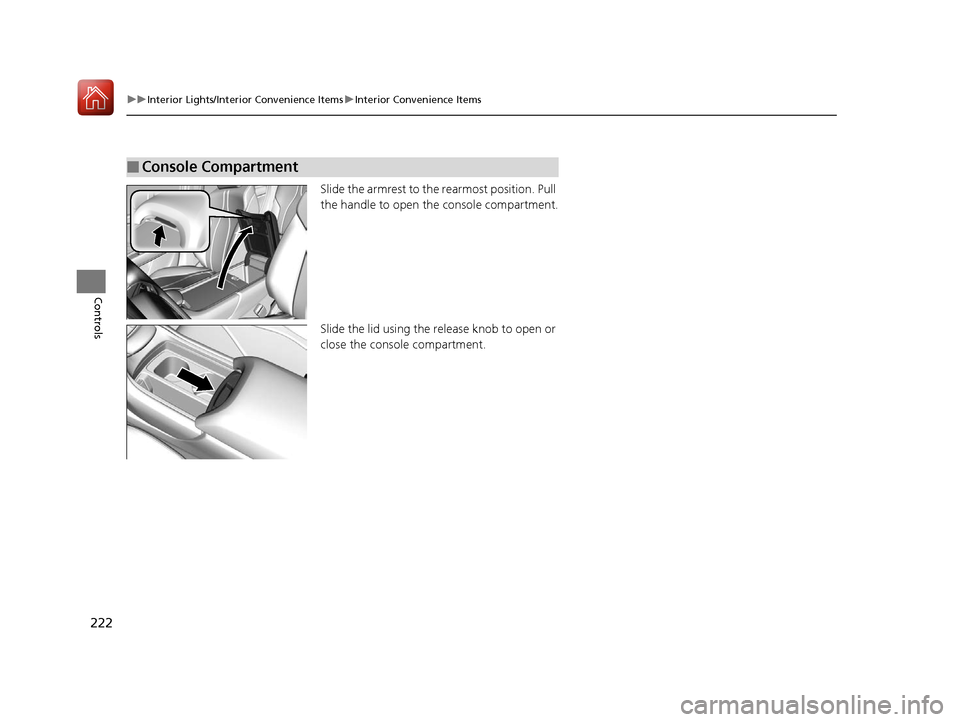

Slide the armrest to the rearmost position. Pull
the handle to open th e console compartment.
Slide the lid using the re lease knob to open or
close the console compartment.
■Console Compartment
20 ACURA RDX-31TJB6111.book 222 ページ ２０２０年２月１１日　火曜日　午後２時６分

Continued223
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

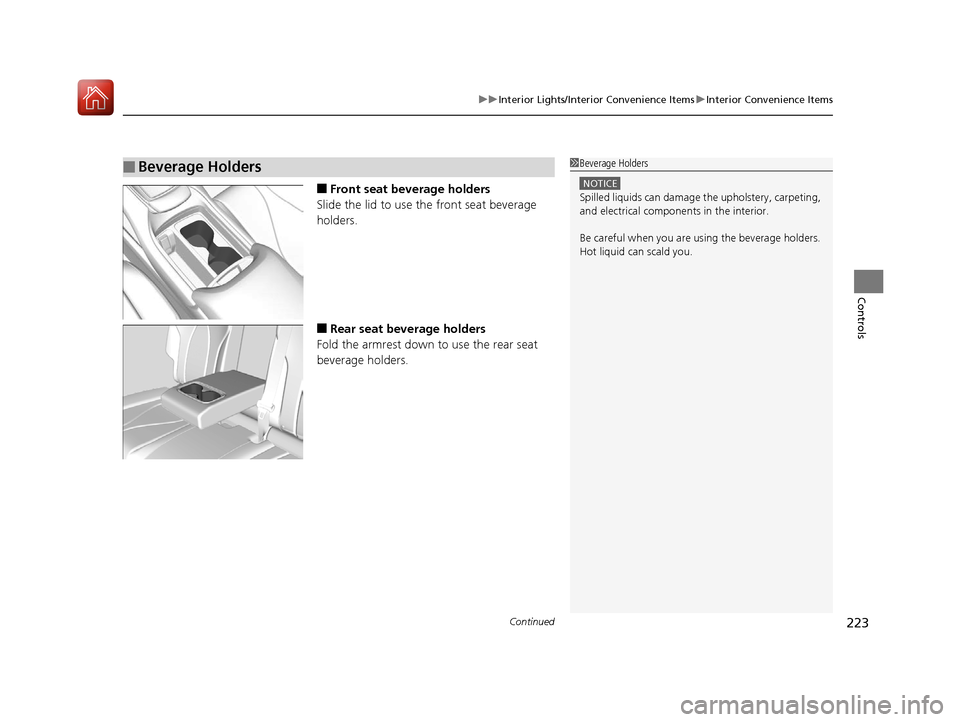

■Front seat beverage holders
Slide the lid to use the front seat beverage
holders.
■Rear seat beverage holders
Fold the armrest down to use the rear seat
beverage holders.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
20 ACURA RDX-31TJB6111.book 223 ページ ２０２０年２月１１日　火曜日　午後２時６分

224
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
■Door side beverage holders
Are located on the both of the front and rear
door side pockets.Front
Rear
20 ACURA RDX-31TJB6111.book 224 ページ ２０２０年２月１１日　火曜日　午後２時６分

Continued225
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The accessory power socket can be used when the power mode is in ACCESSORY or
ON.
■Accessory power socket (front panel)
Open the cover to use it.
There are coat hooks on the rear grab handle
of both sides. Pull it down to use it.
■Accessory Power Socket1 Accessory Power Socket
NOTICE
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent battery drain, only use the power socket
with the engine running.
■Coat Hooks1 Coat Hooks
The coat hooks are not desi gned for large or heavy
items.
20 ACURA RDX-31TJB6111.book 225 ページ ２０２０年２月１１日　火曜日　午後２時６分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
226
Controls
The tie-down anchors on the cargo area floor
can be used to install a net for securing items.
Pull the handle and remo ve the tabs to open
the cargo floor lid.
■Tie-down Anchors1 Tie-down Anchors
Do not let anyone access items in the cargo area
while driving. Loose items ca n cause injury if you have
to brake hard.
Anchor
Anchor
■Under-floor Storage Area
Tabs
Handle
20 ACURA RDX-31TJB6111.book 226 ページ ２０２０年２月１１日　火曜日　午後２時６分

Continued227
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
To open the sunglasses holder, press and
release the indent. To close, press it again until
it latches.
You can store eyeglasses and other small
items in this holder.
The power mode must be in ON to use the
heated steering wheel.
Press the button on the left side of the
steering wheel.
When a comfortable temp erature is reached,
press the button again to turn it off.
The heated steering wheel is turned off every
time you start the engine, even if you turned it
on the last time you drove the vehicle.
■Sunglasses Holder1 Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Press
■Heated Steering Wheel*1 Heated Steering Wheel*
Do not use the heated st eering wheel continuously
when the engine is off. Under such conditions, the
battery may be weaken ed, making the engine
difficult to start.
Heated Steering Wheel Button
Indicator
* Not available on all models
20 ACURA RDX-31TJB6111.book 227 ページ ２０２０年２月１１日　火曜日　午後２時６分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
228
Controls
The power mode must be in ON to use the
seat heaters and ventilators*.
Press the seat heater or the seat ventilation
*
button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF se tting (no indicators on)
Press the AUTO button:
The system automatically selects the setting
most suitable to the ambient environment.
When the power mode is turned on after it is
turned off, the previous setting of front seat
heaters and ventilators
* are maintained.
■Front Seat Heaters and Ventilation*1 Front Seat Heaters and Ventilation*
Do not use the seat heater s and the seat ventilation
even in LO when the engine is off. Under such
conditions, the battery ma y be weakened, making
the engine difficult to start.
After a certain period of time, the strength setting for
the seat heaters will automatically be reduced by one
level at a time until the seat heater shuts off. The
elapsed time varies according to the interior
environment.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
Models with seat ventilation
Models without seat ventilation
* Not available on all models
20 ACURA RDX-31TJB6111.book 228 ページ ２０２０年２月１１日　火曜日　午後２時６分

229
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The power mode must be in ON to use the
seat heaters.
There is no heater in the rear center seating
position.
Press the seat heater button:
Once - The HI setting (three indicators on)
Twice - The MID setting (two indicators on)
Three times - The LO setting (one indicator on)
Four times - The OFF setting (no indicators on)
■Rear Seat Heaters*1 Rear Seat Heaters*
Do not use the seat heaters even in LO when the
engine is off. Under such conditions, the battery may
be weakened, making the engine difficult to start.
3WARNING
Heat induced burns are possible when
using seat heaters.
Persons with a diminished ability to sense
temperature (e.g., persons with diabetes,
lower-limb nerve damage, or paralysis) or
with sensitive skin should not use seat
heaters.
* Not available on all models
20 ACURA RDX-31TJB6111.book 229 ページ ２０２０年２月１１日　火曜日　午後２時６分
