lumbar support Acura RDX 2020 Owner's Manual

208
uuAdjusting the Seats uFront Seats
Controls

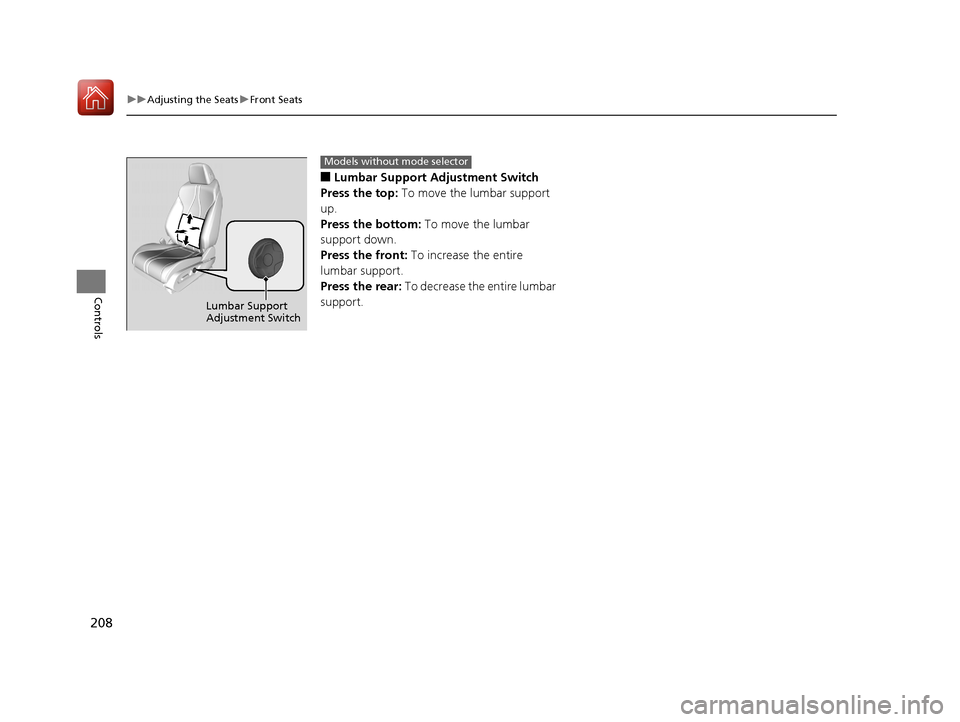

■Lumbar Support Adjustment Switch
Press the top: To move the lumbar support
up.
Press the bottom: To move the lumbar
support down.
Press the front: To increase the entire
lumbar support.
Press the rear: To decrease the entire lumbar
support.
Lumbar Support
Adjustment Switch
Models without mode selector
20 ACURA RDX-31TJB6111.book 208 ページ ２０２０年２月１１日　火曜日　午後２時６分

Continued209
uuAdjusting the Seats uFront Seats
Controls
Press the mode selector up or down to display seat adjustment information on the
audio/information screen, and then use the ad justment switch to adjust the lumbar
support, bolster supp ort or thigh support.
1. Press the mode selector up or down to select the lumbar support adjustment
mode, bolster support adjustment mode or thigh support adjustment mode.
2. Press the adjustment switch as follow.
To adjust the lumbar support:
Press the top: To move the lumbar support
up.
Press the bottom: To move the lumbar
support down.
Press the front: To increase the entire
lumbar support.
Press the rear: To decrease the entire lumbar
support.
■Seat Control Interface*1 Seat Control Interface*
The image of each adjustment mode displayed on the
audio/information screen:
Lumbar support
Bolster support
Thigh support
Adjustment Switch
Mode Selector
* Not available on all models
20 ACURA RDX-31TJB6111.book 209 ページ ２０２０年２月１１日　火曜日　午後２時６分

uuAdjusting the Seats uFront Seats
210
Controls
To adjust the bolster support:
Press the front: To increase the bolster
support.
Press the rear: To decrease the bolster
support.
To adjust the thigh support:
Press the front: The tucked-down seat
cushion end rolls out to support your thighs.
Press the rear: The tucked-down seat
cushion end rolls in to support your thighs.
3. To close the adjusting mode display, hover over the true touchpad A and/or B,
then press the true touchpad.
u When you want to close the driver’s side adjusting mode display, hover over
and press the true touchpad A.
u When you want to close the passenger’s side adjusting mode display, hover
over and press the true touchpad B.1 Seat Control Interface*
The lumbar support, bolster support and thigh
support can be adjusted even when the power mode
is in VEHICLE OFF. However, the adjusting mode
display does not come on with the power mode in
VEHICLE OFF.Adjustment
Switch
Adjustment
Switch
* Not available on all models
20 ACURA RDX-31TJB6111.book 210 ページ ２０２０年２月１１日　火曜日　午後２時６分

650
Index
Locking/Unlocking.................................... 146
Auto Door Locking/Unlocking .................. 162
Childproof Door Locks ............................. 161
From Inside .............................................. 159
From Outside ........................................... 150
Keys ........................................................ 146
Using a Key ............................................. 156
Lockout Prevention System ...................... 157
Low Battery Charge .................................. 615
Low Fuel Indicator ...................................... 83
Low Oil Pressure Indicator ....................... 614
Lower Anchors ...................................... 63, 67
Luggage (Maximum Load Limit) .............. 403
Lumbar Support ........................................ 207
M
Maintenance..................................... 133, 527
Battery..................................................... 569
Brake Fluid............................................... 549
Cleaning .................................................. 575
Climate Control System ........................... 573
Coolant ................................................... 546
Maintenance Minder
TM............................ 531
Oil ........................................................... 542
Precautions .............................................. 528
Radiator................................................... 547
Remote Transmitter ......................... 571, 572
Replacing Light Bulbs ............................... 551
Safety ...................................................... 529
Service Items............................................ 535 Tires ........................................................ 560
Transmission Fluid ................................... 548
Under the Hood ...................................... 538
Malfunction Indicator Lamp .............. 78, 615
Map Lights ................................................ 220
Maximum Load Limit ............................... 403
Meters, Gauges ......................................... 126
Mirrors ...................................................... 204
Adjusting ................................................ 204
Door ....................................................... 205
Exterior ................................................... 205
Interior Rearview ..................................... 204
Modifications (and Accessories) .............. 580
MP3 ........................................................... 293
MP3/WMA/AAC ........................................ 293
Multi-Information Display ....................... 127
Switching the Display .............................. 129
Warning and Information Messages .......... 97
Multi-View Rear Camera .......................... 511
N
Navigation................................................ 132
Numbers (Identification) .......................... 636
O
Odometer................................................. 127
Off-Highway Driving Guidelines ............. 411
Oil (Engine) ............................................... 541
Adding .................................................... 543 Checking ................................................ 542
Displaying Oil Life ................................... 532
Low Oil Pressure Indicator ....................... 614
Oil Life .................................................... 133
Recommended Engine Oil ............... 541, 635
Viscosity.......................................... 541, 635
Open Source Licenses .............................. 330
Opening/Closing
Hood ...................................................... 539
Panoramic Roof ...................................... 179
Power Windows...................................... 176
Tailgate................................................... 163
Outside Temperature Display ................. 127
Overheating ............................................. 612
P
Paddle Shifters (Sequential Shift
Mode) ..................................................... 426
Panic Mode ............................................... 175
Panoramic Roof ........................................ 179
Parking ..................................................... 501
Parking Brake ........................................... 492
Parking Brake and Brake System
Indicator ................................................. 616
Parking Brake and Brake System Indicator (Amber) ..................................................... 76
Parking Brake and Brake System Indicator (Red) .................................. 75, 618
Parking Sensor System ............................. 503
Passenger Front Airbag Off Indicator ....... 56
20 ACURA RDX-31TJB6111.book 650 ページ ２０２０年２月１１日　火曜日　午後２時６分

651
Index
Passing Indicators..................................... 186
Playing Bluetooth ® Audio ....................... 296
Power Tailgate ......................................... 165
Power Windows ....................................... 176
Precautions While Driving ....................... 418
Driving Guidelines for Your Utility Vehicle .................................................. 418
Rain ........................................................ 418
Pregnant Women ....................................... 40
Puncture (Tire) ................................. 585, 593
R
Radar Sensor............................................ 491
Radiator .................................................... 547
Radio (AM/FM) ......................................... 273
Radio (SiriusXM ®)..................................... 277
Range ........................................................ 131
Readiness Codes (Emissions Testing) ...... 639
Rear Defogger/Heated Door Mirror Button ..................................................... 200
Rear Seats (Folding Down) ...................... 216
Rear Temperature Control Dial ............... 234
Rearview Mirror ....................................... 204
Refueling .......................................... 521, 631
Fuel Gauge ............................................. 126
Gasoline ......................................... 521, 634
Low Fuel Indicator..................................... 83
Regulations .............................. 442, 563, 637
Remote Engine Start with Vehicle
Feedback ................................................. 415 Remote Transmitter
................................. 155
Replacement
Battery ............................................ 571, 572
Bulbs ....................................................... 551
Fuses ....................................... 621, 624, 625
Rear Wiper Blade Rubber ......................... 558
Tires ........................................................ 566
Wiper Blade Rubber ................................. 555
Reporting Safety Defects ......................... 638
Resetting a Trip Meter ............................. 130
Reverse Tilt Door Mirror .......................... 205
Road Departure Mitigation (RDM) .......... 485
On and Off .............................................. 487
S
Safe Driving ................................................ 29
Safety Check ............................................... 34
Safety Labels ............................................... 72
Safety Message ............................................. 1
Seat Belts ..................................................... 35
Adjusting the Shoulder Anchor .................. 39
Automatic Seat Belt Tensioners .................. 37
Checking ................................................... 41
Fastening ................................................... 38
Installing a Child Seat with a Lap/Shoulder Seat Belt .................................................. 65
Pregnant Women ...................................... 40
Reminder ................................................... 36
Warning Indicator ................................ 36, 83
Seat Heaters .............................................. 228 Seats
.......................................................... 207
Adjusting ................................................ 207
Front Seats .............................................. 207
Lumbar Support ...................................... 207
Rear Seats ............................................... 216
Seat Control Interface ............................. 209
Seat Heaters .................................... 228, 229
Ventilation .............................................. 228
Security System ......................................... 173
Immobilizer System Indicator ..................... 88
Security System Alarm Indicator................. 88
Select Button Operation................................................ 422
Select Lever ......................................... 19, 420
Operation.................................................. 19
Selecting a Child Seat ................................. 62
Sequential Mode ...................................... 426
Setting the Clock ...................................... 144
SH-AWD ® (Super Handling-All Wheel
Drive
TM) ................................................... 439
Shift Lever ........................................... 19, 420
Shifting (Transmission) ....................... 19, 420
Shoulder Anchor ........................................ 39
Side Airbags ................................................ 52
Side Curtain Airbags .................................. 54
Siri Eyes Free ............................................. 301
SiriusXM ® Radio ........................................ 277
Snow Tires ................................................. 568
Spare Tire .......................................... 585, 635
Spark Plugs ............................................... 634
Specifications ............................................ 634
20 ACURA RDX-31TJB6111.book 651 ページ ２０２０年２月１１日　火曜日　午後２時６分
