display ACURA RDX 2023 Owner's Manual

113
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears if the automatic br ake hold is automatically
canceled while it is in operation.●Immediately depress the brake pedal.
●Appears when the electric parking brake switch is
pulled without depressing the brake pedal while the
electric parking brake is in operation.●Pull the electric parking brake switch with the brake
pedal depressed.
2 Parking Brake P. 545
●Appears when you set the power mode to VEHICLE
OFF, if the rear doors were opened shortly before or
after the vehicle was powered on.●Check the rear seat for passengers or items before
exiting the vehicle.
2 Rear Seat Reminder P. 224
●Appears as soon as a problem is detected in the
keyless access system or keyless starting system.●Appears constantly - Have your vehicle checked by a
dealer.
23 ACURA RDX-31TJB6400.book 113 ページ ２０２２年８月４日　木曜日　午後１時５１分

114
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you close the door with the power
mode in ON without the keyless remote inside the
vehicle.●Disappears when you bring the keyless remote back
inside the vehicle and close the door.
2 Keyless Remote Reminder P. 195
●Appears when the keyless remote battery becomes
weak.
2Replacing the Remote Battery P. 625
●Appears after you set the power mode to
ACCESSORY or ON.
●Appears after you unlock and open the driver’s door.
2Starting the Engine P. 443
•Appears when the engine does not restart
automatically due to the following reasons:
- The hood is open.
- There is a problem in the system that disables Auto
Idle Stop.●Follow the normal procedure to start the engine.
2 Starting the Engine P. 443
Canadian models
23 ACURA RDX-31TJB6400.book 114 ページ ２０２２年８月４日　木曜日　午後１時５１分

115
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Change the power mode to VEHICLE OFF.
2 ENGINE START/STOP Button P. 193
●Appears when the power mode is in ACCESSORY.
—
●Appears if the keyless remote’s battery is too weak
to start the engine or the key is not within operating
range to start the engine.
The beeper sounds six times.●Bring the back of the keyless remote into contact with
the ENGINE START/STOP button.
2If the Keyless Remote Battery is Weak P. 665
23 ACURA RDX-31TJB6400.book 115 ページ ２０２２年８月４日　木曜日　午後１時５１分

116
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears if you press the ENGINE START/STOP
button while the vehicle is moving.
2 Emergency Engine Stop P. 666
●Appears after the driver’s door is opened when the
power mode is in ACCESSORY.●Press and hold the ENGINE START/STOP button with
your foot off the brake pedal to change the power
mode to VEHICLE OFF.
• Appears when you turn the Auto Idle Stop system
on.
2 Auto Idle Stop P. 464
•Appears when the hood is opened.●Close the hood.
23 ACURA RDX-31TJB6400.book 116 ページ ２０２２年８月４日　木曜日　午後１時５１分

117
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears when you try to change the transmission
without depressing the brake pedal.• Depress the brake pedal, then change the transmission.
• Appears when you try to change the transmission
without releasing your foot off the accelerator pedal.• Release your foot off the accelerator pedal, then
change the transmission.
• Appears when you try to change the shift position
after the position has automa tically been changed to
(P with the driver’s door open and the driver’s seat
belt unfastened.
●Press the (P button if you leave the vehicle.
U.S.
Canada
23 ACURA RDX-31TJB6400.book 117 ページ ２０２２年８月４日　木曜日　午後１時５１分

118
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when the (P button is pressed while the
vehicle is moving.• Make sure that the vehicl e comes to a stop before
operating the select button.
●Appears if you put the transmission into (R while the
vehicle is moving forward, or into
(D while the
vehicle is reversing.
• Appears when you set the power mode to OFF while
driving.•Immediately stop in a safe place, set the parking brake,
then restart the engine. If the message disappears,
continue driving.
•Appears when the vehicle is stopped with the
driver’s seat belt unfastened and there is a chance
that the vehicle may roll unintentionally.•Press the (P button before release the brake pedal
when idling, parking or exiting the vehicle.
2 Shift Operation P. 453
●Appears when you attempt to change to another
gear position with the transmission in
(P and the
engine OFF.
●To select another gear position while in (P, the engine
must be ON.
23 ACURA RDX-31TJB6400.book 118 ページ ２０２２年８月４日　木曜日　午後１時５１分

119
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears when you press the (P button but it is not
engaged due to low ATF temperature.• Depress the brake pedal until this message disappear.
• Appears when the temperature of the transmission
is starting to get too hot.
• The performance of the vehicle may be reduced.•Until the message disappears, reduce your speed and
allow the system to cool down.
• Appears when you repeat edly change the shift
position between
(P and other positions in short
period.
• Take some time before chan ging the shift position.
•Appears when you try to take the transmission out
of
(P immediately after you start engine.
•Try to take the transmission out of (P again.
• Appears when you depress the accelerator pedal
when the transmission is in
(N.
•Remove your foot off the accelerator pedal. When
driving, depress the brake pedal and operate the shift
position.
23 ACURA RDX-31TJB6400.book 119 ページ ２０２２年８月４日　木曜日　午後１時５１分

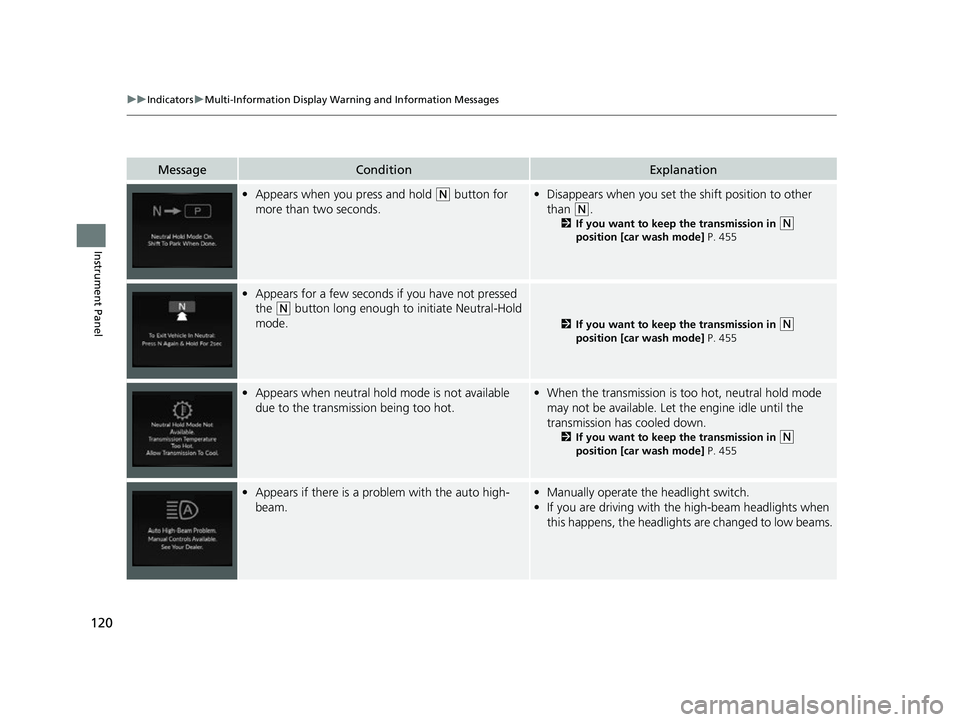

120
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when you press and hold (N button for
more than two seconds.• Disappears when you set the shift position to other
than
(N.
2 If you want to keep the transmission in (N
position [car wash mode] P. 455
• Appears for a few seconds if you have not pressed
the
(N button long enough to initiate Neutral-Hold
mode.
2 If you want to keep the transmission in (N
position [car wash mode] P. 455
• Appears when neutral hold mode is not available
due to the transmission being too hot.•When the transmission is to o hot, neutral hold mode
may not be available. Let the engine idle until the
transmission has cooled down.
2 If you want to keep the transmission in (N
position [car wash mode] P. 455
• Appears if there is a prob lem with the auto high-
beam.• Manually operate the headlight switch.
• If you are driving with the high-beam headlights when
this happens, the headlights are changed to low beams.
23 ACURA RDX-31TJB6400.book 120 ページ ２０２２年８月４日　木曜日　午後１時５１分

121
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when ACC has been automatically
canceled.●You can resume the set speed after the condition that
caused ACC to cancel improves. Press the RES/+
button.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 502
●Flashes when the system senses a likely collision with
a vehicle in front of yo u. The beeper sounds.●Take appropriate action to pr event a collision (apply the
brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 486
2 Adaptive Cruise Control (ACC) with Low Speed
Follow P. 502
2 Low Speed Braking Control
* P. 497
●Appears when the low speed braking control system
is activated.
—
Models with Low Speed Braking Control
Models with Low
Speed Braking
Control
* Not available on all models
23 ACURA RDX-31TJB6400.book 121 ページ ２０２２年８月４日　木曜日　午後１時５１分

122
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when ACC is canceled due to excessive high
vehicle speed.●Reduce the speed, then reset ACC.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 502
●Appears when cruise con trol is canceled due to
excessive low vehicle speed.●Raise the speed, then reset cruise control.
2 To Switch ACC with Low Speed Follow to Cruise
Control P. 518
●Appears when the speed of the vehicle is too high for
you to set ACC.●Reduce the speed, then set ACC.
2Adaptive Cruise Control (ACC) with Low Speed
Follow P. 502
●Appears when the speed of the vehicle is too low for
you to set cruise control.●Raise the speed, then set cruise control.
2To Switch ACC with Low Speed Follow to Cruise
Control P. 518
23 ACURA RDX-31TJB6400.book 122 ページ ２０２２年８月４日　木曜日　午後１時５１分
