settings ACURA RDX 2023 Service Manual

367
uuCustomized Features u
Continued
Features
■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
System
System
Volumes
System SoundsChanges the system sounds volume.—
Phone CallsChanges the phone call volume.—
Voice RecognitionChanges the voice recognition volume.—
Navigation GuidanceChanges the navigation guidance
volume.—
Touchpad SensitivitySets the sensitivity of the True
Touchpad Interface.High/Low*1
Date & Time
Time FormatSelects the digital clock display from
12H to 24H.12 Hour*1/24 Hour
Set Date &
Time
Automatic
Date & TimeSelects On to have the GPS
automatically adjust the clock. Select
Off to cancel this function.
On*1/Off
Set DateAdjusts date.
2 Adjusting the Clock P. 154—
Set TimeAdjusts clock.
2Adjusting the Clock P. 154—
23 ACURA RDX-31TJB6400.book 367 ページ ２０２２年８月４日　木曜日　午後１時５１分

368
uuCustomized Features u
Features
*1:Default SettingSetup Group Customizable Features Description Selectable Settings
System
Date & TimeSet Time
Zone
Automatic
Time ZoneSets the audio system to automatically
adjust the clock when driving through
different time zones.
On*1/
Off
(Select time
zone)Changes the time zone manually.—
System Units
Changes the speed/distance unit on
the multi-information display, head-up
display
* and audio/information screen.
Miles*1/ KM (U.S.)
Miles /KM*1 (Canada)
LanguageChanges the display language.English*1/Français /
Español
Factory Data Reset
Resets all the settings to their factory
default.
2 Defaulting All the Settings P. 385
Continue/Cancel
AboutDisplays the Android setting items.—
Advanced
OptionsLocation Access
Selects Off not to allow apps including
the navigation system* to access the
vehicle’s location.On*1/ Off
* Not available on all models
23 ACURA RDX-31TJB6400.book 368 ページ ２０２２年８月４日　木曜日　午後１時５１分

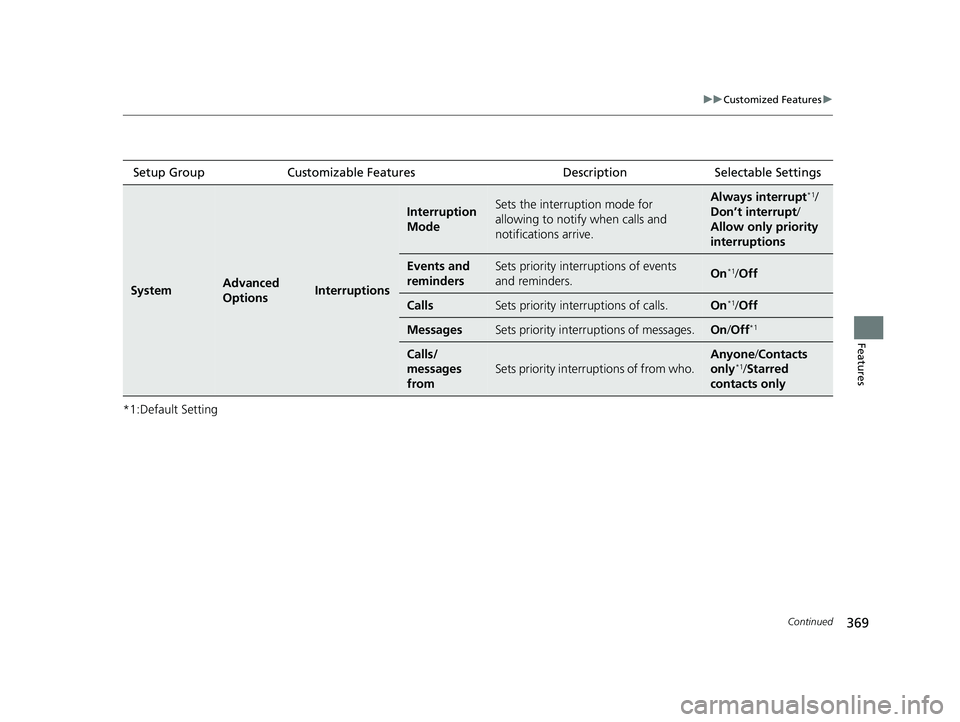

369
uuCustomized Features u
Continued
Features
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
SystemAdvanced
OptionsInterruptions
Interruption
ModeSets the interruption mode for
allowing to notify when calls and
notifications arrive.Always interrupt*1/
Don’t interrupt/
Allow only priority
interruptions
Events and
remindersSets priority interruptions of events
and reminders.On*1/ Off
CallsSets priority interruptions of calls.On*1/Off
MessagesSets priority interruptions of messages.On /Off*1
Calls/
messages
from
Sets priority interruptions of from who.
Anyone /Contacts
only*1/ Starred
contacts only
23 ACURA RDX-31TJB6400.book 369 ページ ２０２２年８月４日　木曜日　午後１時５１分

370
uuCustomized Features u
Features*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Connections Bluetooth Options
Turns the Bluetooth® on and off. On
*1/Off
+ Connect New Device Pairs a new phone to HFL.
2
Phone Setup P. 395—
(Saved Devices) Connects, disconnects, or deletes a
paired phone.
Changes permissions for
AcuraLink
Assist and Phone Data Collection .
2Phone Setup P. 395
—
23 ACURA RDX-31TJB6400.book 370 ページ ２０２２年８月４日　木曜日　午後１時５１分

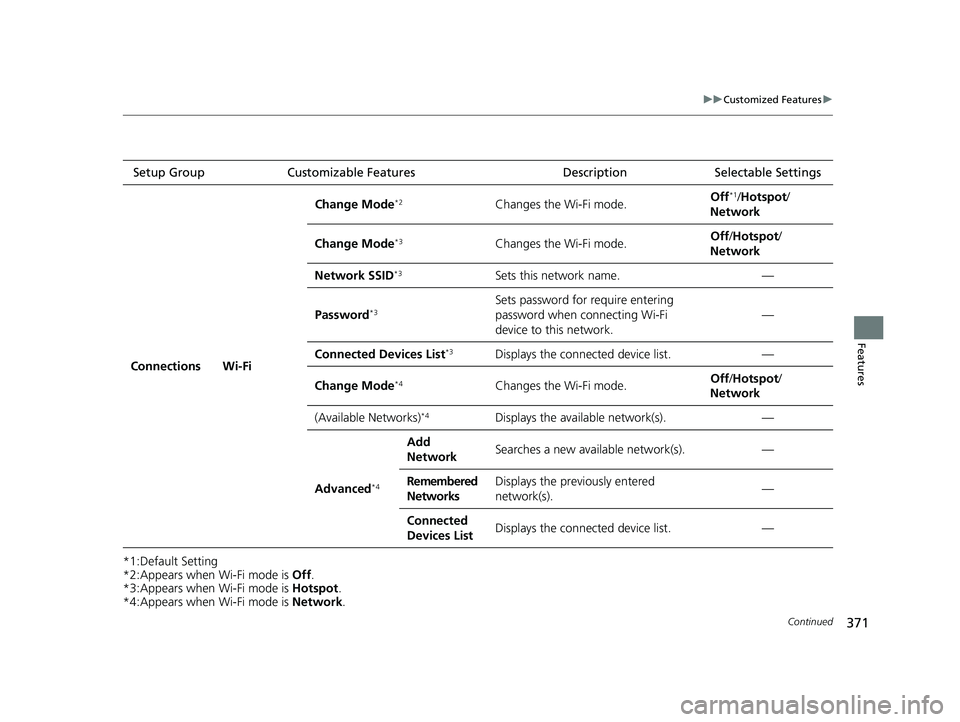

371
uuCustomized Features u
Continued
Features
*1:Default Setting
*2:Appears when Wi-Fi mode is Off.
*3:Appears when Wi-Fi mode is Hotspot.
*4:Appears when Wi-Fi mode is Network.
Setup Group
Customizable Features DescriptionSelectable Settings
Connections Wi-Fi Change Mode
*2Changes the Wi-Fi mode.
Off*1/
Hotspot /
Network
Change Mode
*3Changes the Wi-Fi mode. Off
/Hotspot /
Network
Network SSID
*3Sets this network name. —
Password
*3Sets password for require entering
password when connecting Wi-Fi
device to this network. —
Connected Devices List
*3Displays the connected device list. —
Change Mode
*4Changes the Wi-Fi mode. Off
/Hotspot /
Network
(Available Networks)
*4Displays the available network(s). —
Advanced
*4
Add
Network Searches a new available network(s). —
Remembered
NetworksDisplays the previously entered
network(s).
—
Connected
Devices List Displays the connected device list. —
23 ACURA RDX-31TJB6400.book 371 ページ ２０２２年８月４日　木曜日　午後１時５１分

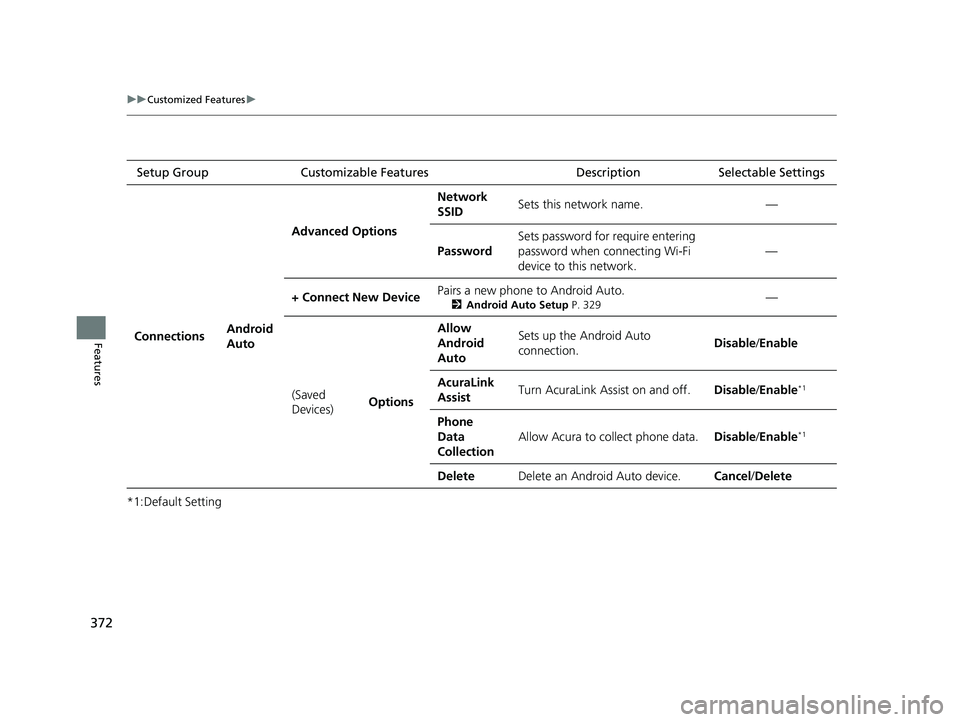

372
uuCustomized Features u
Features
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Connections Android
AutoAdvanced Options
Network
SSID
Sets this network name. —
Password Sets password for require entering
password when connecting Wi-Fi
device to this network. —
+ Connect New Device Pairs a new phone to Android Auto.
2
Android Auto Setup P. 329—
(Saved
Devices) OptionsAllow
Android
Auto
Sets up the Android Auto
connection.
Disable
/Enable
AcuraLink
Assist Turn AcuraLink Assist on and off.
Disable/Enable
*1
Phone
Data
Collection Allow Acura to collect phone data.
Disable/Enable*1
Delete Delete an Android Auto device. Cancel/Delete
23 ACURA RDX-31TJB6400.book 372 ページ ２０２２年８月４日　木曜日　午後１時５１分

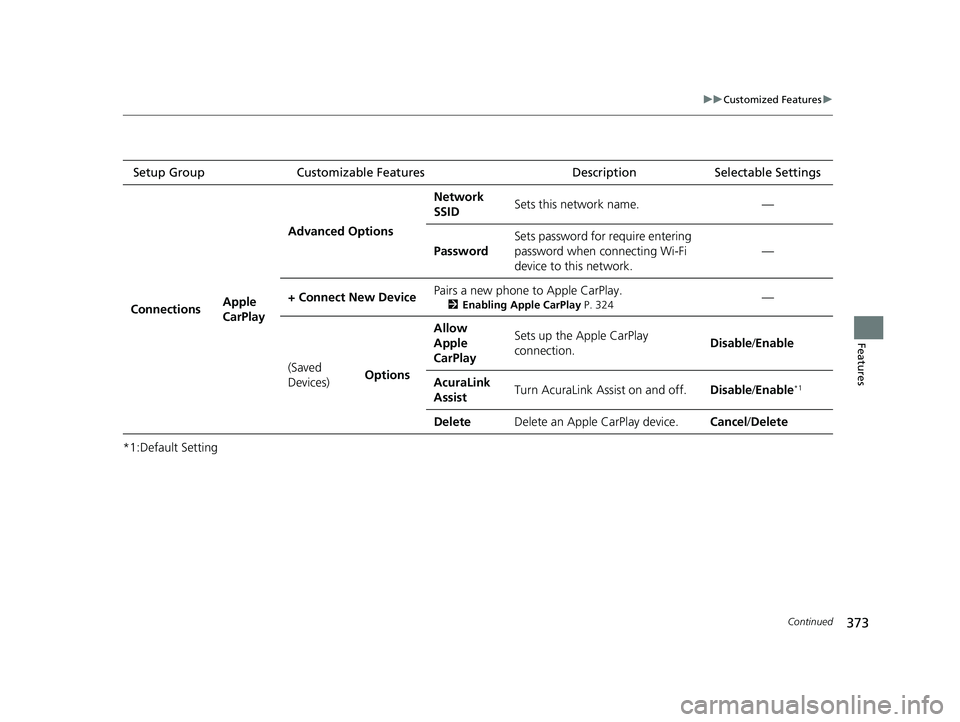

373
uuCustomized Features u
Continued
Features
*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Connections Apple
CarPlayAdvanced Options
Network
SSID
Sets this network name.
—
Password Sets password for require entering
password when connecting Wi-Fi
device to this network. —
+ Connect New Device Pairs a new phone to Apple CarPlay.
2
Enabling Apple CarPlay P. 324—
(Saved
Devices) OptionsAllow
Apple
CarPlay
Sets up the Apple CarPlay
connection.
Disable
/Enable
AcuraLink
Assist Turn AcuraLink Assist on and off.
Disable/Enable
*1
Delete Delete an Apple CarPlay device. Cancel/Delete
23 ACURA RDX-31TJB6400.book 373 ページ ２０２２年８月４日　木曜日　午後１時５１分

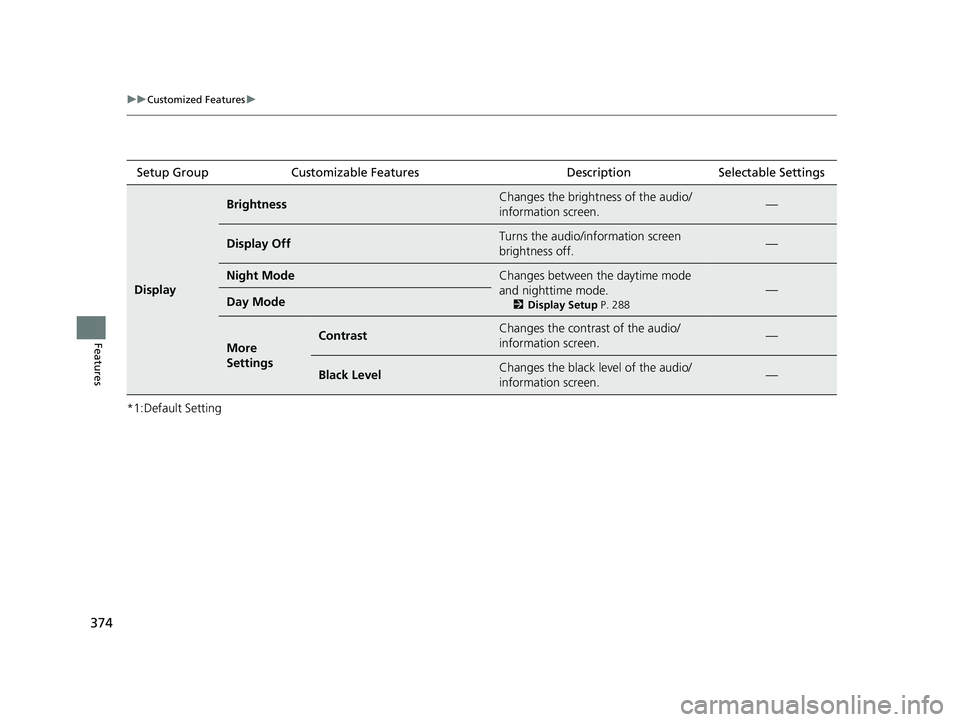

374
uuCustomized Features u
Features
*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Display
BrightnessChanges the brightness of the audio/
information screen.—
Display OffTurns the audio/information screen
brightness off.—
Night ModeChanges between the daytime mode
and nighttime mode.
2
Display Setup P. 288
—Day Mode
More
SettingsContrastChanges the contrast of the audio/
information screen.—
Black LevelChanges the black level of the audio/
information screen.—
23 ACURA RDX-31TJB6400.book 374 ページ ２０２２年８月４日　木曜日　午後１時５１分

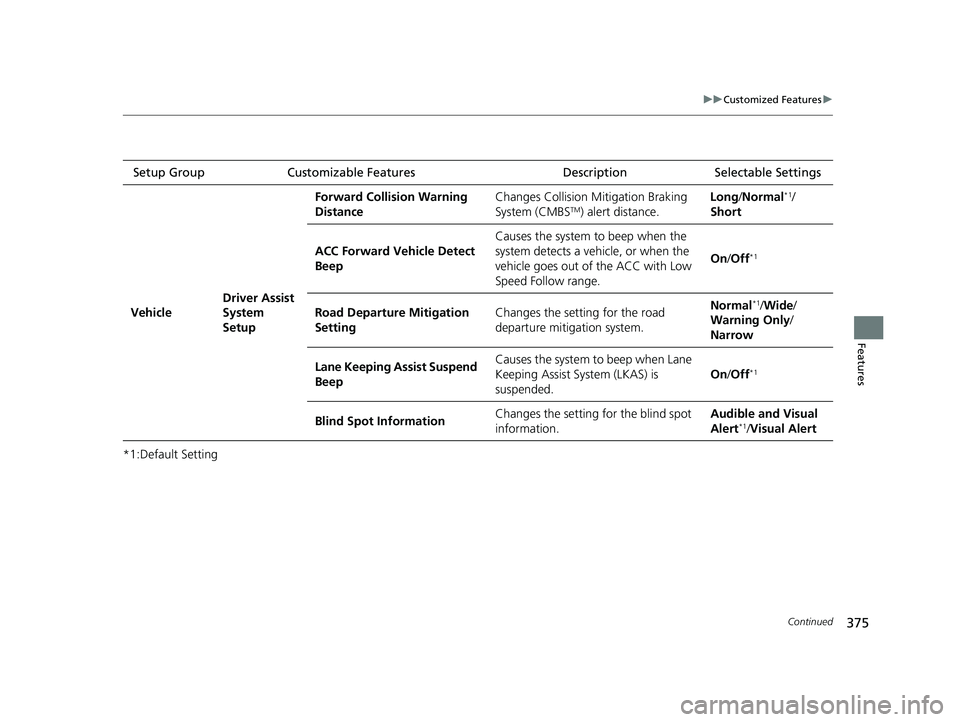

375
uuCustomized Features u
Continued
Features
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Vehicle Driver Assist
System
SetupForward Collision Warning
Distance
Changes Collision Mitigation Braking
System (CMBS
TM) alert distance.Long
/Normal
*1/
Short
ACC Forward Vehicle Detect
Beep Causes the system to beep when the
system detects a vehicle, or when the
vehicle goes out of the ACC with Low
Speed Follow range.
On
/Off
*1
Road Departure Mitigation
Setting Changes the setting for the road
departure mitigation system. Normal*1/
Wide /
Warning Only /
Narrow
Lane Keeping Assist Suspend
Beep Causes the system to beep when Lane
Keeping Assist System (LKAS) is
suspended.
On
/Off
*1
Blind Spot Information Changes the setting for the blind spot
information. Audible and Visual
Alert*1/
Visual Alert
23 ACURA RDX-31TJB6400.book 375 ページ ２０２２年８月４日　木曜日　午後１時５１分

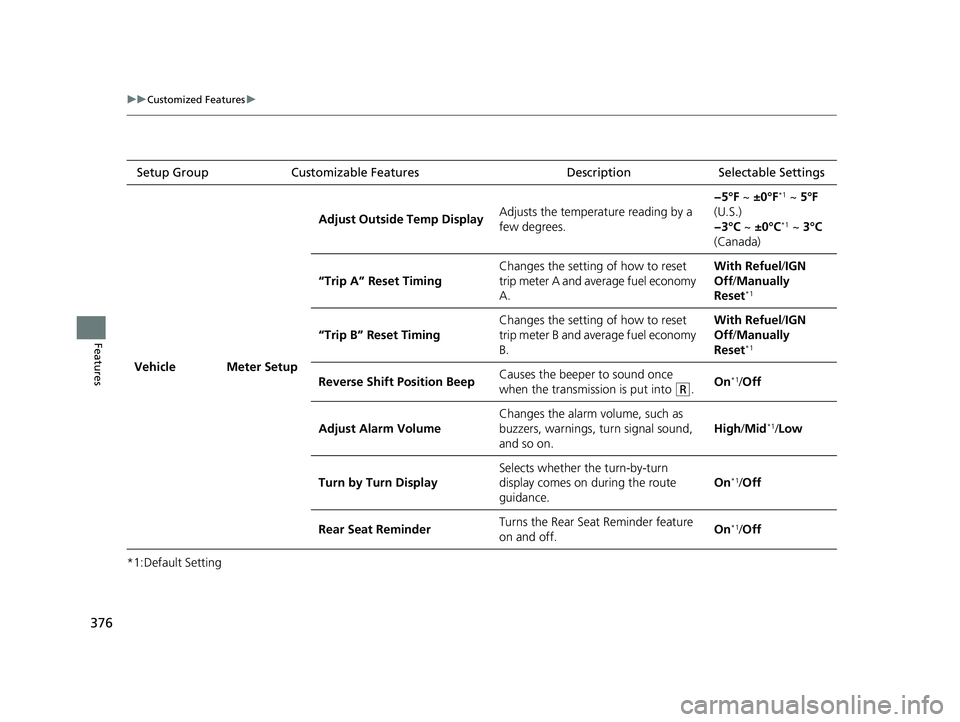

376
uuCustomized Features u
Features
*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Vehicle Meter Setup Adjust Outside Temp Display
Adjusts the temperature reading by a
few degrees. −5°F ~
±0°F
*1 ~ 5°F
(U.S.)
−3°C ~ ±0°C
*1 ~ 3°C
(Canada)
“Trip A” Reset Timing Changes the setting of how to reset
trip meter A and average fuel economy
A. With Refuel
/IGN
Off /Manually
Reset
*1
“Trip B” Reset Timing Changes the setting of how to reset
trip meter B and average fuel economy
B. With Refuel
/IGN
Off /Manually
Reset*1
Reverse Shift Position Beep Causes the beeper to sound once
when the transmission is put into (R.On*1/
Off
Adjust Alarm Volume Changes the alarm volume, such as
buzzers, warnings, turn signal sound,
and so on. High
/Mid
*1/Low
Turn by Turn Display Selects whether the turn-by-turn
display comes on during the route
guidance. On
*1/
Off
Rear Seat Reminder Turns the Rear Seat Reminder feature
on and off. On
*1/
Off
23 ACURA RDX-31TJB6400.book 376 ページ ２０２２年８月４日　木曜日　午後１時５１分
