108
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when you set the power mode to ON again
and the vehicle is able to run.
2Starting the Engine P. 443
●Appears when the engine stops without the
transmission in
(P, and does not restart
automatically.
●Appears if you open the hood while Auto Idle Stop
activates.
●If you want to set the power mode to ON, put the
transmission into
(P.●If you want to start the engine, follow the normal
procedure.
2 Starting the Engine P. 443
●Appears when the washer fluid is low.●Refill the washer fluid.
2Refilling Window Washer Fluid P. 604
•Appears if there is a problem with the cooling
system.•Drive slowly to prevent overheating and have your
vehicle checked by a dealer as soon as possible.
Canadian models
23 ACURA RDX-31TJB6400.book 108 ページ ２０２２年８月４日　木曜日　午後１時５１分

uuWhen Driving uAutomatic Transmission
450
Driving
Avoid driving in deep water and on flooded roads. This can damage the engine or
driveline, or cause electrical component failure.
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.
Automatic Transmission
When the engine runs at higher idle speeds, the creeping force increases.
Keep the brake pedal firmly depressed when stopped.
Quickly depressing the accelerator pedal while driving uphill may cause the
transmission to drop to a lower gear, unexpectedly increasing vehicle speed. Depress
the accelerator pedal carefully, especi ally on slippery roads and curves.
■In Rain
■Other Precautions
■Creeping
■Kickdown
1Precautions While Driving
Avoid hard braking for the first 200 miles (300 km)
after purchasing your new vehicle or replacing the
brake pads or rotors, to allow for proper break-in.
1Driving Guidelines for Your Utility Vehicle
Failure to operate your vehicle correctly might result
in a crash or a rollover.
2 Important Handling Information P. 34
23 ACURA RDX-31TJB6400.book 450 ページ ２０２２年８月４日　木曜日　午後１時５１分

581
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 582
Safety When Performing Maintenance ..583
Parts and Fluids Used in Maintenance Service ........................................... 584
Maintenance Minder
TM..................... 585
Maintenance Under the Hood Maintenance Items Under the Hood .. 592
Opening the Hood ........................... 593
Engine Compartment Cover ............. 594
Recommended Engine Oil ................ 595
Oil Check ......................................... 596
Adding Engine Oil ............................ 597 Changing the Engine Oi
l and Oil Filter .. 598
Engine Coolant ................................ 600
Transmission Fluid ............................ 602
Brake Fluid ....................................... 603
Refilling Window Wa sher Fluid......... 604
Replacing Light Bulbs ....................... 605Checking and Maintaining Wiper
Blades .......................................... 609
Checking and Maintaining Tires
Checking Tires ................................. 614
Tire and Loading Information Label .. 615
Tire Labeling .................................... 615
DOT Tire Quality Grading (U.S. Vehicles).. 617
Wear Indicators ............................... 619
Tire Service Life ................................ 619
Tire and Wheel Replacement ........... 620
Tire Rotation .................................... 621
Winter Tires ..................................... 622
Battery ............................................... 623
Remote Transmitter Care Replacing the Remote Battery .......... 625
Climate Control System Maintenance.. 627Cleaning
Interior Care .................................... 629
Exterior Care.................................... 632
Accessories and Modifications ........ 636
23 ACURA RDX-31TJB6400.book 581 ページ ２０２２年８月４日　木曜日　午後１時５１分

589
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Continued
Maintenance
■Maintenance Service Items
Maintenance Minder Message
Main
Item Sub
ItemsMaintenance Minder Indicator
System Message Indicator
U.S. models
*1: If a Maintenance Minder Indicator and message does not appear more than 12 months after the
display is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty.
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
CODEMaintenance Main Items
A
●Replace engine oil*1
B●Replace engine oil*1 and oil filter●Inspect front and rear brakes●Check expiration date for Temporary Tire Repair Kit bottle (If
equipped)
●Inspect tie rod ends, steering gearbox, and boots●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lin es (Including ABS/VSA®)●Inspect all fluid levels and condition of fluids●Inspect exhaust system#
●Inspect fuel lines and connections#
●Adjust the valves during services A, B, 1, 2, or 3 if they are noisy.
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and
from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: Driving in mountainous areas at very low vehicle speeds or trailer towing results in higher level of mechanical (Shear) stress to fluid. This requires differential fluid changes more frequently than
recommended by the Maintenance Minder. If you regularly drive your vehicle under these conditions, have
the differential fluid changed at 7,500 miles (12,000 km), then every 15,000 miles (24,000 km).
*5: If a Maintenance Minder Indicator does not appear more than 36 months after the display for item 7 is reset, change the brake fluid every 3 years.
CODEMaintenance Sub Items
1
●Rotate tires
2●Replace air cleaner element*2
●Replace dust and pollen filter*3
●Inspect drive belt
3
●Replace transmission fluid and transfer* fluid
4●Replace spark plugs●Inspect valve clearance
5
●Replace engine coolant
6●Replace rear differential fluid*, *4
7●Replace brake fluid*5
* Not available on all models
23 ACURA RDX-31TJB6400.book 589 ページ ２０２２年８月４日　木曜日　午後１時５１分

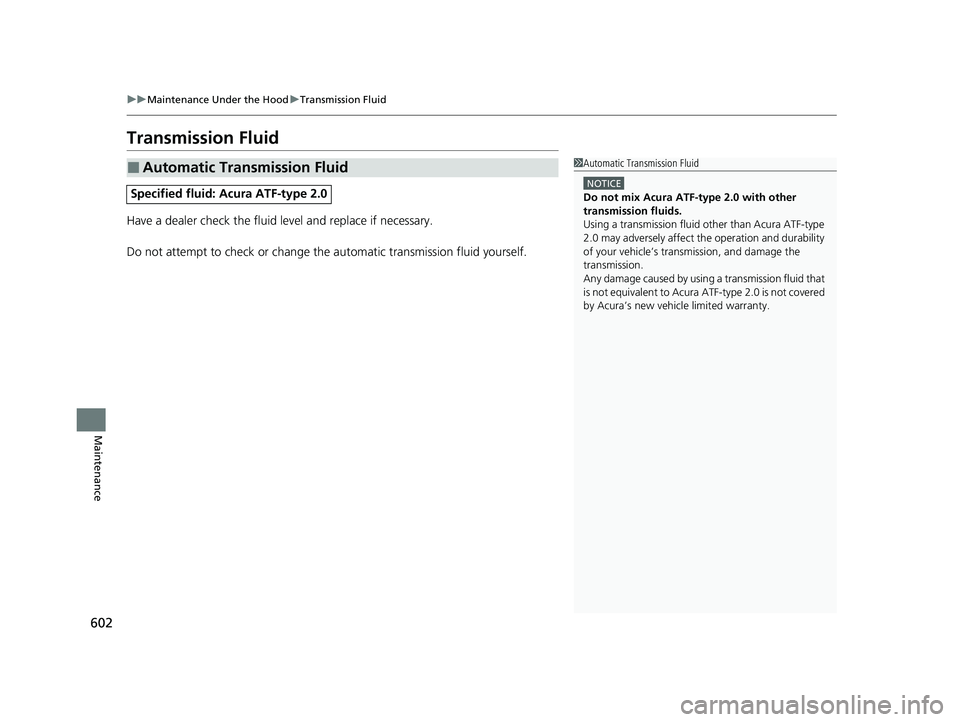

602
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change th e automatic transmission fluid yourself.
■Automatic Transmission Fluid
Specified fluid: Acura ATF-type 2.0
1Automatic Transmission Fluid
NOTICE
Do not mix Acura ATF-type 2.0 with other
transmission fluids.
Using a transmission fluid other than Acura ATF-type
2.0 may adversely affect the operation and durability
of your vehicle’s transm ission, and damage the
transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Acura ATF-type 2.0 is not covered
by Acura’s new vehicl e limited warranty.
23 ACURA RDX-31TJB6400.book 602 ページ ２０２２年８月４日　木曜日　午後１時５１分

673
uuIndicator, Coming On/BlinkinguIf the Brake System Indicator (Red) Comes On or Blinks
Handling the Unexpected
If the Brake System Indicator (Red) Comes On or
Blinks
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.
■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate acti on. If necessary, downshift the
transmission to slow the vehicle using engine braking.
■Reasons for the indicator to blink
• There is a problem with the electric parking brake system.
■What to do when the indicator blinks
• Avoid using the parking brake and have your vehicle checked by a
dealer immediately.
1If the Brake System Indicator (Red) Comes On or Blinks
Have your vehicle re paired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe plac e. If necessary downshift
the gears.
If the brake system indicator (red) and ABS indicator
come on simultaneously , the electronic brake
distribution system is not wo rking. This can result in
vehicle instability under sudden braking.
Have your vehicle inspecte d by a dealer immediately.
If the Brake System Indicator (Red) blinks at the same
time when the Brake System Indicator (Amber) comes
on, the parking br ake may not work.
Avoid using the parking brak e and have your vehicle
checked by a dealer immediately. 2 If the Brake System Indicator (Red) Comes
On or Blinks at the Same Time When the
Brake System Indicator (Amber) Comes On
P. 675
U.S.
Canada
23 ACURA RDX-31TJB6400.book 673 ページ ２０２２年８月４日　木曜日　午後１時５１分

704
Index
Coolant (Engine)....................................... 600
Adding to the Radiator ............................ 601
Adding to the Reserve Tank ..................... 600
Overheating............................................. 669
Creeping (Automatic Transmission) ........ 450
Cross Traffic Monitor ................................ 561
Cup Holders ............................................... 235
Customized Features ................................ 359
D
Dead Battery............................................. 667
Defaulting All the Settings ...................... 385
Defrosting the Windshield and Windows .................................................. 249
Devices that Emit Radio Waves ................ 693
Dimming Headlights ............................................... 197
Rearview Mirror ....................................... 213
Dipstick (Engine Oil) ................................. 596
Directional Signals (Turn Signal) .............. 196
Door Mirrors ............................................. 214
Doors ......................................................... 156
Auto Door Locking .................................. 172
Auto Door Unlocking ............................... 172
Keys ........................................................ 156
Locking/Unlocking the Doors from the
Inside ..................................................... 169
Locking/Unlocking the Doors from the Outside .................................................. 160
Lockout Prevention System ...................... 167 DOT Tire Quality Grading
........................ 617
Driving ...................................................... 429
Automatic Transmission .......................... 450
Braking ................................................... 545
Off-Highway Driving Guidelines............... 441
Shifting Gear ........................................... 451
Starting the Engine.................................. 443
Driving Position Memory System ............ 210
Dust and Pollen Filter ............................... 628
Dynamic Mode Switch ............................. 460E
Electric Parking Brake
Switch ..................................................... 545
Electric Power Steering (EPS) System
Indicator............................................ 95, 674
Electronic Stability Control (ESC) ............. 471
Emergency ................................................ 685
Emissions Testing (Readiness Codes) ....... 695
Engine ....................................................... 692
Coolant ................................................... 600
If the Battery Is Dead ............................... 667
Oil ........................................................... 595
Remote Engine Start................................ 445
Starting ................................................... 443
Engine Compartment Cover .................... 594
Engine Coolant ......................................... 600
Adding to the Radiator ............................ 601
Adding to the Reserve Tank..................... 600
Overheating ............................................ 669 Temperature Gauge ................................ 136
Engine Oil ................................................. 595
Adding ................................................... 597
Checking ................................................ 596
Displaying Oil Life ................................... 586
Engine Oil Pressure Low Warning ............ 671
Recommended Engine Oil ....................... 595
ENGINE START/STOP Button .................... 193
EPS (Electric Power Steering) System ...... 674
Exhaust Gas Hazard (Carbon Monoxide) .. 77
Exterior Care (Cleaning) .......................... 632
Exterior Mirrors ........................................ 214F
Features.................................................... 253
Filters Dust and Pollen....................................... 628
Oil .......................................................... 598
Flat Tire ............................................. 641, 649
Floor Mats ................................................ 630
Fluids Automatic Transmission .......................... 602
Brake ...................................................... 603
Engine Coolant ....................................... 600
Windshield Washer ................................. 604
FM/AM Radio ........................................... 293
Fog Lights Indicator ................................................... 98
Folding Down the Rear Seats .................. 222
Foot Brake ................................................ 549
23 ACURA RDX-31TJB6400.book 704 ページ ２０２２年８月４日　木曜日　午後１時５１分

707
Index
Interior.................................................... 230
Light Switches......................................... 197
Lights On Indicator.................................... 98
Turn Signals and Hazard Warning ........... 196
Load Limits ............................................... 433
Locking/Unlocking ................................... 156
Auto Door Locking/Unlocking ................. 172
Childproof Door Locks ............................ 171
From Inside ............................................. 169
From Outside .......................................... 160
Keys........................................................ 156
Using a Key............................................. 166
Lockout Prevention System ..................... 167
Low Battery Charge ................................. 672
Low Fuel Indicator ..................................... 94
Low Speed Braking Control .................... 497
Lower Anchors ..................................... 69, 73
Luggage (Maximum Load Limit) ............. 433
Lumbar Support ....................................... 216
M
Maintenance.................................... 142, 581
Battery .................................................... 623
Brake Fluid .............................................. 603
Cleaning ................................................. 629
Climate Control System .......................... 627
Coolant .................................................. 600
Maintenance Minder
TM............................ 585
Oil .......................................................... 596
Precautions ............................................. 582 Radiator .................................................. 601
Remote Transmitter ......................... 625, 626
Replacing Light Bulbs ............................... 605
Safety ...................................................... 583
Service Items ........................................... 589
Tires ........................................................ 614
Transmission Fluid ................................... 602
Under the Hood ...................................... 592
Malfunction Indicator Lamp .............. 86, 672
Map Lights ................................................ 231
Maximum Load Limit ............................... 433
Meters, Gauges ......................................... 136
Mirrors ....................................................... 213
Adjusting ................................................. 213
Door ........................................................ 214
Exterior .................................................... 214
Interior Rearview ..................................... 213
Modifications (and Accessories) .............. 636
MP3 ........................................................... 313
MP3/WMA/AAC ........................................ 313
Multi-Information Display ....................... 137
Switching the Display .............................. 139
Warning and Information Messages ........ 107
Multi-View Rear Camera .......................... 565
N
Navigation................................................ 141
Numbers (Identification) .......................... 692
O
Odometer................................................. 137
Off-Highway Driving Guidelines ............. 441
Oil (Engine) ............................................... 595
Adding .................................................... 597
Checking................................................. 596
Displaying Oil Life .................................... 586
Engine Oil Pressure Low Warning ............ 671
Recommended Engine Oil ............... 595, 691
Viscosity .......................................... 595, 691
Open Source Licenses ............................... 353
Opening/Closing Hood....................................................... 593
Panoramic Roof ....................................... 189
Power Windows ...................................... 186
Tailgate ................................................... 173
Outside Temperature Display .................. 137
Overheating .............................................. 669
P
Paddle Shifters (Sequential Shift
Mode) ...................................................... 457
Panic Mode ............................................... 185
Panoramic Roof ........................................ 189
Parking ...................................................... 555
Parking Brake ........................................... 545
Parking Brake and Brake System Indicator .................................................. 673
Parking Brake and Brake System Indicator
(Amber) ..................................................... 83
23 ACURA RDX-31TJB6400.book 707 ページ ２０２２年８月４日　木曜日　午後１時５１分

709
Index
Snow Tires................................................ 622
Sonar Sensors ........................................... 544
Spare Tire ......................................... 641, 691
Spark Plugs ............................................... 690
Specifications ........................................... 690
Specified Fuel ................................... 575, 690
Speed Limit Information ......................... 138
Speed/Distance Units ............................... 142
Speedometer ............................................ 136
Sport Gauge Settings ............................... 143
SRS Airbags (Airbags) ................................ 49
Starting Assist Brake Function ................ 470
Starting the Engine .................................. 443
Does Not Start ........................................ 664
If the Battery Is Dead............................... 667
Remote Engine Start ............................... 445
Steering Wheel ........................................ 212
Adjusting ................................................ 212
Stopping ................................................... 555
Summer Tires ............................................ 622
Sunglasses Holder .................................... 238
Super Handling-All Wheel Drive
TM
(SH-AWD ®).............................................. 474
Supplemental Restraint System (SRS) ....... 49
Surround View Camera System ............... 567
Switches (Around the Steering Wheel) ............................................ 6, 7, 193
Synchronized Mode ................................. 250
System Message Indicator ....................... 100
System Updates ........................................ 281
T
Tachometer............................................... 142
Tailgate ..................................................... 173
Unable to Open ....................................... 687
Temperature
Gauge ..................................................... 136
Outside Temperature Display ................... 137
Temperature Sensor ......................... 137, 252
Temporary Tire Repair Kit ........................ 650
Tie-down Anchors .................................... 237
Time (Setting) ........................................... 154
Tire Fill Assist ............................................ 676
Tire Pressure Monito ring System (TPMS)
with Tire Fill Assist .................................. 475
Indicator ............................................ 97, 676
Tire Repair Kit ........................................... 649
Tires ........................................................... 614
Air Pressure ..................................... 615, 691
Checking and Maintaining ....................... 614
Inspection ................................................ 614
Labeling .................................................. 615
Puncture (Flat Tire) ........................... 641, 649
Regulations ............................................. 617
Rotation .................................................. 621
Spare Tire ........................................ 641, 691
Summer .................................................. 622
Temporary Tire Repair Kit ........................ 650
Tire Chains .............................................. 622
Tire Repair Kit .......................................... 649
Wear Indicators ....................................... 619
Winter ..................................................... 622 Tools
.......................................................... 640
Towing a Trailer ....................................... 435
Equipment and Accessories ..................... 437
Load Limits .............................................. 435
Towing Behind a Motorhome ................. 440
Emergency .............................................. 685
TPMS (Tire Pressure Monitoring System) with Tire Fill Assist .................................. 475
Indicator............................................ 97, 676
Traffic Sign Recognition System .............. 535
Transmission ....................................... 21, 451
Automatic ......................................... 21, 451
Fluid ........................................................ 602
Gear Position Indicator ...................... 87, 453
Indicator.................................................. 677
Number................................................... 692
Sequential Shift Mode ............................. 457
Transmission System Indicator.................................................... 88
Trip Computer .......................................... 140
Trip Meter ................................................. 140
23 ACURA RDX-31TJB6400.book 709 ページ ２０２２年８月４日　木曜日　午後１時５１分
