engine ACURA RDX 2023 Owners Manual

Contents
This owner’s manual should be considered a permanent part of the
vehicle and should remain with the vehicle when it is sold.
The Navigation Manual is available online at owners.acura.com
(U.S.) or acura.ca (Canada). If you are the firs t registered owner
of your vehicle, you may request a complimentary printed
copy of the Navigation Manual within the first six months of
vehicle purchase. To request a copy, visit owners.acura.com. In
Canada, please request a copy from your Acura dealer.
This owner’s manual covers all models of your vehicle. You may find
descriptions of equipment and features that are not on your
particular model.
Images throughout this owner’s ma nual (including the front cover)
represent features and equipment that are available on some, but
not all, models. Your particular mo del may not have some of these
features.
This owner’s manual is for vehicles sold in the United States and
Canada.
The information and specifications in cluded in this publication were
in effect at the time of approval for printing. Honda Motor Co., Ltd.
reserves the right, however, to discontinue or change specifications
or design at any time without notice and without incurring any
obligation.2 Safe Driving P. 31
For Safe Driving P. 32 Seat Belts P. 37 Airbags P. 46
2Instrument Panel P. 79
Indicators P. 80 Gauges and Displays P. 136
2Controls P. 153
Clock P. 154 Locking and Unlocking the Doors P. 156
Panoramic Roof P. 189
Seats P. 216
2 Features P. 253
Audio System P. 254 Audio System Basic Operation P. 260
Customized Features P. 359 HomeLink® Universal Transceiver P. 386
2 Driving P. 429
Before Driving P. 430 Towing a Trailer P. 435
Braking P. 545Parking Your Vehicle P. 555
Fuel Economy and CO2 Emissions P. 578 Turbo Engine Vehicle P. 579
2 Maintenance P. 581
Before Performing Maintenance P. 582 Maintenance MinderTM P. 585
Checking and Maintaining Wiper Blades P. 609
Climate Control System Main tenance P. 627 Cleaning P. 629
2Handling the Unexpected P. 639
Tools P. 640 If a Tire Goes Flat P. 641
Overheating P. 669 Indicator, Coming On/Blinking P. 671
If You Cannot Unlock the Fuel Fill Door P. 686
2 Information P. 689
Specifications P. 690 Identification Numbers P. 692
Warranty Coverages P. 697 Authorized Manuals P. 700
23 ACURA RDX-31TJB6400.book 4 ページ ２０２２年８月４日　木曜日　午後１時５１分

Contents
Child Safety P. 64Exhaust Gas Hazard P. 77Safety Labels P. 78
Tailgate P. 173 Security System P. 183 Windows P. 186
Operating the Switches Around the Steering Wheel P. 193 Mirrors P. 213
Interior Convenience Items P. 230 Climate Control System P. 247
Audio Error Messages P. 332General Information on the Audio System P. 336
Bluetooth ® HandsFreeLink ® P. 389 AcuraLink ® P. 419
Off-Highway Driving Guidelines P. 441 When Driving P. 443 AcuraWatchTM P. 483
Multi-View Rear Camera* P. 565 Surround View Camera System*P. 567 Refueling P. 575
Maintenance Under the Hood P. 592 Replacing Light Bulbs P. 605
Checking and Maintaining Tires P. 614 Battery P. 623 Remote Transmitter Care P. 625
Accessories and Modifications P. 636
Handling of the Jack P. 663 Engine Does Not Start P. 664If the Battery Is Dead P. 667
Fuses P. 678 Emergency Towing P. 685
If You Cannot Open the Tailgate P. 687 Refueling P. 688
Devices that Emit Radio Waves P. 693 Reporting Safety Defects P. 694 Emissions Testing P. 695
Client Service Information P. 701
Quick Reference GuideP. 6
Safe DrivingP. 31
Instrument PanelP. 79
ControlsP. 153
FeaturesP. 253
DrivingP. 429
MaintenanceP. 581
Handling the UnexpectedP. 639
InformationP. 689
IndexP. 702
23 ACURA RDX-31TJB6400.book 5 ページ ２０２２年８月４日　木曜日　午後１時５１分

6
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Steering Wheel Adjustments (P 212)
❚ENGINE START/STOP Button (P 193)
❚Rear Defogger (P 207)
❚Heated Door Mirror Button (P 207)
❚Climate Control System (P 247)
❚Audio System (P 254)
❚Hazard Warning Button
❚Audio/Information Screen (P 264)
❚Navigation System*
() See the Navigation System Manual
❚Front Seat Heater Buttons (P 245)
❚Front Seat Ventilator Buttons* (P 245)
❚Auto Idle Stop OFF Button (P 466)
❚ (Vehicle Stability AssistTM (VSA ®) System OFF) Button (P 472)
❚Parking Sensor System Button* (P 558)
❚Safety Support Switch (P481, 490, 499, 532)
❚Heated Windshield Button* (P 207)
❚Head-Up Display Buttons* (P 148, 209)
❚Automatic Brake Hold Button (P 550)
❚Electric Parking Brake Switch (P 545)
❚Multi-Information Display (P 137)
❚System Indicators (P 80 )
❚Gauges (P 136)
23 ACURA RDX-31TJB6400.book 6 ページ ２０２２年８月４日　木曜日　午後１時５１分

11
Quick Reference Guide
Auto Idle Stop Function
To improve fuel economy, the engine stops and then restarts as detailed below. When Auto Idle Stop is on, the Auto Idle Stop in dicator
(green) comes on. (P464)
At Automatic transmissionEngine status
Deceleration
Stop
Start-up
Depress the brake pedal.
Automatic Brake Hold Off
(P550) Automatic Brake Hold On
(P550)
On
Keep the brake pedal
depressed. With the automatic brake hold system
activated, you can release the brake pedal
when the indicato
r (green) comes on.
U.S. Canada
Off
Release the brake pedal. With the automatic brake hold system
activated, depress the accelerator pedal.Restarting
*
Not available on all models
23 ACURA RDX-31TJB6400.book 11 ページ ２０２２年８月４日　木曜日　午後１時５１分

12
Quick Reference Guide
Safe Driving (P 31)
Airbags (P 46)
●Your vehicle is fitted with airbags to help protect you and
your passengers during a moderate-to-severe collision.
Child Safety (P 64)
●All children 12 and younger should be seated in the rear seat.●Smaller children should be properly restra ined in a forward-facing child seat.●Infants must be properly restrained in a rear-facing child seat.
Exhaust Gas Hazard (P 77)
●Your vehicle emits dangerous exhaust gases that contain carbon
monoxide. Do not run the engine in confined spaces where carbon
monoxide gas can accumulate.
Before Driving Checklist (P 36)
●Before driving, check that the front seats, head restraints,
steering wheel, and mirrors have been properly adjusted.
Seat Belts (P 37)
●Fasten your seat belt and sit upright well
back in the seat.
●Check that your passengers are wearing
their seat belts correctly.
Fasten your lap belt as
low as possible.
23 ACURA RDX-31TJB6400.book 12 ページ ２０２２年８月４日　木曜日　午後１時５１分

14
Quick Reference Guide
Controls (P 153)
Clock (P 154)
The clock is automatically updated through
the audio system.
You can adjust the time using the A-zone
touchpad.
aPress the (home) button.
bSelect Settings .
cSelect System .
dSelect Date & Time .
eSelect Set Date & Time .
fSelect Automatic Date & Time .
gSelect Off.
hSelect Set Date or Set Time .
iSelect (+/(- to adjust the dates, hours
and minutes.
jPress the (back) button to set the
date or time.
ENGINE START/STOP
Button
(P 193)
Press the button to change the vehicle’s
power mode.
Turn Signals (P 196)
Lights (P 197)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
23 ACURA RDX-31TJB6400.book 14 ページ ２０２２年８月４日　木曜日　午後１時５１分

21
Quick Reference Guide

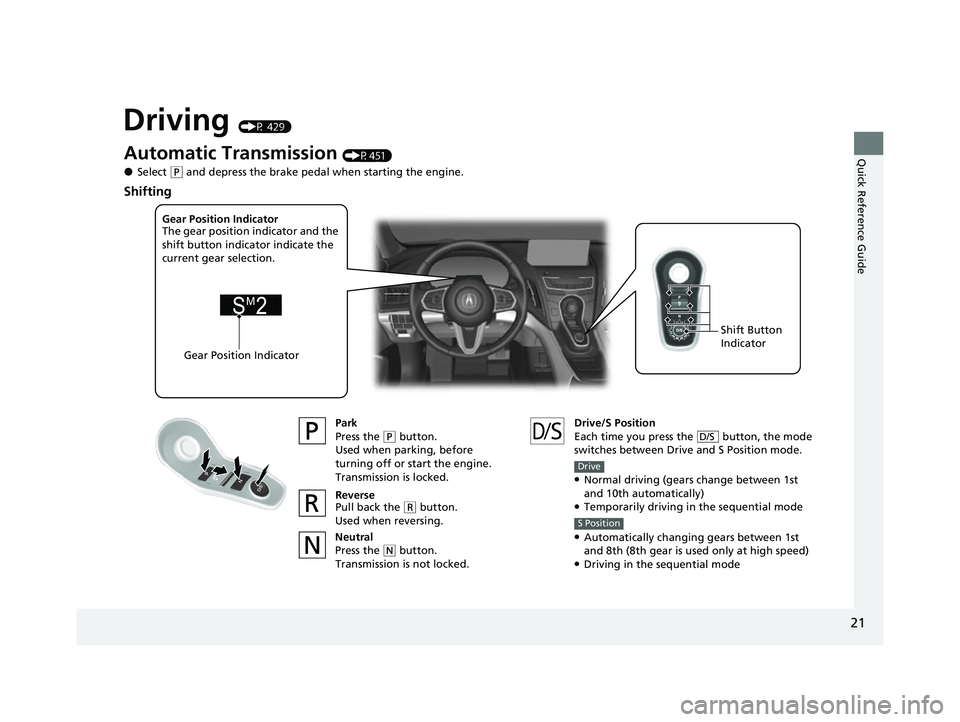

Driving (P 429)
Automatic Transmission (P451)
●Select (P and depress the brake pedal when starting the engine.
Park
Press the
(P button.
Used when parking, before
turning off or start the engine.
Transmission is locked.
Reverse
Pull back the
( R button.
Used when reversing.
Neutral
Press the
( N button.
Transmission is not locked. Drive/S Position
Each time you press the button, the mode
switches between Drive and S Position mode.
●Normal driving (gears change between 1st
and 10th automatically)
●Temporarily driving in the sequential mode
●Automatically changing gears between 1st
and 8th (8th gear is used only at high speed)
●Driving in the sequential mode
D/S
Drive
S Position
Gear Position Indicator
The gear position indicator and the
shift button indicator indicate the
current gear selection.
Gear Position Indicator Shift Button
Indicator
Shifting
23 ACURA RDX-31TJB6400.book 21 ページ ２０２２年８月４日　木曜日　午後１時５１分

22
Quick Reference Guide

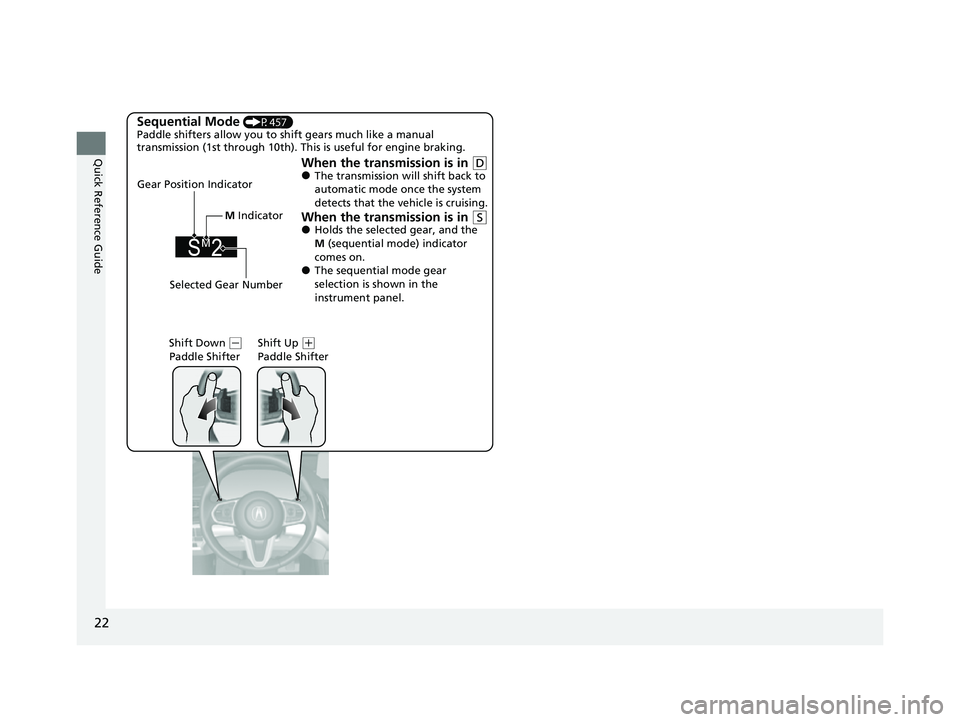

Sequential Mode (P457)
Paddle shifters allow you to shift gears much like a manual
transmission (1st through 10th). This is useful for engine braking.
When the transmission is in (D●The transmission will shift back to
automatic mode once the system
detects that the vehicle is cruising.
When the transmission is in (S●Holds the selected gear, and the
M (sequential mode) indicator
comes on.
●The sequential mode gear
selection is shown in the
instrument panel.
Gear Position Indicator
Shift Down
(-
Paddle Shifter Shift Up (
+
Paddle Shifter
Selected Gear Number M
Indicator
23 ACURA RDX-31TJB6400.book 22 ページ ２０２２年８月４日　木曜日　午後１時５１分

23
Quick Reference Guide
CMBSTM On and Off
(P490)
●When a possible frontal collision is likely
unavoidable, the CMBSTM can reduce the
vehicle speed and the severity of the
collision.
●The CMBSTM is turned on every time you
start the engine.
●To turn the CMBSTM on or off, use the
safety support switch.
VSA ® On and Off (P 472)
●The Vehicle Stability AssistTM (VSA® )
system helps stabilize the vehicle during
cornering and helps maintain traction
while accelerating on loose or slippery
road surfaces.
●VSA ® comes on automatically every time
you start the engine.
●To partially disable or fully restore VSA®
function, press and hold the (VSA ®
OFF) button until you hear a beep.
Tire Pressure Monitoring
System (TPMS) with Tire
Fill Assist
(P 475)
●The TPMS monitors tire pressure.●TPMS is turned on automatically every
time you start the engine.
●TPMS fill assist provides audible and visual
guidance during tire pressure adjustment.
Refueling (P 575)
Fuel recommendation: Unleaded premium gasoline, pump octane number 91 or
higher
Fuel tank capacity: 17.1 US gal (64.7 L)
aUnlock the driver’s door.
(P169)
bPress on the edge of the
fuel fill door to make it
pop up slightly.
cAfter refueling, wait for
about five seconds before
removing the filler nozzle.Wait for five seconds
23 ACURA RDX-31TJB6400.book 23 ページ ２０２２年８月４日　木曜日　午後１時５１分

26
Quick Reference Guide
Maintenance (P 581)
Under the Hood (P 592)
●Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
●Check brake fluid.●Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push it to the side, and then
raise the hood. Once you have raised the hood slightly, you
can release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 605)
●Inspect all lights regularly.
Wiper Blades (P 609)
●Replace blades if they leave streaks
across the windshield or become
noisy.
Tires (P 614)
●Inspect tires and wheels regularly.●Check tire pressures regularly.●Install snow tires for winter
driving.
23 ACURA RDX-31TJB6400.book 26 ページ ２０２２年８月４日　木曜日　午後１時５１分
