headlights ACURA RDX 2023 Owners Manual

7
Quick Reference Guide❚Headlights/Turn Signals (P 196, 197)
❚Fog Lights* (P 200)
❚Brightness Control (P 208)
❚Paddle Shifter (Shift down) (P 458)
❚Paddle Shifter (Shift up) (P 458)
❚Wipers/Washers (P 204)
❚Lane Keeping Assist System (LKAS)
Button
(P 524)
❚Horn (Press an area around .)
❚CAMERA Button* (P 568)
❚Interval Button (P 513)
❚Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons
(P 503)
❚Heated Steering Wheel Button* (P 244)
❚Left Selector Wheel (P 258)
❚Audio Remote Controls (P 258)
❚Voice Control Buttons (P 290)
❚Bluetooth® HandsFreeLink ® System Voice
Control Buttons
(P 389)
❚Right Selector Wheel (P 139)
* Not available on all models
23 ACURA RDX-31TJB6400.book 7 ページ ２０２２年８月４日　木曜日　午後１時５１分

Visual Index
10
Quick Reference Guide
❚How to Refuel (P 576)
❚High-Mount Brake Light (P 608)
❚Opening/Closing the Tailgate (P173)
❚Rear Wiper (P 206, 612)
❚ChicaneTM Taillights, Brake and Rear Side Marker Lights (P 197, 607)
❚Rear Turn Signal Lights (P 196, 606)
❚Multi-View Rear Camera* (P 565)
❚Rear License Plate Light (P 197, 608)
❚Tailgate Outer Handle (P 178, 182)
❚ChicaneTM Taillights/Brake and Back-Up Lights (P 197, 608)
❚Windshield Wipers (P 204, 609)
❚Power Door Mirrors (P 214)
❚Maintenance Under the Hood (P 592)
❚Fog Lights* (P 200, 605)
❚Tires (P 614, 641, 649)
❚Door Lock/Unlock Control (P 160)
❚Front Turn Signal Lights (P 196, 605)
❚Parking/ChicaneTM Daytime Running Lights (P 197, 605)
❚Side Turn Signal Lights (P 196, 605)
❚Headlights (P 197, 605)
❚Front Side Marker Lights (P197, 605)
❚Surround View Camera System* (P 567)
❚Rearview Camera Washer* (P 204)
23 ACURA RDX-31TJB6400.book 10 ページ ２０２２年８月４日　木曜日　午後１時５１分

98
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard
Warning
Indicators•Blinks when you operate the turn
signal lever.
• Blinks along with all turn signals
when you press the hazard warning
button.• Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 605
—
Lights On
Indicator•Comes on when the parking, tail,
and other external lights are on.2 Light Switches P. 197—
High Beam
Indicator•Comes on when the high beam
headlights are on.——
Auto High-
Beam Indicator•Comes on when all the operating
conditions of the auto high-beam
are met.
2 Auto High-Beam P. 201—
Fog Light
Indicator*
•Comes on when the fog lights are
on.2 Fog Lights* P. 200—
* Not available on all models
23 ACURA RDX-31TJB6400.book 98 ページ ２０２２年８月４日　木曜日　午後１時５１分

111
uuIndicators uMulti-Information Display Warning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
• Appears if there is a pr oblem with the automatic
lighting control system.• Appears while driving - Manually turn the lights on,
and have your vehicle checked by a dealer.
• Appears if there is a pr oblem with the headlights.•Appears while driving - The headlights may not be
on. When conditions allow you to drive safely, have
your vehicle checked by a d ealer as soon as possible.
●Appears when there is a problem with the battery
charging system.●Have your vehicle checked by a dealer.
●Appears if the dynamic mode cannot be changed
due to certain situations, su ch as a system error or
adverse driving conditions.
2 Acura Integrated Dynamics System P. 459
23 ACURA RDX-31TJB6400.book 111 ページ ２０２２年８月４日　木曜日　午後１時５１分

120
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when you press and hold (N button for
more than two seconds.• Disappears when you set the shift position to other
than
(N.
2 If you want to keep the transmission in (N
position [car wash mode] P. 455
• Appears for a few seconds if you have not pressed
the
(N button long enough to initiate Neutral-Hold
mode.
2 If you want to keep the transmission in (N
position [car wash mode] P. 455
• Appears when neutral hold mode is not available
due to the transmission being too hot.•When the transmission is to o hot, neutral hold mode
may not be available. Let the engine idle until the
transmission has cooled down.
2 If you want to keep the transmission in (N
position [car wash mode] P. 455
• Appears if there is a prob lem with the auto high-
beam.• Manually operate the headlight switch.
• If you are driving with the high-beam headlights when
this happens, the headlights are changed to low beams.
23 ACURA RDX-31TJB6400.book 120 ページ ２０２２年８月４日　木曜日　午後１時５１分

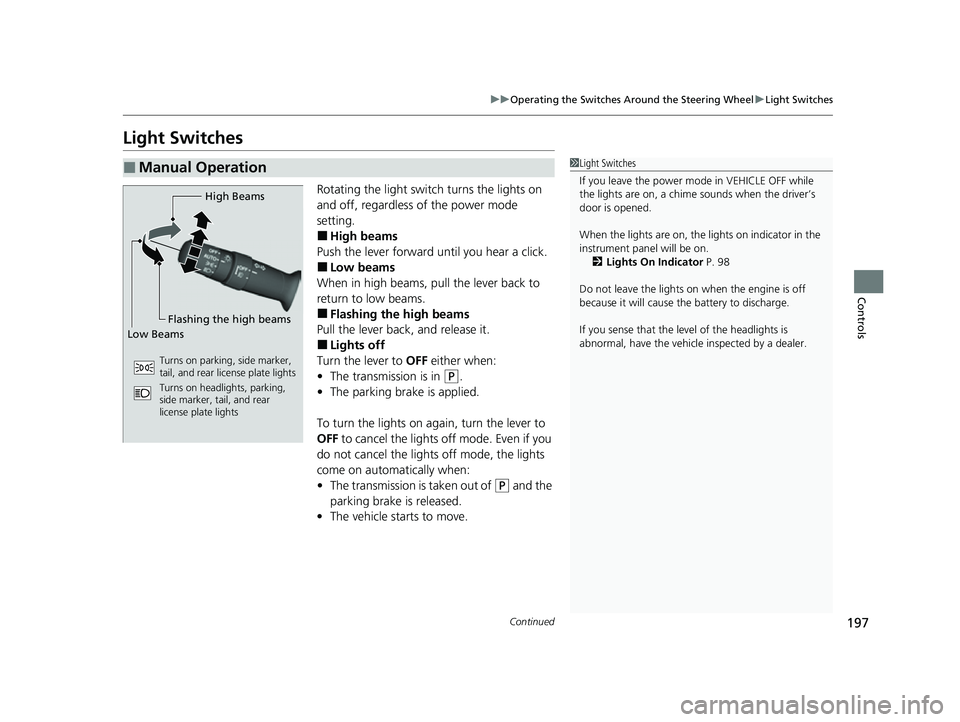

197
uuOperating the Switches Around the Steering Wheel uLight Switches
Continued
Controls
Light Switches
Rotating the light switch turns the lights on
and off, regardless of the power mode
setting.
■High beams
Push the lever forward until you hear a click.
■Low beams
When in high beams, pull the lever back to
return to low beams.
■Flashing the high beams
Pull the lever back, and release it.
■Lights off
Turn the lever to OFF either when:
• The transmission is in
(P.
• The parking brake is applied.
To turn the light s on again, turn the lever to
OFF to cancel the lights off mode. Even if you
do not cancel the lights off mode, the lights
come on automatically when:
• The transmission is taken out of
(P and the
parking brake is released.
• The vehicle starts to move.
■Manual Operation1Light Switches
If you leave the power mode in VEHICLE OFF while
the lights are on, a chime sounds when the driver’s
door is opened.
When the lights are on, the lights on indicator in the
instrument pane l will be on.
2 Lights On Indicator P. 98
Do not leave the lights on when the engine is off
because it will cause the battery to discharge.
If you sense that the le vel of the headlights is
abnormal, have the vehicl e inspected by a dealer.
High Beams
Flashing the high beams
Low Beams
Turns on parking, side marker,
tail, and rear license plate lights
Turns on headlights, parking,
side marker, tail, and rear
license plate lights
23 ACURA RDX-31TJB6400.book 197 ページ ２０２２年８月４日　木曜日　午後１時５１分

uuOperating the Switches Around the Steering Wheel uLight Switches
198
Controls
Automatic lighting control can be used when
the power mode is in ON.
When the light switch is in AUTO, the
headlights and other exterior lights will switch
on and off automatically depending on the
ambient brightness.
The headlights come on when you unlock a
door in dark areas with the headlight switch in
AUTO .
u Once you lock the door, the headlights
will go off.
■Automatic Operation (automatic lighting control)1Automatic Operation (aut omatic lighting control)
We recommend that you tu rn on the lights manually
when driving at night, in a de nse fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Light Sensor
Models with automatic
intermittent wipers
Models without automatic
intermittent wipers
Light Sensor
23 ACURA RDX-31TJB6400.book 198 ページ ２０２２年８月４日　木曜日　午後１時５１分

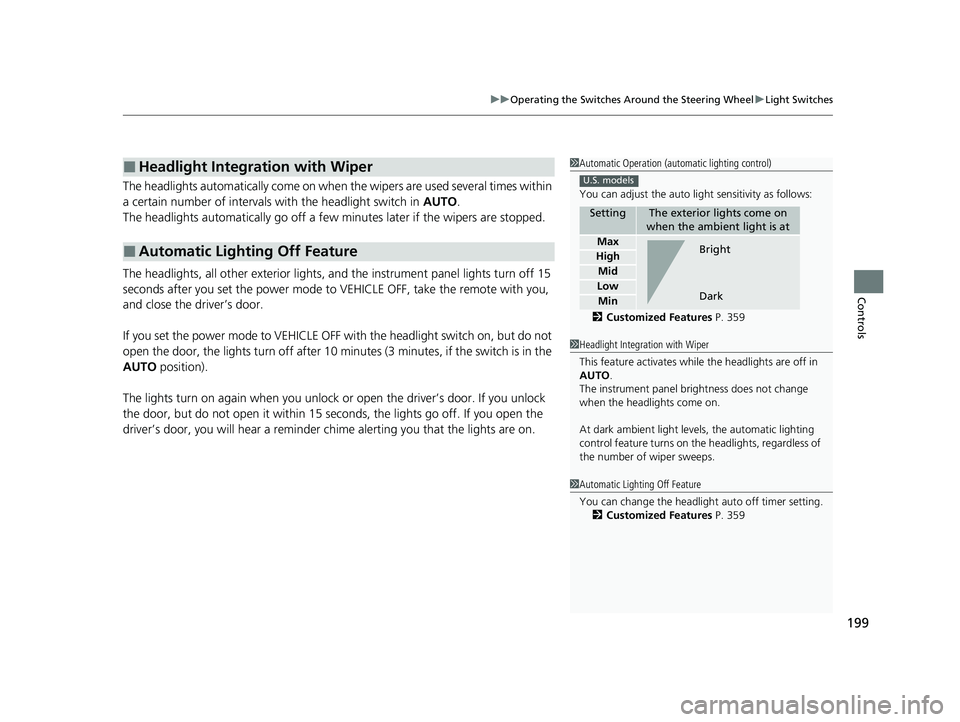

199
uuOperating the Switches Around the Steering Wheel uLight Switches
Controls
The headlights automatically come on when th e wipers are used several times within
a certain number of intervals with the headlight switch in AUTO.
The headlights automatically go off a few mi nutes later if the wipers are stopped.
The headlights, all other exterior lights, and the instrument panel lights turn off 15
seconds after you set the power mode to VEHICLE OFF, take the remote with you,
and close the driver’s door.
If you set the power mode to VEHICLE OFF with the headlight switch on, but do not
open the door, the lights turn off after 10 minu tes (3 minutes, if the switch is in the
AUTO position).
The lights turn on again when you unlock or open the driver’s door. If you unlock
the door, but do not open it within 15 seconds, the lights go off. If you open the
driver’s door, you will hear a reminder chime alerting you that the lights are on.
■Headlight Integration with Wiper
■Automatic Lighting Off Feature
1 Automatic Operation (aut omatic lighting control)
You can adjust the auto li ght sensitivity as follows:
2 Customized Features P. 359
SettingThe exterior lights come on
when the ambient light is at
Max
High
Mid
Low
Min
U.S. models
Bright
Dark
1 Headlight Integration with Wiper
This feature activates while the headlights are off in
AUTO .
The instrument panel br ightness does not change
when the headlights come on.
At dark ambient light leve ls, the automatic lighting
control feature turns on the headlights, regardless of
the number of wiper sweeps.
1 Automatic Lighting Off Feature
You can change the headlight auto off timer setting.
2 Customized Features P. 359
23 ACURA RDX-31TJB6400.book 199 ページ ２０２２年８月４日　木曜日　午後１時５１分

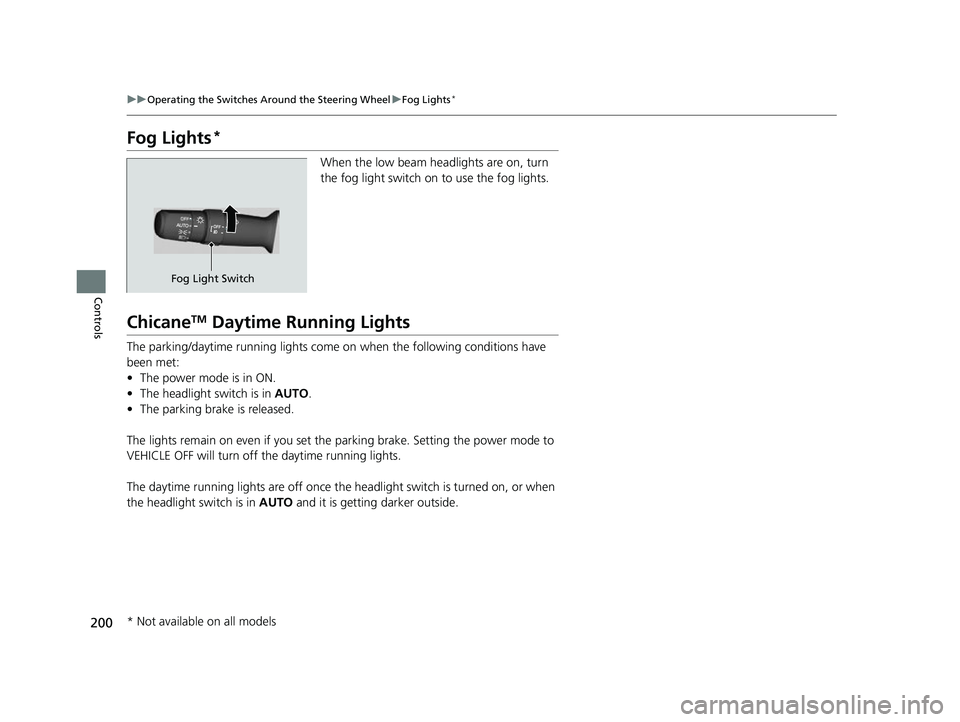

200
uuOperating the Switches Around the Steering Wheel uFog Lights*
Controls
Fog Lights*
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.
ChicaneTM Daytime Running Lights
The parking/daytime running lights come on when the following conditions have
been met:
• The power mode is in ON.
• The headlight switch is in AUTO.
• The parking brake is released.
The lights remain on even if you set the parking brake. Setting the power mode to
VEHICLE OFF will turn off the daytime running lights.
The daytime running lights are off once the headlight switch is turned on, or when
the headlight switch is in AUTO and it is getting darker outside.
Fog Light Switch
* Not available on all models
23 ACURA RDX-31TJB6400.book 200 ページ ２０２２年８月４日　木曜日　午後１時５１分

201
uuOperating the Switches Around the Steering Wheel uAuto High-Beam
Continued
Controls
Auto High-Beam
The front sensor camera detects the light sources ahead of the vehicle such as the
lights of a preceding or oncoming vehicle, or street lights. When you are driving at
night, the system automatically switches the headlights between low beam and high
beam depending on the situation.
When all of the following conditions have been met, the auto high-beam indicator
comes on and the auto high-beam is activated. •The power mode is in ON.
• The light switch is in AUTO.
• The lever is in the low beam position.
• The headlights have been automatically
activated.
• It is dark outside the vehicle.
If the auto high-beam indica tor does not come on even when all the conditions have
been met, carry out the following procedure and the indicator will come on.
• Pull the lever toward you for flashing the high beams then release it while driving.1Auto High-Beam
The auto high-beam system does not always operate
in every situation. This syst em is just for assisting the
driver. Always observe your surroundings and switch
the headlights between high beam and low beam
manually if necessary.
If you find the timing of beam changes inconvenient
for driving, change the headlight beams manually.
The range and the distance at which the camera can
recognize varies de pending on conditions
surrounding your vehicle.
Regarding the handling of the camera mounted to
the inside of the windshiel d, refer to the following.
2 Front Sensor Camera P. 541
For the auto high-beam to work properly:
•Do not place an object that reflects light on the
dashboard.
•Keep the windshield around the camera clean.
•When cleaning the windshield, be careful not to
apply the windshield cleans er to the camera lens.
•Do not attach an object, sticker or film to the area
around the camera.
•Do not touch the camera lens.
If the camera receives a st rong impact, or repairing of
the area near the camera is required, consult a dealer.
■How to Use the Auto High-Beam
Front Sensor Camera
Auto High-Beam
IndicatorLight Switch
23 ACURA RDX-31TJB6400.book 201 ページ ２０２２年８月４日　木曜日　午後１時５１分
