tow Acura RL 2001 3.5 Owner's Manual

2001 RL Online Reference Owner's Manual
Use these links (and links throughout this manual) to navigate through\
this reference.
For a printed owner's manual, click on authorized manuals or go to www.h\
elminc.com.
Contents
Introduction ........................................................................\
................................................................. i
A Few Words About Safet y........................................................................\
.........................................ii
Driver and Passenger Safety ........................................................................\
..................................... .5
Proper use and care of your vehicle's seat belts, and Supplemental Restr\
aint System.
Instruments and Control s........................................................................\
........................................ .51
Instrument panel indicator and gauge, and how to use dashboard and steering colu\
mn controls.
Comfort and Convenience Features ........................................................................\
..................... 121
How to operate the climate control system, the audio system, and other c\
onvenience features.
Before Driving........................................................................\
..........................................................167
What gasoline to use, how to break-in your new vehicle, and how to load luggage and other cargo.
Driving ........................................................................\
..................................................................... .179
The proper way to start the engine, shift the transmission, and park, pl\
us towing a trailer.
Maintenance........................................................................\
.............................................................203
The Maintenance Schedule shows you when you need to take your vehicle to the dealer.
Appearance Car e........................................................................\
..................................................... .263
Tips on cleaning and protecting your vehicle. Things to look for if your\
vehicle ever needs body repairs.
Taking Care of the Unexpecte d........................................................................\
..............................271
This section covers several problems motorists sometimes experience, a nd how to handle them.
Technical Informatio n........................................................................\
.............................................299
ID numbers, dimensions, capacities, and technical information.
Warranty and Customer Relations (U.S. and Canada)................................................................313
A summary of the warranties covering your new Acura, and how to contact \
us.
Authorized Manu als (U.S. only)........................................................................\
..............................319
How to order manuals and other technical literature.
Index........................................................................\
........................................................................\
...... I
Service Information Summary
A summary of information you need when you pull up to the fuel pump.

Accord Value Package Audio System Owner's Identification Form

Your Vehicle at a Glance........................................................................\
............................................ 2

Protecting Adults
6.Adjust the Steering Wheel
Adjust the steering wheel, if needed, so that the wheel points toward your
chest, not toward your face.
Pointing the steering wheel toward
your chest provides optimal protection from the airbag.
See page 71 for how to adjust the

steering wheel.
7.Maintain a Proper Sitting
Position
After all occupants have adjusted their seats and put on seat belts, it is
very important that they continue to sit upright, well back in their seats,
with their feet on the floor, until the
car is parked and the engine is off.
Sitting improperly can increase the
chance of injury during a crash. For
example, if an occupant slouches,
lies down, turns sideways, sits
forward, leans forward or sideways, or puts one or both feet up, the
chance of injury during a crash is
greatly increased. In addition, an occupant who is out of
position in the front seat can be seriously or fatally injured by
striking interior parts of the car, or
by being struck by an inflating front
airbag. Being struck by an inflatingside airbag can result in possibly
serious injuries.

CONTINUED

Driver and Passenger Safety

Sitting improperly or out of
position can result in serious
injury or death in a crash.
Always sit upright, well back in
the seat, with your feet on the

floor.

Protecting Children

Rear-Facing Child Seat Installation
Tips

For proper protection, an infant must
ride in a reclined, or semi-reclined
position. To determine the proper
reclining angle, check with the baby's doctor or follow the seat maker's
recommendations.
To achieve the desired reclining angle, it may help to put a rolled up
towel under the toe of the child seat, as shown. When properly installed, a rear-
facing child seat may prevent the driver or a front-seat passenger from
moving the seat as far back as
recommended (see page 12). Or it
may prevent them from locking the
seat-back in the desired upright
position (see page 13).
In either case, we recommend that
you place the child seat directly behind the front passenger seat,
move the front seat as far forward as
needed, and leave it unoccupied. Or
you may wish to get a smaller child seat that allows you to safely carry a
front passenger.
Additional Precautions for Infants
Never hold an infant on your lap.

If you are not wearing a seat belt in a crash, you could be thrown
forward into the dashboard and
crush the infant.
If you are wearing a seat belt, the infant can be torn from your arms
during a crash. For example, if
your car crashes into a parked
vehicle at 30 mph (48 km/h), a 20-lb (9 kg) infant will become a
600-lb (275 kg) force, and you will
not be able to hold on.
Never put a seat belt over yourself

and an infant. During a crash, the
belt could press deep into the infant and cause very serious
injuries.

Driver and Passenger Safety

Controls Near the Steering Wheel

1. Locate the adjustment switch on the left side of the steering column.Move the steering wheel, in, out,
up, or down by pushing and
holding the adjustment switch in
that direction. 2. Release the switch when the
steering wheel reaches the
desired position. Make sure the
steering wheel points towards
your chest, not toward your face, and that you can see the

instrument panel gauges and

warning lights. The AUTO switch controls automat-
ic movement of the steering wheel.
When this switch is in the ON posi- tion, the steering wheel automatical-
ly moves fully in and up when you re-
move the key from the ignitionswitch.

Instruments and Controls
Automatic Movement

AUTO SWITCH

Sun Visor, Vanity Mirror

Sun Visor
To use the sun visor, pull it down. You can also use the sun visor at the side window. Remove the support
rod from the clip and swing the sun
visor toward the side window. In this
position, the sun visor can be extended by sliding out the

extension.
Make sure you put the sun visor

back in place when you are getting

into or out of the car. Do not use the
sun visor extension over the rear

view mirror.
Vanity Mirror

To use a vanity mirror on the back of the sun visor, pull up the cover.
The light beside the mirror comes on when you pull up the cover.
Instruments and Controls EXTENSION

Service Station Procedures

If you can open the hood without
sliding the hood latch handle, or the
hood latch handle moves stiffly or does not spring back as before, the
mechanism should be cleaned and
lubricated (see page 231).
3. Lift the hood up most of the way.
The hydraulic supports will lift it up the rest of the way and hold it
up.

To close the hood, lower it to about a
foot (30 cm) above the fender, then
press down firmly with your hands.
After closing the hood, make sure it is securely latched. Oil Check
Check the engine oil level every time
you fill the vehicle with fuel. Wait a
few minutes after turning the engine off before you check the oil.
1. Remove the dipstick (orange

handle).

2. Wipe the dipstick with a clean cloth or paper towel.

CONTINUED

Before Driving

DIPSTICK

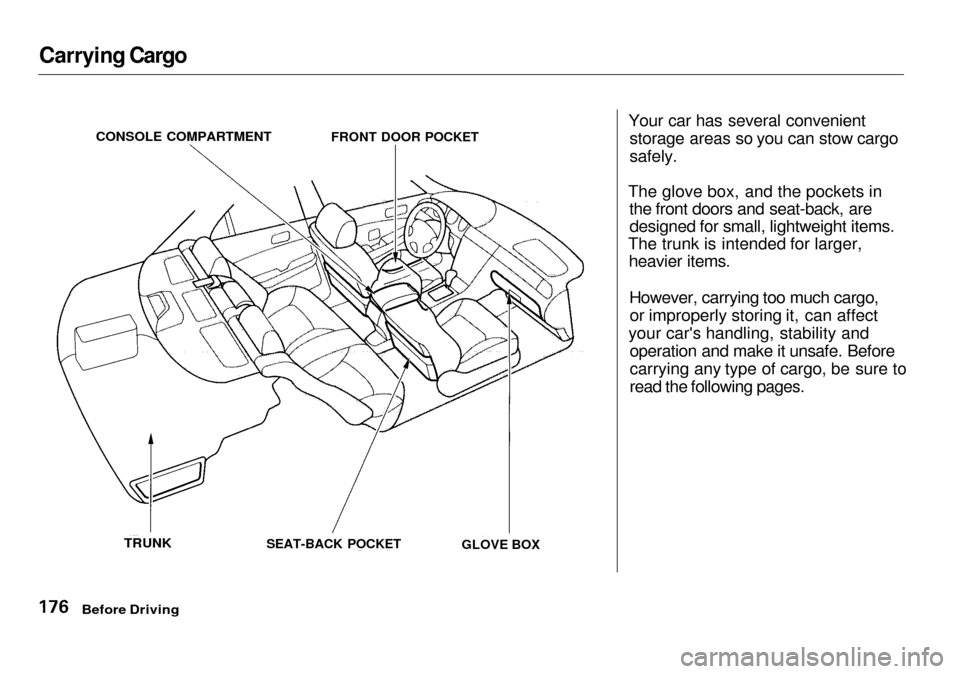

Carrying Cargo
Your car has several convenient
storage areas so you can stow cargo

safely.

The glove box, and the pockets in the front doors and seat-back, aredesigned for small, lightweight items.
The trunk is intended for larger, heavier items.
However, carrying too much cargo,or improperly storing it, can affect
your car's handling, stability and operation and make it unsafe. Before
carrying any type of cargo, be sure to
read the following pages.
Before Driving
CONSOLE COMPARTMENT


FRONT DOOR POCKET

TRUNK

SEAT-BACK POCKET

GLOVE BOX

Carrying CargoLoad Limit
The maximum load for your car is

850 lbs (395 kg).

This figure includes the total weight of all occupants, cargo, accessories,
and the tongue weight if you are
towing a trailer.
To figure out how much cargo you can carry:
Add up the weight of all occupants. If you are towing a trailer, add the
tongue weight to the number

above.

Subtract the total from 850 Ibs
(395
kg).

The final number is the total weight
of cargo you can carry.
Carrying Items in the Passenger
Compartment Store or secure all items that could
be thrown around and hurt
someone during a crash.
Do not put any items on top of the
rear shelf. They can block your
view and be thrown around the car during a crash.
Be sure items placed on the floor
behind the front seats cannot roll under the seats and interfere with
the driver's ability to operate the
pedals, or with the properoperation of the seats.
Keep the glove box closed while
driving. If the lid is open, a
passenger could injure their knees during a crash or sudden stop.

Before Driving

Overloading or improper
loading can affect handling and
stability and cause a crash in
which you can be hurt or killed.

Follow all load limits and other

loading guidelines in this

manual.

Driving
This section gives you tips on starting the engine under various
conditions, and how to operate the
automatic transmission. It also
includes important information on parking your car, the braking system,
the Vehicle Stability Assist System,
and facts you need if you are
planning to tow a trailer. Preparing to Drive......................... 180
Starting the Engine........................ 181
Starting in Cold Weatherat High Altitude ..................... 181
Automatic Transmission............... 182 Shift Lever Position Indicator.. 182
Shift Lever Positions................. 182
Engine Speed Limiter ............... 184
Shift Lock Release..................... 185
Parking............................................ 186
The Braking System...................... 187
Brake Wear Indicators.............. 187
Brake System Design................ 188
Anti-lock Brakes........................ 188 Important SafetyReminders.......................... 189
ABS Indicator......................... 189
Vehicle Stability Assist System.... 191 Driving in Bad Weather................ 194
Towing a Trailer............................ 196

Driving

Automatic Transmission

Drive (D4) — Use this position for
your normal driving. The transmis- sion automatically selects a suitable
gear for your speed and acceleration.
You may notice the transmission shifting up at higher speeds when
the engine is cold. This helps the engine warm up faster.
Drive (D3) —This position is similar
to D4, except only the first three
gears are selected. Use D3 when
towing a trailer in hilly terrain, or to
provide engine braking when going down a steep hill. D3 can also keep
the transmission from cycling
between third and fourth gears in stop-and-go driving.
For faster acceleration when in D3 or
D4, you can get the transmission to
automatically downshift by pushing
the accelerator pedal to the floor.
The transmission will shift down one or two gears, depending on your
speed.
Second (2) — This position locks
the transmission in second gear. It
does not downshift to first gear
when you come to a stop. Second gives you more power when climbing,and increased engine braking when
going down steep hills. Use second
gear when starting out on a slippery surface or in deep snow. It will help
reduce wheelspin.
First (1) — To shift from Second to
First, push down on the shift lever.
With the lever in this position, the transmission locks in First gear. By
upshifting and downshifting through 1, 2, D3 and D4, you can operate this
transmission much like a manual
transmission without a clutch pedal. Engine Speed Limiter
If you exceed the maximum speed
for the gear you are in, the engine speed will enter into the tachometer's
red zone. If this occurs, you may feel
the engine cut in and out. This iscaused by a limiter in the engine's
computer controls. The engine will
run normally when you reduce the RPM below the red zone.

Driving
