Acura RL 2002 3.5 Owner's Manual

To use the accessory power socket,
pull down on the cover. The ignition
switch must be in ACCESSORY (I)
or ON (II).This socket is intended to supply
power f or 12 volt DC accessories
that are rated 120 watts or less (10
amps).
It will not power an automotive type
cigarette lighter element.
Route the wire through the notch in
the edge of the console compartment.
A ccessory Power Socket
Inst rument s and Cont rols108
N NOOTTC
CH H
A
A C
CCCEES
SS SOOR RYY P
PO
OW WE ER
R S
SOOC CKKEET
T
01/09/28 19:42:43 31SZ3660_111

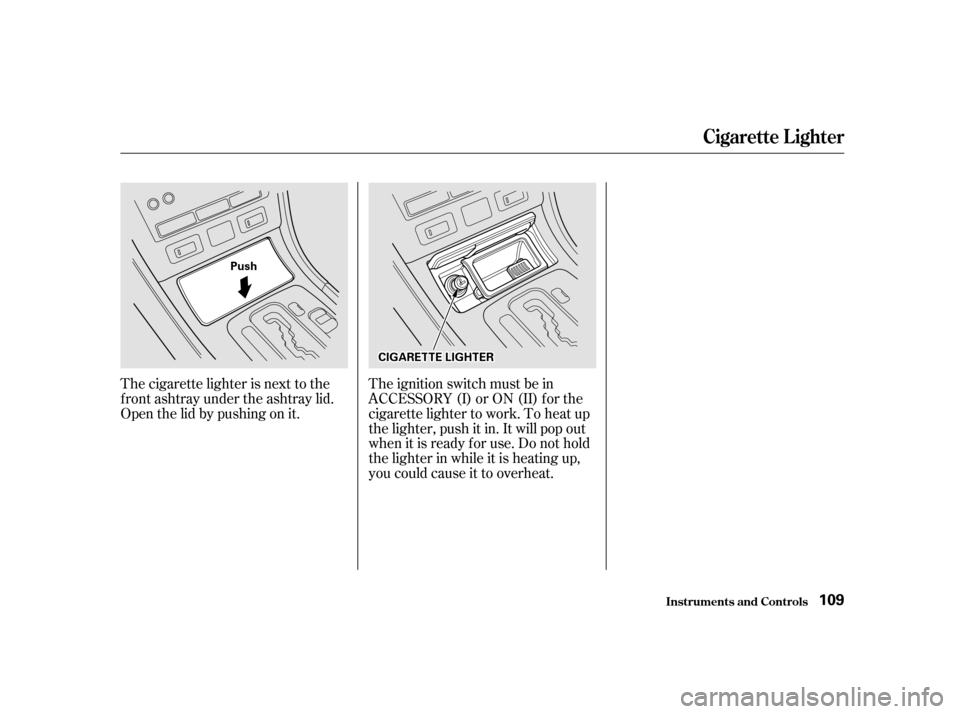

The cigarette lighter is next to the
f ront ashtray under the ashtray lid.
Open the lid by pushing on it.The ignition switch must be in
ACCESSORY(I)orON(II)forthe
cigarette lighter to work. To heat up
the lighter, push it in. It will pop out
when it is ready f or use. Do not hold
the lighter in while it is heating up,
you could cause it to overheat.
Cigarette Lighter
Inst rument s and Cont rols109
C CI
IGGA AR
REET
TT
TE
E L
LIIGGH HT
TE
ER
R
P
P
u
us
shh
01/09/28 19:42:49 31SZ3660_112

The rear ashtrays are in the front
lower corner of each door. Open the
ashtraybyswingingtheupperedge
of the lid down. To remove the
ashtray f or emptying, open it, then
lif t up and out.
Openthefrontashtraybypushing
on the lid. To close the ashtray, push
it in until it clicks shut. To remove it
f or emptying, grasp the tab on the
lef t side of the inner tray and lif t it up
and out.
Ashtrays
Inst rument s and Cont rols110
I IN
NN NEER
R T
TR
RA A Y
Y
A
AS
SHH T
TR
RA A Y
Y
T
T A
A B
B
Use the ashtray only f or cigarettes,
cigars, and other smoking materials.
T o prevent a possible f ire and damage
to your car, don’t put paper or other
things that can burn in the ashtray.
01/09/28 19:42:55 31SZ3660_113

Both f ront and rear ceiling lights
contain a main light as well as two
spotlights.With the light switch in the AUTO
position, you can use the rear
spotlights only when the headlights
turn on automatically.
The f ront ceiling light has a three-
position switch. With the switch in
the OFF position (f ar lef t), the main
lights do not come on. In the center
position, the main lights come on
when you open any door. Af ter all
doors are closed tightly, they dim
slightly then f ade out in about 10
seconds. In the ON position (f ar right), the main lights stay on
continuously.
Turn on the spotlights in the f ront
and rear ceiling lights by pushing the
grey button next to each light. Push
the button again to turn it off. You
can use the f ront spotlights at all
times. The rear spotlights only light
when the parking lights or head-
lights are on.U.S. models only
Ceiling L ights
Inst rument s and Cont rols111
F FR
RO ON NTT
O
OF FFF
O
ONN R
RE
EA
A R
R
01/09/28 19:43:05 31SZ3660_114

In addition to the ceiling lights, your
Acura has courtesy lights in each
door and the ignition switch.Even if the door is open, the lights
will turn off after three minutes
when the key is not in the ignition
switch or the ignition switch is in the
LOCK (0) or ACCESSORY (I)
position, and the light switch is in the
of f position.
The door courtesy lights and ceiling
lights (with the switch in the center
position) come on when you unlock
the door with the key, lock tab on
the driver’s door, master door lock
switch,orremotetransmitter(see
page ). If you relock the driver’s
door or close the driver’s door with
the key in the ignition switch, the
lights turn of f immediately.
Otherwise, they remain on, then f ade
out in about 10 seconds.
The door courtesy lights come on
whenever you open any door. Af ter
all doors are closed tightly, they dim
slightly then f ade out in about 10
seconds. Thecourtesylightintheignition
switchcomesonwhenyouopenthe
driver’s door. It remains on about 10
seconds af ter the door is closed. The door courtesy lights and ceiling
lights (with the switch in the center
position) also come on when you
remove the key from the ignition
switch. If you do not open a door,
they stay on, then fade out in about
10 seconds.
79
Courtesy Lights
Inst rument s and Cont rols112
01/09/28 19:43:14 31SZ3660_115

...............
Climate Control System .114
.......
Fully-automatic Operation .116
.......
Semi-automatic Operation .117
.......
Fully-automatic Operation .121
.......
Semi-automatic Operation .122
........................
Rear Ventilation .126
Sunlight Sensor/
............
Temperature Sensor .127
................................
Audio System .128
AM/FM/Cassette Stereo ........................
Audio System .128
.................
Operating the Radio .129
.................
Adjusting the Sound .132
............
Audio System Lighting .133
Operating the Cassette
.....................................
Player .133
............
Tape Search Functions .134
.....
Operating the CD Changer .136
.................
Operating the Radio .139
.................
Adjusting the Sound .142
............
Audio System Lighting .143
....................
Radio Frequencies .143 ........................
Radio Reception .143
Operating the Cassette
.....................................
Player .145
............
Tape Search Functions .145
Caring f or the Cassette
.....................................
Player .148
.....
Operating the CD Changer .149
........
Loading the CD Changer .151
.......
Protecting Compact Discs .153
CD Changer Error
.............................
Indications .154
...........
Remote Audio Controls .155
.......................
Thef t Protection .156
............................
Security System .157
...............................
Cruise Control .158
HomeLink Universal
...........................
Transceiver .162
...............
Customer Assistance .162
.
Important Safety Precautions .162
..................
Training HomeLink .163
Training with a Rolling Code
....................................
System .164
...........................
Erasing Codes .166
............................................
OnStar .167
3.5 RL without Navigation System
3.5 RL with Navigation System
3.5 RL without Navigation System3.5 RL with Navigation System
Comf ort and Convenience Features
Comf ort and Convenience Feat ures113
01/09/28 19:43:18 31SZ3660_116

The automatic climate control
system in your Acura picks the
proper combination of air condi-
tioning, heating, and ventilation to
maintain the interior temperature
you select. The system also adjusts
the fan speed and air flow levels.
The direction of air f low f rom the
vents in the center and each side of
the dashboard is adjustable. Move
the tab in the center of each vent up-
and-down and side-to-side.
Thesideventscanbeopenedand
closed with the dials next to them.The climate control system draws air
through the exterior vents at the
bottom of the windshield. Keep
these vents clear of leaves and other
debris.For the climate control system to
provide heating and cooling, the
engine must be running.
In the rear seat, you can also adjust
the ventilation when the climate con-
trol system is on (see page ). 126
Comf ort and Convenience Feat ures
Climat e Cont rol Syst em
114
C CEEN
NT TE
ER
R V
VE
EN
NT TS
S
O
Oppe
enn
C
Cl loo s
see
S
SI
IDD E
E V
VE
EN
NT TS
S
01/09/28 19:43:28 31SZ3660_117

Climat e Cont rol Syst em
Comf ort and Convenience Feat ures115
01/09/28 19:43:32 31SZ3660_118

Pressing the OFF button shuts the
climate control system completely
of f . Keep the system completely of f
only f or short periods. To keep stale
air and mustiness f rom collecting,
you should have the f an running at
all times.
When you set the temperature to its
lower limit (60°F/18°C) or its upper
limit (90°F/32°C), the system runs
at f ull cooling or heating only. It does
not regulate the interior temperature.
When the temperature is set between the lower and upper limits,
the system regulates the interior
temperature to the set value.
The system automatically selects the
proper mix of conditioned and/or
heated air that will, as quickly as
possible, raise or lower the interior
temperature f rom its current level to
the set temperature. To put the Automatic Climate
Control in f ully-automatic mode,
press the AUTO button and set the
f an control dial to AUTO, then set
the desired temperature by turning
the temperature control dial. You will
see FULL AUTO in the system’s
display. The light above either the
or button also goes
on to show you which is selected.
In cold weather, the fan will not
come on automatically until the car
has been driven f or a short time and
the heater starts to develop warm air.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Fully-automatic Operation
3.5 RL wit hout Navigat ion Syst em
116
T TE
EM
M P
PE
ER
RA A T
TU
UR REE
C
CO ON NTTR
RO OL L D
DI
IAA L
L F
FU
UL LLL A
AU
UT TO
O
D
D I
ISSP PL
LAA Y
Y F
FA
A N
N C
COON NTTR
RO OL L
D
D I
IAA L
L
A
A U
UT TO
O
B
BU UT TT
TO
ON N O
OF
FFF
B
BU UT TT
TO
ON N
01/09/28 19:43:42 31SZ3660_119

CONT INUED
You can manually select various
f unctions of the Climate Control
system when it is in FULL AUTO.
All other f eatures remain auto-
matically controlled. Making any
manual selection causes the word
FULL to go out.
When you turn the A/C of f , the sys-
tem cannot regulate the inside tem-
perature if you set the dial below the
outside temperature. With the A/C
on, use the temperature control dial
to adjust the temperature of the air
flow to a comfortable setting.With the A/C in economy mode, you
will see A/C ECON in the system’s
display. Use this mode to get better
f uel economy.
Press the A/C button to operate the
air conditioning. Each time you press
the A/C button, the display shows
the mode: A/C ECON, A/C OFF, or
A/C ON.
In this mode, you may f eel a slight re-
duction in cooling ef f iciency. If you
want more cooling, select A/C ON or
FULL AUTO.
Climat e Cont rol Syst em
Comf ort and Convenience Feat ures
Semi-automatic Operation
A ir Condit ioning (A /C) But t on
117
T TE
EM
M P
PE
ER
RA A T
TU
UR REE
C
CO ON NTTR
RO OL L D
DI
IAA L
L A
A
I
IRR C
COON NDDI
ITT I
IOON NIINNG G
B
BU UT TT
TO
ON N
R
RE EC
CI IRRC CUUL LAA T
TE
ED
D A
AI
IRR F
FRRE ES
SH H A
AI
IRR
01/09/28 19:43:52 31SZ3660_120
