µIf you are
traveling far from home and can no
longer receive the stations you
preset, you can use the Auto Select
feature to find stations in the local
area.

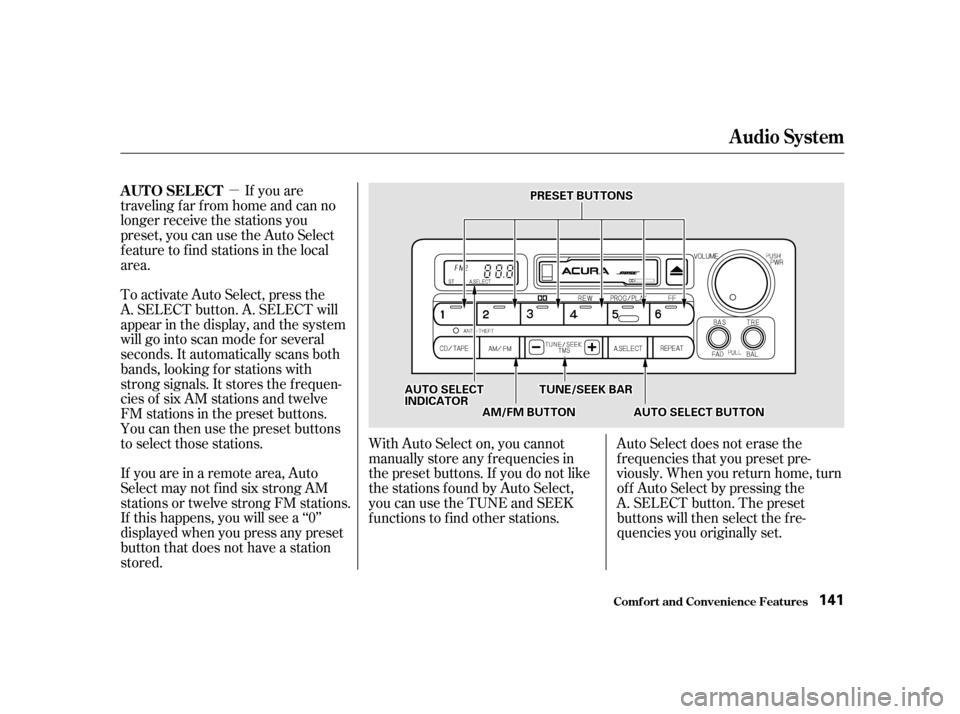

To activate Auto Select, press the
A. SELECT button. A. SELECT will
appear in the display, and the system
will go into scan mode f or several
seconds. It automatically scans both
bands, looking f or stations with
strong signals. It stores the f requen-
cies of six AM stations and twelve
FM stations in the preset buttons.
You can then use the preset buttons
to select those stations.
If you are in a remote area, Auto
Select may not f ind six strong AM
stations or twelve strong FM stations.
If this happens, you will see a ‘‘0’’
displayed when you press any preset
button that does not have a station
stored. With Auto Select on, you cannot
manually store any f requencies in
the preset buttons. If you do not like
the stations found by Auto Select,
you can use the TUNE and SEEK
f unctions to f ind other stations.
Auto Select does not erase the
f requencies that you preset pre-
viously. When you return home, turn
of f Auto Select by pressing the
A. SELECT button. The preset
buttons will then select the fre-
quencies you originally set.
AUTO SELECT
Audio System
Comf ort and Convenience Feat ures141
A A
M
M /
/F
FM M B
BUUT TT
TO
ON N
T
T
U
UN NEE/
/S
SE EE
EK
K B
BAA R
R
A
AU
UT TO
O S
SEEL
LEE C
CT T B
BUUT TT
TO
ON N
P
P
R
RE ES
SE ET
T B
BUUT TT
TO
ON NSS
A
A U
UT TO
O S
SEEL
LEE C
CT T
I
IN ND DI
ICCA A T
TO
OR R
01/09/28 19:47:39 31SZ3660_144

ÛÝ
Two controls f or the audio system
are mounted in the steering wheel
hub. These let you control basic
f unctions without removing your
hand f rom the wheel. The top and bottom buttons adjust
thevolumeup( )ordown( ).
Press the proper button and hold it
until the desired volume is reached,
then release it.
The AUDIO/CH button has three
f unctions, depending on whether you
are listening to the radio, or playing a
cassette or CD.
If you are listening to the radio, use
the AUDIO/CH button to change
stations. Each time you press this
button, the system advances to the
next preset station on the band you
are listening to. You will see the
number of the selected Preset button
in the display. To change bands,
press the AM/FM button on the
audio system’s f ront panel.If you are playing a cassette, use the
AUDIO/CH button to advance to the
next selection. You will see ‘‘FF’’
blinking in the display when you
press the AUDIO/CH button. The
system f ast f orwards until it senses a
silent period, then goes back to
PLAY.
If youareplayingaCD,thesystem
skips to the beginning of the next
track each time you push the
AUDIO/CH button. You will see the
disc and track number in the display.
Remote Audio Controls
Audio System
Comf ort and Convenience Feat ures155
A A
U
UD DI
IOO/ /C
CH H
B
BU UT TT
TO
ON N
01/09/28 19:49:56 31SZ3660_158

You will have to store your favorite
stations in the Preset buttons after
the system begins working. Your
original settings were lost when
power was disconnected.
Your car’s audio system will disable
itself if it is disconnected f rom
electrical power f or any reason. To
make it work again, the user must
enter a specif ic f ive-digit code in the
Preset buttons. Because there are
hundreds of number combinations
possible f rom f ive digits, making the
system work without knowing the
exact code is nearly impossible. If your car’s battery is disconnected
or goes dead, or the radio f use is
removed, the audio system will
disable itself . If this happens, you
will see ‘‘Code’’ in the f requency
display the next time you turn on the
system. Use the Preset buttons to
enter the f ive-digit code. If it is
entered correctly, the radio will start
playing.
Youshouldhavereceivedacardthat
lists your audio system’s code
number and serial number. It is best
tostorethiscardinasafeplaceat
home. In addition, you should write
the audio system’s serial number in
this Owner’s Manual. If you should
happen to lose the card, you must
obtain the code number f rom your
Acura dealer. To do this, you will
need the system’s serial number. If you make a mistake entering the
code, do not start over or try to
correct your mistake. Complete the
f ive-digit sequence, then enter the
correct code. You have three tries to
enter the correct code. If you are
unsuccessful in three attempts, you
must then leave the system on for
one hour bef ore trying again.
Thef t Protection
Audio System
Comf ort and Convenience Feat ures156
01/09/28 19:50:03 31SZ3660_159

µ
If you are training the second or
third buttons, go directly to Step 1. Unplug the garage door opener
motor f rom the house current.
Bef ore you can use HomeLink to
operate devices around your home, it
must ‘‘learn’’ the proper codes. For
example, to train HomeLink to open
and close the garage door:
If you just took
delivery of your vehicle and have not
trained any of the buttons in
HomeLink bef ore, you should erase
any previously learned codes bef ore
training the f irst button. To do this,
press and hold the two outside
buttons on the HomeLink
transceiver for about 20 seconds,
until the red light f lashes. Release
the buttons, then proceed to Step 1.
Holdtheendof thegaragedoor
opener remote control 2 to 5
inches f rom HomeLink. Make
sure you are not blocking your
view of the red light in HomeLink. Select the HomeLink button you
want to train.
Press the button on the remote
control and the button on
HomeLink at the same time. Hold
down both buttons.
1.
2. 3.
4.
CONT INUED
T raining HomeL inkBef ore you begin
HomeL ink Universal T ransceiver
Comf ort and Convenience Feat ures163
01/09/28 19:51:08 31SZ3660_166

For security purposes, newer garage
door opening systems use a ‘‘rolling’’
or variable code. Inf ormation f rom
the remote control and the garage
door opener are needed bef ore
HomeLink can operate the garage
door opener.
The ‘‘Training HomeLink’’
procedure trains HomeLink to the
proper garage door opener code.
The f ollowing procedure
synchronizes HomeLink to the
garage door opener so they send and
receive the correct codes.
The remote control you are training
from may stop transmitting after two
seconds. This is not long enough f or
HomeLink to learn the code. Release
and press the button on the remote
control every two seconds until
HomeLink has learned the code.
The red light in HomeLink should
begin f lashing. It will f lash slowly
at first, then rapidly.
When the red light f lashes rapidly,
release both buttons. HomeLink
should have learned the code from
the remote control.
Plug in the garage door opener
motor, then test the HomeLink
transceiver button by pushing it. It
should operate the garage door.
If the button does not work, repeat
this procedure to train it again. If it
still does not work, you may have a variable or rolling code garage
door opener. Test this by pressing
and holding the HomeLink
transceiver button you just trained.
If the red light blinks f or two
seconds,thenstayson,youhavea
rolling code garage door opener.
You may be able to verify this with
the manufacturer’s documentation.
Go to ‘‘Training With a Rolling
Code System.’’
Repeat these steps to train the
other two HomeLink buttons to
operate any other remotely-
controlled devices around your
home (lighting, automatic gate,
security system, etc.).
5.
6.
7.
8.
Canadian Owners:T raining With a Rolling Code
System
HomeL ink Universal T ransceiver
Comf ort and Convenience Feat ures164
01/09/28 19:51:19 31SZ3660_167

As required by the FCC:This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Toerasethecodesstoredinallthree
buttons, press and hold the two
outside buttons until the red light
begins to f lash, then release the
buttons.
Youshoulderaseallthreecodes
bef ore selling the car.
Totrainanalreadyprogrammed
HomeLink button to operate a new
device:
Select the HomeLink button you
want to train.
Press and hold the HomeLink
button until the red light begins to
f lash slowly (approximately 20
seconds).
While continuing to hold the
HomeLink button, place the
remotecontrolforthedevice2to
5inchesfromHomeLink.
Press and hold the button on the
remote control. Hold both buttons
until the red light begins to f lash
rapidly. Release both buttons. HomeLink
should now be trained to operate
the device.
1.
3. 2.
4. 5.
Erasing Codes
Retraining a Button
HomeL ink Universal T ransceiver
Comf ort and Convenience Feat ures166
01/09/28 19:51:42 31SZ3660_169

The OnStarsystem in your vehicle
gives you immediate access to a wide
range of services and inf ormation
with the touch of a button. An
OnStar advisor is available 24 hours
a day, 7 days a week.
The basic Saf ety & Security Plan
provides: Press this button to contact an
OnStar advisor. You will hear a
chime, f ollowed by the
announcement, ‘‘Connecting to
OnStar.’’ The connection should take
20 to 30 seconds. The advisor will
assist you with any of the services
included in your plan.
Depending on what service you
request, you may need to give your
Personal Identification Number
(PIN) to the advisor. Your PIN is a
number you make up and provide
when you establish your OnStar
service.
If cellular telephone service is not
available in the area you are driving
in, you will hear a f ast busy signal.
The system will retry the connection
several times bef ore returning to the
ready mode.
Roadside Assistance.
Emergency Services.
Automatic Notif ication of Airbag
Deployment.
Accident Assist.
Remote Door Locking/Unlocking.
Stolen Vehicle Tracking.
Misplaced Vehicle Assistance.
The Premium Service Plan provides
these additional f eatures: Route Support.
Ride Assist.
Inf ormation and Convenience
Services.
Concierge Services. The OnStar control buttons and
indicator are located in the base of
the rear view mirror.
CONT INUED
Comf ort and Convenience Feat ures
OnStar System
OnStar Services Button
OnStar Control Panel
167
O On nS
St taar r B
BU UT TT
TO
ON N S
SY
YSSTTE
EM
M
S
ST TA
A T
TU
US S L
LIIGGH HT
T
E
E M
M E
ER
RG GE EN
NC CYY
B
BU UT TT
TO
ON N
C
CA
A L
LLL
A
A N
NS SWWE ER
R/ /E
E N
ND D
B
BU UT TT
TO
ON N
01/09/28 19:52:02 31SZ3660_170

µµ
µ
µ
To cancel these retries, press the
Call Answer/End (DOT) button.
A microphone is located in the base
of therearviewmirrorsoyoucan
speak to the advisor without taking
your hands of f the steering wheel or
diverting your attention f rom the
road. The OnStar advisor’s voice
comes f rom the audio system’s
speakers. Use the volume control on
the audio system or on the steering
wheel to adjust the volume.
Press this button to contact an
OnStar advisor only if you have an
emergency situation. You will hear a
tone, f ollowed by the announcement,
‘‘Connecting to OnStar Emergency.’’
Your call is given highest priority. The advisor will ask about the nature
of the emergency, locate your
vehicle, and notif y the appropriate
emergency service agencies.
Press this ‘‘DOT’’ button to end a call
to the OnStar advisor, or to cancel
the call if you should press one of
the other buttons accidentally. If the
OnStar center should call you, press
this button to answer the call.
This button is also used to initiate
the Personal Calling and Virtual
Advisor services, if you have
subscribed.This light shows you the status of
the system.
The system is ready
for use.
Acallisin
progress.
There is a problem in
the system. Press the OnStar button
to contact an advisor. If the call
connects, the advisor will assist you
with verif ying the system’s operation.
If you are not able to contact an
advisor, take your vehicle to an
Acura dealer to have the system
diagnosed.
There is a problem
in the system with a call in progress.
If you press this button accidentally,
do not cancel the call. Wait until the
OnStar advisor answers, then explain
your mistake.
Emergency Button Call Answer/End ButtonSolid Green
Blinking Green
Solid Red
Blinking Red System Status L ight
OnStar System
Comf ort and Convenience Feat ures168
01/09/28 19:52:17 31SZ3660_171

Make sure the climate control sys-
tem is off.
Start the engine and let it run until
it warms up (the radiator cooling
fan comes on at least twice), and
let it idle f or f ive more minutes.
If your car’s battery is disconnected
or goes dead, the engine’s computer
needs to ‘‘relearn’’ the idle control.
Af ter replacing or recharging the
battery:
Your driver’s power window (see
page ) and your audio system
will also disable itself when the bat-
tery is disconnected or goes dead.
Thenexttimeyouturnontheradio
you will see ‘‘Code’’ in the f requency
display. Use the Preset buttons to en-
ter the f ive-digit code (see page ).
1.
2. 104
156
Battery
Maint enance248
Charging the battery with the cables
connected can seriously damage your
car’s electronic controls. Detach the
battery cables bef ore connecting the
battery to a charger.
01/09/28 20:06:01 31SZ3660_251

Look f or a burned wire inside the
f use. If it is burned, replace it with
oneof thesparefusesof thesame
rating or lower.If you cannot drive the car without
f ixing the problem, and you do not
have a spare fuse, take a fuse of the
same rating or a lower rating f rom
one of the other circuits. Make sure
youcandowithoutthatcircuit
temporarily (such as the cigarette
lighter or radio).
If you replace the blown f use with a
spare f use that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
f use with one of the correct rating as
soon as you can.
If the replacement fuse of the
same rating blows in a short time,
there is probably a serious
electrical problem in your car.
Leave the blown fuse in that
circuit and have your car checked
by a qualif ied mechanic.
If the radio f use is removed, the
audio system will disable itself . The
nexttimeyouturnontheradioyou
will see ‘‘Code’’ in the f requency
display. Use the Preset buttons to
enter the f ive-digit code (see page ).
5.
6.
156
CONT INUED
Fuses
T aking Care of t he Unexpect ed303
B BL LOOW WN N
Replacing a f use with one that has a
higher rating greatly increases the
chances of damaging the electrical
system. If you do not have a replace-
ment f use with the proper rating f or the
circuit, install one with a lower rating.
01/09/28 20:14:42 31SZ3660_306
