display Acura RL 2006 Owner's Manual

If one or more tires have low
pressure, the low tire pressure
indicator on the instrument panel
also comes on (see page ).
When cruise control is on while
driving, the pressure reading cannot
be checked by the tire pressure
monitor on the multi-inf ormation
display.If there is a problem with the TPMS,
the multi-information display shows
a ‘‘CHECK TPMS SYSTEM’’
message (see page ). If you see
this message, the system is not
monitoring tire pressure. Have your
vehicle checked by a dealer as soon
as possible.If the low tire pressure indicator
comes on, or the multi-information
display shows a ‘‘CHECK TPMS
SYSTEM’’ message, the VSA system
automatically turns on even when
the VSA system is turned of f by
pressing the VSA OFF switch (see
page ). If this happens, you
cannot turn the VSA system of f by
pressing the VSA OFF switch again.
335 340
79
Tire Pressure Monitoring System (TPMS)
Check T PMS System Message
338
CANADA

Driving with varying tire or wheel
sizes may cause the VSA to
malf unction. When replacing tires,
make sure they are of the same size
and type as your original tires (see
page ).
Deactivate the VSA system if you
need to drive with the compact spare
tire installed (see page ).
If you install winter tires, make sure
they are the same size as those that
were originally supplied with your
vehicle. Exercise the same caution
during winter driving as you would if
your vehicle was not equipped with
VSA.
This switch is at the right side of the
lef t vent. Press it to turn VSA on and
off.
When VSA is off, the VSA activation
indicator comes on as a reminder.
VSA is turned on every time you
start the engine, even if you turned it
off the last time you drove the
vehicle.
When the VSA system indicator
comes on, you will also see a
‘‘CHECK VSA SYSTEM’’ message
on the multi-information display.
Without VSA, your vehicle still has
normal braking and cornering ability,
but it does not have VSA traction and
stability enhancement.
If the low tire pressure indicator
comes on (see page ), or the
multi-inf ormation display shows a
‘‘CHECK TPMS SYSTEM’’ message
(see page ), the VSA system
automatically turns on even when
the VSA system is turned of f with
the VSA OFF switch. In this case,
you cannot turn the VSA system of f
by pressing the VSA OFF switch
again.
335
338 384
397
Vehicle Stability Assist (VSA) System
VSA and Tire Sizes
VSA Of f Switch
340
VSA OFF SWITCH

This section explains why it is
important to keep your vehicle well
maintained and how to f ollow basic
maintenance saf ety precautions.
This section also includes
instructions on how to read the
maintenance messages in the multi-
inf ormation display, a maintenance
record, and instructions f or simple
maintenance tasks you may want to
take care of yourself .
If you have the skills and tools to
perf orm more complex maintenance
tasks on your vehicle, you may want
to purchase the service manual. See
page f or inf ormation on how to
obtain a copy, or see your dealer.......................
Maintenance Saf ety .348
....................
Maintenance Minder .349
....................
Maintenance Record .359
..............................
Fluid Locations .361
......
Engine Compartment Covers .362
........................
Adding Engine Oil .363
.........
Changing the Oil and Filter .364
..............................
Engine Coolant .366
....................
Windshield Washers .368
....
Automatic Transmission Fluid .368
....................................
Brake Fluid .369
....................
Power Steering Fluid .370
....................................
Timing Belt .371
.............................................
Lights .372
................
Cleaning the Seat Belts .379
.....................................
Floor Mats .380
.................................
Wiper Blades .381
...............................................
Tires .383
...................
Checking the Battery .390
.............................
Vehicle Storage .392
441
Maintenance
Maint enance
347

µ
µ
µ
µ
µ
µ
µ
µ
µ
µµ
µ
One of the most convenient and
important f eatures of the multi-
inf ormation display on your vehicle
is the maintenance minder.
Based on engine operating
conditions and accumulated engine
revolutions, the onboard computer in
your vehicle calculates the remaining
engine oil lif e.
The system also displays the code
f or other scheduled maintenance
items needing service.
To see the remaining engine oil lif e
displayed on the lower right corner
on the multi-information display as a
percentage, turn the ignition switch
to the ON (II) position, and press the
SEL/RESET button on the steering
wheel repeatedly until the engine oil
lifeappears(seepage ).The remaining engine oil lif e is
displayed according to the table
shown below.
Calculated Engine Oil Lif e (%)
100% 91% 90% 81%
80% 71%
70% 61%
60% 51%
50% 41%
40% 31%
30% 21%
20% 16%
15% 11%10% 6% 5% 1% 0% Displayed
Engine Oil Lif e (%)
100% 90%
80%
70%
60%
50%
40%
30%
20%
15%
10% 5%
0%
73
CONT INUED
Maintenance Minder
Engine Oil L if e
Maint enance
349
REMAINING ENGINE OIL LIFE

ÝÛÝÛ
The message will be canceled if the
or buttononthesteeringwheel
is pressed. Press the or button
to see the message again.
When the remaining engine oil lif e is
15 to 6 percent, the multi-inf ormation
display shows a ‘‘SERVICE DUE
SOON’’ message along with the
maintenance schedule code
indicating the main and sub items
required at the time of the oil change.
Refer to page and for a
complete list of the maintenance
main items and sub items. Press the SEL/RESET button on the
steering wheel repeatedly to select
the engine oil lif e. The message
‘‘SERVICE OIL’’ along with the
percentage of oil lif e remaining and
the maintenance item code, appear
on the lower part of the multi-
inf ormation display.
357 358
Maintenance Minder
350
MESSAGE
MAINTENANCE
CODE REMAINING
ENGINE OIL LIFT
MAINTENANCE
MAIN ITEM MAINTENANCE
SUB ITEMS

ÝÛÝÛ
µ
The message will be canceled if the
or buttononthesteeringwheel
is pressed. Press the or button
to see the message again.
When the remaining oil lif e is 1 to 5
percent, the multi-information
display shows a ‘‘SERVICE DUE
NOW’’ message with the same
maintenance items ‘‘SERVICE DUE
SOON’’ was displayed with. When
you see this message have the
indicated maintenance perf ormed as
soon as possible. Press the SEL/RESET button on the
steering wheel repeatedly to select
the engine oil lif e. The message
‘‘SERVICE OIL’’, along with ‘‘5%’’,
and the maintenance item code are
displayed on the lower part of the
multi-inf ormation display when the
calculated engine oil lif e is 1 5
percent (see page ).
349
CONT INUED
Maintenance Minder
Maint enance
351

ÝÛÛÝ
Your dealer will reset the display
af ter completing the required
maintenance service. You will see
‘‘OIL LIFE 100%’’ on the display the
next time you turn the ignition
switch to the ON (II) position.
Press and hold the SEL/RESET
button on the steering wheel f or
more than 10 seconds. The
remaining engine oil lif e reset
mode will be shown on the multi-
inf ormation display.
If maintenance service is done by
someone other than your dealer,
reset the maintenance minder as
f ollows:
Turn the ignition switch to the ON
(II) position.
To reset the engine oil lif e, press
the or button on the steering
wheel to select RESET on the
display, and press the SEL/
RESET button.To cancel resetting the oil life,
press the or button on the
steering wheel to select CANCEL
on the display, and press the SEL/
RESET button.
If you do not complete the reset
procedure within 30 seconds af ter
selecting the reset mode, the mode
will be canceled automatically.
If you have the required service
perf ormed but do not reset the
display, or reset the display without
perf orming the service, the system
will not show the proper
maintenance intervals. This can lead
to serious mechanical problems
because you will no longer have an
accurate record of when
maintenance is needed.
If the oil lif e minder is not
displayed, press the SEL/RESET
buttononthesteeringwheel
repeatedly until it is.
1.
2.
3.
Maintenance Minder
352
U.S.
CANADA

ÝÛÝÛ
µ
Immediately have the service
perf ormed, and make sure to reset
the oil lif e minder as previously
described.
The message will be canceled if the
or buttononthesteeringwheel
is pressed. Press the or button
to see the message again.

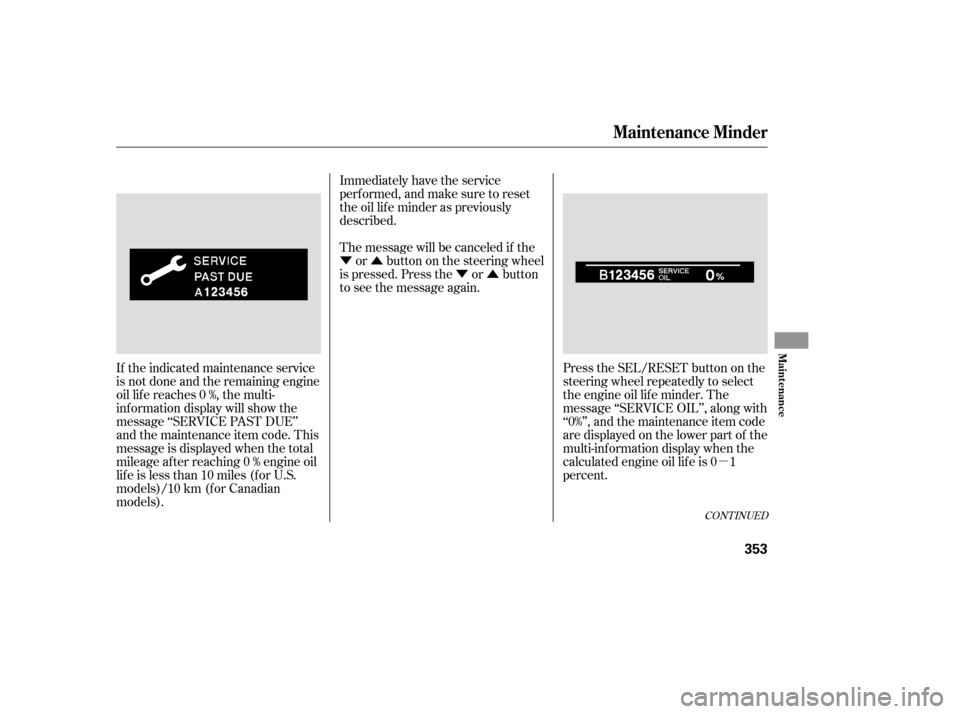

If the indicated maintenance service
is not done and the remaining engine
oil lif e reaches 0 %, the multi-
inf ormation display will show the
message ‘‘SERVICE PAST DUE’’
and the maintenance item code. This
message is displayed when the total
mileage af ter reaching 0 % engine oil
lif e is less than 10 miles (f or U.S.
models)/10 km (f or Canadian
models). Press the SEL/RESET button on the
steering wheel repeatedly to select
the engine oil lif e minder. The
message ‘‘SERVICE OIL’’, along with
‘‘0%’’, and the maintenance item code
are displayed on the lower part of the
multi-inf ormation display when the
calculated engine oil lif e is 0 1
percent.
CONT INUED
Maintenance Minder
Maint enance
353

ÝÛÝÛ
And also, the percentage ‘‘0’’ keeps
blinking on the display.
If the indicated required service is
not done and the remaining engine
oil lif e becomes 0 %, the multi-
inf ormation display will show a
‘‘SERVICE PAST DUE’’ message,
thetotalmileageaftertheremaining
oillifebecame0%,andthe
maintenance item code.This message is displayed when you
drive over 10 miles (f or U.S. models)
or 10 km (f or Canadian models)
after seeing the 0 % message.
Immediately have the service
perf ormed, and make sure to reset
the display as previously described.
The maximum total mileage shown
with this message is ‘‘999 mile (f or
U.S. models) or 999 km (f or
Canadian models)’’.
The message will be canceled if the
or buttononthesteeringwheel
is pressed. Press the or button
to see the message again.
This particular message is displayed
whenthemileageaftertheengineoil
lifebecame0%reaches10miles(for
U.S. models)/10 km (f or Canadian
models).
Maintenance Minder
354
MAINTENANCE CODE
CANADA U.S.
TOTAL PAST DUE MILEAGE

µ
µ This particular message is displayed
when you drive over 10 miles (f or
U.S. models) or 10 km (f or Canadian
models) af ter seeing 0 %. Your authorized dealer knows your
vehicle best and can provide
competent, ef f icient service.
However, service at a dealer is not
mandatory to keep your warranties
in effect. Maintenance may be done
by any qualif ied service f acility or
person who is skilled in this type of
automotive service. Keep all receipts
as proof of completion, and have the
person who does the work f ill out the
maintenance record. Check your
warranty booklet f or more
inf ormation.
We recommend the use of Acura
parts and f luids whenever you have
maintenance done. These are
manuf actured to the same high-
quality standards as the original
components, so you can be conf ident
of their performance and durability.
The maximum total negative mileage
is ‘‘ 999 mile (f or U.S. models) or
999 km (f or Canadian models)’’.
When you press the SEL/RESET
button to select the engine oil lif e
minder, the message ‘‘SERVICE
OIL’’, along with the maintenance
item code and the total negative
mileage af ter the oil lif e became 0
percent, will be displayed on the
lower part of the multi-inf ormation
display.
CONT INUED
Maintenance Minder
Maint enance
355
U.S. CANADA
TOTAL PAST DUE MILEAGE
