Navigation system Acura RL 2008 Owner's Guide

Interf ace Dial Feedback
On
Auto
(def ault)
NoThe system always
reads what you select.
The system reads your
selection only while
the vehicle is moving.
The system does not
read your selection.
Changing this setting allows you to
controlwhen(andif)thesystemwill
read the current selection you
choose with the interf ace dial. This
feature can minimize the need to
look at the screen while operating
the dial. The three settings are
explained in the f ollowing table. The
f actory def ault setting is .
The second setup screen allows you
to change the system’s voice
recognition f eedback, voice gender,
and clock settings. To select a setup
item, turn the interf ace knob until it
is highlighted, then push the
interf ace selector in to select it.
To view the second setup screen, say
‘‘More,’’ or move the interf ace
selector to the right to select MORE.
To go back to the first setup screen,say ‘‘Backward,’’ or move the
interface selector to the left to select
BACK.
AUTO
Set t ing
Second Set up Screen
Feedback L evel
Compass System (U.S. model without navigation system)
256
\f—\f—
y\fy
(\fy\f
y
2008 RL

CONT INUED
Color
Voice Recognition Feedback
VoiceClock Adjustment
To view the Select a color screen,
say ‘‘Color,’’ or select COLOR on the
screen. You can choose f rom one of
f ive colors f or the day and night
display modes.
The third setup screen allows you to
change the system’s screen color
and verbal reminders. To select a
setup item, turn the interface knob
until it is highlighted, then push the
interf ace selector in to select it.
To view the third setup screen, move
the interf ace selector down. To
return to the first setup screen, say
‘‘Backward,’’ or move the interface
selector to the lef t to select BACK.
Allowsyoutoturnvoicecontrol
system prompts or . To
select ON or OFF, turn the interface
knob to the right or left, then press
the interf ace selector. When ,
you will not hear the voice control
system conf irmations or prompts.
Allows you to select the guidance
voice: or . To
select MALE or FEMALE, turn the
interf ace knob to the right or lef t,
then press the interf ace selector.
You can adjust the clock of your
system. When the battery is
disconnected or the f use f or the
compass system is removed, you
need to reset the time. See page
f or more inf ormation on setting
the clock. 274
T hird Set up Screen
ON OFF
OFF
MA L E FEMA L E
Compass System (U.S. model without navigation system)
Features
257
\f—\f—
y\fy
(\fy\fy
2008 RL

Pressing the () button allows you to switch
display modes.
Eachtimeyouturntheignition
switch to the ACCESSORY (I)
position, the display mode is in auto.
The screen changes between day
and night modes when you turn the
headlights on and of f .
To override the auto mode, select
either day or night mode. This can
be usef ul if you want to use the
headlights during the day. Be aware
that using day mode at night will
make the screen extremely bright.
This f unction allows you to turn
or verbal reminders. Examples
of these reminders include:
Driving with the parking brake on
Driving with the trunk or a door
open
A reminder to f asten the driver’s
and f ront passenger’s seat belts
To select ON or OFF, turn the
interf ace knob to the right or lef t,
then press the interf ace selector.
To change the color, select Day or
night by turning the interf ace knob
to the right or left. Press the
interface selector, then turn the
interf ace knob to select desired color.
Press the interf ace selector to enter
your choice.
Choose silver metal (f actory
default) as the color to obtain
the best display contrast.
Choose black metal (f actory
default) as the color to
obtain the best display contrast.
Verbal ReminderSetting Display Mode Display
mode
ON
OFF
Day
Night
Compass System (U.S. model without navigation system)
258
NOTE:
\f—\f—
y\f\fy
(\fy\fy
2008 RL

CONT INUED
Enter the f our-digit compass system
security code. If you have entered it
correctly, the display changes to the. You have ten
chances to enter the correct code. If
all ten are incorrect, turn the ignition
to OFF, then back to ON (II) to have
ten more chances to enter the
correct code.
When you purchased the vehicle,
you should have received two cards
that have the audio and compass
system’s security codes and serial
numbers. Keep these cards in a saf e place in case you need the codes. If
you lose the cards, you must obtain
the security codes f rom your dealer.
If the battery goes dead or is
disconnected f or any reason, you will
have to enter a security code into
both the audio system and the
compass system bef ore you can use

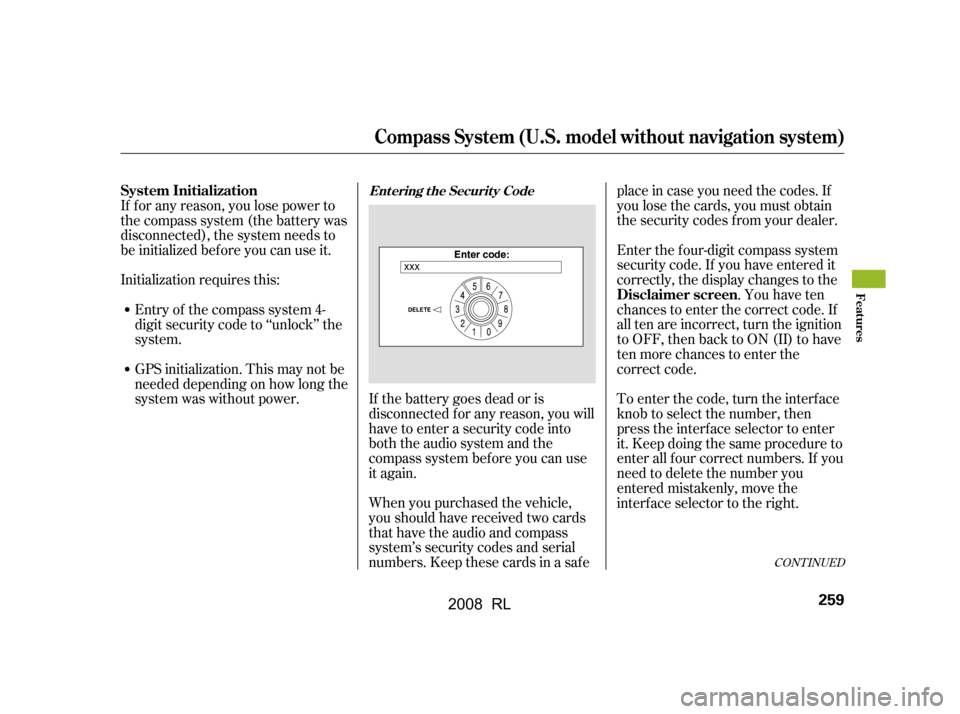

it again. To enter the code, turn the interf ace
knob to select the number, then
press the interf ace selector to enter
it. Keep doing the same procedure to
enter all f our correct numbers. If you
need to delete the number you
entered mistakenly, move the
interface selector to the right.
If f or any reason, you lose power to
the compass system (the battery was
disconnected), the system needs to
be initialized bef ore you can use it.
Initialization requires this:
Entry of the compass system 4-
digit security code to ‘‘unlock’’ the
system.
GPS initialization. This may not be
needed depending on how long the
system was without power. Disclaimer screen
System Initialization
Entering the Security Code
Compass System (U.S. model without navigation system)
Features
259
\f—\f—
y\f\fy
(\fy\fy
2008 RL

If this procedure is not necessary the
system proceeds directly to the(see page ).
During initialization, the system
searches for all available GPS
satellites, and obtains their orbital
inf ormation. During this procedure
the vehicle should be out in the open
with a clear view of the sky.
Depending on the length of time the
battery was disconnected, your
system may require GPS
initialization. If it does, the above
screen appears. Follow the
instructions on the screen.
Follow the instructions in the audio
system section to enter the 5-digit
audiocode(seepage ).The
system voice will not operate if the
audio code is not entered
241
247
Compass screenGPS init ializat ion
Compass System (U.S. model without navigation system)
260
\f—\f—
y\fy
(\fy\fy
2008 RL

CONT INUED
If within ten minutes the system fails
to locate a suf f icient number of
satellites to locate your position, the
screen above appears. Follow the
instructions on the screen.You have acquired a device
(‘‘DEVICE’’) that includes sof tware
licensed by ALPINE ELECTRONICS,
INC., f rom an af f iliate of Microsof t
Corporation (collectively ‘‘MS’’).
Those installed software products of
MSorigin,aswellasassociated
media, printed materials, and
‘‘online’’ or electronic documentation
(‘‘SOFTWARE’’) are protected by
international intellectual property
laws and treaties. The SOFTWARE
is licensed, not sold. All rights
reserved.
After 30 minutes with this screen
displayed, turn of f the engine and
restart the vehicle. If you now see
the , the GPS
initialization is complete.
The average acquiring time is less
than 10 minutes, but it can take as
long as 45 minutes.
If the system is still unable to
acquire a signal, f ollow the
instructions on the screen, or
contact your local dealer for
assistance. License notice
Disclaimer screen
Compass System (U.S. model without navigation system)
Features
261
NOTE:
\f—\f—
y\fy
(\fy\fy
2008 RL

NO WARRANTIES FOR THE
SOFTWARE. THE SOFTWARE is
provided ‘‘AS IS’’ and with all f aults.
THEENTIRERISKASTO
SATISFACTORY QUALITY,
PERFORMANCE, ACCURACY,
AND EFFORT (INCLUDING LACK
OF NEGLIGENCE) IS WITH YOU.
ALSO, THERE IS NO WARRANTY
AGAINST INTERFERENCE WITH
YOUR ENJOYMENT OF THE
SOFTWARE OR ATGAINST
INFRINGEMENT. IF YOU HAVE
RECEIVED ANY WARRANTIES
REGARDING THE DEVICE OR
THE SOFTWARE, THOSE
WARRANTIES DO NOT
ORIGINATE FROM, AND ARE
NOT BINDING ON, MS.
This EULA grants you
the f ollowing license;
You may use the SOFTWARE only
on the DEVICE.
NOT FAULT TOLERANT. THE
SOFTWARE IS NOT FAULT
TOLERANT. ALPINE
ELECTRONICS, INC., HAS
INDEPENDENTLY DETERMINED
HOW TO USE THE SOFTWARE IN
THE DEVICE, AND MS HAS
RELIED UPON ALPINE
ELECTRONICS, INC., TO
CONDUCT SUFFICIENT TESTING
TO DETERMINE THAT THE
SOFTWARE IS SUITABLE FOR
SUCH USE.
IF YOU DO NOT AGREE TO THIS
END USER LICENSE
AGREEMENT (‘‘EULA’’), DO NOT
USE THE DEVICE OR COPY THE
SOFTWARE. INSTEAD,
PROMPTLY CONTACT ALPINE
ELECTRONICS, INC., FOR
INSTRUCTIONS ON RETURN OF
THE UNUSED DEVICE(S) FOR A
REFUND. ANY USE OF THE
SOFTWARE, INCLUDING BUT
NOT LIMITED TO USE ON THE
DEVICE, WILL CONSTITUTE
YOUR AGREEMENT TO THIS
EULA (OR RATIFICATION OF
ANY PREVIOUS CONSENT).
GRANT OF SOFTWARE
LICENSE.
Compass System (U.S. model without navigation system)
262
\f—\f—
y\fy
(\fy\fy
2008 RL

CONT INUED
If ALPINE ELECTRONICS, INC.,
provides or makes available to you
Supplemental Components and no
other EULA terms are provided
along with the Supplemental
Components, then the terms of
this EULA shall apply.
If MS, Microsoft Corporation or
their affiliates make available
Supplemental Components, and no
other EULA terms are provided,
then the terms of this EULA shall
apply, except that the MS,
Microsof t Corporation or af f iliate
entity providing the Supplemental
Component(s) shall be the
licensor of the Supplemental
Component(s).
Limitations, on Reverse Engineering,
Decompilation, and Disassembly.
You may not reverse engineer,
decompile, or disassemble the
SOFTWARE, except and only to the
extent that such activity is expressly
permitted by applicable law not with
standing this limitation.
Additional Sof tware/Services. The
SOFTWARE may permit ALPINE
ELECTRONICS, INC.,, MS,
Microsof t Corporation or their
af f iliates to provide or make
available to you SOFTWARE
updates, supplements, add-on
components, or Internet- based
services components of the
SOFTWARE af ter the date you
obtain your initial copy of the
SOFTWARE (‘‘Supplemental
Components’’).
No Liability f or Certain Damages,
EXCEPT AS PROHIBITED BY LAW,
MS SHALL HAVE NO LIABILITY
FOR ANY INDIRECT, SPECIAL,
CONSEQUENTIAL OR
INCIDENTAL DAMAGES ARISING
FROM OR IN CONNECTION
WITH THE USE OR
PERFORMANCE OF THE
SOFTWARE. THIS LIMITATION
SHALL APPLY EVEN IF ANY
REMEDY FAILS OF ITS
ESSENTIAL PURPOSE. IN NO
EVENT SHALL MS BE LIABLE
FOR ANY AMOUNT IN EXCESS
OF U.S.TWO HUNDRED FIFTY
DOLLARS (U.S.$250.00).
Compass System (U.S. model without navigation system)
Features
263
\f—\f—
y\fy
(\fy\fy
2008 RL

You
acknowledge that SOFTWARE is of
US-origin. You agree to comply with
all applicable international and
national laws that apply to the
SOFTWARE, including the U.S.
Export Administration Regulations,
as well as end-user, end-use and
country destination restrictions
issued by U.S. and other
governments.
For additional information on
exporting the SOFTWARE, see http:
//www.microsoft.com/exporting/.
You may
permanently transf er rights under
this EULA only as part of a
permanent sale or transfer of the
Device, and only is the recipient
agrees to this EULA. If the
SOFTWARE is an upgrade, any
transf er must also include all prior
versions of the SOFTWARE.
ALPINE ELECTRONICS, INC.,, MS,
Microsof t Corporation and their
af f iliates reserve the right to
discontinue any Internet-based
services provided to you or made
available to you through the use of
the SOFTWARE.
If
SOFTWARE is provided by ALPINE
ELECTRONICS, INC., on separate
media and labeled ‘‘Recovery Media’’
you may use the Recovery Media
solely to restore or reinstall the
SOFTWARE originally installed on
the DEVICE. EXPORT RESTRITIONS.
SOFT WA RE T RA NSFER
ALLOWED BUT WITH
RESTRICTIONS.
RECOVERY MEDIA.
Compass System (U.S. model without navigation system)
264
\f—\f—
y\fy
(\fy\fy
2008 RL

This button activates the voice
control system. Press it when you
want to give a voice command. Seeon page f or
a list of voice commands.
This button has the same function as
the CANCEL button on the center
console(seepage).Whenyou
press it, the display returns to the
previous screen. When the previous
screen appears, the system replays
the last prompt. This button can be
used to cancel an audio, climate
control, or compass system voice
command up to one second af ter the
command conf irmation.
For models with navigation
system, ref er to the navigation
system manual.
Your vehicle has a voice control
system that allows hands-f ree
operation of the audio system, the
climate control system and some
functionsof thecompasssystem.
The voice control system uses the
TALK and BACK buttons on the
steering wheel and a microphone near the map light on the ceiling.
While using the voice control
system, all of the speakers are
muted. 268
243
Voice Command Index
Voice Control BasicsTalk Button
Back But t on
Compass System (U.S. model without navigation system)
Features
265
NOTE: NOTE:
TALK BUTTON
BACK BUTTON MICROPHONE
(on the ceiling)
\f—\f—
y\f\fy
(\fy\f\fy
2008 RL
