µµ
To set this f eature on or of f , select
AudioPilot,andpressENTERonthe
interf ace selector. Turn the interf ace
knob to ON or OFF, and press
ENTER on the interf ace selector.
TheONorOFFindicatorisshown
on the screen. Bose AudioPilot
digital processing monitors sound
within the cabin, and helps
compensate f or unwanted ambient
noise with no perceived change in
audio volume.
Bose Centerpointsignal processing processes stereo
and matrix surround recordings to
f ive independent channels, delivering
a multi-channel surround sound
experience, even f rom conventional
stereo discs.
To set this f eature on or of f , select
Centerpoint, and press ENTER on
the interf ace selector. Turn the
interface knob to ON or OFF, and
press ENTER on the interf ace
selector. The ON or OFF indicator is
shownonthedisplay.
Centerpoint
is only available
when listening to a CD (CD-DA). AudioPilot
and Centerpointare
registered trade marks of the Bose
corporation.
A udioPilotCenterpoint
Audio System
228
NOTE:
2009 RL

CONT INUED
Audio System
Playing the XMRadio
Features
229
SCAN
BUTTONSATELLITE RADIO BUTTON
UPPER DISPLAY
INTERFACE DIAL
POWER/
VOLUME
KNOB
CATEGORY
BUTTONS
U.S. models AUDIO
DISPLAY
BUTTON
PRESET BUTTONDISPLAY/
MODE
BUTTON
TUNE
BUTTONS
(Technology package model is shown) and Canadian models
2009 RL

XM radio receives signals f rom two
satellites to produce clear, high-
quality digital reception. It of f ers
many channels in several categories.
Along with a large selection of
dif f erent types of music, XM radio
also allows you to view channel and
category selections in the audio
display.
Your vehicle is capable of receiving
XM Radio anywhere in the United
States, and Canada, except Hawaii
and Alaska. XM is a registered
trademark of XM Satellite Radio
,
Inc. Push the AUDIO button to display
XM inf ormation on the screen. You
can operate the XM Satellite Radio
system with the interf ace dial.
To listen to XM satellite radio, turn
the ignition switch to the
ACCESSORY (I) or ON (II) position.
Push the power/volume knob to turn
on the audio system, and press the button. The last channel you
listened to will show in the display.
Adjust the volume by turning the
power/volume knob.
Audio System
Operating the XM Radio
230
2009 RL

µµ
µ
µ
CONT INUED
To switch between the
category mode and channel mode,
press and hold the DISP/MODE
button until the mode changes. The
CATEGORY or CHANNEL mode is
displayed on the screen. To switch
the mode with the interf ace dial,
scroll down, select MODE, and press
ENTER on the selector.
In the category mode, such as Jazz,
Rock, Classical, etc., you can
navigate through all of the channels
within that category. In the channel
mode, you can select all of the
available channels.
Each time you press and release the
DISP/MODE button, the audio
display changes in the f ollowing
sequence: channel name, channel
number, category, artist name, and
music title. Onthescreen,youwillseethe
selected CHANNEL (number),
CATEGORY, NAME (artist name),
and TITLE (music title).
The scan f unction gives
you a sampling of all channels while
in the channel mode. In the category
mode, only the channels within that
category are scanned. To activate
SCAN, press the SCAN button. To
scan with the interface dial, scroll
down, and push interf ace selector to
the right. You will see SCAN on the
screen.
The system plays each channel in
numerical order f or a f ew seconds,
then selects the next channel. When
you hear a channel you want to
continue listening to, press the
SCAN button or push the interf ace
selector to the right again.
Press either side of the bar to select
another category. You can also
change a category by pushing the
interf ace selector lef t or right.
Press either side of the
TUNE bar to change channel
selections. Press the side of the
bar f or higher numbered channels
and the side for lower
numbered channels. You can also
change channels with the interf ace
selector, push down the interf ace
selector to select AUDIO MENU,
then turn the interface knob to
choose TUNE and press ENTER on
the selector. Turn the interface knob
to the appropriate direction. In the
category mode, you can only select
channels within that category.
Audio System
MODE SCA N
CATEGORY ( or )
TUNE
Features
231
2009 RL

µYoucanstoreupto12
preset channels using the six preset
buttons. Each button stores one
channel f rom the XM1 band and one
channel f rom the XM2 band. Once a channel is stored, press and
release the proper preset button to
tune to it.
Press the button or scroll
up again. The other XM band will
be shown. Store the next six
channels using steps 2 and 3.
Repeat steps 2 and 3 to store the
f irst six channels.
Pick the preset button you want
f or that channel. Press and hold
the button until you hear a beep.
In category mode, only channels
within that category can be selected.
In channel mode, all channels can be
selected.
Use the TUNE or SCAN f unction
to tune to a desired channel.
To store a channel:
Press the button or scroll
up by pushing the interf ace
selector up. Either XM1 or XM2
will be shown on the display.
1.
2.
3.
4.
5.
Preset
Audio System
232
XM BAND
2009 RL

Push down the selector knob to
display the audio menu. Turn the
selector knob to select NOTE, then
press ENTER.
To replay and see the stored file,
press the AUDIO button to select
the audio display on the navigation
screen.Turn the selector knob to select a
sound f ile, then press ENTER. The
display shows the category, name
and title inf ormation of the selected
f ile.
To delete a f ile, select it by turning
the selector knob, then push it to the
right. Select ‘‘Delete All’’ or ‘‘Delete
Selected Item,’’ then press ENTER.
Once you store the recorded sound
f ile, you can replay it and conf irm the
inf ormation. The system can store
up to 30 sound f iles. If you continue
tostoremorefiles,theoldestone
will be deleted each time you add
new f ile.
The f unction records f or about 10
seconds, enough f or you to identif y
the selection when you play it back.
To activate this function, press and
hold the button for about 2
seconds while a song or passage
which you want to store is playing.
This f unction stores the sound
content played on the selected
satellite radio station with the
channel, category, name and title
inf ormation.
CONT INUED
If equipped
Audio System
Note Function
Features
233
2009 RL

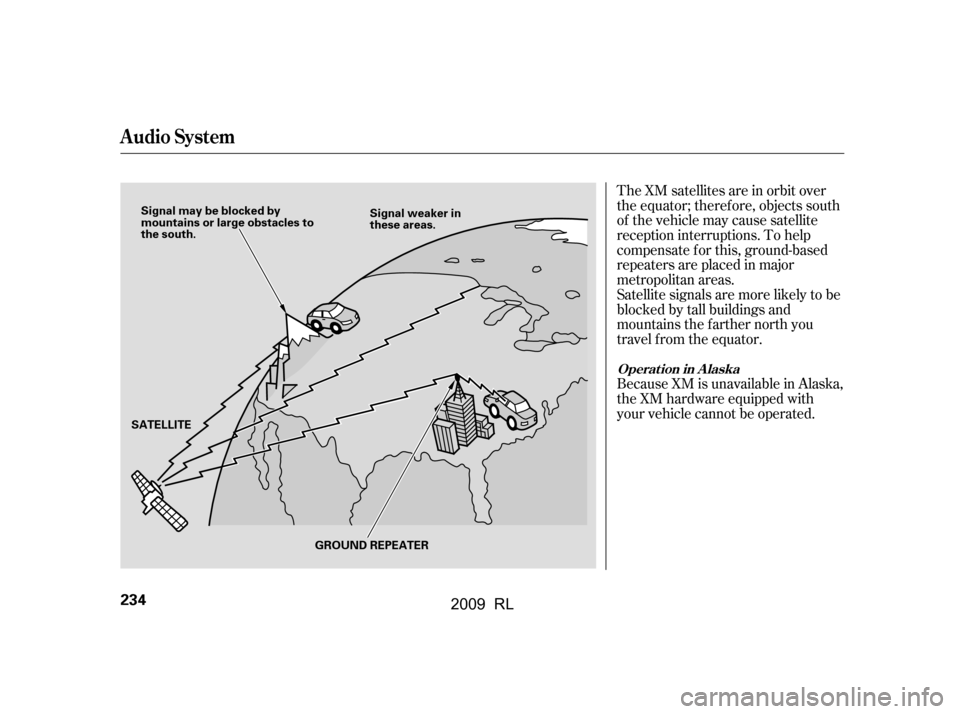

TheXMsatellitesareinorbitover
the equator; therefore, objects south
of the vehicle may cause satellite
reception interruptions. To help
compensate f or this, ground-based
repeaters are placed in major
metropolitan areas.
Satellite signals are more likely to be
blocked by tall buildings and
mountains the f arther north you
travel from the equator.
Because XM is unavailable in Alaska,
the XM hardware equipped with
your vehicle cannot be operated.
Audio System
OperationinAlaska
234
Signal may be blocked by
mountains or large obstacles to
the south.Signal weaker in
these areas.
SATELLITE GROUND REPEATER
2009 RL

Depending on where you drive, you
may experience reception problems.
Interf erence can be caused by any of
these conditions:Driving on the north side of a
large commercial truck on an
east/west road.
Driving in tunnels.
Driving on a road beside a vertical
wall, steep clif f , or hill to the south
of you.
Driving on the lower level of a
multi-tiered road.
Driving on a single lane road
alongside dense trees taller than
50 ft. (15 m) to the south of you.
There may be other geographic
situations that could af f ect satellite
radio reception. If your XM Radio service has expired
or you purchased your vehicle f rom
a previous owner, you can listen to a
sampling of the broadcasts available
on XM Satellite Radio. With the
ignition switch in the ACCESSORY
(I) or the ON (II) position, push the
power/volume knob to turn on the
audio system, and press the
button. A variety of music
types and styles will play.
Driving on the north side of an
east/west mountain road.
If you decide to purchase XM radio
service, contact XM
Radio at
,orat
1-800-852-9696. In Canada, contact
, or call 1-877-438-
9677. You will need to give them your radio I.D. number and your
credit card number. To get your
radio I.D. number, press and release
the side of the TUNE bar until
‘‘0’’ appears in the display. Your I.D.
will appear in the display.
While waiting for activation, make
sure your vehicle remains in an open
area with good reception. Once your
audio system is activated, ‘‘category’’
or ‘‘CH’’ will appear in the display,
andyou’llbeabletolistentoXM
Radio broadcasts. XM Satellite Radio
will continue to send an activation
signal to your vehicle f or at least 12
hours from the activation request. If
the service has not been activated
af ter 36 hours, contact XM Satellite
Radio.
After you’ve registered with XM
Radio, keep your audio system in the
XM Radio mode while you wait f or
activation. This should take about 30
minutes.
As required by the FCC:
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
www.xmradio.comwww.xmradio.ca
Receiving XM Satellite Radio
Service
Audio System
Features
235
2009 RL

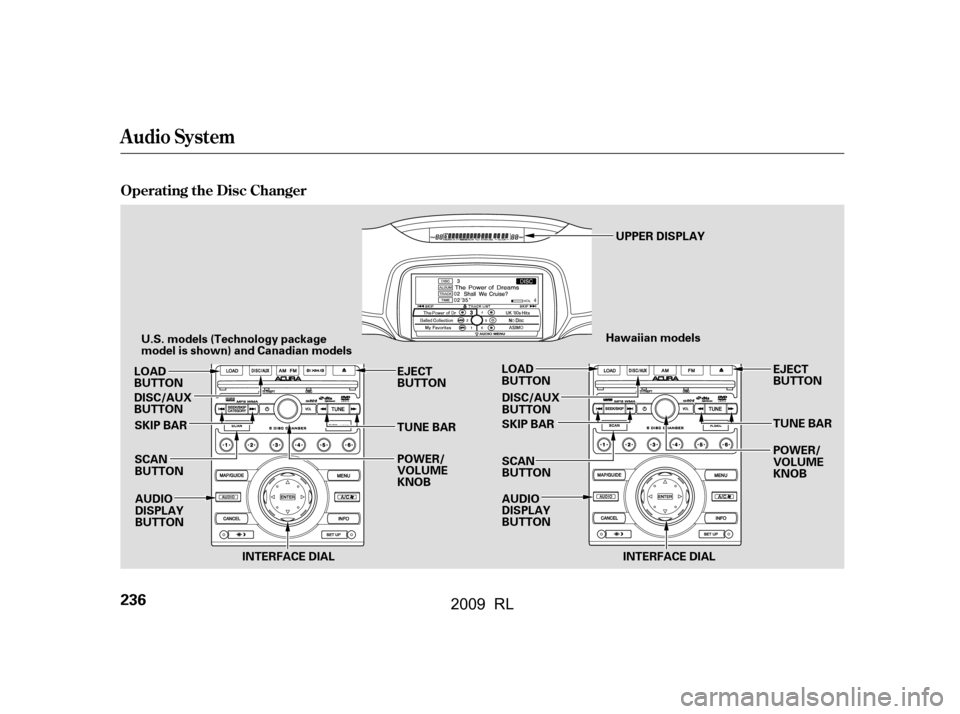

Operating the Disc Changer
Audio System
236
UPPER DISPLAY
INTERFACE DIAL
LOAD
BUTTON
SCAN
BUTTON LOAD
BUTTON
SCAN
BUTTON
AUDIO
DISPLAY
BUTTON
SKIP BAR
POWER/
VOLUME
KNOB
TUNE BAR
EJECT
BUTTON
INTERFACE DIAL
Hawaiian models
U.S. models (Technology package
model is shown) and Canadian models
POWER/
VOLUME
KNOB
EJECT
BUTTON
TUNE BAR
SKIP BAR
AUDIO
DISPLAY
BUTTON
DISC/AUX
BUTTON
DISC/AUX
BUTTON
2009 RL

Your vehicle’s audio system has an
in-dash disc changer with the same
controls used f or the radio. To
operate the disc changer, the ignition
switch must be in the ACCESSORY
(I) or the ON (II) position.
The disc changer can play these disc
formats:CD (CD-DA)
CD-R/RW
DVD-A
DTS
The disc packages or jackets should
have one of these marks. DVD-A discs not meeting DVD
verification standards may not be
playable.
The changer cannot play DVD-V or
DVD-R/RW f ormats.
Some CD-DA and CD-ROM mixed
discs are not playable.
‘‘DTS’’ and ‘‘DTS Digital Surround’’
are registered trademarks of Digital
Theater Systems, Inc.
The changer can also play MP3 or
WMA format (see page ).
243
Audio System
Features
237
TM
