engine Acura RL 2009 Owner's Guide

Your vehicle has a keyless access
system. When you carry the remote
with you, you can lock/unlock the
door(s), unlock the trunk, and start
the engine without using the built-in
key.
The system may not work if:Thebatteryof theremoteisweak.
You carry a cell phone, a laptop
computer, or other electrical
device near the remote.
There is strong electrical current
nearby.
The remote is covered by metal.
A vehicle is being operated with a
transmitter nearby.
When the remote battery is dead. Protect the remote and the built-in
key f rom direct sunlight, high
temperature, and high humidity.
Always keep the remote and the
built-in key away from any magnetic
material.
Youshouldhavereceivedakey
number tag with your built-in key.
You will need this key number if you
ever have to get a lost key replaced.
Use only Acura-approved key blanks.
When the vehicle battery is dead.
Make sure the driver always carries
the remote/built-in key set. Do not drop the remote or the
built-in key, and do not set heavy
objects on them.
The built-in keys do not contain
batteries.
Keep the remote and the built-in key
away f rom liquids. If they get wet,
dry them immediately with a sof t
cloth.
K eyless A ccess System
166
2009 RL

This remote is used to lock/unlockthe doors and unlock the trunk.
When you carry the remote, you can
lock/unlock the doors, unlock the
trunk, and start the engine without a
key.
You can lock/unlock the doors
within about a 32 inch (about 80 cm)
radius f rom the outside door handle.
The f ollowing keys come with your
vehicle. Refer to page for how to
separate the keys.
This key is used to lock/unlock the
doors, glove box, trunk pass-through
cover, and to start the engine (af ter
you remove the ignition switch cover,
see page ). You can open the trunk within about
a 32 inch (about 80 cm) radius f rom
thetrunkreleaseswitch.Anyone can lock/unlock a door or
open the trunk if the remote is
within the operating range of the
door or the trunk.
Theremotemaynotworkif:
It is too close to the vehicle.
It is above or below the vehicle,
even when it is within its operating
range.
180
177
Keys
Built -in K ey
K eyless A ccess Remot e
K eyless A ccess System
Inst rument s and Cont rols
167
BUILT-IN KEYS OPERATING
RANGE
KEYLESS ACCESS
REMOTES
KEY NUMBER TAG
2009 RL

The engine may not run, and some
malf unctions may occur, if the
remote is:The engine may not start if the
remote is subjected to strong radio
waves.
Also, the engine may not start if the
remote is too close to the windows.
Outside the vehicle.
On the dashboard.
On the rear interior panel.
In the glove box.
In the door pockets.
In the trunk, etc.
Ignition Switch Operating Range
K eyless A ccess System
Inst rument s and Cont rols
175
Make sure you know where the remote
is when you are inside the vehicle.
Remember that you can start the engine
without using the built-in key when the
remote is inside the vehicle.
Make sure you always carry the remote
with you.
2009 RL

When you are pressing the ignition
switch, or when the ignition switch is
in the ON (II) position, the beeper
sounds if you take the remote out of
the vehicle and close the door.
To remove the ignition switch cover,
insert the built-in key (see page ),
then pull the cover out by pulling the
built-in key while pushing it.
Also, if you close the door when the
ignition switch is not in the LOCK
(0) position and the remote is not
inside the vehicle, the keyless access
alarm sounds outside the vehicle, a
message appears on the multi-
inf ormation display, and the beeper
sounds if the ignition switch is in the
ON (II) position.
When the beeper sounds af ter you
close the driver’s door outside the
vehicle, check the position of the
ignition switch and the location of
the remote.
If the engine is running and you
removetheremotefromthevehicle,
it will continue to run. But once
turned to the LOCK (0) position, the
engine will not restart until a remote
is brought back into the vehicle.
180
CONT INUED
Beeper and Message
Removing the Ignition Switch
Cover
K eyless Remot e Not Det ect ed
K eyless A ccess System
Inst rument s and Cont rols
177
BUILT-IN KEY
IGNITION SWITCH COVER
pushpull
2009 RL

Thebatteriesintheremotenormally
last about 2 years. To ensure
maximum battery lif e, do not store
the remote close to electrical devices
such as computers or TVs. When the
multi-inf ormation display shows
‘‘KEYLESS REMOTE LOW
BATTERY,’’ replace the batteries as
soon as possible (see page ).
The engine does not restart if you
turn the ignition switch to the LOCK
(0) position when the remote is
outside the vehicle. Check where the
remote is. Make sure that you carry
the remote or built-in key with you
when you operate the ignition switch.
When the ignition switch is in the
ON (II) position, the multi-
inf ormation display shows
‘‘KEYLESS REMOTE NOT
DETECTED,’’ and the inside and
outside beepers sound.
The multi-inf ormation display
message goes away when you
bring the remote back inside the
vehicle, and close the door or
apply the parking brake.
The outside beeper sounds when
the ignition switch is in the
ACCESSORY (I) or the ON (II)
position.
If the engine is running and you
removetheremotefromthe
vehicle, it will continue to run.
Once turned to the LOCK (0)
position, the engine will not restart
until a remote is brought back into
the vehicle. If you pass the remote through an
open window, the system does not
respond.Also,evenwhentheremote
is inside the vehicle, the beeper may
sound when the location of the
remote is not detected due to
surrounding conditions. It is not a
f ailure. Make sure that you carry the
remote with you.
174
K eyless Remot e L ow Bat t ery
K eyless A ccess System
178
2009 RL

The keyless access system
indicator comes on and stays on
while you are driving.
The indicator comes on f or several
seconds when you turn the ignition
switch to the ON (II) position. Have
your vehicle checked by your dealer
if : In this case, use the built-in key to
lock/unlock the doors and start the
engine.The multi-inf ormation display
shows ‘‘CHECK KEYLESS
ACCESS SYSTEM.’’
The indicator comes on with the
ignition switch in the ON (II)
position.Check K eyless A ccess Syst em
K eyless A ccess System
Inst rument s and Cont rols
179
KEYLESS ACCESS SYSTEM
INDICATOR
2009 RL

In the LO setting, the heater runs
continuously. It does not cycle with
temperature changes.
Follow these precautions whenever
you use the seat heaters:Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
If the engine is lef t idling f or an
extended period, do not use the
seat heaters, even on the LO
setting. It can weaken the battery,
causing hard starting.
The ignition switch must be in the
ON (II) position to use the heaters.
Push the top of the switch, HI, to
rapidly heat up the seat. Af ter the
seat reaches a comfortable
temperature, select LO by pushing
the bottom of the switch. This will
keep the seat warm.
In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops.
Both f ront seats are equipped with
seat heaters. The passenger seat
only has heaters in the seat bottom
because of the side airbag cutof f
system.
RL models
FrontSeatHeaters
Inst rument s and Cont rols
181
Passenger’s
seat
Driver’s
seat
HEATERS FRONT SEAT HEATER SWITCHESHI
LOW
2009 RL

ÝÛ
Û
µ
µ
µ µ Ý
Follow these precautions whenever
you use the seat heaters and the seat
ventilation:
Use the HI setting only to heat or
to ventilate the seats quickly,
because it draws large amounts of
current from the battery.
If the engine is lef t idling f or an
extended period, do not use the
seat heaters or the seat ventilation,
even on the LO setting. It can
weaken the battery, causing hard
starting.
When you press the button once,
the system is set to HI. To change to
the lower mode, press the button.
To turn the air ventilation off, press
the button until the indicators go
off.
HI Three indicators on.
MID Two indicators on.
LO One indicator on.
OFF All indicators of f .
To ventilate the seat, press the
button. The indicator (blue) next to
the button will come on. The air
ventilation system has four settings:
Front Seat Heaters and Seat Ventilation
Inst rument s and Cont rols
183
2009 RL

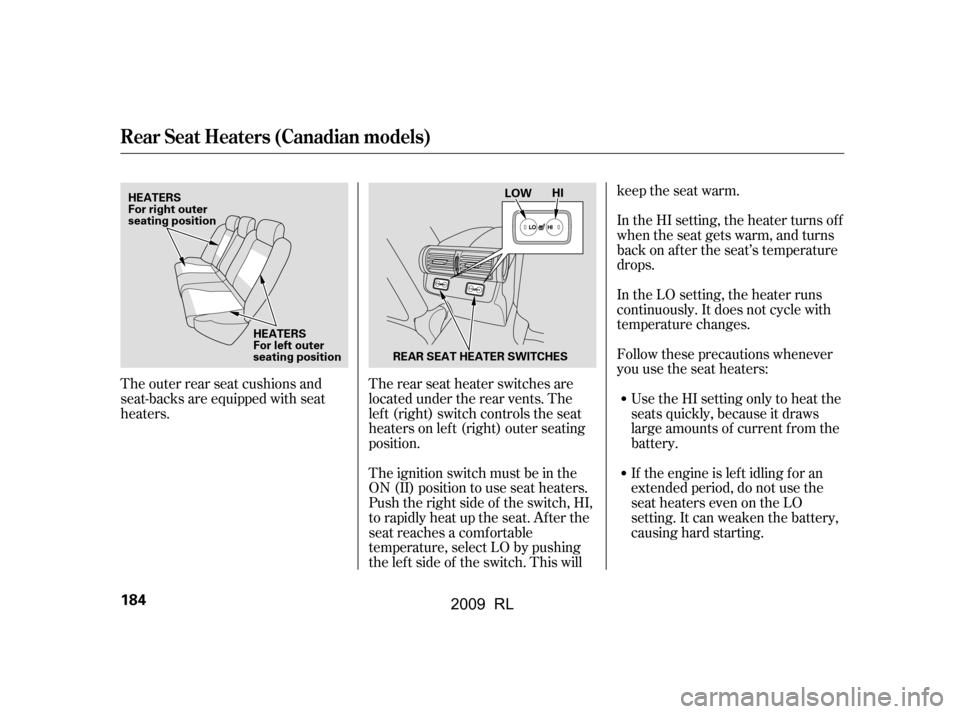

The outer rear seat cushions and
seat-backs are equipped with seat
heaters.The rear seat heater switches are
located under the rear vents. The
lef t (right) switch controls the seat
heaters on lef t (right) outer seating
position.
If the engine is lef t idling f or an
extended period, do not use the
seat heaters even on the LO
setting. It can weaken the battery,
causing hard starting.
Use the HI setting only to heat the
seats quickly, because it draws
large amounts of current f rom the
battery.
Follow these precautions whenever
you use the seat heaters:
In the LO setting, the heater runs
continuously. It does not cycle with
temperature changes.
In the HI setting, the heater turns off
when the seat gets warm, and turns
back on after the seat’s temperature
drops.
The ignition switch must be in the
ON (II) position to use seat heaters.
Push the right side of the switch, HI,
to rapidly heat up the seat. Af ter the
seat reaches a comfortable
temperature, select LO by pushing
the lef t side of the switch. This will keep the seat warm.
Rear Seat Heaters (Canadian models)
184
HEATERS
For right outer
seating position
HEATERS
For left outer
seating position LOW
HI
REAR SEAT HEATER SWITCHES
2009 RL

To apply the parking brake, push the
parking brake pedal down with your
f oot. To release the parking brake,
push on the pedal again. The parking
brake indicator on the instrument
panel should go out when the
parking brake is f ully released with
the engine running (see page ).63
Parking Brake
Inst rument s and Cont rols
191
PARKING BRAKE PEDAL
Driving the vehicle with the parking
brake applied can damage the rear
brakes, axles, and tires. A beeper will
sound if the vehicle is put into gear
with the parking brake on.
