trip computer Acura RL 2010 Owner's Manual

When you turn of f the engine, INST.
MPG or INST. L/100 km is also
reset. This shows your instant f uel
economy. Along with the trip meter, the trip
computer calculates these values:Instantaneous f uel mileage
Range
Elapsed Time
Average Fuel Economy Average Vehicle Speed
This shows the estimated distance
you can travel on the fuel remaining
in the f uel tank. This distance is
estimated f rom the f uel economy
you received over the last several
miles(U.S.) or kilometers (Canada), so it will vary with changes in speed,
traf f ic, etc.
When the battery is disconnected, or
you ref uel, RANGE is also reset.
This shows the accumulated
traveling time since you last reset it.
When you turn the ignition switch to
the ON (II) position, ELAPSED
TIME is reset.
You can customize the ELAPSED
TIME reset conditions on the multi-
inf ormation display (see page ).
This shows the average speed you
are traveling in miles per hour (mph)
f or U.S. models or kilometers per
hour (km/h) f or Canadian models.
When you reset Trip A, average
speed is also reset.
You can customize the average
speed reset condition on the multi-
inf ormation display (see page ).
This shows your vehicle’s average
f uel economy in mpg (U.S. models)
or liter/100 km (Canadian models)
since you last reset Trip A or Trip B.
The average f uel economy will be
reset when you reset the trip meter,
or if the vehicle’s battery goes dead
or is disconnected.
You can customize the average fuel
A reset condition on the multi-
inf ormation display (see page ).
101 99
99
Multi-Inf ormation Display
INST.MPG(U.S.models)/INST.
L /100km (Canadian models) Trip Computer
RANGE EL A PSED T IME
A VERA GE SPEED
AVERAGE FUEL A/B
Inst rument s and Cont rols
75
——y

y
(yy
2010 RL

Press this button to display thescreen (see page ).
The compass system in your vehicle
contains several convenient features,
including a direction and elevation
f inder, a calendar reminder f or
important events, a calculator, and a
trip computer to help you track your
mileage and f uel economy.
The controls f or the compass system
are on the center console panel.
These controls are also used to
operate the climate control system
(see page ) and the audio system
(see page ).
Press this button to display the
screen (see page ) f or the
trip computer, calendar, calculator,
and voice command Help. 204
214
286
287
CONT INUED
Menu Button
Compass But t on

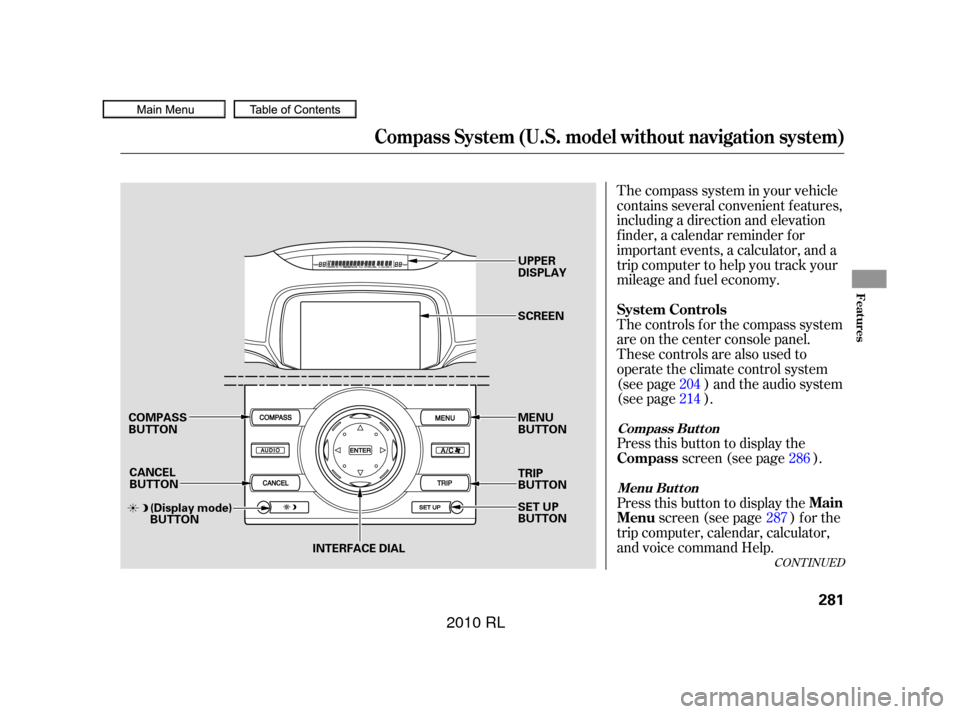

Compass System Controls
Main
Menu
Compass System (U.S. model without navigation system)
Features
281
CANCEL
BUTTON
COMPASS
BUTTON
(Display mode)
BUTTON INTERFACE DIAL UPPER
DISPLAY
SCREEN
MENU
BUTTON
TRIP
BUTTON
SET UP
BUTTON
——y

y
(yy
2010 RL

Press this button to cancel the
current screen and return to the
previous screen. This button switches the display
between day mode, night mode, and
of f (see page ). Press the button to display the set up
screen (see page ) to change and
update inf ormation in the system. Press this button to display thescreen (see page ).
Most f unctions of the compass
system can be accessed with the
interf ace dial. The interf ace dial has
two parts: a knob and a selector.
The knob turns lef t and right. Use it
to make selections or adjustments to
a list or menu on the screen.
The selector can be pushed lef t,
right, up, down, and in. Use the
selector to scroll through lists, to select menus, and to highlight menu
items. When you make a selection,
push the center of the selector in
(ENTER)togotothatselection.
All selections and instructions are
displayed on the screen. In almost all cases, you can enter a
selection into the system by pushing
in on the interf ace selector.
Clean the screen with a sof t damp
cloth. You may use a mild cleanser
intended f or use on liquid crystal
displays (LCDs). Harsher chemicals
may damage the screen.
Shows the radio band, f requency,
volume, the climate control status,
and the time.
288
293
298
Int erf ace Dial
Cancel But t on (Display Mode) But t on
Set Up But t on
Trip Button
Screen
Upper Display
Trip
Computer
Compass System (U.S. model without navigation system)
282
KNOB
ENTER
SELECTOR
——y

y
(yy
2010 RL

If you select , the reminder will
not show up again. If you wish to
have the reminder show up again
later in the day, selectandpushinontheinterface
selector.
If you press the CANCEL button, the
message will be displayed the next
time you start the vehicle.
Thesystemwilldisplaythe
current message and any older or
previously unread messages, with
the newest message listed f irst.
If you do not push in on the
, the screen will
go dark af ter 30 seconds. To return
to the disclaimer screen, press any
compass or voice control button.
If you do not select , and
then enter the Set up or Trip
computer screens, some items are
not available, and will show up as
darkened buttons (grayed out).
If any calendar reminders were
previously entered, the calendar
reminder screen is displayed next.
The calendar reminder screen
remains displayed until you select,o rpre ss th e
CANCEL button. OK
Remind
Later
interf ace selector
OK
OK Remind L ater
Compass System (U.S. model without navigation system)
284
NOTE:
NOTE:
——y


y
(yy
2010 RL

When you make a selection (such as
Navigation general command help),
you will see the help commands that
canbeusedwiththevoicecontrol.
To have the system read the list, say
‘‘Read list,’’ or select by
moving the interface selector to the
right, and the system will read the
list to you.The
screens display
the trip information from the multi-
inf ormation display in the gauge
assembly.
For a listing of all voice commands,
see
on page
.
To go to the trip computer, say ‘‘Trip
Computer,’’ select Trip computer
f rom the main menu, or press the
TRIP button on the center console
panel.
307
Voice Command Index
T rip Comput er
trip computer
Compass System (U.S. model without navigation system)
288
——y

y
(yy
2010 RL

CONT INUED
The system accepts these
commands on any screen. The voice control system needs
appropriate voice commands f or
controlling the climate control, the
audio system, and the compass
system.
If the system cannot recognize
your command because of
background noise, speak louder.
If the microphone picks up voices
other than yours, the system may
not interpret your voice
commands correctly.
If you speak a command with
something in your mouth, or your
voice is either too high or too
husky, the system may
misinterpret your voice commands.
If you are still having trouble with
the voice control system, ref er to
on the
main menu screen. (reads list of the commands
f or the displayed screen) (displays set up screen) (displays the
compass screen) (displays the main
menu) (displays the
screen)
(to previous screen,
same as CANCEL or BACK
button) (cancels current activity) The voice command help option on
the main menu lists many of the
f ollowing controls. To avoid
distraction while you are driving, the
system can read the commands f or
you.
Thecommandsareaccessibleatany
time while driving and can be read to
you so that you do not need to
memorize all of them.
Help
Set upDisplay map guide
Display menuInformation trip
computer Trip ComputerBackward
CancelWhat time is it?Calendar Calculator
Repeat voiceVoice command help
Compass System (U.S. model without navigation system)
Global Commands
Voice Command Index
Voice Command Help
Features
307
——y


y
(y
y
2010 RL

The system accepts over 100 on-
screen commands. The only
commands that must be chosen by
the interf ace dial are listed below.
The system accepts these
commands on the f irst setup screen.
(For the second and third setup
screens, simply say what is written
on the screen, and f ollow the voice
prompts)
These are additional commands not
f ound on the
screen. Follow the voice
prompts. (the system
reads and lists all of the
commands)
Next
PreviousReturnOKDelete
Brightness up
Brightness downBrightness minimum/min.Brightness maximum/max.Contrast upContrast downContrast minimum/minContrast maximum/maxBlack level upBlack level downBlack level minimum/minBlack level maximum/maxVolume upVolume downVolume minimum/min.Volume maximum/max.Volume Of fInterf ace Dial f eedback of fInterf ace Dial f eedback auto Interf ace Dial f eedback on
Voice command help CalendarCalculatorTrip computer
Compass System (U.S. model without navigation system)
On-Screen Commands
Set up Screen Commands
Main Menu Screen CommandsVoice Commands
Help
312
——y

y
(y
y
