If a seat belt is worn during a crash,
it must be replaced by the dealer. A
belt that has been worn during a
crash may not provide the same level
of protection in a subsequent crash.
The dealer should also inspect the
anchors f or damage and replace
them if needed. If the automatic seat
belt tensioners activate during a
crash, they must be replaced.
For saf ety, you should check the
condition of your seat belts regularly.
Pull each belt out f ully, and look f or
f rays, cuts, burns, and wear. Check
that the latches work smoothly and
the belts retract easily. If a belt does
not retract easily, cleaning the belt
may correct the problem (see page
). Any belt that is not in good
condition or working properly will
not provide good protection and
should be replaced as soon as
possible.
Acura provides a limited warranty on
seat belts. See your booklet f or details.
476
Acura Warranty
Inf ormation
Additional Inf ormation About Your Seat Belts
Seat Belt Maintenance
Driver and Passenger Saf ety
25
Not checking or maintaining
seat belts can result in serious
injury or death if the seat belts
do not work properly when
needed.
Check your seat belts regularly
and have any problem
corrected as soon as possible.
10/08/04 18:45:00 31SJA660_030
ProCarManuals.com

Î
ÎÎ
:On models with CMBS

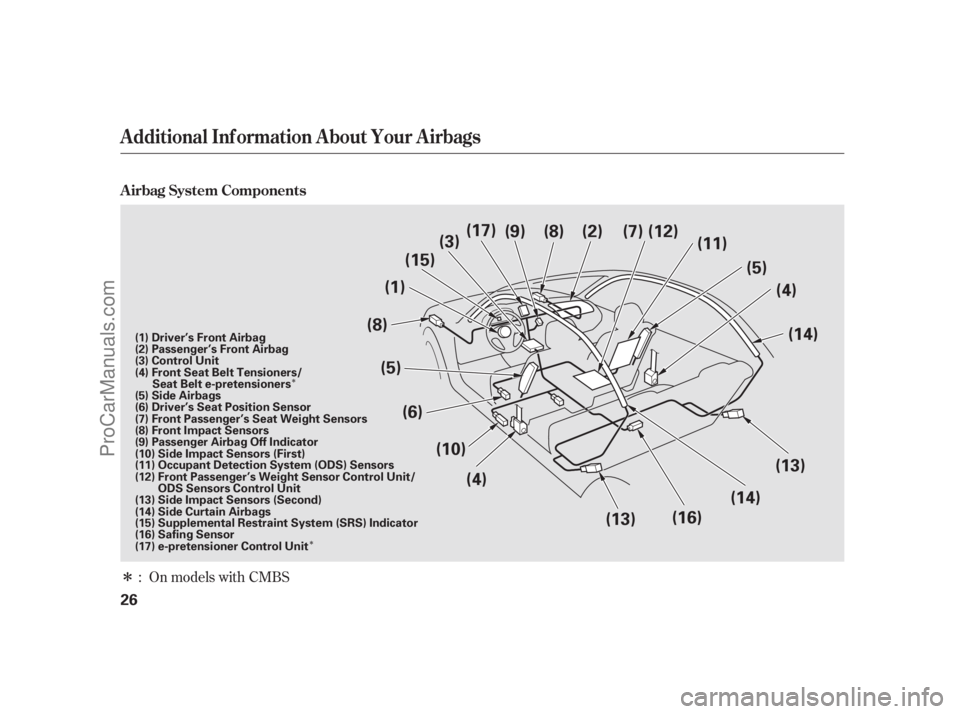

A irbag System Components
Additional Inf ormation About Your Airbags
26
(1)
(8)
(4)
(5)
(15) (2)
(11)
(14)
(13)
(14)
(16)
(13)
(4)
(17)
(10)
(5)
(8)
(6) (7) (12)
(9)
(3)
(1) Driver’s Front Airbag
(2) Passenger’s Front Airbag
(3) Control Unit
(4) Front Seat Belt Tensioners/
Seat Belt e-pretensioners
(5) Side Airbags
(15) Supplemental Restraint System (SRS) Indicator
(16) Safing Sensor
(17) e-pretensioner Control Unit (6) Driver’s Seat Position Sensor
(7) Front Passenger’s Seat Weight Sensors
(8) Front Impact Sensors
(9) Passenger Airbag Off Indicator
(10) Side Impact Sensors (First)
(11) Occupant Detection System (ODS) Sensors
(12) Front Passenger’s Weight Sensor Control Unit/ ODS Sensors Control Unit
(13) Side Impact Sensors (Second)
(14) Side Curtain Airbags
10/08/04 18:45:07 31SJA660_031
ProCarManuals.com

CONT INUED
Your airbag system includes:Two SRS (supplemental restraint
system) f ront airbags. The driver’s
airbag is stored in the center of
the steering wheel; the f ront
passenger’sairbagisstoredinthe
dashboard. Both are marked ‘‘SRS
AIRBAG’’ (see page ).
Two side airbags, one f or the
driver and one f or a f ront
passenger. The airbags are stored
in the outer edges of the seat-
backs. Both are marked ‘‘SIDE
AIRBAG’’ (see page ).
Two side curtain airbags, one f or
each side of the vehicle. The
airbags are stored in the ceiling,
above the side windows. The f ront
and rear pillars are marked ‘‘SIDE
CURTAIN AIRBAG’’ (see page ). A driver’s seat position sensor that
monitors the distance of the seat
from the front airbag. If the seat is
too far forward, the airbag will
inf late with less f orce (see page
).
Weight sensors that monitor the
weight on the f ront passenger’s
seat. If the weight is about 65 lbs
(29 kg) or less (the weight of an
inf ant or small child), the
passenger’s f ront airbag will be
turned of f (see page ).
A sophisticated electronic system
that continually monitors and
records inf ormation about the
sensors, the control unit, the
airbag activators, the seat belt
tensioners, and driver and f ront
passenger seat belt use when the
ignition switch is in the ON (II)
position.
On models with CMBS , f ront
seat belt e-pretensioners (see page
).
Automatic front seat belt
tensioners (see page ).
Sensors that can detect a
moderate to severe front impact or
side impact.
Sensors that can detect whether a
child is in the passenger’s side
airbag path and signal the control
unit to turn the airbag of f (see
page ).
Sensors that can detect whether
the driver’s seat belt and the f ront
passenger’s seat belt are latched
or unlatched (see page ).
28
32
33 30
31
24
23
33 21
Additional Inf ormation About Your Airbags
Driver and Passenger Saf ety
27
TM
10/08/04 18:45:21 31SJA660_032
ProCarManuals.com

An indicator on the instrument
panel that alerts you to a possible
problem with your airbag system
components (see page ).
An indicator on the instrument
panel that alerts you that the
passenger’s side airbag has been
turned of f (see page ).
An indicator on the dashboard that
alerts you that the passenger’s
f ront airbag has been turned of f
(see page ).
Emergency backup power in case
your vehicle’s electrical system is
disconnected in a crash.During a f rontal crash, your seat belt
restrains your lower body and torso,
and the f ront airbag helps protect
your head and chest.
Although both airbags normally
inf late within a split second of each
other, it is possible f or only one
airbag to deploy.
This can happen if the severity of a
collision is at the margin, or
threshold, that determines whether
or not the airbags will deploy. In
such cases, the seat belt will provide
suf f icient protection, and the
supplemental protection of f ered by
the airbag would be minimal.
Only the driver’s airbag will deploy if
there is no passenger in the f ront
seat, or if the advanced airbag
system has turned the passenger’s
airbag off (see page ).
If the rate of deceleration is high
enough, the control unit will inf late
the driver’s and f ront passenger’s
airbags, at the time and with the
f orce needed. If you ever have a moderate to
severe f rontal collision, sensors will
detect the vehicle’s rapid
deceleration.
34
35
35
30
Additional Inf ormation About Your Airbags
How Your Front Airbags Work
28
10/08/04 18:45:35 31SJA660_033
ProCarManuals.com

CONT INUED
Af ter inf lating, the f ront airbags will
immediately def late, so they won’t
interf ere with the driver’s visibility,
or the ability to steer or operate
other controls.
The total time for inflation and
def lation is one-tenth of a second, so
f ast that most occupants are not
aware that the airbags deployed until
they see them lying in their laps.After a crash, you may see what
looks like smoke. This is actually
powder f rom the airbag’s surf ace.
Although the powder is not harmf ul,
people with respiratory problems
mayexperiencesometemporary
discomf ort. If this occurs, get out of
the vehicle as soon as it is saf e to do
so.
Your vehicle is equipped with dual-
stage, multiple-threshold f ront
airbags (SRS). During a f rontal crash
severe enough to cause one or both
f ront airbags to deploy, the airbags
can inf late at dif f erent rates,
depending on the severity of the
crash, whether or not the seat belts
are latched, and/or other factors.
Front airbags are designed to
supplement the seat belts to help
reduce the likelihood of head and
chest injuries in f rontal crashes.
Additional Inf ormation About Your Airbags
Dual-Stage, Multiple-T hreshold
Front A irbags (SRS)
Driver and Passenger Saf ety
29
10/08/04 18:45:43 31SJA660_034
ProCarManuals.com

Your f ront airbags are also advanced
airbags. The main purpose of this
feature is to help prevent airbag-
caused injuries to short drivers and
children or small-statured adults who
ride in f ront.
For both advanced airbags to work
properly:Occupants must sit upright and
wear their seat belts properly.
Do not spill any liquids on or
under the seats, cover the sensors,
or put any objects or metal items
under the f ront seats. The driver’s advanced front airbag
system includes a seat position
sensor under the seat. If the seat is
too far forward, the airbag will
inf late with less f orce, regardless of
the severity of the impact.
If there is a problem with the sensor,
the SRS indicator will come on, and
the airbag will inf late in the normal
manner regardless of the driver’s
seating position.
Failure to f ollow these instructions
could damage the sensors or prevent
them f rom working properly.
Objects placed or pushed under
the f ront passenger’s seat may
cause the sensor to malf unction,
increasing the risk of injury in a
crash.
Advanced Airbags
Additional Inf ormation About Your Airbags
30
DRIVER’S SEAT POSITION SENSOR
10/08/04 18:45:53 31SJA660_035
ProCarManuals.com

CONT INUED
The passenger’s advanced f ront
airbag system has weight sensors
under the seat. Although Acura does
not encourage carrying an inf ant or
small child in f ront, if the sensors
detect the weight of an inf ant or
small child (up to about 65 lbs or 29
kg), the system will automatically
turn the passenger’s front airbag off.Be aware that objects placed on the
passenger’s seat can also cause the
airbag to be turned off.
When the passenger airbag gets
turned of f by the weight sensors, a
‘‘passenger airbag of f ’’ indicator in
the center of the dashboard comes
on (see page ).
If the weight sensors detect there is
no passenger in the f ront seat, the
airbag is automatically turned off.
However, the passenger airbag of f
indicator in this situation will not
come on.
To ensure that the passenger’s
advanced front airbag system will
work properly,
This includes:
Hanging heavy items on the f ront
passenger seat, or placing heavy
items in the seat-back pocket. Moving the front seat forcibly
back against cargo on the seat or
f loor behind it. A rear passenger pushing or
pulling on the back of the f ront
passenger’s seat.
Back seat passengers should not
wedge objects or intentionally
f orce their f eet under the f ront
passenger seat.
35
Additional Inf ormation About Your Airbags
do not do anyt hing
t hat would increase or decrease t he weight on the f ront passenger’s seat.Driver and Passenger Saf ety
31
PASSENGER’S SEAT WEIGHT SENSOR
10/08/04 18:46:06 31SJA660_036
ProCarManuals.com

Also,makesurethefloormatbehind
the f ront passenger’s seat is hooked
to the floor mat anchor (see page). If it is not, the mat may
interf ere with the proper operation
of the sensors and operation of the
seat.
If you ever have a moderate to
severe side impact, sensors will
detect rapid acceleration and signal
the control unit to instantly inf late
either the driver’s or the passenger’s
side airbag.Only one airbag will deploy during a
side impact. If the impact is on the
passenger’s side, the passenger’s
side airbag will deploy even if there
is no passenger.
To get the best protection f rom the
side airbags, front seat occupants
should wear their seat belts and sit
upright and well back in their seats.
477
Additional Inf ormation About Your Airbags
How Your Side A irbags Work
32
10/08/04 18:46:13 31SJA660_037
ProCarManuals.com

Your vehicle has a side airbag cutof f
system designed primarily to protect
a child riding in the f ront passenger’s
seat.
Although Acura does not encourage
children to ride in f ront, if the
position sensors detect a child has
leaned into the side airbag’s
deployment path, the airbag will shut
off.
Thesideairbagmayalsoshutoff if a
short adult leans sideways, or a
larger adult slouches and leans
sideways into the airbag’s
deployment path.
Objects placed on the f ront
passenger seat can also cause the
side airbag to be shut of f .If the side airbag of f indicator comes
on (see page ), have the
passenger sit upright. Once the
passenger is out of the airbag’s
deployment path, the system will
turn the airbag back on, and the
indicator will go out.
There will be some delay between
the moment the passenger moves
into or out of the airbag deployment
pathandwhentheindicatorcomes
on or goes of f .
A f ront seat passenger should not
use a cushion or another object as a
backrest. It may prevent the cutof f
system f rom working properly.
In a moderate to severe side impact,
sensors will detect rapid acceleration
and signal the control unit to
instantly inflate the side curtain
airbag.
35
CONT INUED
Additional Inf ormation About Your Airbags
Side A irbag Cut of f Syst emHow Your Side Curtain A irbags
Work
Driver and Passenger Saf ety
33
SIDE CURTAIN AIRBAG
10/08/04 18:46:25 31SJA660_038
ProCarManuals.com

If the impact is on the passenger’s
side, the passenger’s side curtain
airbag will inflate even if there are no
occupants on that side of the vehicle.
To get the best protection f rom the
side curtain airbags, occupants
should wear their seat belts and sit
upright and well back in their seats.The SRS indicator alerts you to a
potential problem with your airbag
system components.
When you turn the ignition switch to
the ON (II) position, this indicator
comes on brief ly then goes of f . This
tells you the system is working
properly.
If the indicator comes on at any
other time, or does not come on at all,
you should have the system checked
by your dealer. For example:
If the SRS indicator does not come
on after you turn the ignition
switch to the ON (II) position.
If the indicator stays on after the
engine starts.
If the indicator comes on or
f lashes on and of f while you drive. You will also see a ‘‘CHECK
AIRBAG SYSTEM’’ message on the
multi-inf ormation display (see page
).
If you see any of these indications,
the airbag system components may
not work properly when you need
them. 63
Additional Inf ormation About Your Airbags
How the SRS Indicator
Works
34
Ignoring the SRS indicator can
result in serious injury or death
if the airbag systems or
tensioners do not work properly.
Have your vehicle checked by a
dealer as soon as possible if
the SRS indicator alerts you to
a possible problem.
10/08/04 18:46:39 31SJA660_039
ProCarManuals.com
