This could result
in serious neck injuries during a
crash. Devices intended to
improve a child’s comf ort or
reposition the shoulder part of a
seat belt can make the belt less
ef f ective and increase the chance
of serious injury in a crash.
This could
cause very serious injuries during
a crash. It also increases the
chance that the child will slide
under the belt in a crash and be
injured.
If they do, they
could be very seriously injured in a
crash.
Do not let a child wear a seat belt
across t he neck. Do not put any accessories on a
seat belt.
Do not let a child put the shoulder part of a seat belt behind t he backor under t he arm.
T wo children should never use thesame seat belt .
Additional Saf ety Precautions
Protecting L arger Children
Driver and Passenger Saf ety
55
10/08/04 18:50:36 31SJA660_060
ProCarManuals.com

Your vehicle’s exhaust contains
carbon monoxide gas. Carbon
monoxide should not enter the
vehicle in normal driving if you
maintain your vehicle properly and
f ollow the inf ormation on this page.High levels of carbon monoxide can
collect rapidly in enclosed areas,
such as a garage. Do not run the
engine with the garage door closed.
Even with the door open, run the
engine only long enough to move the
vehicle out of the garage.
Have the exhaust system inspected
f or leaks whenever:
With the trunk open, airf low can pull
exhaust gas into your vehicle’s
interior and create a hazardous
condition. If you must drive with the
trunk open, open all the windows and
set the climate control system as
shown below.
If you must sit in your parked vehicle
with the engine running, even in an
unconfined area, adjust the climate
control system as f ollows:
Select the f resh air mode.
Select the mode.
Turn the f an on high speed.
Set the temperature control to a
comfortable setting.
The vehicle is raised f or an oil
change.
You notice a change in the sound
of the exhaust.
The vehicle was in a collision that
may have damaged the underside.
1.
2.
3.
4.
Carbon Monoxide Hazard
56
Carbon monoxide gas is toxic.
Breathing it can cause
unconsciousness and even kill
you.
Avoid any enclosed areas or
activities that expose you to
carbon monoxide.
10/08/04 18:50:46 31SJA660_061
ProCarManuals.com

CONT INUED
These labels are in the locations
shown. They warn you of potential
hazards that could cause serious
injury or death. Read these labels
caref ully.
If a label comes of f or becomes hard
to read (except for the U.S.
dashboard label which may be
removed by the owner), contact your
dealer f or a replacement.U.S. models only
Saf ety L abels
Driver and Passenger Saf ety
57
RADIATOR CAPDASHBOARD
10/09/08 21:18:24 31SJA660_062
ProCarManuals.com

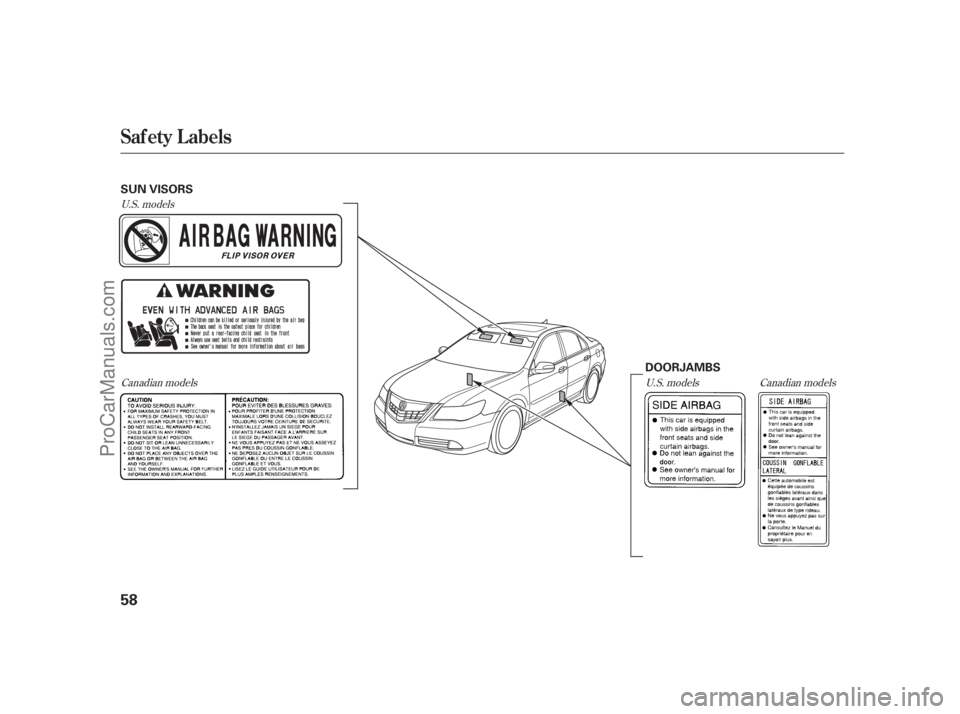

U.S. modelsCanadian models U.S. models Canadian models
Saf ety L abels
58
SUN VISORS
DOORJAMBS
10/09/08 21:18:36 31SJA660_063
ProCarManuals.com

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations . 60
............................
Instrument Panel . 61 ..........
Instrument Panel Indicators . 62
.............................................
Gauges . 70
...................
Temperature Gauge . 70
..................................
Fuel Gauge . 70
.............
Multi-Inf ormation Display . 71
Controls Near the Steering
.........................................
Wheel . 136
Windshield Wipers and .....................................
Washers . 137
.......
Turn Signals and Headlights . 140
.................................
Fog Lights . 142
.........
Daytime Running Lights . 142
Automatic Lighting Off
...................................
Feature . 143
Adaptive Front Lighting System ..........................................
(AFS) . 144
...............
Hazard Warning Button . 146
......
Instrument Panel Brightness . 146
...............
Rear Window Def ogger . 147
......
Steering Wheel Adjustments . 148
.............................
Keys and Locks . 150
......................
Immobilizer System . 150
..............................
Ignition Switch . 152
....................................
Door Locks . 153
..............................................
Trunk . 154
......
Emergency Trunk Opener . 155 ................
Childproof Door Locks . 155
...............................................
Seats . 156
...........................................
Mirrors . 161
Driving Position Memory
........................................
System . 164
................
Keyless Access System . 167
.......................
Front Seat Heaters . 182
Front Seat Heaters and Seat
.................................
Ventilation . 183
Rear Seat Heaters ...................
(Canadian models) . 185
............................
Power Windows . 186
.......................................
Moonroof . 189
...............................
Parking Brake . 191
.........
Interior Convenience Items . 192
..................................
Glove Box . 193
.....................
Beverage Holders . 194
.............
Console Compartment . 195
..................................
Sun Visors . 196
............................
Vanity Mirror . 196
........
Accessory Power Sockets . 197
..................
Front Door Pockets . 198
..............
Power Rear Sunshade . 198
..............
Integrated Sunshades . 199
...............................
Interior Lights . 200
Instruments and Controls
Inst rument s and Cont rols
59
10/08/04 18:51:22 31SJA660_064
ProCarManuals.com

Î
Î Î
Î
Î
Î
Canadian models only
2:
3: RL models

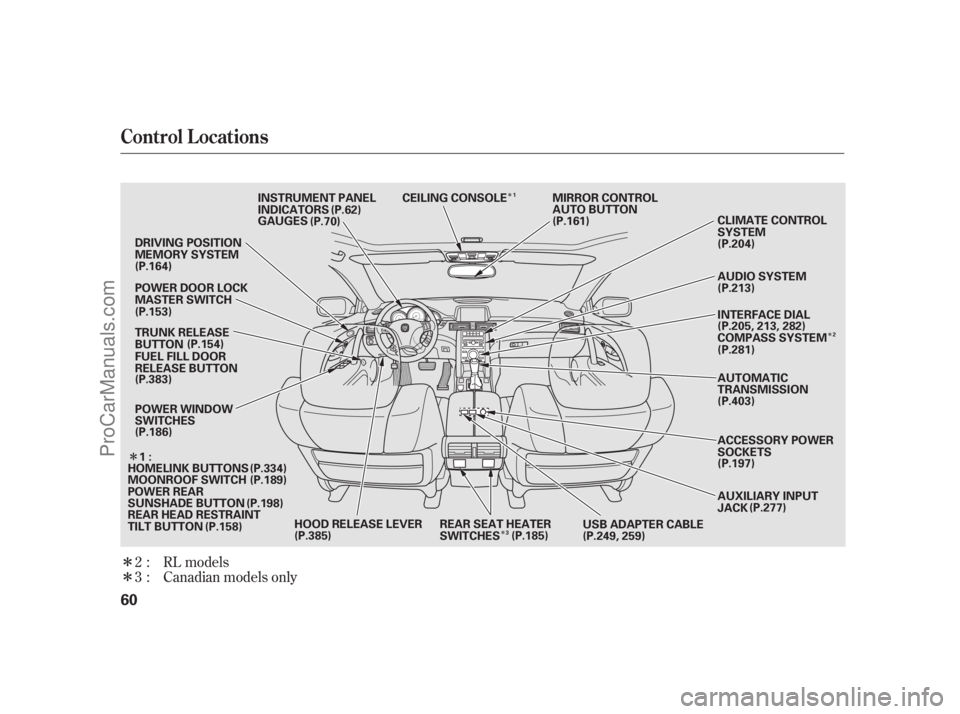

Control L ocations
60
INSTRUMENT PANEL
INDICATORS
GAUGES
HOOD RELEASE LEVER MIRROR CONTROL
AUTO BUTTON
(P.62)
(P.70) CEILING CONSOLE
AUXILIARY INPUT
JACK
DRIVING POSITION
MEMORY SYSTEM
1:
MOONROOF SWITCH
POWER REAR
SUNSHADE BUTTON POWER DOOR LOCK
MASTER SWITCH
POWER WINDOW
SWITCHES
FUEL FILL DOOR
RELEASE BUTTON TRUNK RELEASE
BUTTON (P.153)
(P.154)
REAR HEAD RESTRAINT
TILT BUTTON (P.277)
(P.161)
REAR SEAT HEATER
SWITCHES USB ADAPTER CABLE
(P.164)
(P.186)
(P.383)
HOMELINK BUTTONS (P.334) (P.185)AUTOMATIC
TRANSMISSION
ACCESSORY POWER
SOCKETS
(P.197) CLIMATE CONTROL
SYSTEM
(P.204)
AUDIO SYSTEM
INTERFACE DIAL
(P.205, 213, 282)
COMPASS SYSTEM
(P.281) (P.213)
(P.403)
(P.189)
(P.198)
(P.158) (P.385) (P.249, 259)1
3 2
10/08/04 18:51:32 31SJA660_065
ProCarManuals.com

ÎÎ
Î Î
Î
The U.S. instrument panel is shown. Dif f erences f or the Canadian models are noted in the text.
Instrument Panel
Inst rument s and Cont rols
61
SEAT BELT REMINDER
INDICATOR
LOW FUEL INDICATOR (P.21, 62)
(P.68)
SUPPLEMENTAL RESTRAINT SYSTEM
(SRS) INDICATOR
(P.65)
(P.66) (P.66)ADAPTIVE CRUISE CONTROL (ACC)
INDICATOR
(P.65) /
CRUISE MAIN INDICATOR
(P.66, 319)
: If equipped (P.63, 510)
IMMOBILIZER SYSTEM INDICATOR
(P.64) PARKING BRAKE AND
BRAKE SYSTEM INDICATOR
ELECTRONICALLY
CONTROLLED POWER
STEERING
SYSTEM
(ECPS) INDICATOR SIDE AIRBAG OFF
INDICATOR
(P.35, 63)
ANTI-LOCK BRAKE SYSTEM
(ABS) INDICATOR
(P.64, 416)(P.65, 435)
VEHICLE STABILITY ASSIST (VSA)
SYSTEM INDICATOR
VSA OFF INDICATOR HIGH BEAM INDICATOR
ADAPTIVE FRONT LIGHTING SYSTEM
(AFS) INDICATOR (P.69, 144)
COLLISION MITIGATION BRAKING
SYSTEM (CMBS) INDICATOR
LOW TIRE PRESSURE/TPMS INDICATOR (P.67, 429)
(P.69)
(P.68)
SH-AWD INDICATOR KEYLESS ACCESS SYSTEM INDICATOR
(P.68)
MESSAGE INDICATOR
SECURITY SYSTEM
INDICATOR
MULTI-INFORMATION
DISPLAY
MALFUNCTION INDICATOR
LAMP (P.65)
(P.64)
CHARGING SYSTEM INDICATOR
(P.62, 508)
LIGHTS ON INDICATOR
FOG LIGHT INDICATOR
(P.69)
(P.71)
(P.62, 509)
(P.62, 508) LOW OIL PRESSURE INDICATOR (P.34, 63)
(P.65, 435)
10/08/04 18:51:43 31SJA660_066
ProCarManuals.com

The instrument panel has many
indicators to give you important
inf ormation about your vehicle.You will also see a ‘‘CHECK
EMISSION SYSTEM’’ message on
the multi-information display. For
more information, see page . The engine can be severely damaged
if this indicator f lashes or stays on
when the engine is running, or if a
‘‘CHECK ENGINE OIL LEVEL’’
message is on the multi-information
display. For more inf ormation, see
page .
If this indicator comes on when the
engine is running, the battery is not
being charged, and you will also see
a ‘‘CHECK CHARGING SYSTEM’’
message on the multi-inf ormation
display. For more inf ormation, see
page .
This indicator comes on when you
turn the ignition switch to the ON
(II) position. It reminds you and your
passenger to f asten your seat belts.
A beeper also sounds if you have not
f astened your seat belt.
If you turn the ignition switch to the
ON (II) position bef ore f astening
your belt, the beeper sounds and the
indicator f lashes. If you do not f asten
your seat belt bef ore the beeper
stops, the indicator stops f lashing
but remains on. If your f ront passenger does not
f asten their seat belt, the indicator
comes on about 6 seconds af ter the
ignition switch is turned to the ON
(II) position.
If either of you do not f asten your
seat belt while driving, the beeper
will sound and the indicator will f lash
again at regular intervals. For more
inf ormation, see page .
You will also see a ‘‘FASTEN SEAT
BELT’’ or ‘‘FASTEN PASSENGER
SEAT BELT’’ message on the multi-
inf ormation display (see page ).
21
508
21 508
509
Instrument Panel Indicators
L ow Oil Pressure
Indicator
Charging System
Indicator
Malf unction Indicator
Lamp
Seat Belt Reminder
Indicator
62
10/08/04 18:51:57 31SJA660_067
ProCarManuals.com

This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates a
potential problem with your f ront
airbags. This indicator will also alert
you to a potential problem with your
airbag system components. You will
also see a ‘‘CHECK AIRBAG
SYSTEM’’ message on the multi-
inf ormation display. For more
inf ormation, see page .
This indicator has two f unctions:
Itcomesonwhenyouturnthe
ignition switch to the ON (II)
position. It is a reminder to check
the parking brake. Driving with
the parking brake not f ully
released can damage the rear
brakes, axles, and tires.
If you drive without releasing the
parking brake, a beeper will sound,
and you will also see a ‘‘RELEASE
PARKING BRAKE’’ message on
the multi-information display (see
page ).
If it stays on after you have fully
released the parking brake while
the engine is running, or if it
comes on while driving, it can
indicate a problem in the brake
system. You will also see a
‘‘BRAKE FLUID LOW’’ or ‘‘CHECK BRAKE SYSTEM’’
message on the multi-inf ormation
display. For more inf ormation, see
page .
This indicator comes on brief ly when
you turn the ignition switch to the
ON (II) position. If it comes on at
any other time, it indicates that the
passenger’s side airbag has
automatically shut of f . You will also
see a ‘‘PASSENGER SIDE AIRBAG
OFF’’ message on the multi-
inf ormation display. For more
inf ormation, see page .
1.
2.
34
510
191 35
Instrument Panel Indicators
Supplemental Restraint
System Indicator
Parking Brake and
Brake System
Indicator
Side Airbag Of f
Indicator
Inst rument s and Cont rols
63
U.S.
U.S. Canada
Canada
10/08/04 18:52:10 31SJA660_068
ProCarManuals.com

This indicator reminds you that the
exterior lights are on. It comes on
when the light switch is in either theor position. This indicator
will also come on when the light
switch is in AUTO and the lights
turn on automatically. If you turn the
ignition switch to the ACCESSORY
(I) or the LOCK (0) position without
turning of f the light switch, this
indicator will remain on. A reminder
chime will also sound when you open
the driver’s door.
This indicator comes on f or a f ew
seconds when you turn the ignition
switch to the ON (II) position. It will
then go of f if you have a properly-
coded remote. If it is not a properly-
coded remote, the indicator will blink
and the engine will not start (see
page ). If you use the remote, this indicator
blinks several times when you turn
the ignition switch from
ACCESSORY (I) to the LOCK (0)
position.
If you use the built-in key, this
indicator blinks several times when
you turn the ignition switch f rom ON
(II) to the ACCESSORY (I) position.
When you press the hazard warning
button, both turn signals blink. All
turn signals on the outside of the
vehicle should f lash.
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to the ON (II)
position, and when the ignition
switch is turned to the START (III)
position. If this indicator comes on at
any other time, there is a problem in
theABS.If thishappens,takethe
vehicle to your dealer to have it
checked. With this indicator on, your
vehicle still has normal braking
ability but no anti-lock f unction. You
will also see a ‘‘CHECK ABS SYSTEM’’ message on the multi-
inf ormation display. For more
inf ormation, see page .
The lef t or right turn signal indicator
blinks when you signal a lane change
or turn. If an indicator does not blink
or blinks rapidly, it usually means
one of the turn signal bulbs is
burned out (see pages and ).
Replace the bulb as soon as possible,
since other drivers cannot see that
you are signaling.
150 416
470 473
Instrument Panel Indicators
Lights On Indicator
Immobilizer System
Indicator Anti-lock Brake System
(A BS) Indicator Turn Signal and
Hazard Warning
Indicators
64
10/08/04 18:52:24 31SJA660_069
ProCarManuals.com
