navigation ACURA RL 2011 Workshop Manual

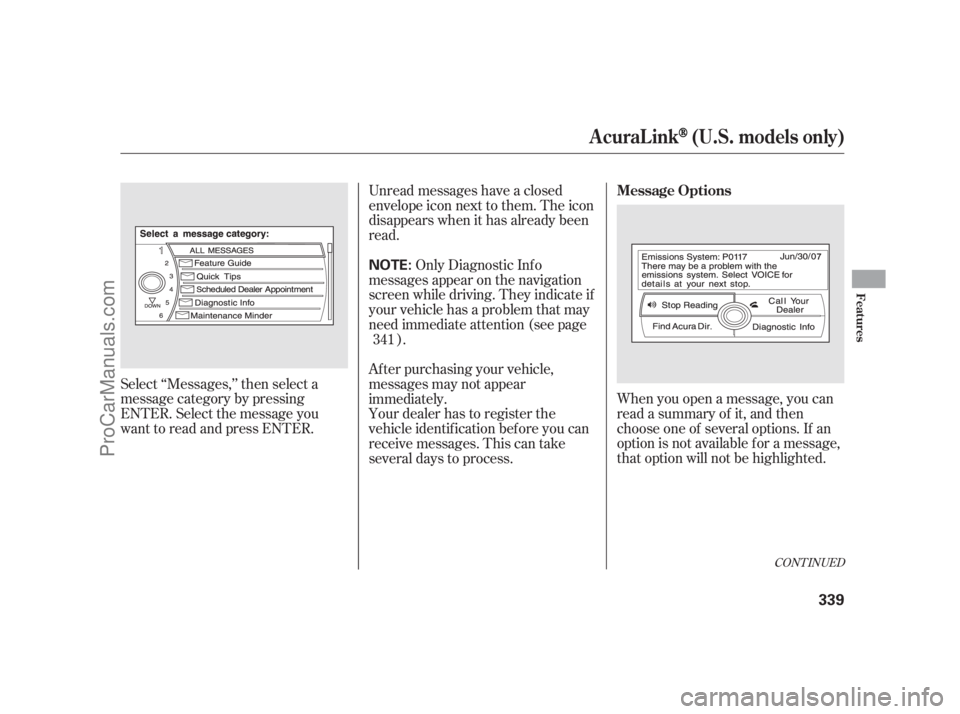

Unread messages have a closed
envelope icon next to them. The icon
disappears when it has already been
read.When you open a message, you can
read a summary of it, and then
choose one of several options. If an
option is not available f or a message,
that option will not be highlighted.
Select ‘‘Messages,’’ then select a
message category by pressing
ENTER. Select the message you
want to read and press ENTER. Only Diagnostic Inf o
messages appear on the navigation
screen while driving. They indicate if
your vehicle has a problem that may
need immediate attention (see page ).
Af ter purchasing your vehicle,
messages may not appear
immediately.
Your dealer has to register the
vehicle identif ication bef ore you can
receive messages. This can take
several days to process. 341
CONT INUED
Message Options
AcuraLink(U.S. models only)
Features
339
NOTE:
10/08/04 19:40:46 31SJA660_344
ProCarManuals.com

µ
µ
µ µ
µ
µ

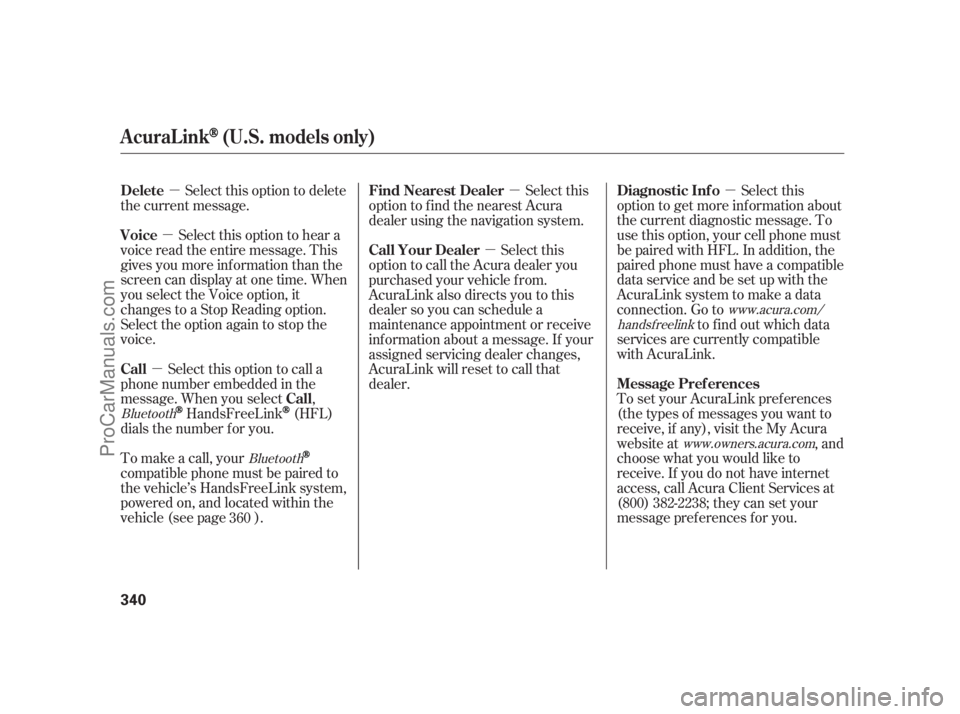

Select this option to delete
the current message.
Select this option to hear a
voice read the entire message. This
gives you more inf ormation than the
screen can display at one time. When
you select the Voice option, it
changes to a Stop Reading option.
Select the option again to stop the
voice.
Select this option to call a
phone number embedded in the
message. When you select ,
HandsFreeLink(HFL)
dials the number f or you.
To make a call, your
compatible phone must be paired to
the vehicle’s HandsFreeLink system,
powered on, and located within the
vehicle(seepage ). Select this
option to get more inf ormation about
the current diagnostic message. To
use this option, your cell phone must
be paired with HFL. In addition, the
paired phone must have a compatible
data service and be set up with the
AcuraLink system to make a data
connection. Go to to f ind out which data
services are currently compatible
with AcuraLink.
To set your AcuraLink pref erences
(thetypesof messagesyouwantto
receive, if any), visit the My Acura
website at , and
choose what you would like to
receive. If you do not have internet
access, call Acura Client Services at
(800) 382-2238; they can set your
message pref erences f or you.
Select this
option to f ind the nearest Acura
dealer using the navigation system.
Select this
option to call the Acura dealer you
purchased your vehicle f rom.
AcuraLink also directs you to this
dealer so you can schedule a
maintenance appointment or receive
inf ormation about a message. If your
assigned servicing dealer changes,
AcuraLink will reset to call that
dealer.
360
Bluetooth Bluetooth www.acura.com/
handsf reelink
www.owners.acura.com
Delete
Voice
Call Call Diagnostic Inf o
Message Pref erences
Find Nearest Dealer
Call Your Dealer
AcuraLink(U.S. models only)
340
10/08/04 19:40:57 31SJA660_345
ProCarManuals.com

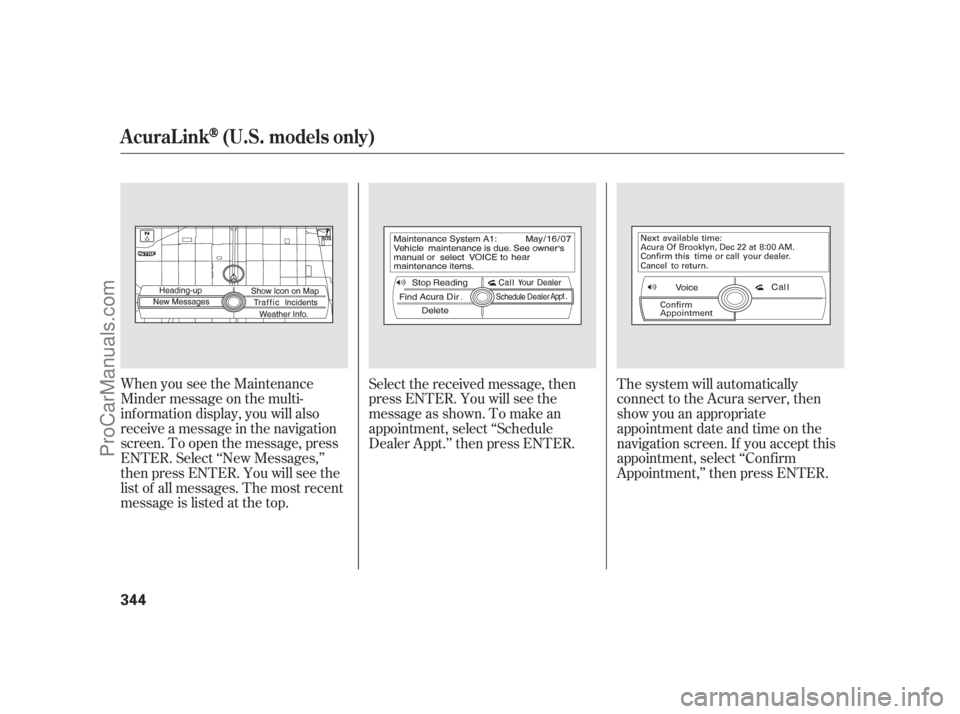

When you see the Maintenance
Minder message on the multi-
inf ormation display, you will also
receive a message in the navigation
screen. To open the message, press
ENTER. Select ‘‘New Messages,’’
then press ENTER. You will see the
list of all messages. The most recent
message is listed at the top.Select the received message, then
press ENTER. You will see the
message as shown. To make an
appointment, select ‘‘Schedule
Dealer Appt.’’ then press ENTER.
The system will automatically
connect to the Acura server, then
show you an appropriate
appointment date and time on the
navigation screen. If you accept this
appointment, select ‘‘Conf irm
Appointment,’’ then press ENTER.
AcuraLink(U.S. models only)
344
10/08/04 19:41:43 31SJA660_349
ProCarManuals.com

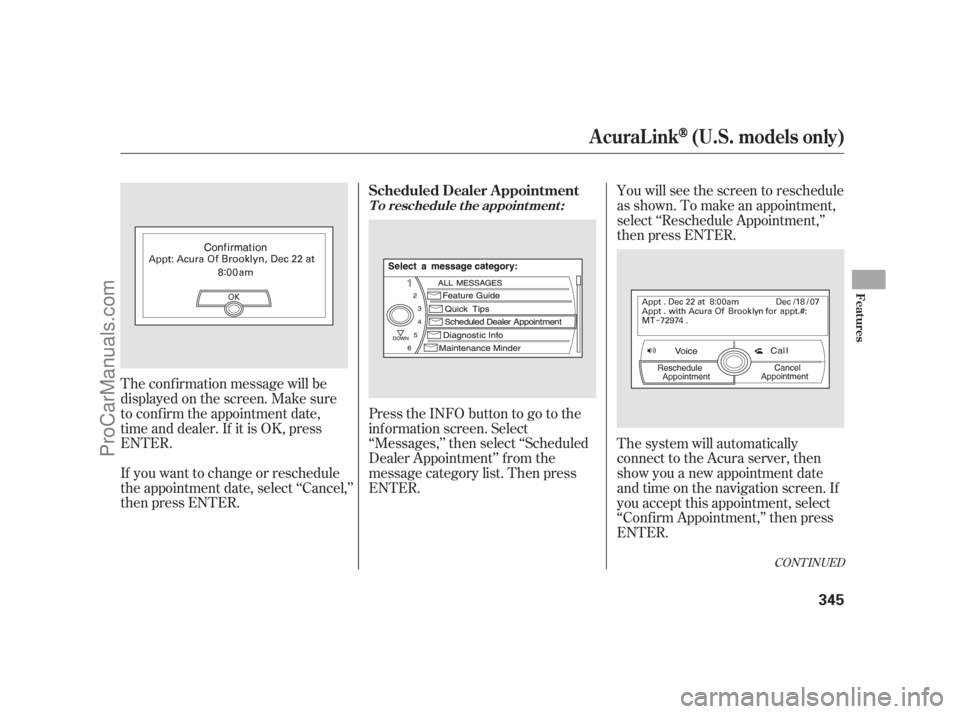

The conf irmation message will be
displayed on the screen. Make sure
to conf irm the appointment date,
time and dealer. If it is OK, press
ENTER.
If you want to change or reschedule
the appointment date, select ‘‘Cancel,’’
then press ENTER.PresstheINFObuttontogotothe
inf ormation screen. Select
‘‘Messages,’’ then select ‘‘Scheduled
Dealer Appointment’’ f rom the
message category list. Then press
ENTER.You will see the screen to reschedule
as shown. To make an appointment,
select ‘‘Reschedule Appointment,’’
then press ENTER.
The system will automatically
connect to the Acura server, then
show you a new appointment date
and time on the navigation screen. If
you accept this appointment, select
‘‘Conf irm Appointment,’’ then press
ENTER.
CONT INUED
T o reschedule t he appoint ment :
Scheduled Dealer A ppointment
AcuraLink(U.S. models only)
Features
345
10/08/04 19:41:56 31SJA660_350
ProCarManuals.com

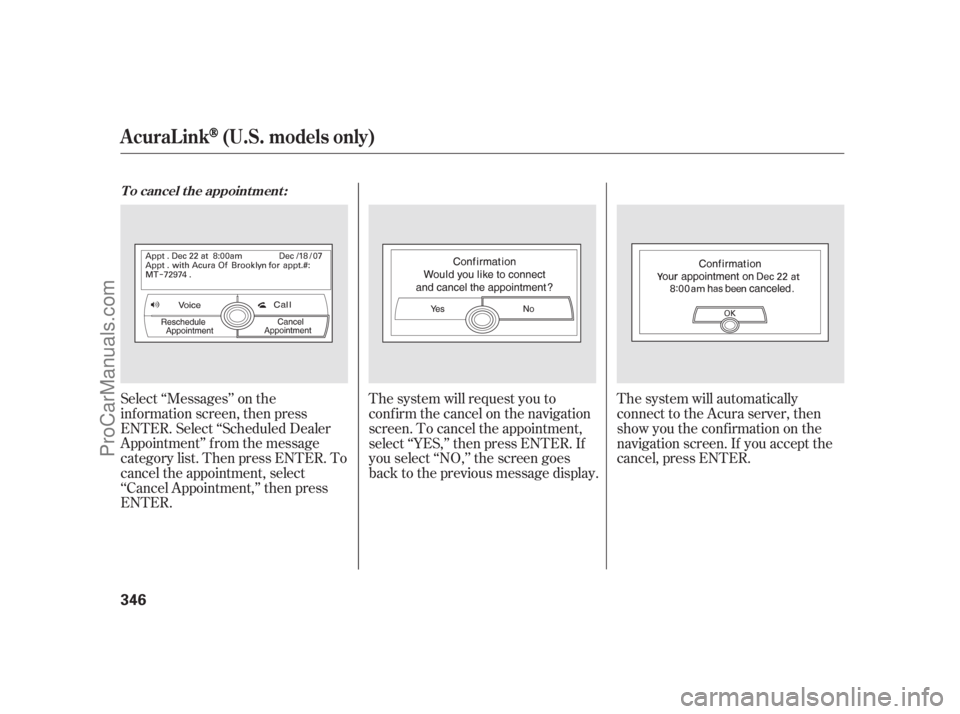

Select ‘‘Messages’’ on the
inf ormation screen, then press
ENTER. Select ‘‘Scheduled Dealer
Appointment’’ f rom the message
category list. Then press ENTER. To
cancel the appointment, select
‘‘Cancel Appointment,’’ then press
ENTER.The system will request you to
conf irm the cancel on the navigation
screen. To cancel the appointment,
select ‘‘YES,’’ then press ENTER. If
you select ‘‘NO,’’ the screen goes
back to the previous message display.
The system will automatically
connect to the Acura server, then
show you the conf irmation on the
navigation screen. If you accept the
cancel, press ENTER.
T o cancel t he appoint ment :
AcuraLink(U.S. models only)
346
10/08/04 19:42:06 31SJA660_351
ProCarManuals.com

If you want the information now,
select the Check Now option. (If the
navigation screen is not active, you
must select OK f rom the navigation
disclaimer screen bef ore you can
check the inf ormation.)
You can then use the message
options to call your dealer f or an
appointment or to f ind the nearest
dealer. Depending on the severity of the
problem, the message will let you
know if you should see your dealer
immediately or if you can wait until a
later date.When viewing a diagnostic inf o
message through the INFO menu,
you can use the Diagnostic Inf o
option to connect to the Acura server
and retrieve the latest inf ormation
regarding the problem.There may not be any
additional inf ormation, depending on
thetimeelapsedsincetheprevious
time you retrieved the inf ormation
f rom the Acura server. When you make an appointment
through My Acura’s online Schedule
Service Appointment, you can be
reminded in advance about that
appointment through AcuraLink.
If you need to reschedule or cancel
the appointment, see page .
345
CONT INUED
Reminder Message
AcuraLink(U.S. models only)
Features
349
NOTE:
10/08/04 19:42:37 31SJA660_354
ProCarManuals.com

µµSelect this
option to delete all stored messages
within a category, except f or
diagnostic info and recall campaign
messages. These messages can only
be deleted by a certif ied technician
af ter the recall is done or the
problem is corrected, or through a
broadcast message f rom Acura. Select ON if you want to be notif ied
of new messages (envelope icon
appears on the navigation screen).
Select OFF if you do not want to be
notif ied of new messages (envelope
icon does not appear on the screen).
Messages can still be accessed using
the INFO menu. If you would like to
stop receiving messages, visit the
My Acura website at
to change your messaging
pref erences.
To access the f ollowing f unctions,
press the SETUP button, push the
interf ace selector to the right to
select Other, then rotate the
interf ace knob to select AcuraLink/
Messages.
www.owners.
acura.com
CONT INUED
Delete Messages New Message Notif ication
AcuraLink(U.S. models only)
Features
351
10/08/04 19:42:50 31SJA660_356
ProCarManuals.com

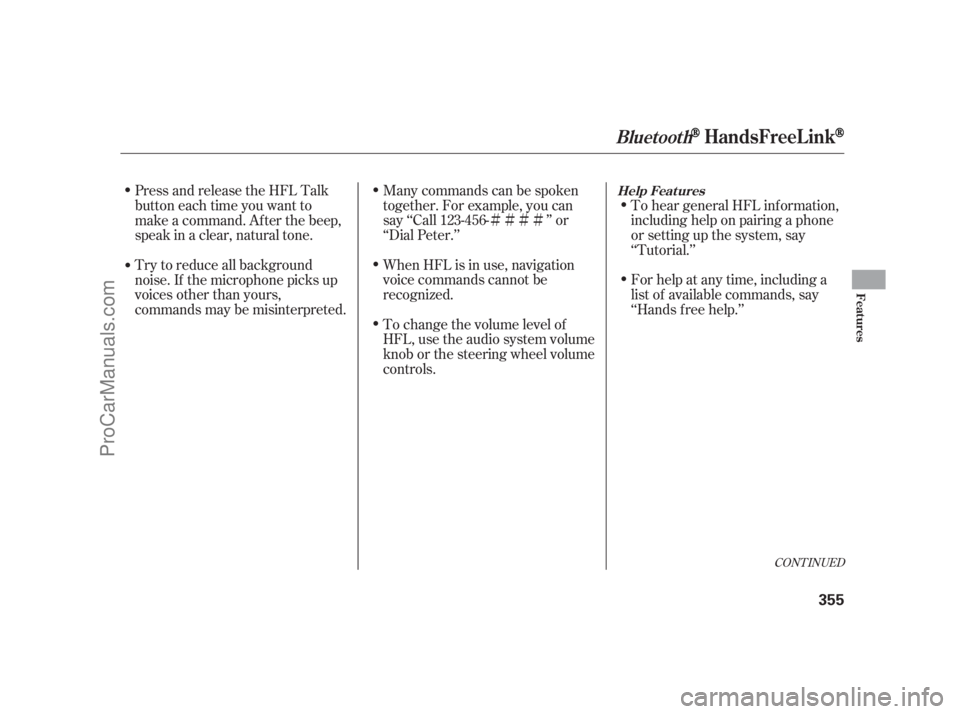

ÌÌÌÌTo hear general HFL inf ormation,
including help on pairing a phone
or setting up the system, say
‘‘Tutorial.’’
For help at any time, including a
list of available commands, say
‘‘Hands f ree help.’’
Many commands can be spoken
together. For example, you can
say ‘‘Call 123-456- ’’ or
‘‘Dial Peter.’’
When HFL is in use, navigation
voice commands cannot be
recognized.
Tochangethevolumelevelof
HFL, use the audio system volume
knob or the steering wheel volume
controls.
Try to reduce all background
noise. If the microphone picks up
voices other than yours,
commands may be misinterpreted. Press and release the HFL Talk
button each time you want to
make a command. Af ter the beep,
speak in a clear, natural tone.
CONT INUED
BluetoothHandsFreeL ink
Help Feat ures
Features
355
10/08/04 19:43:25 31SJA660_360
ProCarManuals.com

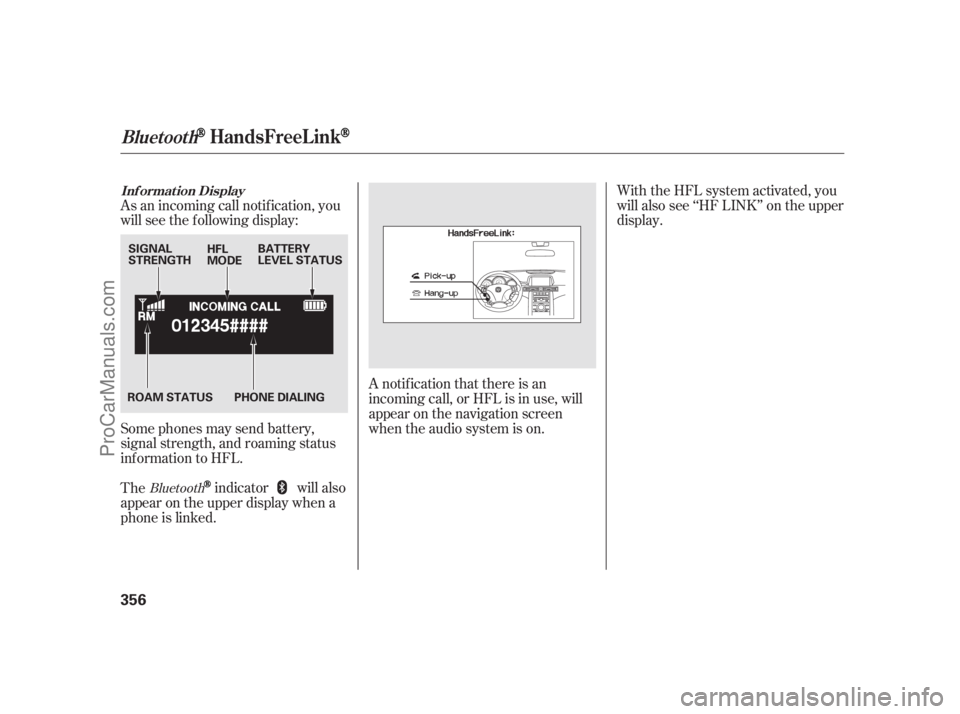

As an incoming call notif ication, you
will see the f ollowing display:
Some phones may send battery,
signal strength, and roaming status
inf ormation to HFL.With the HFL system activated, you
will also see ‘‘HF LINK’’ on the upper
display.
A notif ication that there is an
incoming call, or HFL is in use, will
appear on the navigation screen
when the audio system is on.
The
indicator will also
appear on the upper display when a
phone is linked.Bluetooth
BluetoothHandsFreeL ink
Inf ormation Display
356
SIGNAL
STRENGTH BATTERY
LEVEL STATUS
HFL
MODE
PHONE DIALING
ROAM STATUS
10/08/04 19:43:36 31SJA660_361
ProCarManuals.com

If equipped

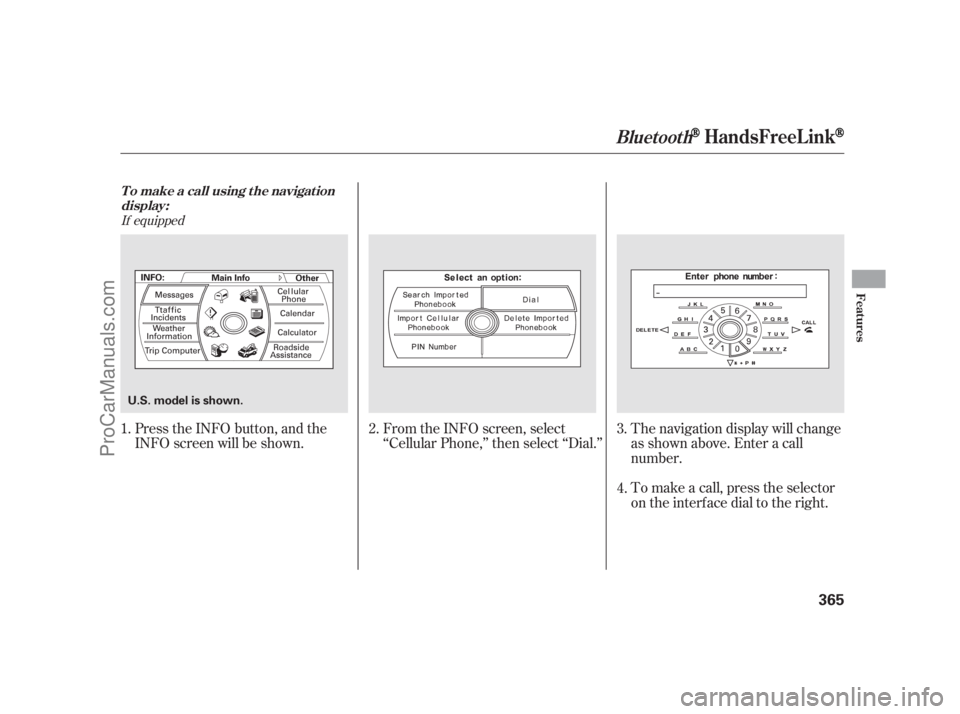

Press the INFO button, and the
INFO screen will be shown.From the INFO screen, select
‘‘Cellular Phone,’’ then select ‘‘Dial.’’
To make a call, press the selector
on the interface dial to the right. The navigation display will change
as shown above. Enter a call
number.
1. 2. 3.
4.
BluetoothHandsFreeL ink
T o make a call using t he navigat iondisplay:
Features
365
U.S. model is shown.
10/08/04 19:45:32 31SJA660_370
