buttons ACURA RL 2012 User Guide

Û
Ý
Ý
µ
µ
µ
µÛ
Ý Û

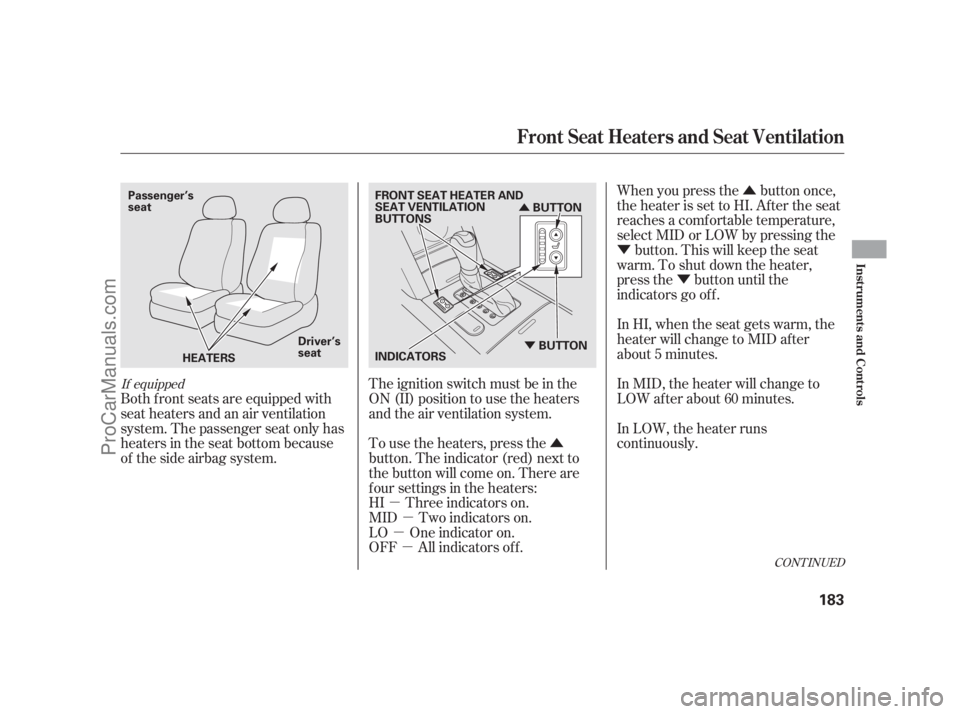

When you press the button once,
the heater is set to HI. Af ter the seat
reaches a comf ortable temperature,
select MID or LOW by pressing the
button. This will keep the seat
warm. To shut down the heater,
press the button until the
indicators go of f .
In HI, when the seat gets warm, the
heater will change to MID after
about 5 minutes.
In MID, the heater will change to
LOW af ter about 60 minutes.
In LOW, the heater runs
continuously. The ignition switch must be in the
ON (II) position to use the heaters
and the air ventilation system.
HI Three indicators on.
MID Two indicators on.
LO One indicator on.
OFF All indicators of f . To use the heaters, press the
button. The indicator (red) next to
the button will come on. There are
four settings in the heaters: Both f ront seats are equipped with
seat heaters and an air ventilation
system. The passenger seat only has
heaters in the seat bottom because
of thesideairbagsystem.
If equipped
CONT INUED
Front Seat Heaters and Seat Ventilation
Inst rument s and Cont rols
183
BUTTON
INDICATORS Driver’s
seat
HEATERSBUTTON FRONT SEAT HEATER AND
SEAT VENTILATION
BUTTONS Passenger’s
seat
11/07/20 18:23:37 31SJA670_188
ProCarManuals.com

Af ter pushing the DOOR button, all
the lights come on when you open
any door, unlock the doors with the
remote or built-in key, or turn the
ignition switch f rom the ON (II) or
the ACCESSORY (I) position to the
LOCK (0) position. The indicator in
the button comes on as a reminder.
The f ront and rear of the ceiling
have ceiling lights.
To change the ‘‘INTERIOR LIGHT
DIMMING TIME’’ setting, see page
. Push each ceiling light button to turn
its light on and of f .
Push the ON button to turn on all the
ceiling lights. Push the OFF button
to turn them off. 116 Ceiling L ights
Interior Lights
200
CEILING LIGHT
BUTTONS
CEILING LIGHT
BUTTONS OFF BUTTON
DOOR BUTTON
ON BUTTONFront
Rear
11/07/20 18:25:41 31SJA670_205
ProCarManuals.com

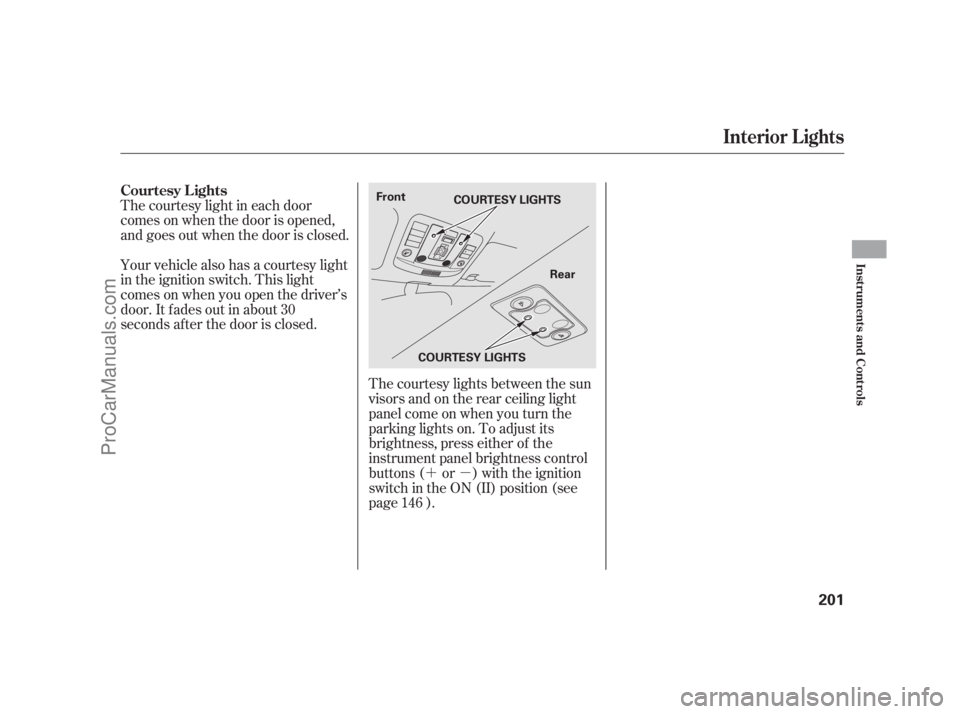

´µ The courtesy light in each door
comes on when the door is opened,
and goes out when the door is closed.
Your vehicle also has a courtesy light
in the ignition switch. This light
comesonwhenyouopenthedriver’s
door. It f ades out in about 30
seconds af ter the door is closed.
The courtesy lights between the sun
visors and on the rear ceiling light
panel come on when you turn the
parking lights on. To adjust its
brightness, press either of the
instrument panel brightness control
buttons ( or ) with the ignition
switch in the ON (II) position (see
page ).146 Courtesy Lights
Interior Lights
Inst rument s and Cont rols
201
Front
COURTESY LIGHTS
COURTESY LIGHTSRear
11/07/20 18:25:47 31SJA670_206
ProCarManuals.com

Climat e Cont rol Syst em
204
RECIRCULATION
BUTTON
U.S. models
(Technology package model is shown)MODE
BUTTONDRIVER’S SIDE TEMPERATURE
CONTROL BAR
AUTO
BUTTONOFF
BUTTONWINDSHIELD
DEFROSTER
BUTTON FAN CONTROL
BUTTONS TEMPERATURE DISPLAYPASSENGER’S SIDE
TEMPERATURE CONTROL BAR
A/C (AIR CONDITIONING)
BUTTON
INTERFACE DIALREAR
WINDOW
DEFOGGER/
MIRROR
HEATER
BUTTON
11/07/20 18:26:02 31SJA670_209
ProCarManuals.com

Ý Û Many climate control f unctions can
still be controlled by standard
buttons, dials, and knobs, but some
f unctions can only be accessed using
the interf ace dial. The interf ace dial
has two parts, a knob and a selector.
The knob turns lef t and right. Use it
to make selections or adjustments to
a list or menu on the screen.To select an item that comes with
, , , or icons,
push the interf ace selector up, down,
lef t, or right.When you unlock the doors with
your remote, the driver’s ID (Driver
1orDriver2)isdetected,andthe
climate control settings are turned to
therespectivemodeautomatically
when the ignition is turned to the
ON (II) position.
The climate control system can also
be operated by voice control.
See the navigation system manual
f or complete details.
Ref er to Voice Control Basics f or
complete details (see page ). When you make a selection, press
ENTERtogotothatselection.
304
On models with navigation system
On models without navigation system
Interf ace Dial Personalization Setting
Voice Control System
Climat e Cont rol Syst em
Features
205
ENTER
SELECTOR KNOB
11/07/20 18:26:12 31SJA670_210
ProCarManuals.com

Û
ÝTo select the desired temperature,
push the temperature control bar up
or down.Press the A/C button to view the
climate control display. Pushing
ENTER on the interf ace selector
turns the air conditioning on and of f .
You will see A/C ON or A/C OFF in
the display.
When you turn the A/C of f , the
system cannot regulate the inside
temperature if you set the
temperature control below the
outside temperature.
Press the button to increase
the fan speed and airflow. Press the
button to decrease it.To set the driver’s and passenger’s
temperature separately, push the
temperature control bar up or down
on the driver’s or passenger’s side.
The driver and passenger can each
set the temperature to the desired
setting.
Press the A/C button to view the
climate control display, then turn the
interf ace knob to increase or
decrease the f an speed and airf low.
Using the Fan Control Buttons
Using the Interf ace Dial
Fan Control T emperature Control Bars A ir Conditioning (A /C)
Climat e Cont rol Syst em
206
11/07/20 18:26:21 31SJA670_211
ProCarManuals.com

Most audio system f unctions can still
be controlled by standard buttons,
dials, and knobs, but some f unctions
can only be accessed using the
interf ace dial. The interf ace dial has
two parts, a knob and a selector.The selector can be pushed lef t,
right, up, down, and in. Use the
selector to scroll through lists, to
select menus, and to highlight menu
items. When you make a selection,
press ENTER to go to that selection. The knob turns lef t and right. Use it
to make selections or adjustments to
a list or menu on the screen.When you unlock the doors with
your remote and turn the audio
system on, the driver’s ID (Driver 1
or Driver 2) is detected, and the
radio preset memory (see page ),
the auto select preset memory (see
page ), and the volume and
sound level settings (see page )
are turned to the respective
memorized mode automatically.
The audio system can also be
operated by voice control.
See the navigation system manual
f or complete details.
Ref er to Voice Control Basics f or
complete details (see page ).226 217
304217
On models with navigation system
On models without navigation system
Interf ace Dial Personalization Setting
Voice Control System
Audio System
Features
213
KNOB
ENTER
SELECTOR
11/07/20 18:27:31 31SJA670_218
ProCarManuals.com

Audio System
Playing the AM/FM Radio
214
PRESET BUTTONS
INTERFACE DIALU.S. models (Technology package
model is shown) and Canadian models
POWER/
VOLUME
KNOB
SCAN
BUTTON SEEK BAR
AUDIO
DISPLAY
BUTTONAM/FM
BUTTON
TUNE BAR
SCAN
BUTTON POWER/
VOLUME
KNOB
AUDIO
DISPLAY
BUTTON SEEK BAR
PRESET BUTTONS
INTERFACE DIALAM BUTTON FM BUTTON
TUNE BAR Hawaiian models
A.SEL
BUTTON UPPER DISPLAY
11/07/20 18:27:40 31SJA670_219
ProCarManuals.com

CONT INUED
The band and f requency that the
radio was last tuned to are shown on
the display. To change bands, press
the AM/FM button (AM or FM
buttonHawaiianmodels).Youcan
also change bands between FM1 and
FM2 by pushing the interf ace
selector up. Each time you push it up,
the band will change to FM1 or FM2.
On the FM bands, STEREO will be
shown on the navigation screen and
ST on the upper display, if the
stationisbroadcastinginstereo.
Stereo reproduction on AM is not
available. The ignition switch must be in the
ACCESSORY (I) or the ON (II)
position. Press the AUDIO button to
view the audio control display. Turn
the system on by pressing the
power/volume knob or the AM/FM
button (AM or FM button on
Hawaiian model). Adjust the volume
by turning the power/volume knob.You can use any of f ive methods to
f ind radio stations on the selected
band: tune, skip (seek), scan, the
preset buttons, and auto select.
On the FM band, you can also use
the f eatures provided by the radio
data system (RDS). For more
inf ormation on the RDS, see page
. 218
Audio System
To Select a Station
Features
215
BAND
STEREO ICON
11/07/20 18:27:47 31SJA670_220
ProCarManuals.com

µ µ
Push the interf ace selector down to
scroll down the screen, highlight
A.SEL, then press ENTER on the
interf ace selector. You will see
A.SEL on the upper display and
A.SEL on the screen, and the system
goes into scan mode f or several
seconds.
Press the A.SEL button. You will see
A.SEL on the upper display, A.SEL
on the screen, and the system goes
into scan mode f or several seconds.
The system stores the f requencies of
six AM and twelve FM stations in
the preset buttons. If you are
traveling and can no longer receive
your preset stations, you can use the
auto select feature to find stations in
the local area. Each preset button or
preset icon can store one f requency
on AM and two f requencies on FM.
Select the desired band, AM or
FM. FM1 and FM2 let you store
twosetsof FMfrequencieswith
the preset buttons (on-screen
icons).
Usethetune,skip(seek),scan,or
RDS function to tune the radio to a
desired station.
Press the preset button, and hold
it until you hear a beep. You can
also store f requencies with the
interf ace dial. Select the preset
icon you want to store the
f requency on, then press ENTER
on the interf ace selector, and hold
it f or more than 2 seconds.
Repeat steps 1 through 3 to store a
total of six stations on AM and
twelve stations on FM. 1.
2.
3.
4.
To store a preset memory location:U.S. models (except Hawaiian) and
Canadian models
Hawaiian models
CONT INUED
AUTO SELECT Preset
Audio System
Features
217
A.SEL ICON
11/07/20 18:28:03 31SJA670_222
