Page 85 of 521

84
uuIndicators uMulti-Information Display Warn ing and Information Messages
Instrument Panel
Multi-Information Display Warning and Information MessagesThe following messages appear only on the multi-information display. Roll the right selector wheel to see the message again wit h the
system message indicator on.
*1:On the left: Models with navigation system On the right: Models without navigation system
Message
*1
Condition
Explanation
●Appears when the washer fluid is low.
●Refill washer fluid.
2Refilling Window Washer Fluid P. 429
●Appears when the scheduled maintenance is due soon.●Consequently, Maintenance Due Now /SERVICE
DUE NOW and Maintenance Past Due /SERVICE
PAST DUE follow.
2Maintenance Minder Messages on the Multi-
Information Display P. 415
●Appears when the engine coolant temperature gets
abnormally high.
2Overheating P. 481
●Appears when the transmission fluid temperature is
too high.
●Stop in a safe place in
(P
. Let the engine idle until the
message disappears.
●Appears when there is a problem with the sensor on
the battery.
●Have your vehicle checked by a dealer.
2 Checking the Battery P. 448
●Appears along with the battery charging system
indicator when the battery is not charging.
●Turn off the climate control system and rear defogger
to reduce electricity consumption.
2If the Charging Syste m Indicator Comes On P. 483
Page 345 of 521

uuWhen Driving uAutomatic Transmission
344Driving
If there is a strong impact with something under the vehicle, stop in a safe location.
Check the underside of the vehicle for damage or any fluid leaks.Automatic TransmissionThe engine runs at a higher idle speed and creeping increases.
Keep the brake pedal firmly depressed when stopped.
Quickly depressing the accelerator pedal while driving uphill may cause the
transmission to drop to a lower gear, unexpectedly increasing vehicle speed. Depress
the accelerator pedal carefully, especially on slippery roads and curves.■
Other Precautions
■
Creeping
■
Kickdown
1Precautions While Driving
Do not put the shift lever in
(N, as you will lose
engine braking (and acceleration) performance.
During the first 600 miles (1,000 km) of operation,
avoid sudden acceleration or full throttle operation so
as to not damage the engine or powertrain.
Avoid hard braking for the first 200 miles (300 km).
You should also follow this when the brake pads are
replaced.
Page 410 of 521

409
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 410Safety When Performing Maintenance..... 411Parts and Fluids Used in Maintenance Service ........................................... 412
Maintenance Minder
TM..................... 413
Maintenance Under the Hood
Maintenance Items Under the Hood ..... 418Opening the Hood ........................... 419
Engine Compartment Cover ............. 420
Recommended Engine Oil ................ 421
Oil Check ......................................... 422
Adding Engine Oil ............................ 423
Changing the Engine Oil and Oil Filter ..... 424Engine Coolant ................................ 426
Transmission Fluid ............................ 428
Brake Fluid ....................................... 429
Refilling Window Washer Fluid......... 429
Replacing Light Bulbs ....................... 430Checking and Maintaining Wiper
Blades .......................................... 436Checking and Maintaining Tires
Checking Tires ................................. 439Tire and Loading Information Label ...... 440Tire Labeling .................................... 440DOT Tire Quality Grading (U.S. Vehicles)....... 442
Wear Indicators ............................... 444
Tire Service Life ................................ 444
Tire and Wheel Replacement ........... 445
Tire Rotation .................................... 446
Winter Tires ..................................... 447
Battery ............................................... 448
Remote Transmitter Care Replacing the Button Battery ........... 449Climate Control System Maintenance
.... 450
Cleaning
Interior Care .................................... 451
Exterior Care.................................... 453
Page 417 of 521

416
uuMaintenance Minder
TMuTo Use Maintenance Minder
TM
Maintenance
■
Maintenance Service Items
1Maintenance Service Items•Independent of the Maintenance Minder
information, replace the brake fluid every 3 years.•Inspect idle speed every 160,000 miles (256,000
km).•Adjust the valves during services A, B, 1, 2, or 3 if
they are noisy.
Maintenance Minder Message
System Message
Indicator
Sub Items
Main ItemModels with
navigation
system
Models without
navigation
system
Sub Items Main Item
*1: If a message
Maintenance Due Now/SERVICE DUE NOW does not appear more than 12
months after the display is reset, change the engine oil every year.
# : See information on maintenance and emissions warranty.CODE
Maintenance Main Items
A
●Replace engine oil
*1
B
●Replace engine oil
*1 and oil filter
●Inspect front and rear brakes●Check parking brake adjustment●Inspect tie rod ends, steering gearbox, boots, and
drain plug●Inspect suspension components●Inspect driveshaft boots●Inspect brake hoses and lines (Including ABS/VSA)●Inspect all fluid levels and condition of fluids●Inspect exhaust system
#
●Inspect fuel lines and connections
#
●Check expiration information for TRK bottle
*2: If you drive in dusty conditions, replace the air cleaner element every 15,000 miles (24,000 km).
*3: If you drive primarily in urban areas that have high concentrations of soot in the air from industry and from diesel-powered vehicles, replace the dust and pollen filter every 15,000 miles (24,000 km).
*4: If you drive regularly in very high temperatures (over 110°F, 43°C), in very low temperatures (under -20°F, -29°C), replace every 60,000 miles/100,000 km.CODE
Maintenance Sub Items
1
●Rotate tires
2
●Replace air cleaner element
*2
●Replace dust and pollen filter
*3
●Inspect drive belt
3●Replace transmission fluid
4
●Replace spark plugs●Replace timing belt and inspect water pump
*4
●Inspect valve clearance
5●Replace engine coolant
Page 429 of 521

428

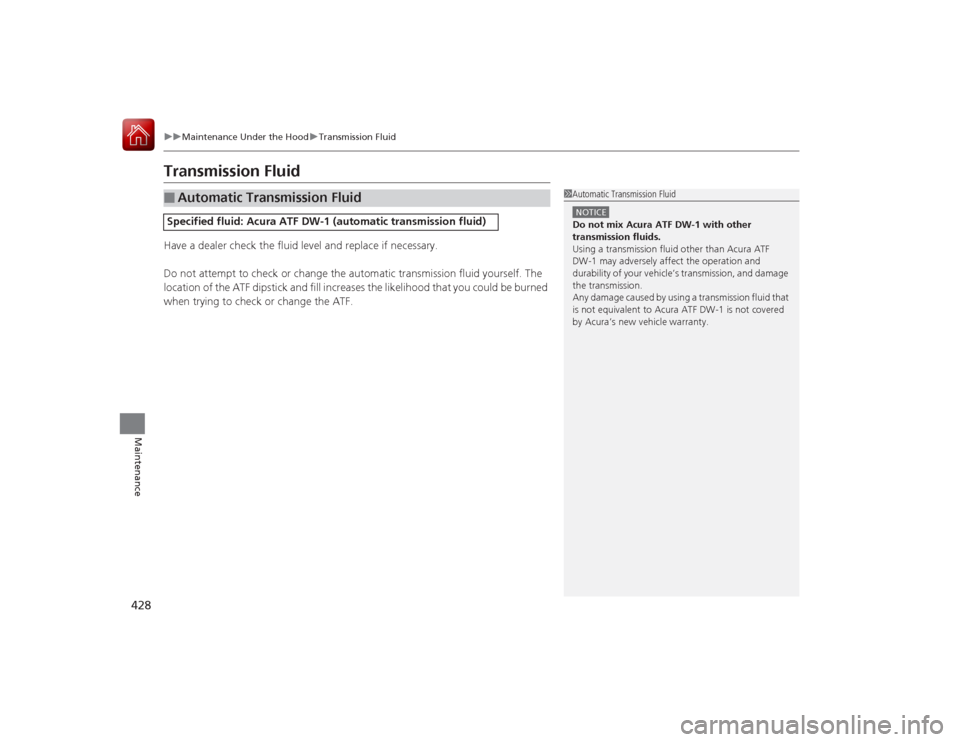

uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission FluidHave a dealer check the fluid level and replace if necessary.
Do not attempt to check or change the automatic transmission fluid yourself. The
location of the ATF dipstick and fill increases the likelihood that you could be burned
when trying to check or change the ATF.■
Automatic Transmission FluidSpecified fluid: Acura ATF DW-1 (automatic transmission fluid)
1Automatic Transmission FluidNOTICEDo not mix Acura ATF DW-1 with other
transmission fluids.
Using a transmission fluid other than Acura ATF
DW-1 may adversely affect the operation and
durability of your vehicle’s transmission, and damage
the transmission.
Any damage caused by using a transmission fluid that
is not equivalent to Acura ATF DW-1 is not covered
by Acura’s new vehicle warranty.
Page 485 of 521

484
uuIndicator, Coming On/Blinking uIf the Malfunction Indicator Lamp Comes On or Blinks
Handling the Unexpected
If the Malfunction Indicator Lamp Comes On or Blinks
■Reasons for the indicator lamp to come on or blink
• Comes on when there is a problem with the engine emissions control
system.
• Blinks when engine misfiring is detected.■What to do when the indicator lamp comes on
Avoid high speeds and immediately get your vehicle inspected at a
dealer.■What to do when the indicator lamp blinks
Park the vehicle in a safe place with no flammable items and wait at least
ten minutes or more with the engine stopped until it cools.
If the Brake System Indicator (Red) Comes On
■Reasons for the indicator to come on
• The brake fluid is low.
• There is a malfunction in the brake system.■What to do when the indicator comes on while driving
Depress the brake pedal lightly to check pedal pressure.
• If normal, check the brake fluid level the next time you stop.
• If abnormal, take immediate action. If necessary, downshift the
transmission to slow the vehicle using engine braking.
1If the Malfunction Indicator Lamp Comes On or BlinksNOTICEIf you drive with the malfunction indicator lamp on,
the emissions control system and the engine could be
damaged.
If the malfunction indicator lamp blinks again when
restarting the engine, drive to the nearest dealer at
31 mph (50 km/h) or less. Have your vehicle
inspected.1If the Brake System Indicator (Red) Comes On
Have your vehicle repaired immediately.
It is dangerous to drive with low brake fluid. If there
is no resistance from the brake pedal, stop
immediately in a safe place. If necessary downshift
the gears.
If the brake system indicator and ABS indicator come
on simultaneously, the electronic brake distribution
system is not working. This can result in vehicle
instability under sudden braking.
Have your vehicle inspected by a dealer immediately.
U.S.
Canada
Page 513 of 521

Index
512Index
Index
AAAC.................................................... 224, 248
ABS (Anti-lock Brake System) ................... 390
Accessories and Modifications ................. 407
Accessory Power Sockets .......................... 167
AcuraLink .................................................. 326
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ............................ 81, 353
Additives Coolant ................................................... 426
Engine Oil ................................................ 421
Washer .................................................... 429
Additives, Engine Oil ................................ 421
Adjusting
Armrest ................................................... 158
Front Seats .............................................. 152
Head Restraints........................................ 155
Mirrors .................................................... 149
Steering Wheel ........................................ 148
Temperature .............................................. 99
Agile Handling Assist System ................... 378
Aha
TM Menu .............................................. 247
AhaTM Radio .............................................. 258
Air Conditioning System (Climate Control System) .................................................... 177
Changing the Mode ................................ 180
Defrosting the Windshield and Windows ............................................... 184
Dust and Pollen Filter ............................... 450
Rear Temperature Control Dial................. 185
Sensors .................................................... 186 Using Automatic Climate Control ............ 177
Air Pressure ....................................... 440, 499
Airbags ........................................................ 37
Advanced Airbags ..................................... 43
Airbag Care............................................... 51
Driver’s Knee Airbag.................................. 44
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 40
Indicator.............................................. 49, 74
Passenger Airbag Off Indicator .................. 50
Sensors ..................................................... 37
Side Airbags .............................................. 46
Side Curtain Airbags.................................. 48
AM/FM Radio ............................................ 216
Anti-lock Brake System (ABS) .................. 390
Indicator.................................................... 74
Armrest ..................................................... 158
Audio Remote Controls ........................... 192
Audio System ............................................ 188
Adjusting the Sound................................ 206
Auxiliary Input Jack.................................. 190
Error Messages ........................................ 253
General Information ................................ 259
HDD ........................................................ 227
Internet Radio ......................................... 245
iPod ........................................................ 237
MP3/WMA/AAC .............................. 224, 248
Reactivating ............................................ 191
Recommended CDs ................................. 260
Recommended Devices............................ 262
Remote Controls ..................................... 192 Security Code ......................................... 191
Shortcuts ................................................ 195
Theft Protection ...................................... 191
USB Flash Drives...................................... 262
USB Port ................................................. 189
Authorized Manuals ................................ 507
Auto Door Locking/Unlocking ................ 124
Customize ...................................... 108, 276
Automatic Brake Hold ............................. 388
Indicator ........................................... 70, 388
Automatic Brake Hold System
Indicator ........................................... 69, 388
Automatic Lighting .................................. 138
Automatic Transmission .......................... 344
Creeping................................................. 344
Fluid ....................................................... 428
Kickdown ............................................... 344
Operating the Shift Lever .................. 17, 346
Shift Lever Does Not Move ...................... 480
Shifting ................................................... 345
Auxiliary Input Jack ................................. 190
Average Fuel Economy .............................. 99
Average Speed ......................................... 100
BBattery...................................................... 448
Charging System Indicator ................ 71, 483
Jump Starting ......................................... 477
Maintenance (Checking the Battery) ....... 448
Maintenance (Replacing) ......................... 449
Page 515 of 521

514Index
Defrosting the Windshield and Windows .................................................. 184
Devices that Emit Radio Waves ................ 501
Dimming Headlights ............................................... 137
Rearview Mirror ....................................... 149
Dipstick (Engine Oil) ................................. 422
Directional Signals (Turn Signal) .............. 136
Door Mirrors ............................................. 150
Doors ......................................................... 115
Auto Door Locking .................................. 124
Auto Door Unlocking ............................... 124
Door Open Indicator ............................ 29, 75
Keys ........................................................ 115
Locking/Unlocking the Doors from the Inside ......................................... 12, 121
Locking/Unlocking the Doors from
the Outside ............................................ 117
Lockout Prevention System ...................... 120
DOT Tire Quality Grading ........................ 442
Driver’s Knee Airbag .................................. 44
Driving ....................................................... 333
Automatic Transmission ........................... 344
Braking .................................................... 385
Cruise Control ......................................... 350
Shifting Gear ........................................... 345
Starting the Engine .................................. 340
Driving Position Memory System ............. 146
Dust and Pollen Filter ............................... 450
EElapsed Time............................................. 100
Electric Parking Brake Indicator.................................................... 69
Electric Parking Brake System
Indicator............................................ 69, 485
Electric Power Steering (EPS) System Indicator............................................ 74, 485
Electronic Stability Control (ESC) ............. 376
Emergency ................................................ 492
Emissions Testing (Readiness Codes) ....... 503
Engine ....................................................... 500
Coolant ................................................... 426
Jump Starting .......................................... 477
Oil ........................................................... 421
Starting ................................................... 340
Switch Buzzer.......................................... 133
Engine Compartment Cover .................... 420
Engine Coolant ......................................... 426
Adding to the Radiator ............................ 427
Adding to the Reserve Tank..................... 426
Overheating ............................................ 481
Temperature Gauge .................................. 94
Engine Oil ................................................. 421
Adding .................................................... 423
Checking................................................. 422
Displaying Oil Life .................................... 414
Low Oil Pressure Indicator ................. 68, 483
Recommended Engine Oil ....................... 421
ENGINE START/STOP Button .................... 133
e-pretensioners ........................................... 32 EPS (Electric Power Steering) System
........ 74
Exhaust Gas Hazard (Carbon Monoxide) .. 64
Expanded Rear Door Sunshades ............. 176
Expanded View Driver’s Mirror ............... 151
Exterior Care (Cleaning) .......................... 453
Exterior Mirrors ........................................ 150
FFeatures.................................................... 187
Filters Dust and Pollen....................................... 450
Oil .......................................................... 424
Flat Tire ..................................................... 457
Floor Mats ................................................ 452
Fluids
Automatic Transmission .......................... 428
Brake ...................................................... 429
Engine Coolant ....................................... 426
Windshield Washer ................................. 429
Foot Brake ................................................ 387
Forward Collision Warning (FCW) .......... 364
Front Airbags (SRS) .................................... 40
Front Seat Heaters and Seat
Ventilation .............................................. 173
Front Seats ................................................ 152
Adjusting ................................................ 152
Fuel ..................................................... 18, 404
Economy................................................. 406
Gauge ...................................................... 94
Instant Fuel Economy .............................. 100
Page 518 of 521

517Index
Maintenance Minder
TM............................ 413
Oil .......................................................... 422
Precautions ............................................. 410
Radiator .................................................. 427
Remote Transmitter ................................ 449
Replacing Light Bulbs .............................. 430
Safety ..................................................... 411
Service Items ........................................... 416
Tires........................................................ 439
Transmission Fluid ................................... 428
Under the Hood ...................................... 418
Malfunction Indicator Lamp ............. 71, 484
Map Lights ................................................ 160
Maximum Load Limit ............................... 337
Meters, Gauges .......................................... 94
Mirrors ...................................................... 149
Adjusting ................................................ 149
Door ....................................................... 150
Exterior ................................................... 150
Interior Rearview ..................................... 149
Modifications (and Accessories) .............. 407
Moonroof ................................................. 132
MP3 ................................................... 224, 248
Multi-Information Display ......................... 95
Multi-View Rear Camera ......................... 403
NNumbers (Identification)......................... 500
OOdometer.................................................... 99
Oil (Engine) ....................................... 421, 499
Adding .................................................... 423
Checking ................................................. 422
Displaying Oil Life .................................... 414
Low Oil Pressure Indicator .................. 68, 483
Recommended Engine Oil ................ 421, 499
Viscosity .......................................... 421, 499
On Demand Multi-Use Display
TM............. 194
Opening
Trunk ...................................................... 494
Opening/Closing Hood ....................................................... 419
Moonroof................................................ 132
Power Windows ...................................... 130
Trunk ...................................................... 125
Operating the Switches Around the Steering Wheel ...................................................... 133
Outside Temperature Display .................... 99
Overheating .............................................. 481
PPaddle Shifters (Sequential Shift
Mode) ...................................................... 348
Pandora® ................................................... 246
Panic Mode ............................................... 129
Parking ...................................................... 398
Parking Brake ........................................... 385
Parking Sensor System ............................. 399 Passenger Airbag Off Indicator
................. 50
Passing Indicators ..................................... 137
Power Rear Sunshade .............................. 175
Power Windows ....................................... 130
Precautions While Driving ....................... 343
Rain ........................................................ 343
Precision All Wheel Steer System ............ 378
Indicator.................................................... 81
Pregnant Women ....................................... 35
Puncture (Tire) .......................................... 457
RRadiator.................................................... 427
Radio (AM/FM) ......................................... 216
Radio (SiriusXM ®) ..................................... 221
Radio Data System (RDS) ......................... 218
Range ........................................................ 100
RDS (Radio Data System) ......................... 218
Readiness Codes (Emissions Testing) ....... 503
Rear Defogger/Heated Door Mirror
Button ..................................................... 145
Rear Seat Heaters ..................................... 174
Rear Temperature Control Dial ............... 185
Rearview Mirror ....................................... 149
Refueling .................................................. 404
Fuel Gauge................................................ 94
Gasoline .......................................... 404, 498
Low Fuel Indicator ..................................... 73
Regulations ............................... 383, 442, 501
Remote Transmitter ................................. 117
Page 520 of 521

519Index
Winter .................................................... 447
Tools ......................................................... 456
Towing a Trailer ....................................... 339
Towing Your Vehicle ............................... 339
Emergency .............................................. 492
TPMS (Tire Pressure Monitoring System) .................................................... 381
Transmission ....................................... 17, 345
Automatic................................. 17, 344, 345
Fluid ....................................................... 428
Number .................................................. 500
Sequential Shift Mode............................. 347
Shift Lever Position Indicator ............. 72, 346
TRIP Button .......................................... 96, 98
Trip Meter .................................................. 99
Troubleshooting ...................................... 455
Blown Fuse ............................. 487, 489, 490
Brake Pedal Vibrates ................................. 21
Buzzer Sounds When Opening Door ......... 22
Emergency Towing ................................. 492
Engine Won’t Start ................................. 474
Flat Tire/Puncture .................................... 457
Noise When Braking ................................. 22
Overheating ............................................ 481
Premium Gasoline ........................... 404, 498
Rear Door Won’t Open ..................... 21, 123
Select Lever Won’t Move ........................ 480
Warning Indicators.................................... 68
Trunk ........................................................ 125
Lid .......................................................... 125
Light Bulbs .............................................. 498 Release Handle ........................................ 494
Unable to Open ....................................... 494
Trunk Pass-through Cover ........................ 170
Turn Signals .............................................. 136
Indicators (Instrument Panel) ...................... 77
Turn-by-Turn Directions ........................... 100
UUnlocking the Doors................................ 117
Unlocking the Front Doors from the Inside ........................................... 12, 121
USB Flash Drives ........................................ 262
USB Port .................................................... 189
Using the Keyless Access System .............. 118VValet Mode............................................... 162
Vanity Mirrors ............................................... 7
Vehicle Identification Number ................ 500
Vehicle Stability Assist (VSA® ).................. 376
Off Button ............................................... 377
Off Indicator ...................................... 75, 377
System Indicator ................................ 75, 376
Viscosity (Oil) .................................... 421, 499
VSA ® (Vehicle Stability Assist) .................. 376WWarning and Information Messages ......... 84
Warning Indicator On/Blinking ............... 483Warning Labels
........................................... 65
Warranties (Warranty Manual provided
separately) .............................................. 505
Watts ......................................................... 498
Wear Indicators (Tire) .............................. 444
Wheel Nut Wrench (Jack Handle) ........... 471
Window Washers ..................................... 141
Adding/Refilling Fluid .............................. 429
Switch ..................................................... 141
Windows (Opening and Closing) ............ 130
Windshield
Cleaning ................................................. 454
Defrosting/Defogging .............................. 184
Washer Fluid ........................................... 429
Wiper Blades ........................................... 436
Wipers and Washers................................ 141
Winter Tires .............................................. 447
Snow Tires .............................................. 447
Tire Chains .............................................. 447
Wipers and Washers ................................. 141
Checking and Replacing Wiper Blades ..... 436
WMA ................................................. 224, 248
Worn Tires ................................................ 439
