fog light Acura RLX 2016 Owner's Manual

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Steering Wheel Adjustments (P 171)
❙POWER Button (P 155)
❙ (Vehicle Stability Assist (VSA®)
System OFF) Button
(P 413)
❙Road Departure Mitigation (RDM)
Button
(P 402)
❙Parking Sensor System Button* (P 440)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P 433)
❙Navigation System
() See the Navigation System Manual
❙Audio/Information Screen (P 225)
❙Hazard Warning Button
❙On Demand Multi-Use DisplayTM
(P 217)
❙Audio System (P 212)
❙System Indicators (P 74)
❙Gauges (P 106)
❙Multi-Information Display
(P 108)
❙Climate Control System (P 200)
❙Rear Window Defogger/
Heated Mirror Button
(P 168)
❙Front Seat Heater Buttons* (P 195)
❙Headlight Washer Button (P 165)
❙Front Seat Heaters and Ventilation
Buttons* (P 196)
❙CAMERA Button* (P 449)
Canadian models
16 ACURA RLX E-AWD-31TY36200.book 4 ページ ２０１５年５月２２日　金曜日　午後３時５０分

Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P 472)
❙Windshield Wipers (P 163, 489)
❙Tires (P 492, 513)
❙Door Lock/Unlock Control (P 136)
❙Power Door Mirrors (P 173)
❙Headlights (P 159, 484)
❙Front Side Marker Lights (P 158, 485)
❙How to Refuel (P 459)
❙High-Mount Brake Light (P 488)
❙Emergency Trunk Release Lever (P 148)
❙Opening/Closing the Trunk (P 146)
❙Multi-View Rear Camera* (P 447)
❙Rear Side Marker Lights (P 487)
❙Brake/Taillights (P 487)
❙Rear Turn Signal Lights (P 486)
❙Front Turn Signal/Parking Lights (P 158, 159, 484)
❙Back-Up Lights (P 487)
❙Rear License Plate Lights (P 488)
❙Taillights (P 487)
❙Fog Lights (P 162, 484)
❙Surround View Camera System* (P 448)
❙Trunk Release Button (P 146)
16 ACURA RLX E-AWD-31TY36200.book 8 ページ ２０１５年５月２２日　金曜日　午後３時５０分

16
Quick Reference Guide
Instrument Panel (P 73)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
12-Volt Battery Charging
System Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
(VSA® ) System
Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorBrake System
Indicator (Red)
Supplemental
Restraint System
Indicator
Low Temperature
Indicator
Low Fuel Indicator
Gauges (P 106)/Multi-Information Display (P 108)
/Head-Up Display (P 123)/System Indicators (P 74)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Keyless Access System
Indicator
High Voltage
Battery Charge
Level Gauge Security System
Alarm Indicator
Fuel
Gauge
Tachometer
Multi-Information Display
Speedometer
Gear Position
Indicator M (sequential mode)
Indicator/Sequential Mode
Gear Selection Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator Automatic Brake Hold
System Indicator Brake System
Indicator (Amber)
SPORT
Mode Indicator
Blind Spot Information
(BSI) Indicator
System Indicators
Collision Mitigation
Brake SystemTM
(CMBSTM) Indicator
High Temperature
Indicator
Road Departure
Mitigation (RDM)
Indicator
Lane Keeping Assist
System ( LKAS) Indicator
Adaptive Cruise Control
(
ACC ) with Low Speed
Follow (LSF) Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
U.S.
Canada
U.S.
Canada
U.S.
Canada
Fog Light Indicator
Head-Up Display
READY Indicator
POWER SYSTEM
Indicator
16 ACURA RLX E-AWD-31TY36200.book 16 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

85
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Turn Signal and
Hazard Warning
Indicators●Blinks when you operate the turn
signal lever.
●Blink if you press the hazard warning
button.
●Does not blink or blinks rapidly - A turn
signal light bulb has blown. Change the
bulb immediately.
2 Replacing Light Bulbs P. 484, 485, 486
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on whenever the light switch
is on, or in AUTO when the exterior
lights are on.●If you set the power mode to ACCESSORY
or VEHICLE OFF (LOCK) while the exterior
lights are on, a chime sounds when the
driver’s door is opened.
—
Fog Light
Indicator●Comes on when the fog lights are
on.——
Immobilizer
System Indicator
●Comes on briefly when you set the
power mode to ON, then goes off.
●Comes on if the immobilizer system
cannot recognize the key
information.
●Blinks - You cannot start the power system.
Set the power mode to VEHICLE OFF
(LOCK), then select the ON mode again.
●Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked
by a dealer.
●Do not attempt to alter this system or add
other devices to it. Electrical problems can
occur.
—
16 ACURA RLX E-AWD-31TY36200.book 85 ページ ２０１５年５月２２日　金曜日　午後３時５ ０分

131
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 132
Locking and Unlocking the Doors
Key Types and Functions .................. 133
Low Keyless Access Remote Signal Strength ......................................... 135
Locking/Unlocking the Doors from the Outside .......................................... 136
Locking/Unlocking the Doors from the
Inside ............................................. 142
Childproof Door Locks ..................... 144
Auto Door Locking/Unlocking .......... 145
Opening and Closing the Trunk ....... 146
Security System ................................ 149
Immobilizer System .......................... 149 Security System Alarm...................... 149Opening and Closing the Windows
.... 152Opening and Closing the Moonroof....... 154Operating the Switches Around the
Steering Wheel
POWER Button................................. 155
Turn Signals ..................................... 158
Light Switches.................................. 159
Fog Lights ........................................ 162
Daytime Running Lights ................... 162
Wipers and Washers ........................ 163
Brightness Control ........................... 166
Rear Defogger/Heated Door Mirror Button...168
Driving Position Memory System ...... 169 Adjusting the Steering Wheel .......... 171
Adjusting the Mirrors ....................... 172
Interior Rearview Mirror ................... 172
Power Door Mirrors ......................... 173
Adjusting the Seats .......................... 175
Adjusting the Seat Positions ............. 175
Interior Lights/Interior Convenience Items ................................................ 182
Interior Lights .................................. 182
Interior Convenience Items .............. 184
Climate Control System ................... 200
Using Automatic Climate Control .... 200
Automatic Climate Control Sensors......209
16 ACURA RLX E-AWD-31TY36200.book 131 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

uuOperating the Switches Around the Steering Wheel uLight Switches
160
Controls
Automatic lighting control can be used when
the power mode is in ON.
When the light switch is in AUTO, the
headlights and other exterior lights will switch
on and off automatica lly depending on the
ambient brightness.
You can change the auto light sensitivity
setting.
2 Customized Features P. 113, 286
■Automatic Lighting Control1Automatic Lighting Control
We recommend that you tu rn on the lights manually
when driving at night, in a dense fog, or in dark areas
such as long tunnels or parking facilities.
The light sensor is in the location shown below.
Do not cover this light sensor with anything;
otherwise, the automatic lighting system may not
work properly.
Adjust the auto light sensitivity as follows:
2 Customized Features P. 113, 286
SettingThe exterior lights come on
when the ambient light is at
MAX
HIGH
MID
LOW
MIN
Light Sensor
Bright
Dark
16 ACURA RLX E-AWD-31TY36200.book 160 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

162
uuOperating the Switches Around the Steering Wheel uFog Lights
Controls
Fog Lights
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.
Daytime Running Lights
The low beam headlights come on slightly dimmer than normal when the following
conditions have been met:
• The power mode is in ON.
• The headlight switch is AUTO, or in .
• The parking brake is released.
The low beam headlights return to the original brightness once the headlight switch
is turned on, or when the headlight switch is in AUTO and it is getting darker
outside.
1 Fog Lights
The fog lights go off when th e headlights turn off, or
when the daytime running lights are on.
Fog Light Switch
1 Daytime Running Lights
The daytime running lights come on dimmer when
the headlight switch is in than when it is in
AUTO . In AUTO , if the ambient brightness is dark,
the low beam headlights come on.
U.S. models
16 ACURA RLX E-AWD-31TY36200.book 162 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

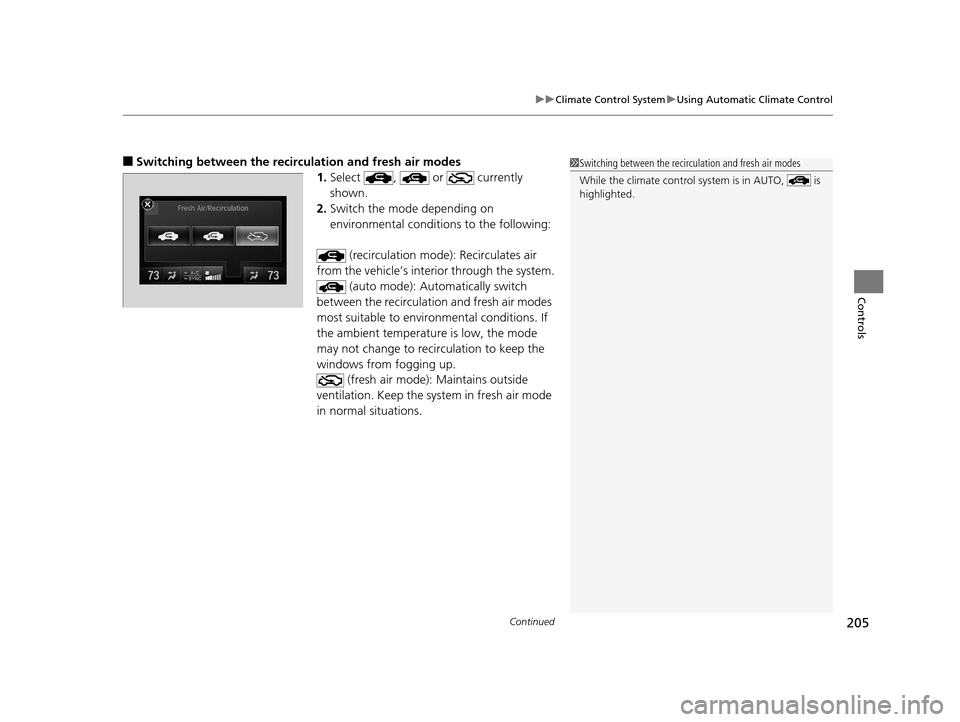

Continued205
uuClimate Control System uUsing Automatic Climate Control
Controls
■Switching between the recirc ulation and fresh air modes
1.Select , or currently
shown.
2. Switch the mode depending on
environmental conditi ons to the following:
(recirculation mode): Recirculates air
from the vehicle’s interior through the system. (auto mode): Automatically switch
between the recirculation and fresh air modes
most suitable to environmental conditions. If
the ambient temperature is low, the mode
may not change to reci rculation to keep the
windows from fogging up. (fresh air mode): Maintains outside
ventilation. Keep the system in fresh air mode
in normal situations.1 Switching between the recirc ulation and fresh air modes
While the climate control system is in AUTO, is
highlighted.
16 ACURA RLX E-AWD-31TY36200.book 205 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

366
Driving
When Driving
Turning on the Power
1.Make sure the parking brake is applied.
u The electric parking brake indicator
comes on for 15 seconds when you pull
up the electric parking brake switch.
2. Depress the brake pedal.
u Make sure the transmission is in
(P.
1When Driving
When you set the power mode to ON, you may feel
as if the brake pedal is si nking down. This is normal.
1Turning on the Power
Keep your foot firmly on the brake pedal when
starting the power system.
The engine is harder to st art in cold weather and in
thinner air found at altitudes above 8,000 feet (2,400
meters).
When turning on the power system in cold weather,
turn off all electrical accessories such as the lights,
climate control system, and rear defogger in order to
reduce 12-volt battery drain.
If you live in a region where winter is extremely cold,
an engine block heater and transmission clutch
actuator heater will impr ove starting and reduce the
warming time required befo re driving. Consult a
dealer for details.
If the exhaust system sounds abnormal or you can
smell exhaust gas inside the vehicle, have your vehicle
checked by a dealer. There may be a problem with
the engine or exhaust system.
Electric Parking
Brake Switch
Brake Pedal
16 ACURA RLX E-AWD-31TY36200.book 366 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分

uuWhen Driving uAdaptive Cruise Control (ACC) with Low Speed Follow (LSF)
390
Driving
The system may automatically shut off and the ACC indicator will come on under
certain conditions. Some examples of th ese conditions are listed below. Other
conditions may reduce some of the ACC functions.
2 Front Sensor Camera P. 383
■Environmental conditions
• Driving in bad weather (rain, fog, snow, etc.).
■Roadway conditions
• Driving on a snowy or wet roadway (obscured lane marking, vehicle tracks,
reflected lights, road spray, high contrast).
■Vehicle conditions
• The outside of the windshie ld is blocked by dirt, mud, leaves, wet snow, etc.
• An abnormal tire or wheel condition (Wrong sized, varied size or construction,
improperly inflated, compact spare tire
*, etc.).
• The camera temperature gets too high.
• The parking brake is applied.
• When the front grille is dirty.
• When the front of the vehicle tilts up due to heavy cargo in the trunk or rear seats.
• When tire chains are installed.
■ACC with LSF Conditions and Limitations1ACC with LSF Conditions and Limitations
The radar sensor for ACC with LSF is shared with the
collision mitigation braking system
TM (CMBSTM).
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 430
You can read about handling information for the
camera equipped with this system. 2 Front Sensor Camera P. 383
* Not available on all models
16 ACURA RLX E-AWD-31TY36200.book 390 ページ ２０１５年５月２２日　金曜日　午後３時 ５０分
