Acura RLX 2017 Owner's Manual

uuGeneral Information on the Audio System uRecommended CDs
260
Features
■Protecting CDs
Follow these precautions when handling or storing CDs:
• Store a CD in its case when it is not being played.
• When wiping a CD, use a soft clean clot h from the center to the outside edge.
• Handle a CD by its edge. Never touch either surface.
• Never insert foreign objects into the CD player.
• Keep CDs out of direct sunlight and extreme heat.
• Do not place stabilizer ri ngs or labels on the CD.
• Avoid fingerprints, liquids, and felt-tip pens on the CD.1Protecting CDs
NOTICE
Do not insert a damaged CD. It may be stuck inside
and damage the audio unit.
Examples:
●Damaged CDs Bubbled/
Wrinkled
With Label/
Sticker Using
Printer Label
Kit
Sealed With Plastic Ring●Poor quality
CDs
Chipped/
Cracked Warped Burrs
●Small CDs
3-inch
(8-cm)
CD
●Bubbled, wrinkled, labeled, and
excessively thick CDs
17 ACURA RLX-31TY26300.book 260 ページ ２０１６年６月１７日　金曜日　午前８時１２分

261
uuGeneral Information on the Audio System uCompatible iPod, iPhone, and USB Flash Drives
Features
Compatible iPod, iPhone , and USB Flash Drives
•Use a recommended USB flash drive of 256 MB or higher.
• Some digital audio players may not be compatible.
• Some USB flash drives (e.g., a device with security lockout) may not work.
• Some software files may not allow for audio play or text data display.
• Some versions of MP3, WMA, or AAC formats may be unsupported.
■iPod and iPhone Model Compatibility
Model
iPod (5th generation)
iPod classic 80GB/160GB (launch in 2007)
iPod classic 120GB (launch in 2008)
iPod classic 160GB (launch in 2009)
iPod nano (1st to 7th generation) released between 2005 and 2012
iPod touch (1st to 5th generation) released between 2007 and 2012
iPhone 3G/iPhone 3GS/iPhone 4/iPhone 4s/iPhone 5/iPhone 5c/iPhone 5s/iPhone 6/
iPhone 6 Plus/iPhone 6s/iPhone 6s Plus
■USB Flash Drives
1iPod and iPhone Model Compatibility
This system may not work with all software versions
of these devices.
1USB Flash Drives
Files on the USB flash drive are played in their stored
order. This order may be different from the order
displayed on your PC or device.
17 ACURA RLX-31TY26300.book 261 ページ ２０１６年６月１７日　金曜日　午前８時１２分

262
Features

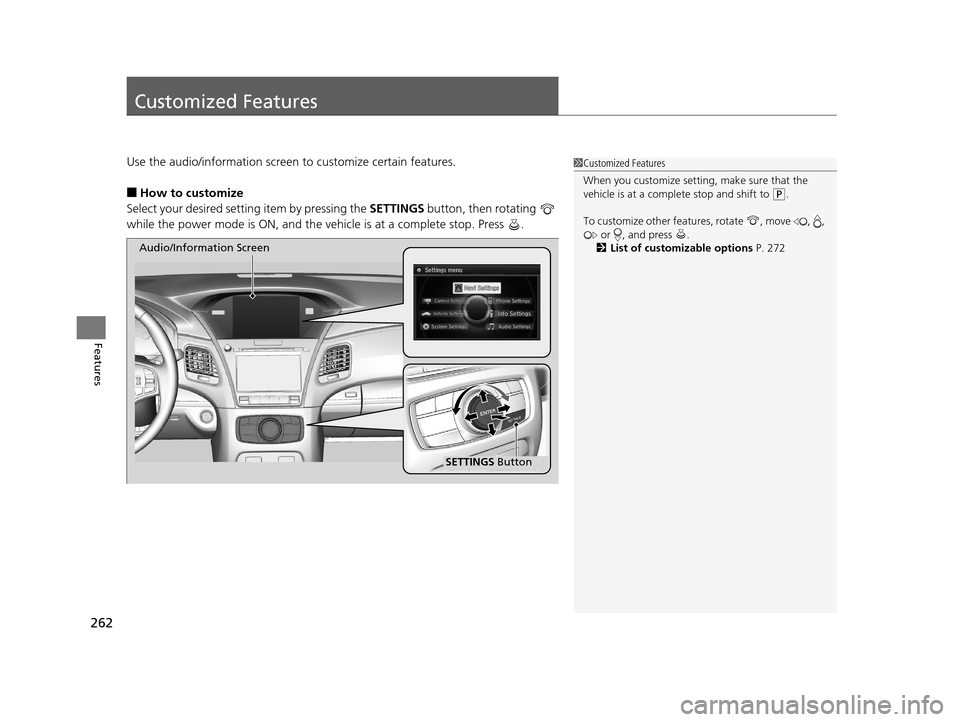

Customized Features
Use the audio/information screen to customize certain features.
■How to customize
Select your desired setting item by pressing the SETTINGS button, then rotating
while the power mode is ON, and the ve hicle is at a complete stop. Press .
1Customized Features
When you customize setting, make sure that the
vehicle is at a complete stop and shift to
(P.
To customize other featur es, rotate , move , ,
or , and press .
2 List of customizable options P. 272
SETTINGS Button
Audio/Information Screen
17 ACURA RLX-31TY26300.book 262 ページ ２０１６年６月１７日　金曜日　午前８時１２分

263
uuCustomized Features u
Continued
Features
■Customization flow
Song by Voice
Song by Voice Phonetic Modification
Phonebook Phonetic Modification
Press the SETTINGS button.



Guidance Volume
Voice Prompt

Message Auto Reading
Guidance Volume
Interface Dial Feedback
Verbal Reminder
Brightness
Contrast
Black Level



Bluetooth Status
Bluetooth Device List
Edit Pairing Code

Default
Sound/Beep
Display
System
Settings
Bluetooth
Voice Reco
Sync Display Brightness
Sound Volume Opening
17 ACURA RLX-31TY26300.book 263 ページ ２０１６年６月１７日　金曜日　午前８時１２分

264
uuCustomized Features u
Features
System Device Information
Factory Data Reset

Background Color
Header Clock Display
Clock Reset
Auto Time Zone*
Auto Daylight*
Clock
Clock Adjustment
Clock Format
Clock
Units
Language
Voice Command Tips
Others

Wallpaper
Clock/Wallpaper
Type
* Not available on all models
17 ACURA RLX-31TY26300.book 264 ページ ２０１６年６月１７日　金曜日　午前８時１２分

265
uuCustomized Features u
Continued
Features
“Trip A” Reset Timing
“Trip B” Reset Timing

Language Selection
Adjust Outside Temp. Display




Forward Collision Warning Distance
ACC Forward Vehicle Detect Beep*
ACC Display Speed Unit*

Turn by Turn Display
Default
Memory Position Link

Door Unlock Mode
Keyless Access Light Flash

Interior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Vehicle
SettingsMeter Setup
Driver Assist
System Setup
Keyless Access
Setup
Lighting Setup
Keyless Access Beep
Lane Keeping Assist Suspend Beep*
Blind Spot Info*
Auto Tilt & Telescopic
Auto Seatbelt Tension*

Driving
Position Setup
Road Departure Mitigation Setting*
Remote Start System On/Off*
* Not available on all models
17 ACURA RLX-31TY26300.book 265 ページ ２０１６年６月１７日　金曜日　午前８時１２分

266
uuCustomized Features u
Features
Maintenance ResetMaintenance Info.
Wiper Action*
Front Wiper Action*
Wiper
Setup
Key And Remote Unlock Mode
Keyless Lock Answer Back
Security Relock Timer
Auto Door Lock
Auto Door Unlock
Door
Setup
Auto Folding Door Mirror*
* Not available on all models
17 ACURA RLX-31TY26300.book 266 ページ ２０１６年６月１７日　金曜日　午前８時１２分

267
uuCustomized Features u
Continued
Features

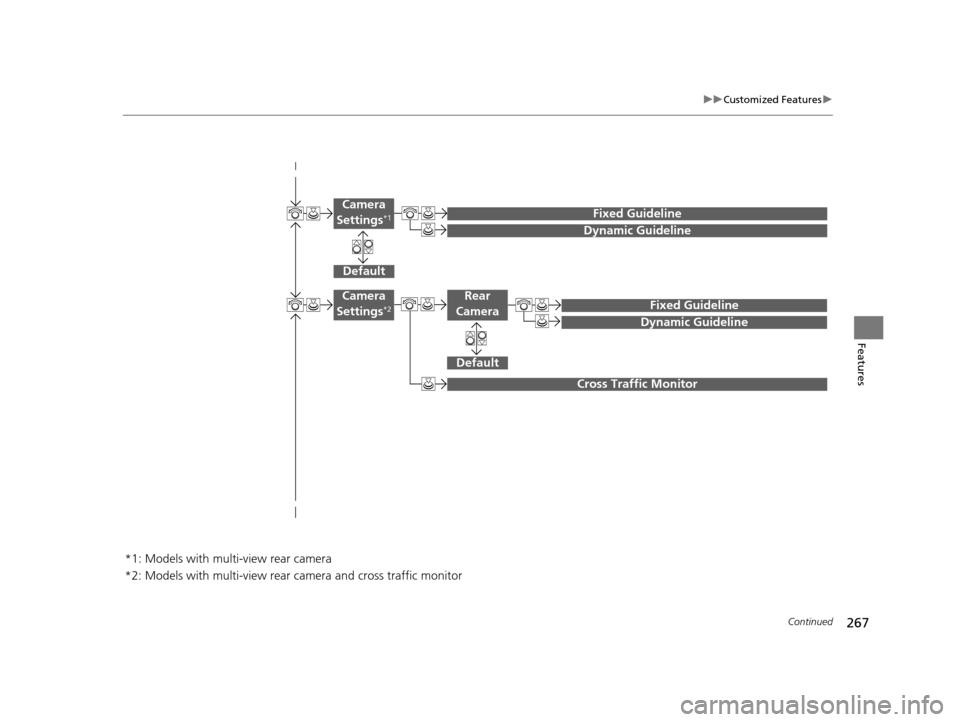

Fixed Guideline
Dynamic Guideline


Default
Camera
Settings*1
Fixed Guideline
Dynamic Guideline


Default
Camera
Settings*2Rear
Camera
Cross Traffic Monitor
*1: Models with multi-view rear camera
*2: Models with multi-view rear camera and cross traffic monitor

17 ACURA RLX-31TY26300.book 267 ページ ２０１６年６月１７日　金曜日　午前８時１２分

268
uuCustomized Features u
Features
Fixed Guideline
Dynamic Guideline


Default
Guidelines
Cross Traffic Monitor

Automatically show
camera after reverse
Default camera mode in forward
PreferencesDefault camera mode in reverse
Show camera when decelerating
Clear parking guideline automatically
Display
*3: Models with surround vi ew camera system (MVCS)
Camera
Settings*3MVCS
17 ACURA RLX-31TY26300.book 268 ページ ２０１６年６月１７日　金曜日　午前８時１２分

269
uuCustomized Features u
Continued
Features

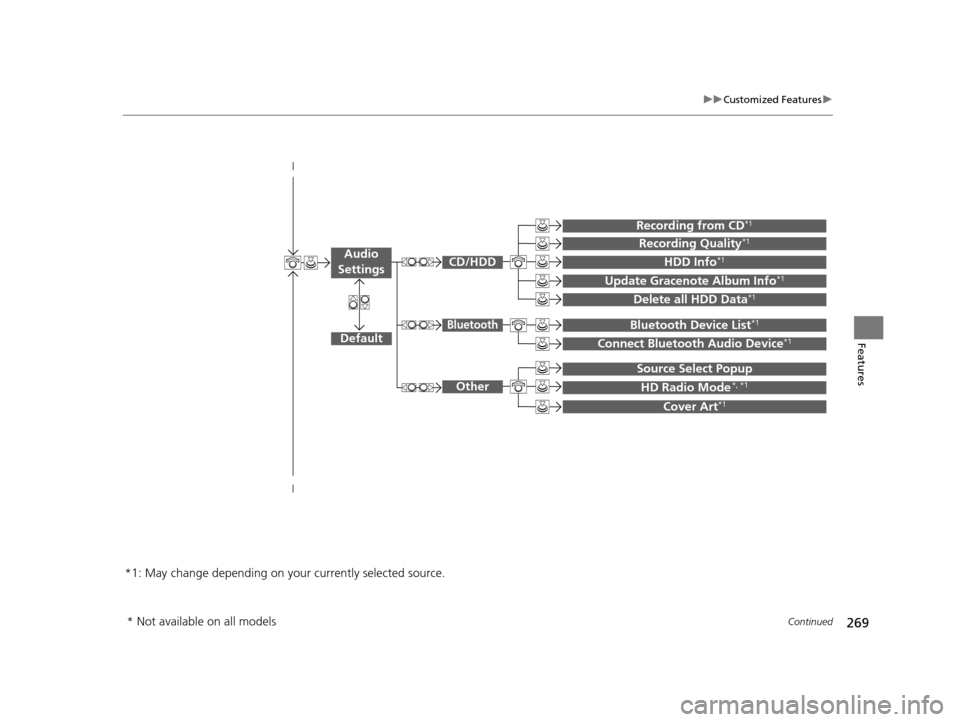

Default
Source Select Popup
HD Radio Mode*, *1
Cover Art*1
Connect Bluetooth Audio Device*1
Bluetooth Device List*1
Recording from CD*1
Recording Quality*1
HDD Info*1
Update Gracenote Album Info*1
Delete all HDD Data*1


*1: May change depending on your currently selected source.
CD/HDD
Bluetooth
Other
Audio
Settings
* Not available on all models
