Acura RLX 2017 Owner's Manual

460
uuMaintenance Under the Hood uTransmission Fluid
Maintenance
Transmission Fluid
Have a dealer check the fluid level and replace if necessary.
Do not attempt to check or change the automatic transmission fluid yourself. The
location of the ATF dipstick and fill increases the likelihood that you could be burned
when trying to check or change the ATF.
■Automatic Transmission Fluid
Specified fluid: Acur a Automatic Transmis sion Fluid ATF DW-1
1Automatic Transmission Fluid
NOTICE
Do not mix Acura ATF DW-1 with other
transmission fluids.
Using a transmission fluid ot her than Acura ATF DW-
1 may adversely affect the operation and durability of
your vehicle’s transmission, and damage the
transmission.
Any damage caused by usi ng a transmission fluid that
is not equivalent to Acur a ATF DW-1 is not covered
by Acura’s new vehicle warranty.
17 ACURA RLX-31TY26300.book 460 ページ ２０１６年６月１７日　金曜日　午前８時１２分

461
uuMaintenance Under the Hood uBrake Fluid
Maintenance
Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
Refilling Window Washer Fluid
If the washer fluid is low, a message appears on the multi-information display.
Pour the washer fluid carefully. Do not overflow the reservoir.
Specified fluid: Acura Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1 Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified brake fluid is not available, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Acura brake fl uid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Acura Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.
MIN
MAX
Reserve Tank
1 Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
17 ACURA RLX-31TY26300.book 461 ページ ２０１６年６月１７日　金曜日　午前８時１２分

462
Maintenance
Replacing Light Bulbs
Headlights
Headlights are LED type. Have an authorized Acura dealer inspect and replace the
light assembly.
Daytime Running Lights
Daytime running lights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
1 Headlights
The headlight aim is set by the factory, and does not
need to be adjusted. Howeve r, if you regularly carry
heavy items in the trunk, have the aiming readjusted
at a dealer or by a qualified technician.
17 ACURA RLX-31TY26300.book 462 ページ ２０１６年６月１７日　金曜日　午前８時１２分

463
uuReplacing Light Bulbs uFront Turn Signal/Parking Light Bulbs
Maintenance
Front Turn Signal/ Parking Light Bulbs
When replacing, use the following bulbs.
1.Remove the holding clips (A).
2. Push up the under cover.
3. Turn the socket counter-clockwise and
remove it.
4. Push in the old bulb, rotate counter-
clockwise until it un locks, and remove.
5. Insert a new bulb.
Front Turn Signal/Parking Light: 27/8 W (Amber)
1Front Turn Signal/Parking Light Bulbs
Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.
Insert the clip with the center pin raised, and push
until it is flat.
Holding clip (A-type)
Push until the
pin is flat.
Clips (A)
Bulb
Socket
Under
Cover
17 ACURA RLX-31TY26300.book 463 ページ ２０１６年６月１７日　金曜日　午前８時１２分

464
uuReplacing Light Bulbs uFront Side Marker Light Bulbs
Maintenance
Front Side Marker Light Bulbs
When replacing, use the following bulbs.
1.Turn the steering wheel all the way to the
opposite side from the light being replaced.
Passenger’s side : Turn the steering wheel
to the left.
Driver’s side : Turn the steering wheel to
the right.
2. Remove the holding clips (A) and (B), pull
the inner fender back.
3. Turn the socket counter-clockwise and
remove it, then remove the old bulb.
4. Insert a new bulb.
Side Turn Signal/Emergency Indicator Lights
Door mirror side turn lights are LED type. Have an authorized Acura dealer inspect
and replace the light assembly.
Front Side Marker Light: 2 CP
1 Front Side Marker Light Bulbs
When removing the clip, insert a flat-tip screwdriver,
then lift and remove the clip.
Insert the clip with the pin raised, and push until it is
flat.
Holding clip (B-type)
Clip
Push until the
pin is flat.
Inner Fender
Clip (A)Clips (B)
Bulb Socket
17 ACURA RLX-31TY26300.book 464 ページ ２０１６年６月１７日　金曜日　午前８時１２分

465
uuReplacing Light Bulbs uRear Turn Signal Light Bulbs
Maintenance
Rear Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Remove the cover.
2. Turn the socket counter-clockwise and
remove it, then remove the old bulb.
3. Insert a new bulb.
Brake/Taillight and Rear Side Marker Lights
Brake/taillight and rear side marker lights are LED type. Have an authorized Acura
dealer inspect and replace the light assembly.
Rear Turn Signal Light: 21 W
Cover
Bulb Socket
17 ACURA RLX-31TY26300.book 465 ページ ２０１６年６月１７日　金曜日　午前８時１２分

466
uuReplacing Light Bulbs uTaillights
Maintenance
Taillights
Taillights are LED type. Have an authorized Acura dealer inspect and replace the light
assembly.
Back-Up Light Bulbs
When replacing, use the following bulbs.
1.Remove the cover.
2. Turn the socket counter-clockwise and
remove it, then remove the old bulb.
3. Insert a new bulb.
Back-Up Light: 16 W
Cover
SocketBulb
17 ACURA RLX-31TY26300.book 466 ページ ２０１６年６月１７日　金曜日　午前８時１２分

467
uuReplacing Light Bulbs uRear License Plate Lights
Maintenance
Rear License Plate Lights
Rear license plate lights are LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
High-Mount Brake Light
High-mount brake light is LED type. Have an authorized Acura dealer inspect and
replace the light assembly.
Door Outer Handle Ambient Lights
Door outer handle ambient lights are LED ty pe. Have an authorized Acura dealer
inspect and replace the light assembly.
17 ACURA RLX-31TY26300.book 467 ページ ２０１６年６月１７日　金曜日　午前８時１２分

468
Maintenance
Checking and Maintaining Wiper Blades
Checking Wiper Blades
If the wiper blade rubber has deteriorated, it will leave streaks and the hard surfaces
of the blade may scratch the window glass.
Changing the Wiper Blade Rubber
1. Set the power mode to VEHICLE OFF
(LOCK).
2. While holding the wiper switch in the
MIST position, set the power mode to ON,
then to VEHICLE OFF (LOCK).
u Both wiper arms are set to the
maintenance position as shown in the
image.
3. Lift both wiper arms.
1Changing the Wiper Blade Rubber
NOTICE
Avoid dropping the wiper ar m; it may damage the
windshield.
17 ACURA RLX-31TY26300.book 468 ページ ２０１６年６月１７日　金曜日　午前８時１２分

469
uuChecking and Maintaining Wiper Blades uChanging the Wiper Blade Rubber
Continued
Maintenance

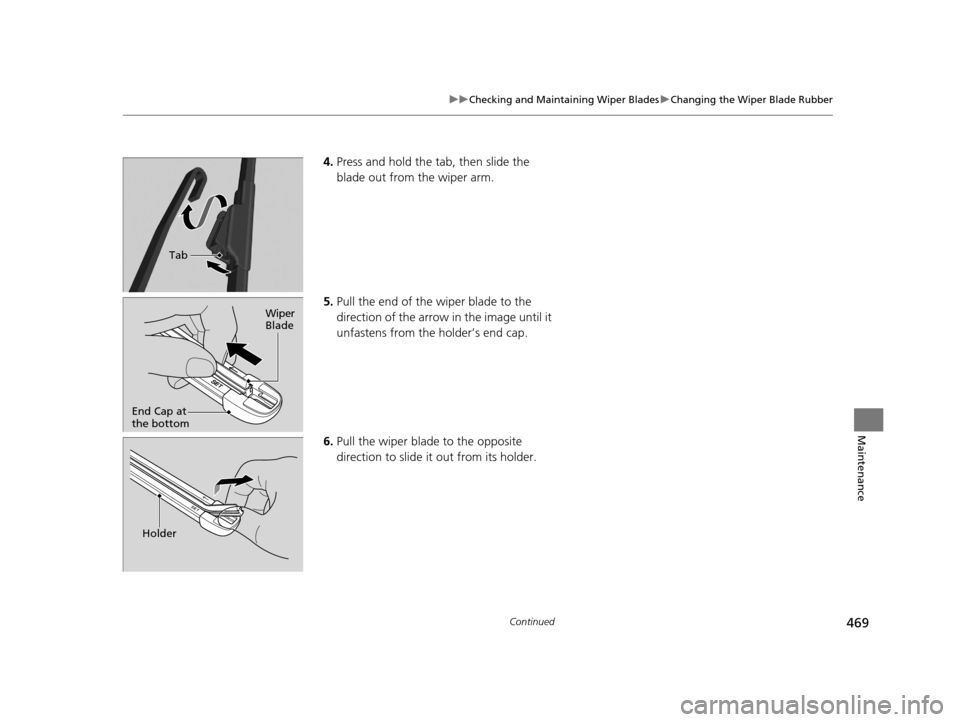

4. Press and hold the ta b, then slide the
blade out from the wiper arm.
5. Pull the end of the wiper blade to the
direction of the arrow in the image until it
unfastens from the holder’s end cap.
6. Pull the wiper blade to the opposite
direction to slide it out from its holder.
Tab
Wiper
Blade
End Cap at
the bottom
Holder
