Visual Index
6
Quick Reference Guide❙Power Window Switches (P 134)
❙Driver’s Front Airbag (P 40)
❙Trunk Release Button (P 128)
❙Hood Release Handle (P 451)
❙Driver’s Side Interior Fuse Box (P 524)
❙Passenger’s Front Airbag (P 40)
❙Shift Lever
Automatic Transmission (P 351)
❙Glove Box (P 165)
❙Driver’s Knee Airbag (P 44)
❙Door Mirror Controls (P 154)
❙Power Door Lock Master Switch (P 126)
❙Fuel Fill Door Release Button (P 438)
❙Electric Parking Brake Switch
(P 402)
❙Passenger’s Side Interior Fuse
Box
(P 525)
❙Accessory Power Socket (P 171)
❙Accessory Power Socket (P 171)
❙Auxiliary Input Jack (P 193)
❙USB Port (P 193)
❙Memory Buttons (P 151)
❙SET Button (P 151)
❙Rearview Mirror (P 153)
❙SPORT Button (P 355)
❙Automatic Brake Hold Button
(P 405)
17 ACURA RLX-31TY26300.book 6 ページ ２０１６年６月１７日　金曜日　午前８時１２分

18
Quick Reference Guide
VSA® OFF Button (P 394)
● The vehicle stability assist (VSA® ) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you start the engine.
● To turn VSA ® on or off, press and hold
the button until you hear a beep.
Cruise Control* (P 356)
● Cruise control allows you to maintain a
set speed without keeping your foot on
the accelerator pedal.
● To use cruise control, press the CRUISE
button, then press the RES/+/SET/– switch
down once you have achieved the desired
speed (above 25 mph or 40 km/h).
Collision Mitigation
Braking System
TM (CMBSTM)
OFF Button
* (P 412)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle sp eed and the severity
of the collision.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
Tire Pressure Monitoring
System (TPMS)
(P 398)
● The TPMS monitors tire pressure.
● The TPMS is turned on automatically
every time you start the engine.
Refueling (P 437)
aPress the fuel fill door
release button.
bAfter refueling, wait for
about five seconds
before removing the
filler nozzle.
Fuel recommendation: Unleaded premiu m gasoline with a pump octane
number 91 or higher
Fuel tank capacity: 18.5 US gal (70 L)
Wait for five seconds
17 ACURA RLX-31TY26300.book 18 ページ ２０１６年６月１７日　金曜日　午前８時１２分

438
uuRefueling uHow to Refuel
Driving
How to Refuel
Your fuel tank is not equipped with a fuel filler cap. You can insert the filler nozzle
directly into the filler neck. The tank seal s itself again when you pull out the filler
nozzle.
1.Stop your vehicle with the service station
pump on the left side of the vehicle in the
rear.
2. Turn off the engine.
3. Press the fuel fill door release button.
u The fuel fill door opens.
4. Place the end of the filler nozzle on the
lower part of filler opening, then insert it
slowly and fully.
u Make sure that the end of the filler
nozzle goes down along with the filler
pipe.
u Keep the filler nozzle level.
u When the tank is full, the filler nozzle will
click off automatically.
u After filling, wait about five seconds
before removing th e filler nozzle.
5. Shut the fuel fill door by hand.1How to Refuel
The fuel filler opening is desi gned to accept only service
station filler nozzles for re fueling. Use of smaller
diameter tubes (e.g., those used to siphon fuel for other
uses) or other non-service station devices can damage
the area in and around the filler opening.
The filler nozzle automatically stops to leave space in
the fuel tank so that fuel does not overflow as a result
of changes in air temperature.
If the filler nozzle keeps tu rning off when the tank is
not full, there may be a problem with the pump’s fuel
vapor recovery system. Try fi lling at another pump. If
this does not fix the problem, consult a dealer.
Do not continue to add fuel after the nozzle has
automatically stopped. Addi tional fuel can exceed
the full tank capacity.
If you have to refuel y our vehicle from a portable
container, use the funnel pr ovided with your vehicle.
2 Refueling From a Portable Fuel Container P. 530
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Press
17 ACURA RLX-31TY26300.book 438 ページ ２０１６年６月１７日　金曜日　午前８時１２分

528
Handling the Unexpected

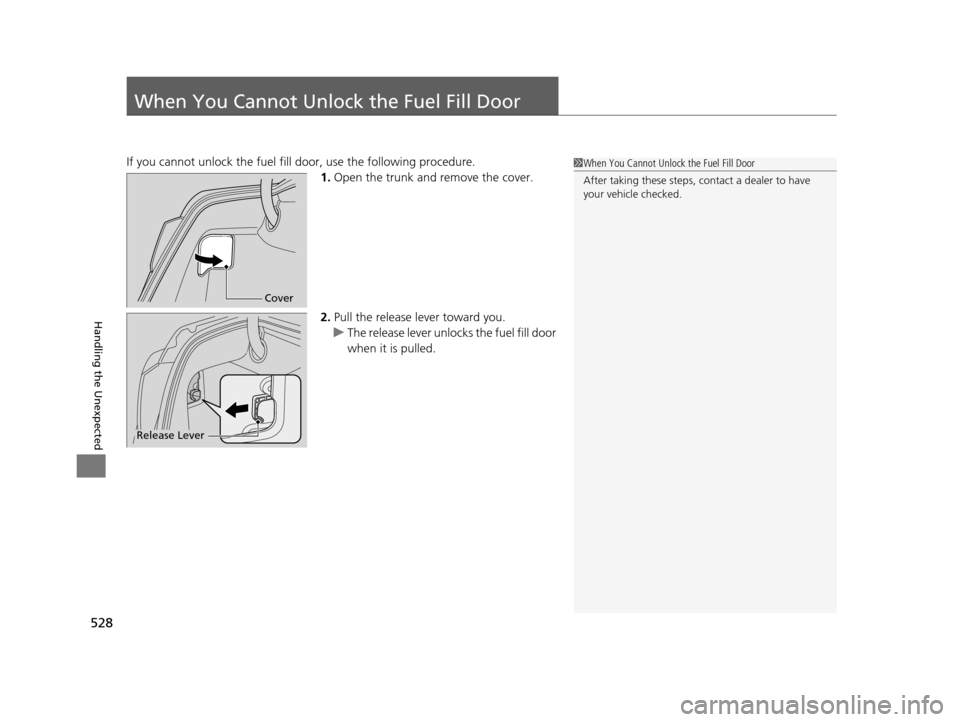

When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the trunk and remove the cover.
2. Pull the release lever toward you.
u The release lever unlocks the fuel fill door
when it is pulled.1When You Cannot Unlo ck the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Cover
Release Lever
17 ACURA RLX-31TY26300.book 528 ページ ２０１６年６月１７日　金曜日　午前８時１２分

530
Handling the Unexpected
Refueling

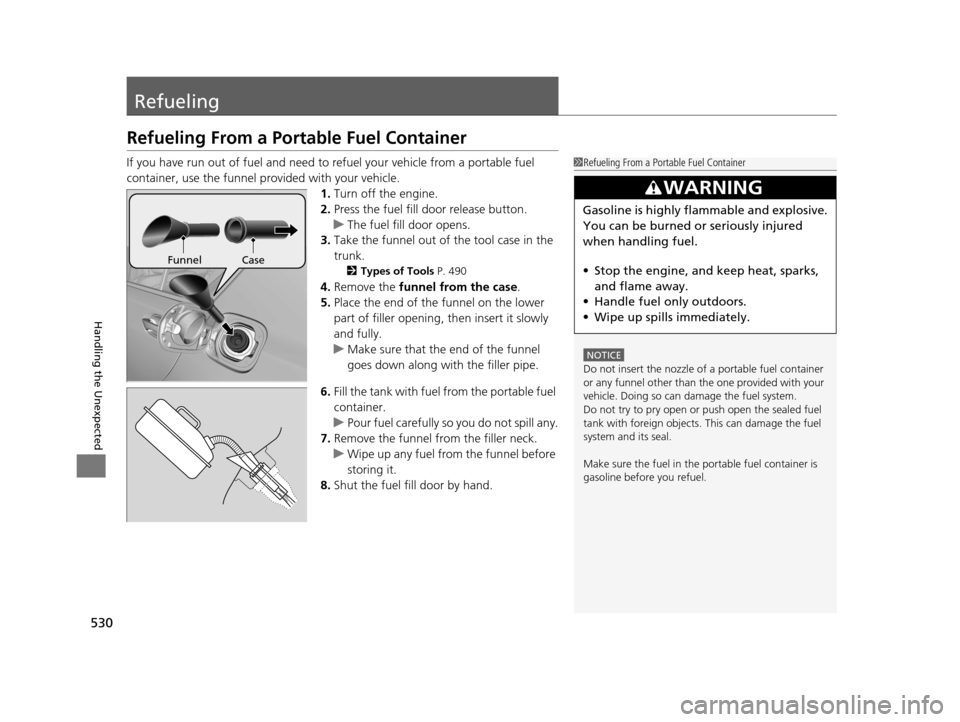

Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the engine.
2. Press the fuel fill door release button.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 490
4.Remove the funnel from the case .
5. Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel Case
