Page 7 of 557
Visual Index
6
Quick Reference Guide❙Power Window Switches (P 134)
❙Driver’s Front Airbag (P 40)
❙Trunk Release Button (P 128)
❙Hood Release Handle (P 451)
❙Driver’s Side Interior Fuse Box (P 524)
❙Passenger’s Front Airbag (P 40)
❙Shift Lever
Automatic Transmission (P 351)
❙Glove Box (P 165)
❙Driver’s Knee Airbag (P 44)
❙Door Mirror Controls (P 154)
❙Power Door Lock Master Switch (P 126)
❙Fuel Fill Door Release Button (P 438)
❙Electric Parking Brake Switch
(P 402)
❙Passenger’s Side Interior Fuse
Box
(P 525)
❙Accessory Power Socket (P 171)
❙Accessory Power Socket (P 171)
❙Auxiliary Input Jack (P 193)
❙USB Port (P 193)
❙Memory Buttons (P 151)
❙SET Button (P 151)
❙Rearview Mirror (P 153)
❙SPORT Button (P 355)
❙Automatic Brake Hold Button
(P 405)
17 ACURA RLX-31TY26300.book 6 ページ 2016年6月17日 金曜日 午前8時12分
Page 140 of 557
139
uuOperating the Switches Around the Steering Wheel uENGINE START/STOP Button
Controls
Warning buzzers may sound from inside or/
and outside the vehicle to remind you that the
keyless access remote is out of the vehicle. If
the buzzer continues even after the remote is
put back inside, place it to be within its
operational range.
■When the power mode is in ON
If the keyless access remote is taken out of the
vehicle, and the driver’s door is closed,
warning buzzers sound from both inside and
outside the vehicle. A warning message on
the multi-information display notifies the
driver inside that the remote is out.
■When the power mode is in
ACCESSORY
If the keyless access remote is taken out of the
vehicle, and the driver’s door is closed, a
warning buzzer sounds from outside the
vehicle.
■Keyless Access Remote Reminder1 Keyless Access Remote Reminder
When the keyless access remote is within the
system’s operational range, and the driver’s door is
closed, the warni ng function cancels.
If the keyless access remote is taken out of the vehicle
after the engine has been started, you can no longer
change the ENGINE START/STOP button mode or
restart the engine. Always make sure if the remote is
in your vehicle when you operate the ENGINE
START/STOP button.
Removing the keyless access remote from the vehicle
through a window does not activate the warning
buzzer.
Do not put the keyless access remote on the
dashboard or in the glove box. It may cause the
warning buzzer to go of f. Under some other
conditions that can prevent the vehicle from locating
the remote, the warning buzzer may also go off even
if the remote is within the system’s operational
range.
17 ACURA RLX-31TY26300.book 139 ページ 2016年6月17日 金曜日 午前8時12分

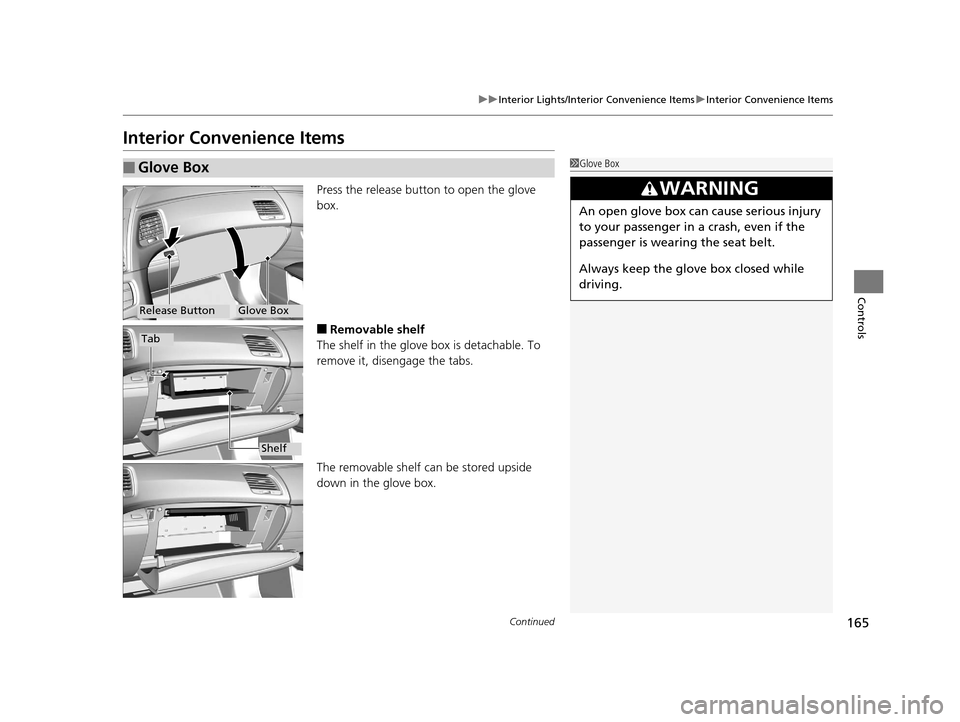

Page 166 of 557
165
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Interior Convenience Items
Press the release button to open the glove
box.
■Removable shelf
The shelf in the glove box is detachable. To
remove it, disengage the tabs.
The removable shelf can be stored upside
down in the glove box.
■Glove Box1 Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove BoxRelease Button
Tab
Shelf
17 ACURA RLX-31TY26300.book 165 ページ 2016年6月17日 金曜日 午前8時12分
Page 167 of 557
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
166
Controls
You can lock the glove box, trunk, and/or
navigation system, entering a PIN code from
the On Demand Multi-Use Display
TM.
To lock:
1. Select Shortcuts .
2. Select Valet.
3. Select the item you want to be PIN-
protected from the locked area, then select
OK .
■Valet Mode1Valet Mode
If you need to give the key to someone else, lock the
trunk pass-through cover first, and give the keyless
access remote without a buil t-in key as a valet key.
2 Trunk Pass-through Cover P. 174
Locked Area
17 ACURA RLX-31TY26300.book 166 ページ 2016年6月17日 金曜日 午前8時12分
Page 168 of 557
Continued167
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
4. The previous code is displayed. Select OK.
u You will receive a confirmation message
on the display. Select OK.
When you enter the PIN code for the first time
or if you want to change the code:
1. Select Shortcuts .
2. Select Valet.
3. Select the item you want to be PIN-
protected from the locked area, then select
OK .
4. Enter your selected four-digit PIN code,
then select OK.
5. You will be asked to enter the same four-
digit PIN code again. Enter, then select OK.
u You will receive a confirmation message
on the display. Select OK.
To unlock:
1. Select Valet.
2. Select Unlock .
3. Enter the four-digit PIN code you have
previously selected, then select OK.1Valet Mode
The PIN code entering screen also appears when you
press:
•The glove box open button
•The trunk release button on the driver's door, on
the trunk, or on the remote
While the glove box or the trunk is PIN-protected.
If you have locked all the items of the locked area, the
PIN code entering screen appears with the power
mode in ACCESSORY.
You can cancel the valet mode when you manually
open the trunk. 2 When You Cannot Open the Trunk P. 529
If you have only set Navi, Phone, Audio PIN-
protected but forgot your four-digit PIN code, you
need to go to a dealer to have the set valet mode
reset.
17 ACURA RLX-31TY26300.book 167 ページ 2016年6月17日 金曜日 午前8時12分
Page 526 of 557
525
uuFuses uFuse Locations
Handling the Unexpected
Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the cover.
■Passenger’s Side Interior Fuse
Box
Fuse Label
Cover
■Circuit protected and fuse rating
Circuit ProtectedAmps
1−−
2Front Seat Heaters/AVS20 A
3Rear Passenger’s Side
Power Window20 A
4Front Passenger’s Lumbar Support7.5 A
5−−
6−−
7Passenger’s Power Seat Sliding20 A
8Passenger’s Power Seat
Reclining20 A
9Rear Seat Heaters*(20 A)
10−−
11Fly Start15 A
12Accessory Power Socket
(Console Compartment)20 A
13Accessory Power Socket (Center Pocket)20 A
14AS ECU7.5 A
15Glove Box7.5 A
16−−
17−−
18Front Passenger’s Power
Window20 A
19SRS110 A
*1:Models without surround view camera system
*2:Models with surround view camera system
20ABS/VSA7.5 A
21−−
22e-pretensioner*(7.5 A)
23−−
24SRS27.5 A
25Illumination7.5 A
26Right e-pretensioner*(20 A)
27Heated Steering Wheel*10 A
28Audio AMP30 A*1
40 A*2
Circuit ProtectedAmps
* Not available on all models
17 ACURA RLX-31TY26300.book 525 ページ 2016年6月17日 金曜日 午前8時12分
Page 533 of 557
532
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelAcura RLX
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle Weight
Rating U.S.: 4,993 lbs (2,265 kg)
Canada: 2,265 kg
Gross Axle Weight
Rating (Front)U.S.: 2,778 lbs (1,260 kg)
Canada: 1,260 kg
Gross Axle Weight
Rating (Rear)U.S.: 2,271 lbs (1,030 kg)
Canada: 1,030 kg
Refrigerant Type HFC-134a (R-134a)
Charge Quantity 16.0 - 17.8 oz (455 - 505 g)
Lubricant TypeND-OIL 8
Quantity 7.8 - 8.7 cu-in (127.5 - 142.5 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
TypeUnleaded premium gasoline, Pump octane
number of 91 or higher
Fuel Tank Capacity 18.5 US gal (70 ℓ)
Tank CapacityU.S.: 2.6 US qt (2.5 ℓ)
Canada: 5.3 US qt (5.0 ℓ)
■ Light Bulbs
*1: Not available on all models
Headlights (Low Beam)LED
Headlights (High Beam) LED
Front Turn Signal/Parking Lights27/8W (Amber)
Front Side Marker Lights 2CP
Side Turn Signal Lights
(on Door Mirrors)LED
Brake/Taillights/Rear Side Marker
Lights LED
TaillightsLED
Back-Up Lights 16W
Rear Turn Signal Lights21W
High-Mount Brake Light LED
Rear License Plate LightsLED
Door Outer Handle Ambient Lights LED
Interior LightsFront and Rear Map LightsLEDFront and Rear Ambient LightsLEDVanity Mirror Lights2.1WFront Door Pocket LightsLEDCenter Pocket LightLEDBeverage Holder LightLEDDoor Courtesy Lights3.4WConsole Compartment LightLEDGlove Box LightLEDFront and Rear*1 Foot LightsLEDDoor Inner Handle LightsLEDTrunk Light5W
17 ACURA RLX-31TY26300.book 532 ページ 2016年6月17日 金曜日 午前8時12分
Page 550 of 557
549
Index
Fuel..................................................... 18, 437
Economy................................................. 439
Gauge ...................................................... 97
Instant Fuel Economy .............................. 101
Low Fuel Indicator..................................... 73
Range ..................................................... 101
Recommendation............................ 437, 532
Refueling ................................................ 437
Fuel Economy ........................................... 439
Fuel Fill Door ...................................... 18, 438
Fuses ......................................................... 522
Inspecting and Changing ........................ 526
Locations ................................ 522, 524, 525
G
Gasoline (Fuel)
Economy................................................. 439
Gauge ...................................................... 97
Information............................................. 437
Instant Fuel Economy .............................. 101
Low Fuel Indicator..................................... 73
Refueling ................................................ 437
Gauges ........................................................ 97
Gear Shift Lever Positions Automatic Transmission .......................... 351
Glass (care) ....................................... 484, 487
Glove Box ................................................. 165
H
Handling the Unexpected ........................ 489
HandsFreeLink ® (HFL) ............................... 290
Auto Answer ........................................... 305
Automatic Import of Cellular Phonebook
and Call History ..................................... 307
Automatic Transferring ............................ 305
Displaying Messages ................................ 325
Editing User Name ................................... 304
HFL Buttons ............................................. 290
HFL Menus .............................................. 292
HFL Status Display ................................... 291
Limitations for Manua l Operation ............ 291
Making a Call .......................................... 316
Options During a Call .............................. 322
Phone Setup ............................................ 296
Phonebook Phonetic M odification ........... 311
Receiving a Call ....................................... 321
Receiving a Text/E-mail Message .............. 323
Ring Tone ................................................ 306
Roadside Assistance ................................. 329
Selecting a Mail Account ......................... 324
Speed Dial ............................................... 308
To Create a Security PIN .......................... 303
To Set Up a Text/E-mail Message Options ................................................. 301
Use Contact Photo .................................. 306
Hard Disk Drive (HDD) Audio .................. 227
Hazard Warning Button ............................... 4
Head Restraints ......................................... 159
Headlight Washers ................................... 147 Headlights
................................................. 141
Aiming .................................................... 462
Automatic Operation............................... 142
Dimming ......................................... 141, 144
Operating................................................ 141
Heated Steering Wheel ............................ 175
Heaters (Seat) ........................... 176, 177, 178
HFL (HandsFreeLink ®)............................... 290
High Beam Indicator .................................. 77
Hill Start Assist System ............................. 348
HomeLink ® Universal Transceiver ............ 288
I
Identification Numbers
Engine and Transmission ......................... 534
Vehicle Identification ............................... 534
Illumination Control
Buttons ................................................... 148
Immobilizer System .................................. 131
Indicator.................................................... 77
Indicators .................................................... 68
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF) ........................... 82, 361
Anti-lock Brake System (ABS)..................... 74
Automatic Brake Hold ....................... 70, 405
Automatic Brake Hold System ........... 70, 405
Blind Spot Information (BSI) ............... 84, 397
Brake System (Amber) ............................... 71
Brake System (Red) ............................ 68, 519
Charging System ............................... 72, 518
17 ACURA RLX-31TY26300.book 549 ページ 2016年6月17日 金曜日 午前8時12分
