light Acura RLX 2017 Owner's Manual

Contents
Child Safety P. 52Exhaust Gas Hazard P. 64Safety Labels P. 65
Opening and Closing the Trunk P. 128 Security System P. 131 Opening and Closing the Windows P. 134
Operating the Switches Around the Steering Wheel P. 137 Adjusting the Mirrors P. 153
Interior Lights/Interior Convenience It ems P. 163 Climate Control System P. 181
Audio Error Messages P. 253General Information on the Audio System P. 258
Bluetooth® HandsFreeLink ® P. 290 AcuraLink ® P. 330
When Driving P. 344 Braking P. 402Parking Your Vehicle P. 417
Refueling P. 437 Fuel Economy and CO
2 Emissions P. 439
Maintenance Under the Hood P. 450 Replacing Light Bulbs P. 462
Checking and Maintaining Tires P. 471 Battery P. 480 Remote Transmitter Care P. 481
Cleaning P. 484 Accessories and Modifications P. 488
Engine Does Not Start P. 509Jump Starting P. 512 Shift Lever Does Not Move P. 515
Fuses P. 522 Emergency Towing P. 527 When You Cannot Unlock the Fuel Fill Door P. 528
Refueling P. 530
Devices that Emit Radio Waves P. 535 Reporting Safety Defects P. 536
Authorized Manuals P. 541 Client Service Information P. 542
Quick Reference GuideP. 4
Safe DrivingP. 25
Instrument PanelP. 67
ControlsP. 113
FeaturesP. 191
DrivingP. 337
MaintenanceP. 441
Handling the UnexpectedP. 489
InformationP. 531
IndexP. 546
17 ACURA RLX-31TY26300.book 3 ページ ２０１６年６月１７日　金曜日　午前８時１２分

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Steering Wheel Adjustments (P 152)
❙ENGINE START/STOP Button (P 137)
❙ (Vehicle Stability Assist (VSA®)
System OFF) Button
(P 394)
❙Lane Departure Warning (LDW)
Button* (P 380)
❙Parking Sensor System Button* (P 419)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button* (P 412)
❙Navigation System
() See the Navigation System Manual
❙Audio/Information Screen (P 205)
❙Hazard Warning Button
❙On Demand Multi-Use DisplayTM
(P 197)
❙Audio System (P 192)
❙System Indicators (P 68)
❙Gauges (P 97)
❙Multi-Information Display
(P 98)
❙Climate Control System (P 181)
❙Rear Window Defogger/
Heated Mirror Button
(P 149)
❙Headlight Washer Button* (P 147)
❙Front Seat Heater and Seat
Ventilation Buttons* (P 177)
❙Road Departure Mitigation (RDM)
Button* (P 383)
❙CAMERA Button* (P 428)
❙Front Seat Heater Buttons* (P 176)
17 ACURA RLX-31TY26300.book 4 ページ ２０１６年６月１７日　金曜日　午前８時１２分

5
Quick Reference Guide
❙Wipers/Washers (P 145)
❙Audio Remote Controls (P 195)
❙Headlights/Turn Signals (P 140, 141)
❙Paddle Shifter (Shift down) (P 354)
❙Paddle Shifter (Shift up) (P 354)
❙Horn (Press an area around .)
❙Voice Control Buttons (P 211)
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P 290)
❙Brightness Control (P 148)
❙Cruise Control Buttons* (P 356)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) Buttons* (P 361)
❙TRIP Button (P 99)
❙Distance Button* (P 369)
❙Lane Keeping Assist System (LKAS)
Button* (P 388)
❙Right Selector Wheel (P 98)
❙Heated Steering Wheel Button* (P 175)
❙CAMERA Button* (P 428)
* Not available on all models
17 ACURA RLX-31TY26300.book 5 ページ ２０１６年６月１７日　金曜日　午前８時１２分

7
Quick Reference Guide
❙Side Airbags (P 46)
❙Map Lights (P 164)
❙Side Curtain Airbags (P 48)
❙Seat Belts (P 30)
❙Seat Belt to Secure a Child Seat (P 61)
❙LATCH to Secure a Child Seat (P 57)
❙Seat Belt (Installing a Child Seat) (P 59)
❙Rear Seat
❙Front Seat (P 156)
❙Coat Hook (P 172)
❙Grab Handle
❙Moonroof Switch
(P 136)
❙Map Lights (P 164)
❙Sunglasses Holder
(P 178)
❙Power Rear Sunshade
Button* (P 179)
❙Sun Visors
❙Vanity Mirrors
* Not available on all models
17 ACURA RLX-31TY26300.book 7 ページ ２０１６年６月１７日　金曜日　午前８時１２分

Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P 450)
❙Windshield Wipers (P 145, 468)
❙Tires (P 471, 491)
❙Door Lock/Unlock Control (P 118)
❙Power Door Mirrors (P 154)
❙Headlights (P 141, 462)
❙Front Side Marker Lights (P 140, 464)
❙How to Refuel (P 438)
❙High-Mount Brake Light (P 467)
❙Emergency Trunk Release Lever (P 130)
❙Opening/Closing the Trunk (P 128)
❙Multi-View Rear Camera* (P 426)
❙Trunk Release Button (P 128)
❙Rear Side Marker Lights (P 465)
❙Brake/Taillights (P 465)
❙Rear Turn Signal Lights (P 465)
❙Front Turn Signal/Parking Lights (P 140, 463)
❙Back-Up Lights (P 466)
❙Rear License Plate Lights (P 467)
❙Taillights (P 466)
❙Surround View Camera System* (P 427)
❙Side Turn Signal Lights (P 140, 464)
❙Power Door Mirrors (P 154)
❙Daytime Running Lights (P 144)
❙Front Side Marker Lights (P 140, 464)
17 ACURA RLX-31TY26300.book 8 ページ ２０１６年６月１７日　金曜日　午前８時１２分

10
Quick Reference Guide
Instrument Panel (P 67)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
Charging System
IndicatorAnti-lock Brake System
(
ABS ) Indicator
Vehicle Stability Assist
(VSA ®) System
Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorBrake System
Indicator (Red) Supplemental
Restraint System
Indicator
Low Fuel Indicator
Gauges (P 97)/Multi-Information Display (P 98)/System Indicators (P 68)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Keyless Access System
Indicator
Temperature
Gauge Security System Alarm
IndicatorFuel
Gauge
Tachometer
Multi-Information Display
Speedometer
Shift Lever Position
Indicator Gear Position Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator Automatic Brake Hold
System Indicator Brake System
Indicator (Amber)
SPORT
Mode Indicator
Blind Spot Information
(BSI) Indicator
*
System Indicators
Forward Collision
Warning (FCW)
Indicator
*/Collision
Mitigation Braking
System
TM (CMBSTM)
Indicator*
Precision All-Wheel
SteerTM (P-AWS ®)
System Indicator
Lane Departure Warning
(LDW) Indicator*/Road
Departure Mitigation
(RDM) Indicator
*
Lane Keeping Assist System
( LKAS ) Indicator*Adaptive Cruise Control
(ACC ) with Low Speed
Follow (LSF) Indicator
*
Automatic Brake Hold
IndicatorU.S.
Canada
U.S.
Canada
U.S.
Canada
U.S.
Canada
CRUISE MAIN Indicator*CRUISE CONTROL
Indicator*
17 ACURA RLX-31TY26300.book 10 ページ ２０１６年６月１７日　金曜日　午前８時１２分

11
Quick Reference Guide
Controls (P 113)
Clock (P 114)
The navigation system receives signals from
GPS satellites, updating the clock
automatically.
You can also adjust the time manually.
aEnter the Clock Adjustment screen.
2 Clock (P 114)
bRotate to change hour, then press
.
cRotate to change minute, then
press .
ENGINE START/STOP
Button
(P 137)
Press the button to ch anges the vehicle’s
power mode.
Turn Signals (P 140)
Lights (P 141)
Turn Signal Control Lever
Right
Left
Light Control Switches
Low Beam High Beam
Flashing
* Not available on all models
17 ACURA RLX-31TY26300.book 11 ページ ２０１６年６月１７日　金曜日　午前８時１２分

19
Quick Reference Guide
Maintenance (P 441)
Under the Hood (P 450)
● Check engine oil and engine coolant. Add when necessary.
● Check brake fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, push up the lever and lift the
hood.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 462)
● Inspect all lights regularly.
Wiper Blades (P 468)
● Replace blades if they leave streaks
across the windshield.
Tires (P 471)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
* Not available on all models
17 ACURA RLX-31TY26300.book 19 ページ ２０１６年６月１７日　金曜日　午前８時１２分

21
Quick Reference Guide

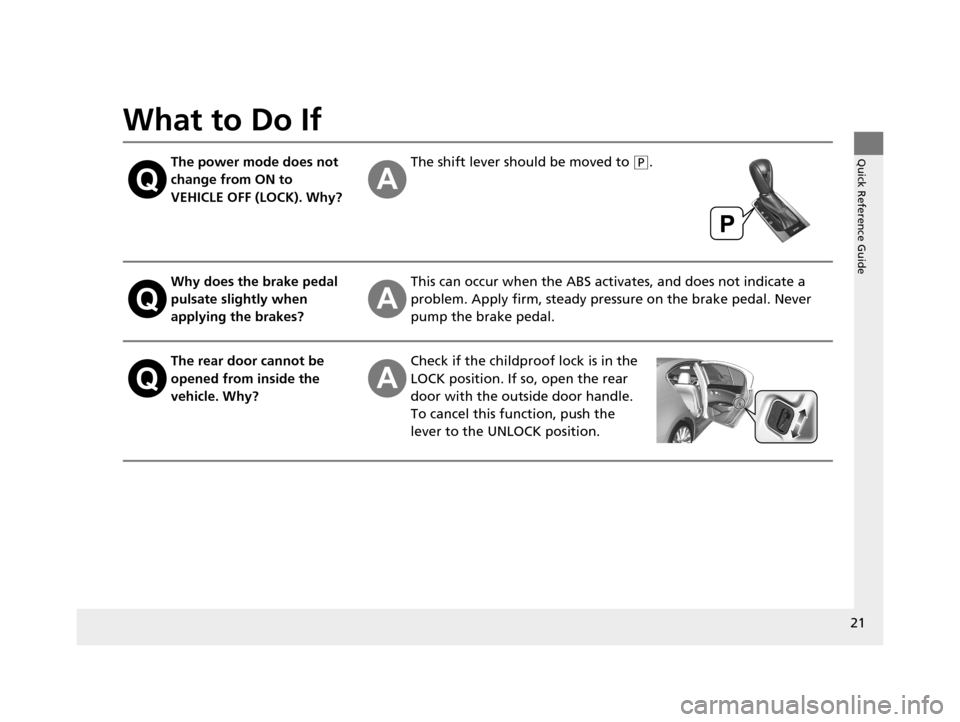

What to Do If
The power mode does not
change from ON to
VEHICLE OFF (LOCK). Why?The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates, and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
The rear door cannot be
opened from inside the
vehicle. Why?Check if the childproof lock is in the
LOCK position. If so, open the rear
door with the outside door handle.
To cancel this function, push the
lever to the UNLOCK position.
17 ACURA RLX-31TY26300.book 21 ページ ２０１６年６月１７日　金曜日　午前８時１２分

22
Quick Reference Guide
Why do the doors lock
after I unlocked the doors
using a remote
transmitter?If you do not open the doors within 30 seconds, the doors are
relocked automatically for security.
Why does the beeper
sound when I open the
driver’s door?The beeper sounds when:
●The power mode is in ACCESSORY.
●The exterior lights are left on.
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Why does the beeper
sound when I turn the
engine off?The beeper sounds when you turn off the engine with the
driver’s door open.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
17 ACURA RLX-31TY26300.book 22 ページ ２０１６年６月１７日　金曜日　午前８時１２分
