Page 7 of 557
Visual Index
6
Quick Reference Guide❙Power Window Switches (P 134)
❙Driver’s Front Airbag (P 40)
❙Trunk Release Button (P 128)
❙Hood Release Handle (P 451)
❙Driver’s Side Interior Fuse Box (P 524)
❙Passenger’s Front Airbag (P 40)
❙Shift Lever
Automatic Transmission (P 351)
❙Glove Box (P 165)
❙Driver’s Knee Airbag (P 44)
❙Door Mirror Controls (P 154)
❙Power Door Lock Master Switch (P 126)
❙Fuel Fill Door Release Button (P 438)
❙Electric Parking Brake Switch
(P 402)
❙Passenger’s Side Interior Fuse
Box
(P 525)
❙Accessory Power Socket (P 171)
❙Accessory Power Socket (P 171)
❙Auxiliary Input Jack (P 193)
❙USB Port (P 193)
❙Memory Buttons (P 151)
❙SET Button (P 151)
❙Rearview Mirror (P 153)
❙SPORT Button (P 355)
❙Automatic Brake Hold Button
(P 405)
17 ACURA RLX-31TY26300.book 6 ページ 2016年6月17日 金曜日 午前8時12分
Page 9 of 557
Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P 450)
❙Windshield Wipers (P 145, 468)
❙Tires (P 471, 491)
❙Door Lock/Unlock Control (P 118)
❙Power Door Mirrors (P 154)
❙Headlights (P 141, 462)
❙Front Side Marker Lights (P 140, 464)
❙How to Refuel (P 438)
❙High-Mount Brake Light (P 467)
❙Emergency Trunk Release Lever (P 130)
❙Opening/Closing the Trunk (P 128)
❙Multi-View Rear Camera* (P 426)
❙Trunk Release Button (P 128)
❙Rear Side Marker Lights (P 465)
❙Brake/Taillights (P 465)
❙Rear Turn Signal Lights (P 465)
❙Front Turn Signal/Parking Lights (P 140, 463)
❙Back-Up Lights (P 466)
❙Rear License Plate Lights (P 467)
❙Taillights (P 466)
❙Surround View Camera System* (P 427)
❙Side Turn Signal Lights (P 140, 464)
❙Power Door Mirrors (P 154)
❙Daytime Running Lights (P 144)
❙Front Side Marker Lights (P 140, 464)
17 ACURA RLX-31TY26300.book 8 ページ 2016年6月17日 金曜日 午前8時12分
Page 13 of 557
12
Quick Reference Guide
Wipers and Washers
(P 145)
*1:Models with auto wiper
*2:Models without auto wiper
Wiper/Washer Control LeverAdjustment Ring: Low sensitivity
*1
: Lower speed, fewer sweeps*2
: High sensitivity*1
: Higher speed, more sweeps*2
MIST
OFF
AUTO
*1: Wiper speed varies automatically
INT*2: Low speed with intermittent
LO: Low speed wipe
HI : High speed wipe Pull toward
you to spray
washer fluid.
Steering Wheel (P 152)
● To adjust, push and hold the adjustment
switch to move the steering wheel to the
desired position.
Unlocking the Front
Doors from the Inside
(P 124)
●Pull either front door inner handle to
unlock and open it in one motion.
● Unlocking and opening the driver’s door
from the inner handle unlocks all the
other doors.
Trunk (P 128)
● To unlock and open the trunk:
•Press the trunk release button on the
driver’s door.
• Press the trunk release button on the
keyless access remote.
• Press the trunk release button on the
trunk lid.
Trunk Release Button
17 ACURA RLX-31TY26300.book 12 ページ 2016年6月17日 金曜日 午前8時12分
Page 119 of 557
118
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
Locking/Unlocking the Doors from the Outside
When you carry the keyless access remote,
you can lock/unlock the doors and open the
trunk.
You can lock/unlock the doors within a radius
of about 32 inches (80 cm) of the outside door
handle. You can open the trunk within about
32 inches (80 cm) radius from the trunk
release button.
■Locking the vehicle
Press the door lock button on the front or
rear
* door.
u Some exterior lights flash; the beeper
sounds; all the doors lock; and the
security system sets.
■Using the Keyless Access System1Locking/Unlocking the Doors from the Outside
You can lock or unlock doors using the remote
transmitter or keyless access system only when the
power mode is in VEHICLE OFF.
1Using the Keyless Access System
•Do not leave the keyless access remote in the
vehicle when you get out . Carry it with you.
•Even if you are not carrying the keyless access
remote, you can lock/unlock the doors while
someone else with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the keyless access remote is within range.
•If you grip a front or rear* door handle wearing
gloves, the door sensor ma y be slow to respond or
may not respond by unlocking the doors.
•The door may not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unl ock the doors with the
keyless access remote if it is above or below the
outside handle.
•The keyless access remote may not operate if it is
too close to the door and door glass.
Models with door lock buttons on
all doors
Models with door lock buttons on
the front doors
Door Lock Button
* Not available on all models
17 ACURA RLX-31TY26300.book 118 ページ 2016年6月17日 金曜日 午前8時12分
Page 120 of 557
Continued119
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Unlocking the vehicle
Grab the driver’s door handle:u The driver’s door unlocks.
u Some exterior lights flash twice and the
beeper sounds twice.
Grab the front passenger’s or rear
* door
handle: u All the doors unlock.
u Some exterior lights flash twice and the
beeper sounds twice.
Press the trunk release button: u The trunk unlocks and opens.
u The beeper sounds.
2 Using the Trunk Release Button P. 128
Trunk
Release
Button
1Using the Keyless Access System
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead. 2 Replacing the Button Battery P. 481
You can customize the door lock mode and keyless
lock acknowledge ment setting.
2 Customized Features P. 103, 262
If you do not open a door within 30 seconds of
unlocking the vehicle, th e doors will automatically
relock.
When you go into the front side of the keyless access
system working range with all the doors locked, the
front and rear
* door outer handle ambient lights
come on for 30 seconds.
The lights do not come on if you have previously
stayed within the range for more than five minutes,
or the doors have been locked for a few days.
The feature activates again after you drive the
vehicle, then lock the doors.
The light flash, beep a nd unlock settings can be
customized using the audio/information screen or
multi-information display.
2 Customized Features P. 103, 262
* Not available on all models
17 ACURA RLX-31TY26300.book 119 ページ 2016年6月17日 金曜日 午前8時12分

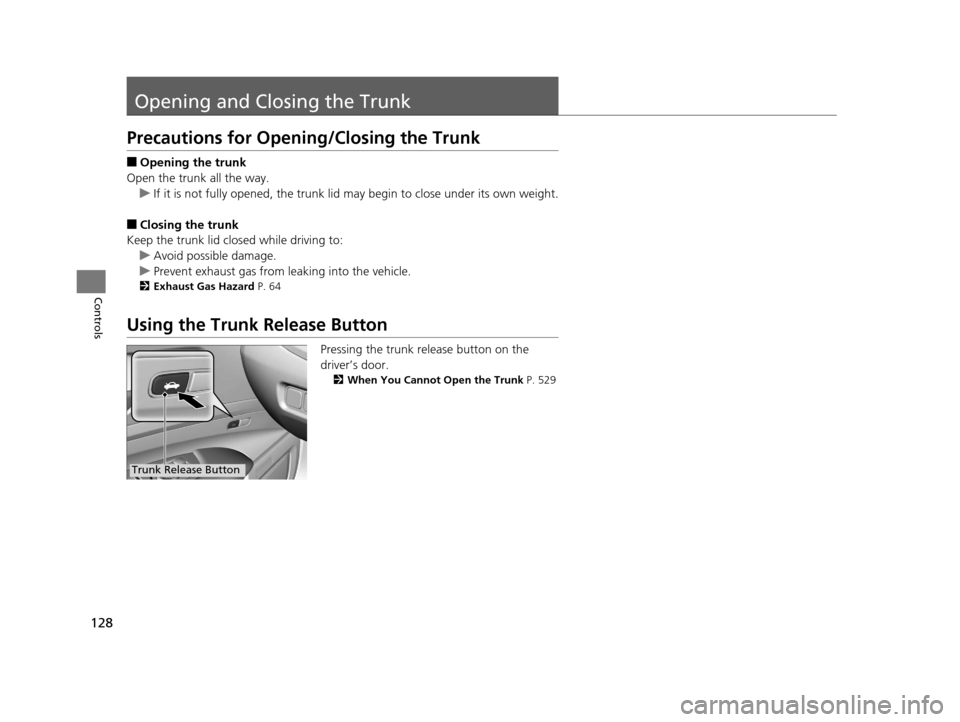

Page 129 of 557
128
Controls
Opening and Closing the Trunk
Precautions for Opening/Closing the Trunk
■Opening the trunk
Open the trunk all the way. u If it is not fully opened, the trunk lid may begin to close under its own weight.
■Closing the trunk
Keep the trunk lid clos ed while driving to:
u Avoid possible damage.
u Prevent exhaust gas from leaking into the vehicle.
2 Exhaust Gas Hazard P. 64
Using the Trunk Release Button
Pressing the trunk release button on the
driver’s door.
2When You Cannot Open the Trunk P. 529
Trunk Release Button
17 ACURA RLX-31TY26300.book 128 ページ 2016年6月17日 金曜日 午前8時12分
Page 130 of 557
129
uuOpening and Closing the Trunk uUsing the Remote Transmitter
Controls
Push up the release bu tton on the trunk lid
after the doors are unlocked.
2 When You Cannot Open the Trunk P. 529
Even if the trunk is locked, you can open the
trunk if you carry the keyless access remote.
u The beeper sounds.
Using the Remote Transmitter
Press the trunk release button for
approximately one second to unlock and open
the trunk.
1Using the Trunk Release Button
•Do not leave the keyless access remote in the
vehicle when you get out . Carry it with you.
•Even if you are not carrying the keyless access
remote, you can unlock the trunk while someone
else with the remote is within range.
•Do not leave the keyless access remote inside the
trunk and close the lid. The beeper sounds and the
trunk cannot be closed.
Trunk
Release
Button
Trunk
Release
Button
Trunk
Release
Button
17 ACURA RLX-31TY26300.book 129 ページ 2016年6月17日 金曜日 午前8時12分
Page 131 of 557
130
uuOpening and Closing the Trunk uEmergency Trunk Opener
Controls

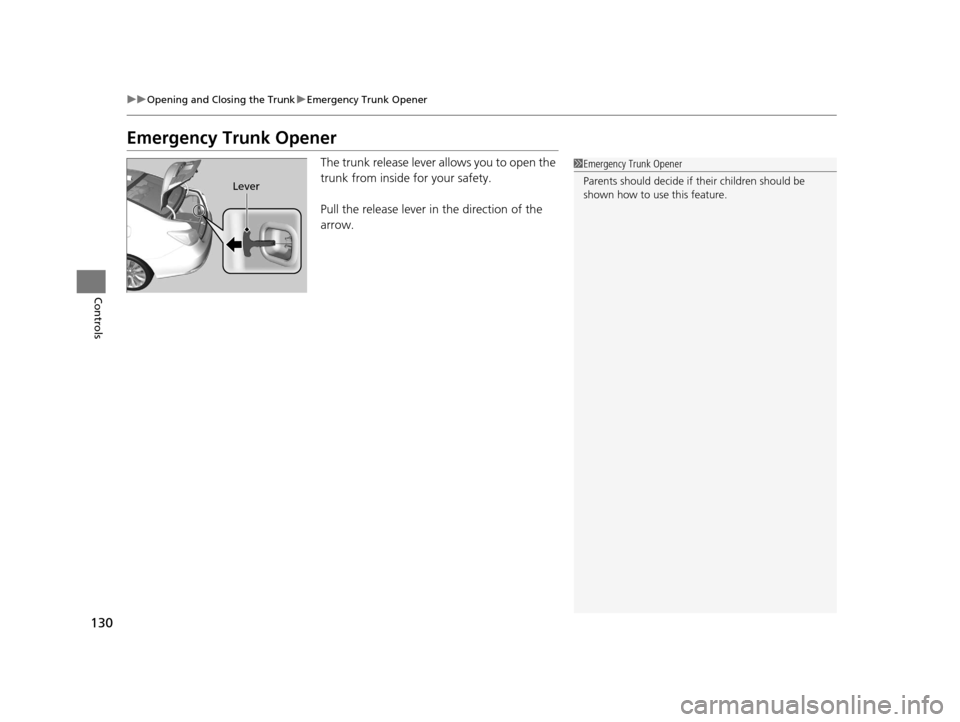

Emergency Trunk Opener
The trunk release lever allows you to open the
trunk from inside for your safety.
Pull the release lever in the direction of the
arrow.1Emergency Trunk Opener
Parents should deci de if their children should be
shown how to use this feature.
Lever
17 ACURA RLX-31TY26300.book 130 ページ 2016年6月17日 金曜日 午前8時12分
Page 133 of 557
uuSecurity System uSecurity System Alarm
132
Controls
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF (LOCK).
• The hood and trunk are closed.
• All doors are locked from ou tside with the key, remote transmitter or keyless
access system.
■When the security system alarm sets
The security system indicator in the in strument panel blinks. When the blinking
interval changes after about 15 sec onds, the security system is set.
■To cancel the security system alarm
The security system is canceled when th e vehicle is unlocked using the remote
transmitter, or you grab either front door
* or any door* handle while carrying the
keyless access remote, or the power mode is set to ON. The security system indicator
goes off at the same time.
1 Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the trunk with the trunk release button on
the driver’s door or the emergency trunk opener.
•Moving the shift lever out of ( P.•Opening the hood with the hood release.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the remote transmitter or
keyless access system.
Do not attempt to alter th is system or add another
device to it.
* Not available on all models
17 ACURA RLX-31TY26300.book 132 ページ 2016年6月17日 金曜日 午前8時12分
Page 168 of 557
Continued167
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
4. The previous code is displayed. Select OK.
u You will receive a confirmation message
on the display. Select OK.
When you enter the PIN code for the first time
or if you want to change the code:
1. Select Shortcuts .
2. Select Valet.
3. Select the item you want to be PIN-
protected from the locked area, then select
OK .
4. Enter your selected four-digit PIN code,
then select OK.
5. You will be asked to enter the same four-
digit PIN code again. Enter, then select OK.
u You will receive a confirmation message
on the display. Select OK.
To unlock:
1. Select Valet.
2. Select Unlock .
3. Enter the four-digit PIN code you have
previously selected, then select OK.1Valet Mode
The PIN code entering screen also appears when you
press:
•The glove box open button
•The trunk release button on the driver's door, on
the trunk, or on the remote
While the glove box or the trunk is PIN-protected.
If you have locked all the items of the locked area, the
PIN code entering screen appears with the power
mode in ACCESSORY.
You can cancel the valet mode when you manually
open the trunk. 2 When You Cannot Open the Trunk P. 529
If you have only set Navi, Phone, Audio PIN-
protected but forgot your four-digit PIN code, you
need to go to a dealer to have the set valet mode
reset.
17 ACURA RLX-31TY26300.book 167 ページ 2016年6月17日 金曜日 午前8時12分
