Acura RLX Hybrid 2016 Owner's Manual

uuAudio System Basic Operation uPlaying a CD
250
Features
You can select scan, repeat, and random modes when playing a track or file.
1.Press the MENU button.
2. Rotate to select Scan or Random/
Repeat, then press .
3. Rotate to select a mode, then press .
1. Select Scan, Random or Repeat .
2Playing a CD P. 248
2.Select a mode.
■To turn off a play mode
1. Press the MENU button.
2. Rotate to select the mode you want to turn off, then press .
1. Select Scan, Random or Repeat.
2Playing a CD P. 248
2.Select the mode you want to turn off.
■How to Select a Play Mode1How to Select a Play Mode
Play Mode Menu Items
Scan
Scan Folders (MP3/WMA/AAC): Provides a 10-
second sampling of the first f ile in each of the main
folders.
Scan Tracks: Provides a 10-second sampling of all
tracks on the CD (all files in the current folder in MP3,
WMA, or AAC).
Random/Repeat
Repeat Folder (MP3/WMA/AAC): Repeats all files in
the current folder.
Repeat Track: Repeats the current track/file.
Random in Folder (MP3/WMA/AAC): Plays all files
in the current folder in random order.
Random All Tracks : Plays all tracks/files in random
order.
Random/Repeat is selected.
Interface Dial
On Demand Multi-Use DisplayTM
Interface Dial
On Demand Multi-Use DisplayTM
16 ACURA RLX E-AWD-31TY36200.book 250 ページ ２０１５年３月１１日　水曜日　午後１時３０分

251
uuAudio System Basic Operation uPlaying Hard Disk Drive (HDD) Audio
Continued
Features

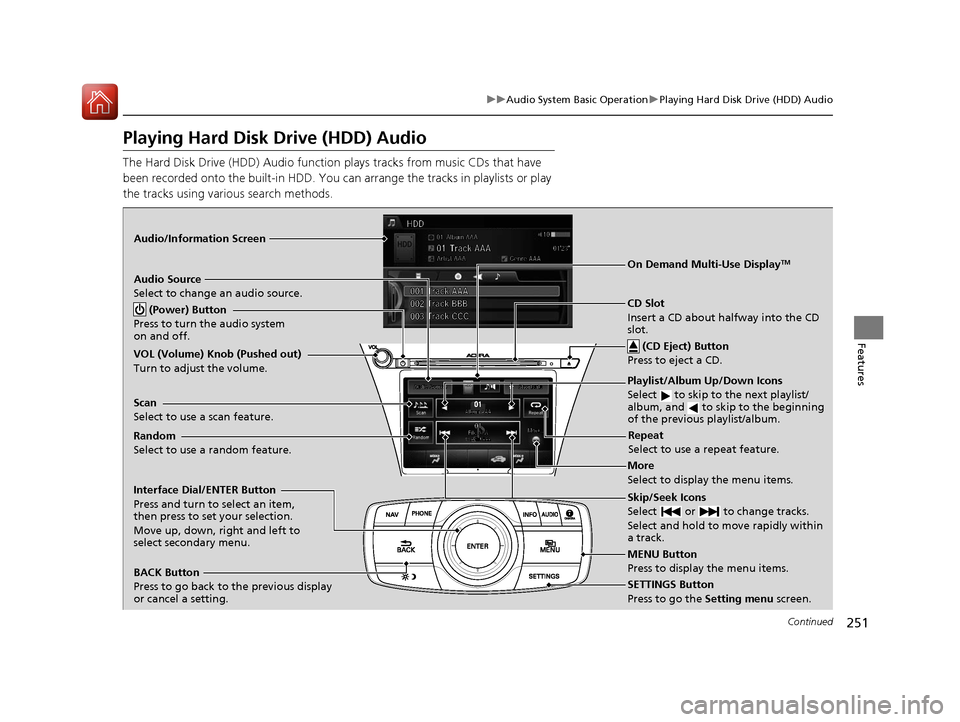

Playing Hard Disk Drive (HDD) Audio
The Hard Disk Drive (HDD) Audio function plays tracks from music CDs that have
been recorded onto the built-in HDD. You can arrange the tracks in playlists or play
the tracks using various search methods.
Audio/Information Screen
MENU Button
Press to display the menu items.
CD Slot
Insert a CD about halfway into the CD
slot. (CD Eject) Button
Press to eject a CD.
Playlist/Album Up/Down Icons
Select to skip to the next playlist/
album, and to skip to the beginning
of the previous playlist/album.
Audio Source
Select to change an audio source.
Skip/Seek Icons
Select or to change tracks.
Select and hold to move rapidly within
a track.
More
Select to display the menu items.
BACK Button
Press to go back to the previous display
or cancel a setting.
Interface Dial/ENTER Button
Press and turn to select an item,
then press to set your selection.
Move up, down, right and left to
select secondary menu.
SETTINGS Button
Press to go the Setting menu screen.
On Demand Multi-Use Display
TM
(Power) Button
Press to turn the audio system
on and off.
VOL (Volume) Knob (Pushed out)
Turn to adjust the volume.
Random
Select to use a random feature. Scan
Select to use a scan feature.Repeat
Select to use a repeat feature.
16 ACURA RLX E-AWD-31TY36200.book 251 ページ ２０１５年３月１１日　水曜日　午後１時３０分

uuAudio System Basic Operation uPlaying Hard Disk Drive (HDD) Audio
252
Features

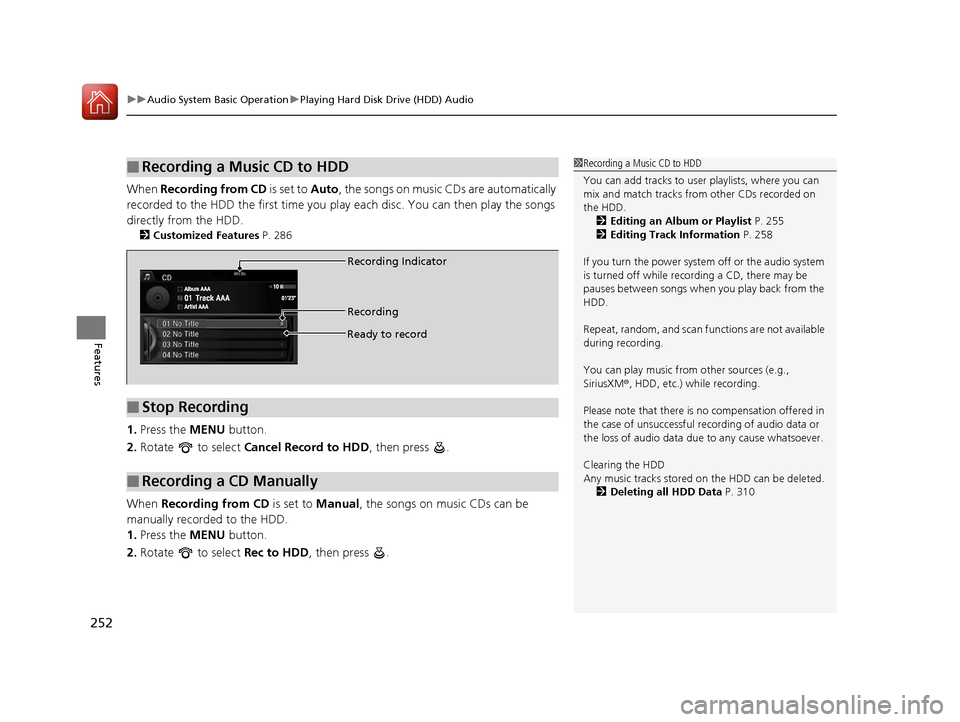

When Recording from CD is set to Auto, the songs on music CDs are automatically
recorded to the HDD the first time you play each disc. You can then play the songs
directly from the HDD.
2 Customized Features P. 286
1.Press the MENU button.
2. Rotate to select Cancel Record to HDD , then press .
When Recording from CD is set to Manual, the songs on music CDs can be
manually recorded to the HDD.
1. Press the MENU button.
2. Rotate to select Rec to HDD, then press .
■Recording a Music CD to HDD1Recording a Music CD to HDD
You can add tracks to user playlists, where you can
mix and match tracks from other CDs recorded on
the HDD.
2 Editing an Album or Playlist P. 255
2 Editing Track Information P. 258
If you turn the power system off or the audio system
is turned off while recording a CD, there may be
pauses between songs when you play back from the
HDD.
Repeat, random, and scan f unctions are not available
during recording.
You can play music from other sources (e.g.,
SiriusXM ®, HDD, etc.) while recording.
Please note that there is no compensation offered in
the case of unsuccessful re cording of audio data or
the loss of audio data due to any cause whatsoever.
Clearing the HDD
Any music tracks stored on the HDD can be deleted. 2 Deleting all HDD Data P. 310
■Stop Recording
■Recording a CD Manually
Album AAA
Artist AAA 10
01’23”Track AAA
01
Recording Indicator
Recording
Ready to record
16 ACURA RLX E-AWD-31TY36200.book 252 ページ ２０１５年３月１１日　水曜日　午後１時３０分

Continued253
uuAudio System Basic Operation uPlaying Hard Disk Drive (HDD) Audio
Features
1. Press the MENU button.
2. Rotate to select Music Search, then
press .
3. Rotate , move or , then press to
select a track from the Music Search list.
u Title information is displayed if found in
the Gracenote ® Album Info (Gracenote ®
Media Database) stored on the HDD.
u The HDD has two types of playlists:
original playlists and user playlists. An
original playlist is automatically created
for each album when a music CD is
recorded. You can customize up to six
user playlists prov ided on the HDD by
adding tracks from your original playlists.
You can also select a track by the following
procedure.
1. Rotate or press to display the song
list.
2. Rotate , move or , then press to
select a track from the list.
■How to Select a Track from the Music Search List1How to Select a Track from the Music Search List
You can control the HDD audio using voice
commands.
2 Voice Control Operation P. 232
2 Song By Voice
TM (SBV) P. 265
Music tracks recorded on HDD cannot be recorded
onto CDs or other devices.
Tracks are recorded at four times the playback speed
using ultra-efficient compression technology;
therefore, sound quality may vary slightly from the
original.
If the HDD is ever replaced, all music data is lost and
cannot be recovered.
If there is a problem, you may see an error message
on the display. 2 Hard Disk Drive (HDD) Audio P. 278
16 ACURA RLX E-AWD-31TY36200.book 253 ページ ２０１５年３月１１日　水曜日　午後１時３０分

uuAudio System Basic Operation uPlaying Hard Disk Drive (HDD) Audio
254
Features
You can select scan, repeat, and random modes when playing a track.
1.Press the MENU button.
2. Rotate to select Scan or Random/
Repeat, then press .
3. Rotate to select a mode, then press .
1. Select Scan, Random or Repeat .
2Playing Hard Disk Drive (HDD) Audio
P. 251
2. Select a mode.
■To turn off a play mode
1. Press the MENU button.
2. Rotate to select the mode you want to turn off, then press .
1. Select Scan, Random or Repeat.
2Playing Hard Disk Drive (HDD) Audio P. 251
2.Select the mode you want to turn off.
■How to Select a Play Mode1How to Select a Play Mode
Play Mode Menu Items
Scan
Scan Albums : Provides a 10-sec ond sampling of the
first track in each album.
Scan Tracks: Provides a 10-second sampling of all
tracks on the HDD.
Random/Repeat
The following menu items vary depending on the
category you selected by the Music Search list.
Repeat Artist : Repeats all tracks in the current artist.
Repeat Album : Repeats all tracks in the current
album.
Repeat Track: Repeats the current track.
Random in Artist : Plays all tracks in the current artist
in random order.
Random in Album : Plays all tracks in the current
album in random order.
Random All Tracks: Plays all tracks in random order.
Random/Repeat is selected.
Interface Dial
On Demand Multi-Use DisplayTM
Interface Dial
On Demand Multi-Use DisplayTM
16 ACURA RLX E-AWD-31TY36200.book 254 ページ ２０１５年３月１１日　水曜日　午後１時３０分

Continued255
uuAudio System Basic Operation uPlaying Hard Disk Drive (HDD) Audio
Features
Change the playlist name, album name, genre, and track order of the current
playlist. You can also delete tracks, playlists, and albums.
■Editing an album
1. Press the MENU button.
2. Rotate to select Edit/Delete, then press
.
3. Rotate to select Albums , then press .
u The pop-up menu appears on the screen.
4. Rotate to select an album that you want
to edit or delete, then press .
5. To edit an album name:
Rotate to select Edit Name, then press
.
u Enter the name using the interface dial or
the On Demand Multi-Use Display
TM.
To delete an album:
Rotate to select Delete, then press .
To edit track information or delete a track:
Rotate to select List Tracks, then press .
2 Editing Track Information P. 258
■Editing an Album or Playlist1Editing an Album or Playlist
The maximum number of s ongs in each of the six
user playlists is 999. Adding new songs overwrites
the oldest songs.
The maximum number of origin al playlists is 999 with
a maximum of 99 songs in each playlist.
Each album CD counts as an original playlist. Adding
a track from a user playlist into the same user playlist
will cause the track to appear twice in the playlist.
Deleting an album (original playlist) also deletes the
album tracks you have stor ed in any user playlists.
Deleting a user playlist or deleting all tracks from a
user playlist does not remove the playlist folder.
The folder retains the playlist name and artist
information.
Select to enter symbols.
Icon
16 ACURA RLX E-AWD-31TY36200.book 255 ページ ２０１５年３月１１日　水曜日　午後１時３０分

256
uuAudio System Basic Operation uPlaying Hard Disk Drive (HDD) Audio
Features
■Editing a playlist
1. Press the MENU button.
2. Rotate to select Edit/Delete , then press
.
3. Rotate to select Playlists, then press
.
u The pop-up menu appears on the screen.
4. Rotate to select a playlist that you want
to edit or delete, then press .
5. To edit a playlist name:
Rotate to select Edit Name, then press
.
u Enter the name using the interface dial or
the On Demand Multi-Use Display
TM.
To delete a playlist:
Rotate to select Delete, then press .
To edit track information or delete a track:
Rotate to select List Tracks, then press
.
2 Editing Track Information P. 258
16 ACURA RLX E-AWD-31TY36200.book 256 ページ ２０１５年３月１１日　水曜日　午後１時３０分

257
uuAudio System Basic Operation uPlaying Hard Disk Drive (HDD) Audio
Continued
Features
■Creating a new playlist
1. Press the MENU button.
2. Rotate to select Edit/Delete, then press
.
3. Rotate to select Playlists, then press
.
4. Rotate to select Create New Playlist ,
then press .
u Enter the name using the interface dial or
the On Demand Multi-Use Display
TM,
then select tracks from the Music
Search list.
16 ACURA RLX E-AWD-31TY36200.book 257 ページ ２０１５年３月１１日　水曜日　午後１時３０分

258
uuAudio System Basic Operation uPlaying Hard Disk Drive (HDD) Audio
Features
Change the track title, artist name, genr e and composer. You can also delete tracks.
1. Press the MENU button.
2. Rotate to select Edit/Delete , then press
.
3. Rotate to select Tracks, then press .
4. Rotate to select a track you want to edit
or delete, then press .
u The pop-up menu appears on the screen.
5. To edit track information:
Rotate to select Edit Name, then press
.
u Enter the track name, track artist, etc.
using the interface dial or the On
Demand Multi-Use Display
TM. Move ,
rotate to select OK, then press .
To delete a track:
Rotate to select Delete, then press .
■Editing Track Information
16 ACURA RLX E-AWD-31TY36200.book 258 ページ ２０１５年３月１１日　水曜日　午後１時３０分

259
uuAudio System Basic Operation uPlaying Hard Disk Drive (HDD) Audio
Continued
Features
Music information (album name, artist name, genre) can be acquired by accessing
the Gracenote ® Album Info.
1.Press the MENU button.
2. Rotate to select Edit/Delete, then press
.
3. Rotate to select Albums , then press .
4. Rotate to select an album you want to
edit, then press .
u The pop-up menu appears on the screen.
5. Rotate to select Edit Name, then press
.
6. Move to select Get Music Info, then
press .
u The system starts to access the
Gracenote® Album Info.
■Displaying Music Information
16 ACURA RLX E-AWD-31TY36200.book 259 ページ ２０１５年３月１１日　水曜日　午後１時３０分
