bluetooth Acura RLX Hybrid 2016 Service Manual

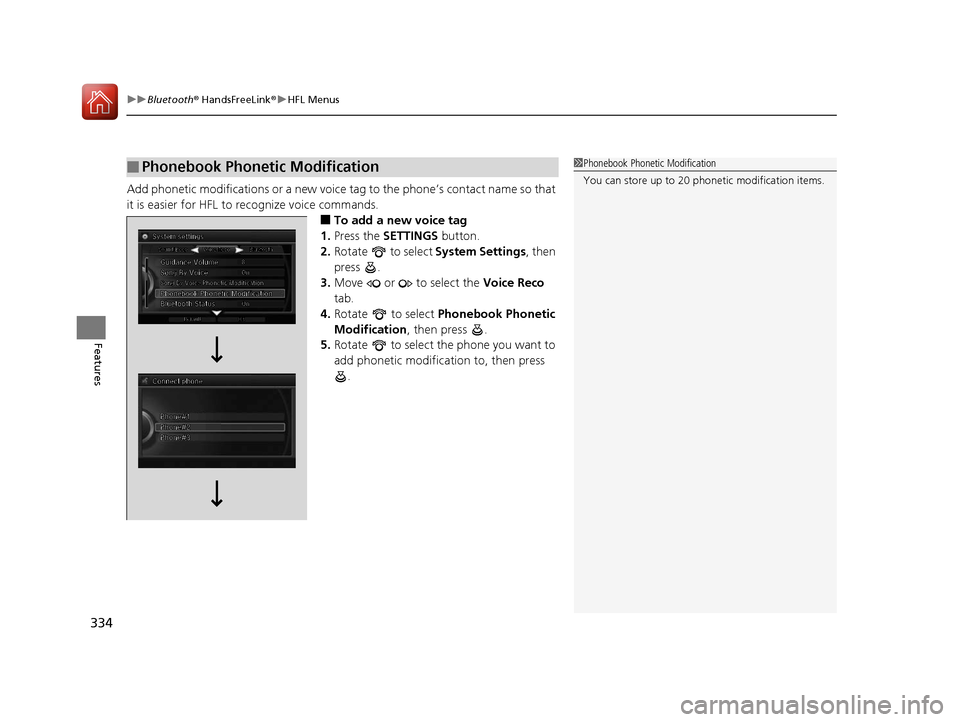

uuBluetooth ® HandsFreeLink ®u HFL Menus
334
Features
Add phonetic modifications or a new voice tag to the phone’s contact name so that
it is easier for HFL to recognize voice commands.
■To add a new voice tag
1. Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
3. Move or to select the Voice Reco
tab.
4. Rotate to select Phonebook Phonetic
Modification , then press .
5. Rotate to select the phone you want to
add phonetic modification to, then press
.
■Phonebook Phonetic Modification1Phonebook Phonetic Modification
You can store up to 20 phone tic modification items.
16 ACURA RLX E-AWD-31TY36200.book 334 ページ ２０１５年３月１１日　水曜日　午後１時３０分

335
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
6. Rotate to select New Voice Tag, then
press .
7. Move or and rotate to select a
contact name, then press .
u The pop-up menu appears on the screen.
8. Rotate to select Modify, then press .
9. Using the button, follow the prompts to
complete the voice tag.
10. You will receive a confirmation message
on the screen. Rotate to select OK, then
press .
16 ACURA RLX E-AWD-31TY36200.book 335 ページ ２０１５年３月１１日　水曜日　午後１時３０分

uuBluetooth ® HandsFreeLink ®u HFL Menus
336
Features
■To modify a voice tag
1. Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
3. Move or to select the Voice Reco
tab.
4. Rotate to select Phonebook Phonetic
Modification , then press .
5. Rotate to select the phone you want to
add phonetic modification to, then press
.
6. Rotate to select a contact name you
want to modify, then press .
u The pop-up menu appears on the screen.
7. Rotate to select Modify, then press .
8. Using the button, fo llow the prompts to
complete the voice tag.
9. You will receive a confirmation message on
the screen. Rotate to select OK, then
press .1 Phonebook Phonetic Modification
You can only modify or de lete contact names for the
currently connected phone.
16 ACURA RLX E-AWD-31TY36200.book 336 ページ ２０１５年３月１１日　水曜日　午後１時３０分

337
uuBluetooth ® HandsFreeLink ®u HFL Menus
Continued
Features
■To delete a modified voice tag
1. Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
3. Move or to select the Voice Reco
tab.
4. Rotate to select Phonebook Phonetic
Modification , then press .
5. Rotate to select the phone you want to
delete phonetic modifi cation, then press
.
6. Rotate to select a contact name you
want to delete, then press .
u The pop-up menu appears on the screen.
7. Rotate to select Delete, then press .
8. Move and rotate to select OK, then
press .
16 ACURA RLX E-AWD-31TY36200.book 337 ページ ２０１５年３月１１日　水曜日　午後１時３０分

uuBluetooth ® HandsFreeLink ®u HFL Menus
338
Features
■To delete all modified voice tags
1. Press the SETTINGS button.
2. Rotate to select System Settings, then
press .
3. Move or to select the Voice Reco
tab.
4. Rotate to select Phonebook Phonetic
Modification , then press .
5. Rotate to select the phone you want to
delete phonetic modification, then press
.
u The contact name list appears.
6. Move and rotate to select Delete All,
then press .
7. You will receive a confirmation message on
the screen. Rotate to select Yes, then
press .
You can make calls by inputting any phone
number, or by using the imported
phonebook, call history, speed dial entries, or
redial.
■Making a Call
1 Making a Call
Any voice-tagged speed di al entry, phonebook name,
or number can be dialed by voice from most screens.
Press the button and say “Call” and the voice tag
name, “Call by name” and the phonebook name, or
“Call” and the phone number.
The maximum range between your phone and
vehicles is 30 fe et (10 meters).
Once a call is connected, you can hear the voice of
the person you are call ing through the audio
speakers.
16 ACURA RLX E-AWD-31TY36200.book 338 ページ ２０１５年３月１１日　水曜日　午後１時３０分

Continued339
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To make a call us ing the imported
phonebook
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Phonebook, then
press .
4. The phonebook is stored alphabetically.
Move to Search.
u You can use the keyboard on the touch
screen for an alph abetical search.
5. Rotate to select a number, then press
.
u Dialing starts automatically.1To make a call using the imported phonebook
This function is disabled while the vehicle is moving.
However, you can call a stored voice-tagged speed
dial number, phonebook name, or number using
voice commands. 2 Limitations for Manual Operation P. 314
2 Speed Dial P. 331
You can use the keyboard on the On Demand Multi-
Use Display
TM for an alphabetical search.
16 ACURA RLX E-AWD-31TY36200.book 339 ページ ２０１５年３月１１日　水曜日　午後１時３０分

uuBluetooth ® HandsFreeLink ®u HFL Menus
340
Features
■To make a call using a phone number
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Dial, then press .
4. Rotate to select a number, then press
.
5. Rotate to select , then press .
u Dialing starts automatically.
■To make a call using redial
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Redial, then press .
u Dialing starts automatically.
1To make a call using a phone number
This function is disabled while the vehicle is moving.
However, you can call a stored voice-tagged speed
dial number, phonebook name, or number using
voice commands. 2 Limitations for Manual Operation P. 314
2 Speed Dial P. 331
You can use the keyboard on the On Demand Multi-
Use Display
TM to input numbers.
Select numbers, then to start dialing.
16 ACURA RLX E-AWD-31TY36200.book 340 ページ ２０１５年３月１１日　水曜日　午後１時３０分

Continued341
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
■To make a call usin g the call history
Call history is stored by All, Dialed ,
Received , and Missed .
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Call History, then
press .
4. Move or to select All, Dialed ,
Received, and Missed .
5. Rotate to select a number, then press
.
u Dialing starts automatically.
1. Press the button.
2. Move the left selector wheel right to select
Call History .
3. Roll the left selector wheel to select a
number.
4. Push the left selector wheel or the
button.
u Dialing starts automatically.1To make a call using the call history
The call history disp lays the last 20 dialed, received, or
missed calls.
(Appears only when a phone is connected to HFL.)
These icons next to th e number indicate the
following: : Dialed calls.
: Received calls.
: Missed calls.
The call history disp lays the last 12 dialed, received, or
missed calls.
Steering switches
111AAA#### Mr.AAA
Mr.BBB
Multi-information display
Head-up display
Steering switches
16 ACURA RLX E-AWD-31TY36200.book 341 ページ ２０１５年３月１１日　水曜日　午後１時３０分

uuBluetooth ® HandsFreeLink ®u HFL Menus
342
Features
■To make a call using a speed dial entry
1. Press the PHONE button.
2. Press the MENU button.
3. Rotate to select Speed Dial, then press
.
4. Rotate to select a number, then press
.
u Dialing starts automatically.
1. Press the button.
2. Move the left selector wheel left to select
Speed Dial.
3. Roll the left selector wheel to select a
number.
4. Push the left selector wheel or the
button.
u Dialing starts automatically.1To make a call using a speed dial entry
Move to select More Speed Dials to view another
paired phone’s speed dial list. You can make a call
from that list using th e currently connected phone.
When a voice tag is stored, press the button to
call the number using the voice tag. 2 Speed Dial P. 331
Any voice-tagged speed di al entry, phonebook name
or number can be dialed by voice from any screen.
Press the button and follow the prompts.
The speed dial displays the 20 speed dial entries.
Steering switches
111AAA#### Mr.AAA
Mr.BBB
Multi-information display
Head-up display
Steering switches
16 ACURA RLX E-AWD-31TY36200.book 342 ページ ２０１５年３月１１日　水曜日　午後１時３０分

Continued343
uuBluetooth ® HandsFreeLink ®u HFL Menus
Features
When there is an inco ming call, an audible
notification sounds (if activated) and the
Incoming call screen appears.
Press the button to answer the call.
Press the button to decline or end the call.
■Receiving a Call1 Receiving a Call
Call Waiting
Press the button to put the current call on hold to
answer the incoming call.
Press the button again to return to the current
call.
Ignore the incoming call if you do not want to answer
it.
Press the button if you want to hang up the
current call.
You can select the icons on the On Demand Multi-
Use Display
TM instead of the and buttons.
16 ACURA RLX E-AWD-31TY36200.book 343 ページ ２０１５年３月１１日　水曜日　午後１時３０分
