TPMS Acura RLX HYBRID 2018 Owner's Manual

16
Quick Reference Guide
Instrument Panel (P 75)
System Indicators
Malfunction Indicator
Lamp
Low Oil Pressure
Indicator
12-Volt Battery Charging
System Indicator
Anti-lock Brake System
(ABS ) Indicator
Vehicle Stability Assist
(VSA® ) System
Indicator
VSA ® OFF Indicator
Electric Power Steering
(EPS) System Indicator
Lights Indicators
Lights On Indicator
High Beam Indicator
Immobilizer System
Indicator
Seat Belt Reminder
Indicator
System Indicators
System Message
IndicatorBrake System
Indicator (Red)
Supplemental
Restraint System
Indicator
Low Temperature
Indicator
Low Fuel Indicator
Gauges (P 112)/Multi-Information Display (P 114)/
Head-Up Display
(P 119)/System Indicators (P 76)
Low Tire Pressure/
TPMS Indicator Turn Signal and
Hazard Warning
Indicators
Keyless Access System
Indicator
High Voltage
Battery Charge
Level Gauge Security System
Alarm Indicator
Fuel
Gauge
Tachometer
Multi-Information Display
Speedometer
Gear Position
Indicator M (sequential mode)
Indicator/Sequential Mode
Gear Selection Indicator
Electric Parking Brake
System Indicator
Electric Parking Brake
Indicator Automatic Brake Hold
System Indicator Brake System
Indicator (Amber)
SPORT
Mode Indicator
Blind Spot Information
(BSI) Indicator
System Indicators
Collision Mitigation
Brake SystemTM
(CMBSTM) Indicator
High Temperature
Indicator
Road Departure
Mitigation (RDM)
Indicator
Lane Keeping Assist
System ( LKAS) Indicator
Adaptive Cruise Control
(
ACC ) with Low Speed
Follow (LSF) Indicator
Automatic Brake Hold
IndicatorU.S.
Canada
U.S.
Canada
U.S.
Canada
U.S.
Canada
Fog Light Indicator*
Head-Up Display
READY Indicator
POWER SYSTEM
IndicatorAuto High-Beam
Indicator
18 ACURA RLX E-AWD-31TY36400.book 16 ページ ２０１７年７月２０日　木曜日　午後６時８分

25
Quick Reference Guide
VSA® On and Off (P 442)
● The vehicle stability assist (VSA ®) system
helps stabilize the vehicle during
cornering, and helps maintain traction
while accelerating on loose or slippery
road surfaces.
● VSA ® comes on automatically every time
you turn on the power system.
● To partially disable or fully restore VSA ®
function, press and ho ld the button until
you hear a beep.
CMBSTM On and Off
(P 463)
● When a possible collision is likely
unavoidable, the CMBS
TM can help you to
reduce the vehicle speed and the severity
of the collision.
● To turn the CMBS
TM on or off, press and
hold the button until you hear a beep.
● The CMBS
TM is turned on every time you
turn the power system on.
Tire Pressure Monitoring
System (TPMS)
(P 447)
● The TPMS monitors tire pressure.
● The TPMS is turned on automatically
every time you turn on the power system.
Refueling (P 490)
aPress the fuel fill
door release button.
bAfter refueling, wait
for about five
seconds before
removing the filler
nozzle.
Fuel recommendation: Unleaded premium ga soline, pump octane number 91 or
higher
Fuel tank capacity: 15.1 US gal (57 L)
Wait for five seconds
18 ACURA RLX E-AWD-31TY36400.book 25 ページ ２０１７年７月２０日　木曜日　午後６時８分

30
Quick Reference Guide
Why does a buzzer sound
when I walk away from the
vehicle after I close the
door?The buzzer sounds if you move outside the walk away auto
door lock operating range before the door completely closes.
2To lock (Walk Away Auto Door Lock) (P 133)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Why do I hear a screeching
sound when I apply the
brake pedal?The brake pads may need to be replaced. Have your vehicle
inspected by a dealer.
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?The Tire Pressure Monitoring System (TPMS) needs attention.
Check tire pressure.
2 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks (P 572)
Pressing the electric
parking brake switch does
not release the parking
brake. Why?Press the electric parking brake switch with the brake pedal
depressed.
18 ACURA RLX E-AWD-31TY36400.book 30 ページ ２０１７年７月２０日　木曜日　午後６時８分

86
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Low Tire Pressure/
TPMS Indicator
•Comes on for a few seconds when
you set the power mode to ON, then
goes off.
• Comes on if the tire pressure of any
of the tires becomes significantly
low.•Comes on while driving - Stop in a safe
place, check tire pressures, and inflate the
tire(s) if necessary.
• Blinks for about one minute, and
then stays on if there is a problem
with the TPMS, or when a compact
spare tire
* is temporarily installed.
• Blinks and remains on - Have your
vehicle checked by a deal er. If the vehicle is
fitted with a compact spare
*, get your
regular tire repaired or replaced and put
back on your vehicle as soon as you can.
System Message
Indicator
• Comes on for a few seconds when
you set the power mode to ON, then
goes off.
• Comes on along with a beep when a
problem is detected. A system
message on the multi-information
display appears at the same time.•While the indicator is on, roll the right
selector wheel to see the message again.
• Refer to the Indicators information in this
chapter when a system message appears on
the multi-information display. Take the
appropriate action for the message.
• The multi-information display does not
return to the normal screen unless the
warning is canceled, or the right selector
wheel is rolled.
—
Turn Signal and
Hazard Warning
Indicators
•Blinks when you operate the turn
signal lever.
• Blinks along with all turn signals
when you press the hazard warning
button.• Does not blink or blinks rapidly - Have
your vehicle checked by a dealer.
2 Replacing Light Bulbs P. 515, 516—
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 86 ページ ２０１７年７月２０日　木曜日　午後６時８分

uuGauges and Displays uMulti-Information Display
118
Instrument Panel
The navigation system shows you turn-by -turn directions to your destination.
When the navigation system is not providing driving guidance, an image of a
compass appears in the multi-information display.
2 Refer to the Navigation System Manual
Shows the remaining oil life and Maintenance MinderTM.
2Maintenance MinderTM P. 497
Shows the tire pressure of each tire.
2Tire Pressure Monitoring System (TPMS) P. 447
Shows the display for changing the head-up display content.
2To Change Head-Up Display Content P. 121
■Turn-by-Turn Directions
■Engine Oil Life
■Tire Pressure Monitor
■Head-Up Display Content
1Turn-by-Turn Directions
You can select whether to have the turn-by-turn
display come on duri ng the route guidance.
2 Customized Features P. 297
18 ACURA RLX E-AWD-31TY36400.book 118 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

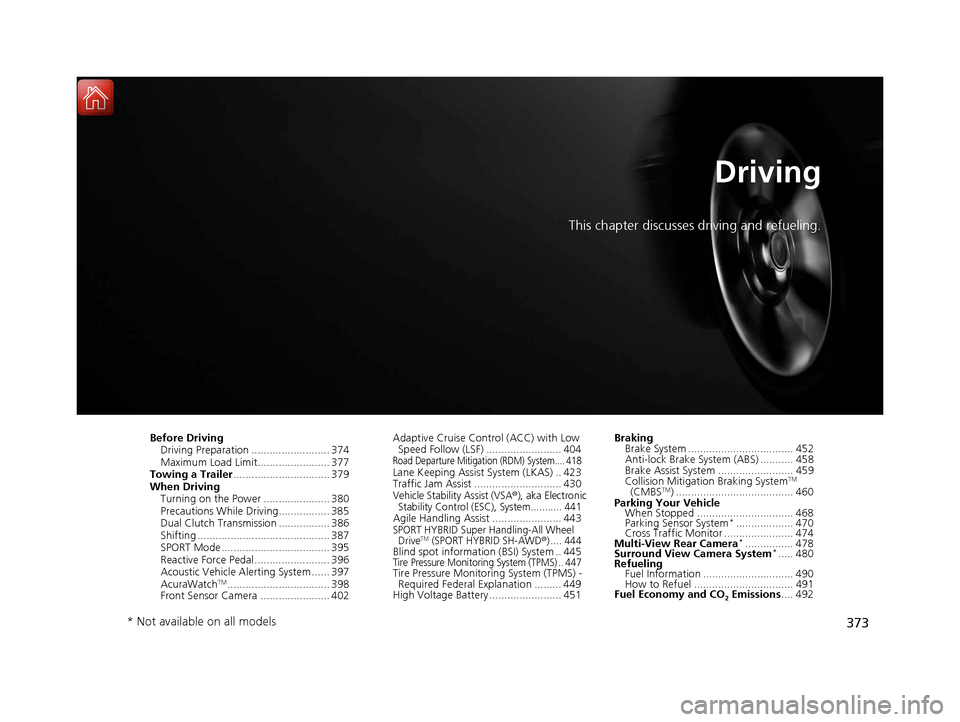

373
Driving
This chapter discusses driving and refueling.
Before DrivingDriving Preparation .......................... 374
Maximum Load Limit........................ 377
Towing a Trailer ................................ 379
When Driving Turning on the Power ...................... 380
Precautions While Driving................. 385
Dual Clutch Transmission ................. 386
Shifting ............................................ 387
SPORT Mode.................................... 395
Reactive Force Pedal......................... 396
Acoustic Vehicle Al erting System ...... 397
AcuraWatch
TM.................................. 398
Front Sensor Camera ....................... 402 Adaptive Cruise Control (ACC) with Low
Speed Follow (LSF) ......................... 404
Road Departure Mitigation (RDM) System.... 418Lane Keeping Assist System (LKAS) .. 423
Traffic Jam Assist ............................. 430
Vehicle Stabilit y Assist (VSA®), aka Electronic
Stability Control (ESC), System........... 441
Agile Handling Assist ....................... 443SPORT HYBRID Super Handling-All Wheel DriveTM (SPORT HYBRID SH-AWD®) .... 444Blind spot information (BSI) System .. 445Tire Pressure Monitoring System (TPMS) .. 447Tire Pressure Monitoring System (TPMS) -
Required Federal Explanation ......... 449
High Voltage Battery ........................ 451 Braking
Brake System ................................... 452
Anti-lock Brake System (ABS) ........... 458
Brake Assist System ......................... 459
Collision Mitigation Braking System
TM
(CMBSTM) ....................................... 460
Parking Your Vehicle When Stopped ................................ 468
Parking Sensor System
*................... 470
Cross Traffic Monitor ....................... 474
Multi-View Rear Camera
*................ 478
Surround View Camera System*..... 480
Refueling Fuel Information .............................. 490
How to Refuel ................................. 491
Fuel Economy and CO
2 Emissions .... 492
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 373 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

447
uuWhen Driving uTire Pressure Monitoring System (TPMS)
Continued
Driving

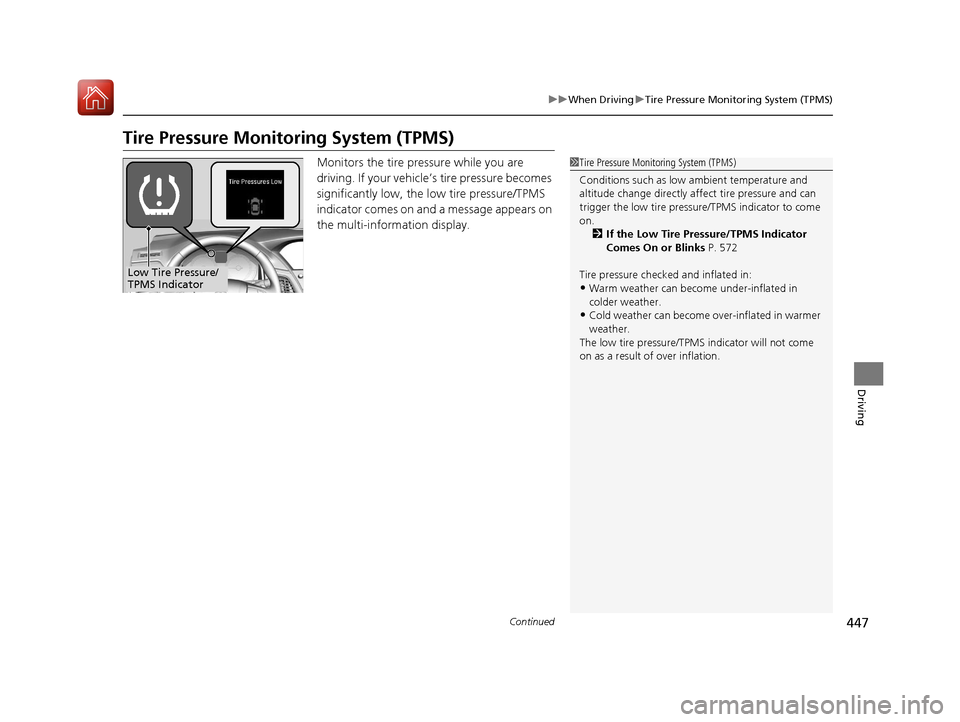

Tire Pressure Monitoring System (TPMS)
Monitors the tire pr essure while you are
driving. If your vehicle’s tire pressure becomes
significantly low, the low tire pressure/TPMS
indicator comes on and a message appears on
the multi-information display.1 Tire Pressure Monitoring System (TPMS)
Conditions such as low ambient temperature and
altitude change directly affect tire pressure and can
trigger the low tire pressure/TPMS indicator to come
on.
2 If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks P. 572
Tire pressure checked and inflated in:
•Warm weather can beco me under-inflated in
colder weather.
•Cold weather can become over-inflated in warmer
weather.
The low tire pressure/TPMS indicator will not come
on as a result of over inflation.
Low Tire Pressure/
TPMS Indicator
18 ACURA RLX E-AWD-31TY36400.book 447 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

uuWhen Driving uTire Pressure Monitoring System (TPMS)
448
Driving

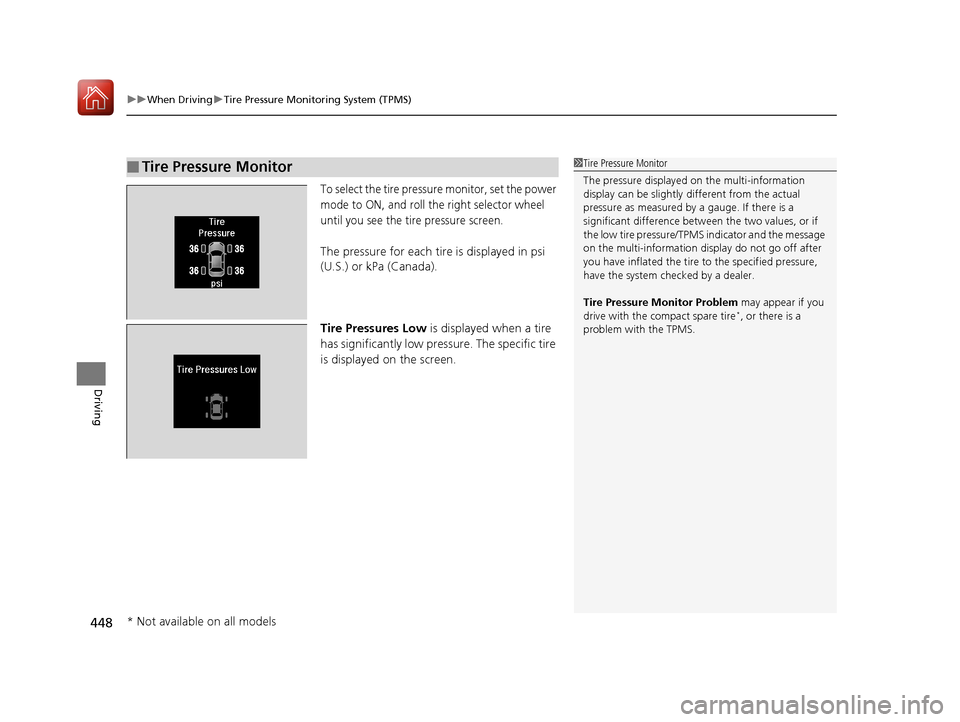

To select the tire pressure monitor, set the power
mode to ON, and roll the right selector wheel
until you see the tire pressure screen.
The pressure for each tire is displayed in psi
(U.S.) or kPa (Canada).
Tire Pressures Low is displayed when a tire
has significantly low pressure. The specific tire
is displayed on the screen.
■Tire Pressure Monitor1 Tire Pressure Monitor
The pressure displayed on the multi-information
display can be slightly different from the actual
pressure as measured by a gauge. If there is a
significant di fference between the two values, or if
the low tire pressure/TPMS indicator and the message
on the multi-information di splay do not go off after
you have inflated the tire to the specified pressure,
have the system checked by a dealer.
Tire Pressure Monitor Problem may appear if you
drive with the compact spare tire
*, or there is a
problem with the TPMS.
QT
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 448 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

449
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Continued
Driving

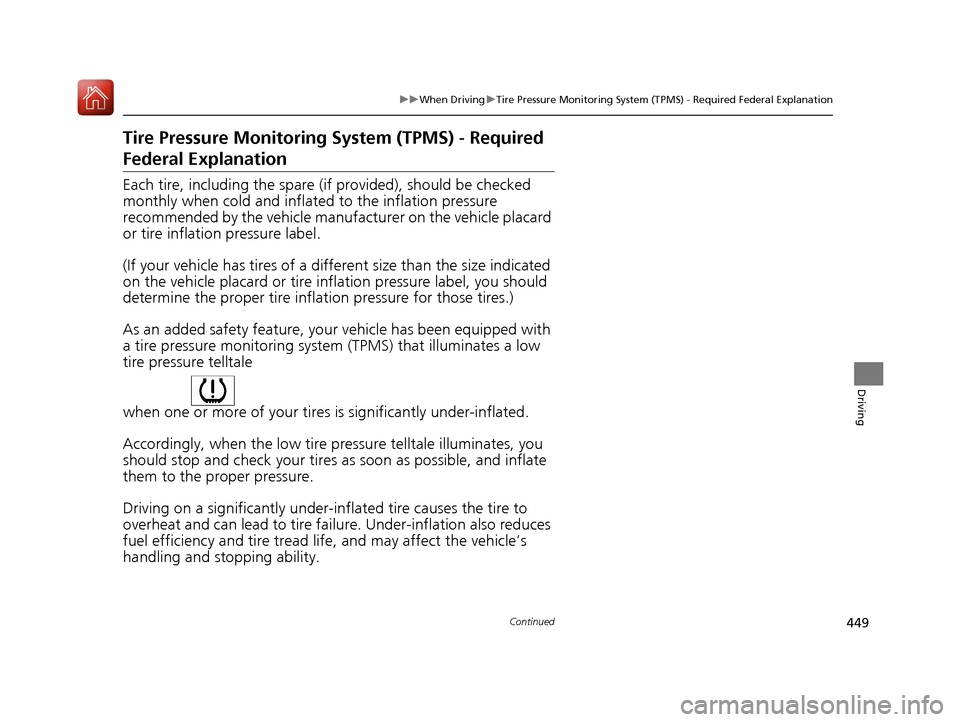

Tire Pressure Monitoring System (TPMS) - Required
Federal Explanation
Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure
recommended by the vehicle manufa cturer on the vehicle placard
or tire inflation pressure label.
(If your vehicle has tires of a diff erent size than the size indicated
on the vehicle placard or tire inflation pressure label, you should
determine the proper tire inflat ion pressure for those tires.)
As an added safety feature, your vehicle has been equipped with
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale
when one or more of your tires is significantly under-inflated.
Accordingly, when the low tire pressure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate
them to the proper pressure.
Driving on a significantly under-inf lated tire causes the tire to
overheat and can lead to tire fail ure. Under-inflation also reduces
fuel efficiency and tire tread life, and may affect the vehicle’s
handling and stopping ability.
18 ACURA RLX E-AWD-31TY36400.book 449 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

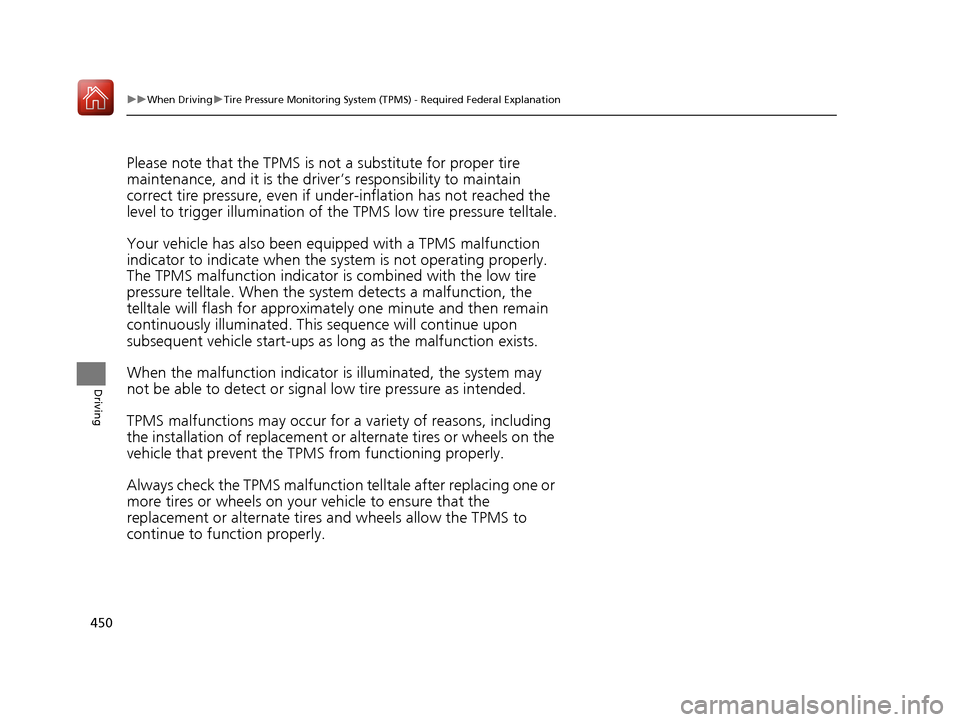

450
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation
Driving
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver ’s responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumina tion of the TPMS low ti re pressure telltale.
Your vehicle has also been eq uipped with a TPMS malfunction
indicator to indicate when the sy stem is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the system detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illuminated. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
18 ACURA RLX E-AWD-31TY36400.book 450 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
