TPMS Acura RLX HYBRID 2018 User Guide

527
uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance

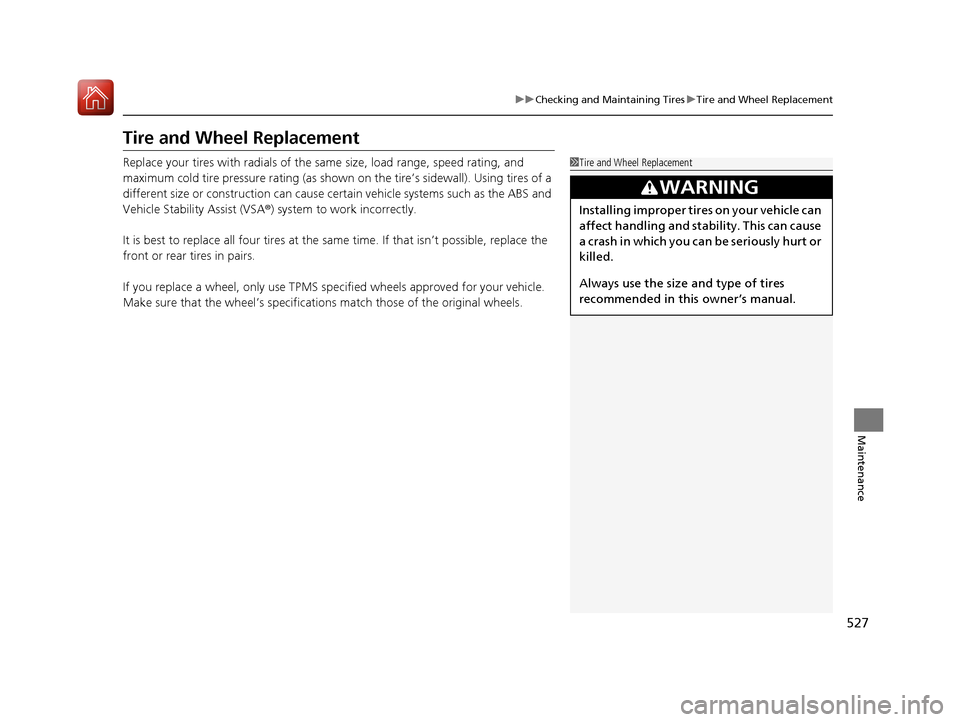

Tire and Wheel Replacement
Replace your tires with radials of the sa me size, load range, speed rating, and
maximum cold tire pressure rating (as shown on the tire’s sidewall). Using tires of a
different size or construction can cause ce rtain vehicle systems such as the ABS and
Vehicle Stability Assist (VSA®) system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
If you replace a wheel, only use TPMS spec ified wheels approved for your vehicle.
Make sure that the wheel’s specificati ons match those of the original wheels.1Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
18 ACURA RLX E-AWD-31TY36400.book 527 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

541

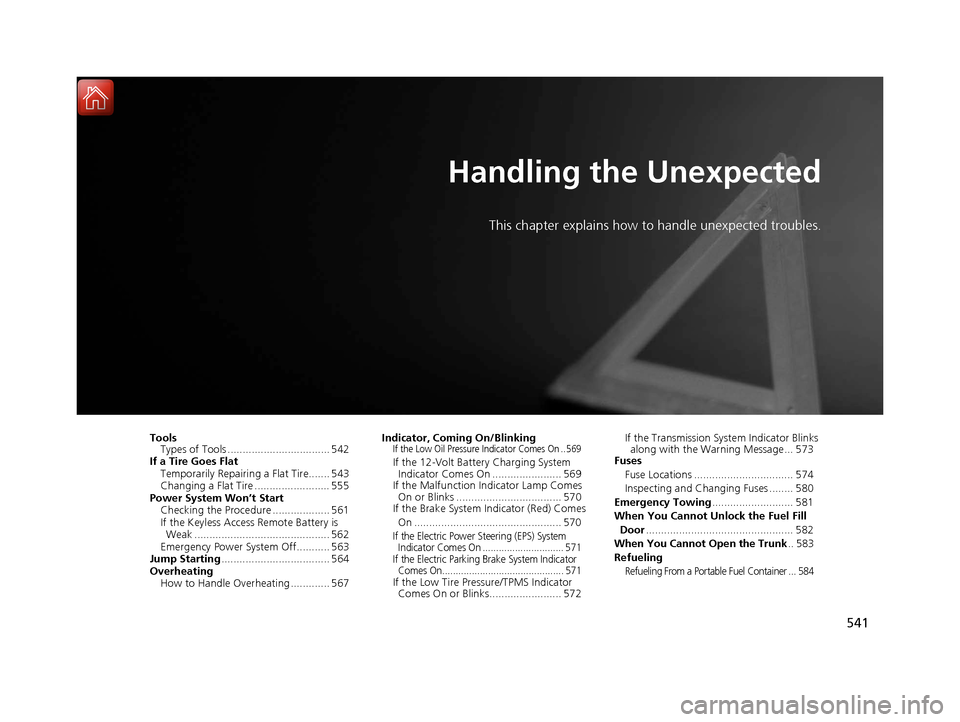

Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 542
If a Tire Goes Flat Temporarily Repairi ng a Flat Tire....... 543
Changing a Flat Tire ......................... 555
Power System Won’t Start Checking the Procedure ................... 561
If the Keyless Access Remote Battery is Weak ............................................. 562
Emergency Power System Off........... 563
Jump Starting .................................... 564
Overheating How to Handle Overheating ............. 567 Indicator, Coming On/BlinkingIf the Low Oil Pressure Indicator Comes On .. 569
If the 12-Volt Battery Charging System
Indicator Comes On ....................... 569
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 570
If the Brake System Indicator (Red) Comes
On ................................................. 570
If the Electric Power Steering (EPS) System Indicator Comes On .............................. 571
If the Electric Parking Brake System Indicator Comes On............................................. 571
If the Low Tire Pressure/TPMS Indicator Comes On or Blinks........................ 572 If the Transmission System Indicator Blinks
along with the Warning Message... 573
Fuses
Fuse Locations ................................. 574
Inspecting and Changing Fuses ........ 580
Emergency Towing ........................... 581
When You Cannot Unlock the Fuel Fill Door ................................................. 582
When You Cannot Open the Trunk .. 583
RefuelingRefueling From a Portable Fuel Container ... 584
18 ACURA RLX E-AWD-31TY36400.book 541 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

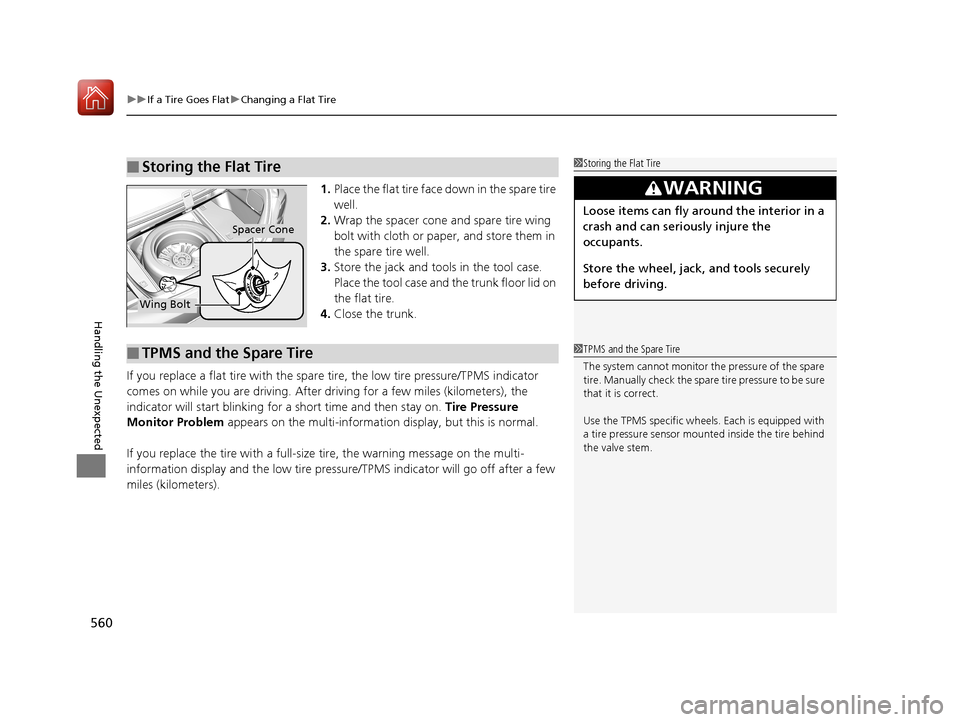

uuIf a Tire Goes Flat uChanging a Flat Tire
560
Handling the Unexpected
1. Place the flat tire face down in the spare tire
well.
2. Wrap the spacer cone and spare tire wing
bolt with cloth or paper, and store them in
the spare tire well.
3. Store the jack and tools in the tool case.
Place the tool case and the trunk floor lid on
the flat tire.
4. Close the trunk.
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the multi-informati on display, but this is normal.
If you replace the tire with a full-size tire, the warning message on the multi-
information display and the low tire pressu re/TPMS indicator will go off after a few
miles (kilometers).
■Storing the Flat Tire1 Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Spacer Cone
Wing Bolt
■TPMS and the Spare Tire1TPMS and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific whee ls. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
18 ACURA RLX E-AWD-31TY36400.book 560 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

572
uuIndicator, Coming On/Blinking uIf the Low Tire Pressure/TPMS Indicator Comes On or Blinks
Handling the Unexpected

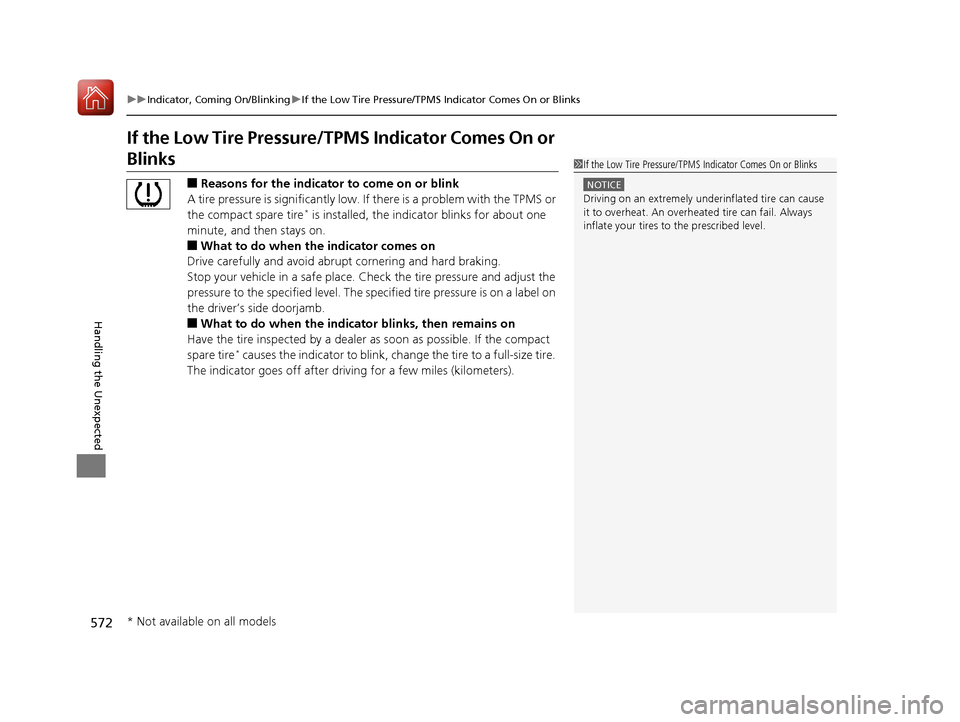

If the Low Tire Pressure/TPMS Indicator Comes On or
Blinks
■Reasons for the indicator to come on or blink
A tire pressure is significantly low. If there is a problem with the TPMS or
the compact spare tire
* is installed, the indica tor blinks for about one
minute, and then stays on.
■What to do when the indicator comes on
Drive carefully and avoid abrupt cornering and hard braking.
Stop your vehicle in a safe place. Ch eck the tire pressure and adjust the
pressure to the specified level. The sp ecified tire pressure is on a label on
the driver’s side doorjamb.
■What to do when the indicator blinks, then remains on
Have the tire inspected by a dealer as soon as possible. If the compact
spare tire
* causes the indicator to blink, change the tire to a full-size tire.
The indicator goes off after driv ing for a few miles (kilometers).
1If the Low Tire Pressure/TPMS Indicator Comes On or Blinks
NOTICE
Driving on an extremely unde rinflated tire can cause
it to overheat. An overheated tire can fail. Always
inflate your tires to the prescribed level.
* Not available on all models
18 ACURA RLX E-AWD-31TY36400.book 572 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

589
Information

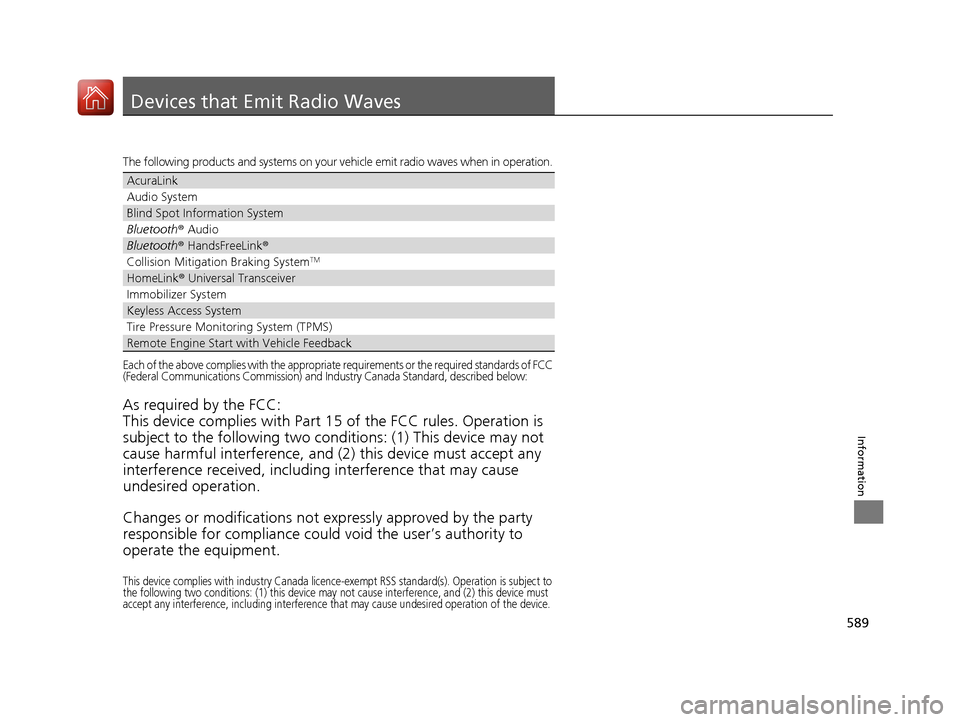

Devices that Emit Radio Waves
The following products and systems on your vehicle emit radio waves when in operation.
Each of the above complies with the appropriate requirements or the required standards of FCC
(Federal Communications Commission) and Industry Canada Standard, described below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with industry Canada licence -exempt RSS standard(s). Operation is subject to
the following two conditions: (1) this device may not cause interference, and (2) this device must
accept any interference, including interference th at may cause undesired operation of the device.
AcuraLink
Audio System
Blind Spot Information System
Bluetooth® Audio
Bluetooth® HandsFreeLink ®
Collision Mitigati on Braking SystemTM
HomeLink® Universal Transceiver
Immobilizer System
Keyless Access System
Tire Pressure Monitoring System (TPMS)
Remote Engine Start with Vehicle Feedback
18 ACURA RLX E-AWD-31TY36400.book 589 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

604
Index
HFL (HandsFreeLink®)............................... 326
High Beam Indicator ................................... 87
High Voltage Battery ................................ 451
Hill Start Assist System .............................. 384
HomeLink ® Universal Transceiver ............ 323
Honda App License Agreement ............... 283
Hybrid Vehicle SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®) ............ 9
I
Identification Numbers
Engine, Motor, and Transmission ............. 588
Vehicle Identification ............................... 588
Illumination Control
Buttons............................................ 166, 167
Immobilizer System .................................. 146
Indicator .................................................... 87
Indicators ..................................................... 76
12-Volt Battery Charging System ....... 81, 569
Adaptive Cruise Control (ACC) with Low Speed Follow (LSF)...................................... 90, 404
Anti-lock Brake System (ABS) ..................... 84
Automatic Brake Hold........................ 78, 456
Automatic Brake Hold System ............ 78, 456
Blind Spot Information (BSI) ............... 92, 446
Brake System (Amber)................................ 79
Brake System (Red) ............................ 76, 570
Collision Mitigati on Braking System
TM
(CMBSTM) ........................................... 92, 93 Door and Trunk Open ............................... 37
Electric Parking Brake ................................ 77
Electric Parking Brake System ............ 77, 571
Electric Power Steering (EPS) System .. 84, 571
Fog Light ................................................... 87
Gear Position............................................. 81
High Beam ................................................ 87
High Temperature ..................................... 85
Immobilizer System ................................... 87
Keyless Access System ............................... 88
Lane Keeping Assist System (LKAS) .... 91, 425
Lights On .................................................. 87
Low Fuel ................................................... 83
Low Oil Pressure ................................ 76, 569
Low Temperature ...................................... 85
Low Tire Pressure/TPMS ............. 86, 447, 449
Malfunction Indicator Lamp............... 81, 570
POWER SYSTEM ........................................ 80
READY ...................................................... 80
Road Departure Mitigation (RDM) ............. 89
Seat Belt Reminder .............................. 39, 83
Security System Alarm ............................... 88
SPORT Mode ..................................... 88, 395
Supplemental Restraint System ............ 57, 84
System Message ........................................ 86
Transmission ............................................. 82
Turn Signal ................................................ 86
Vehicle Stability Assist (VSA
®)
System ............................................ 85, 441
VSA ® OFF .......................................... 85, 442 Information
.............................................. 585
Instant Fuel Economy .............................. 117
Instrument Panel ........................................ 75
Brightness Control .................................. 166
Interface Dial ............................................ 216
Interior Lights ........................................... 182
Interior Rearview Mirror ......................... 172
Inverter Coolant ....................................... 512
J
Jack (Wheel Nut Wrench) ........................ 558
Jump Starting ........................................... 564
K
Key Number Tag ...................................... 130
Keyless Access System .............................. 131
Keyless Lockout Prevention ..................... 137
Keys ........................................................... 129
Lockout Prevention ................................. 137
Number Tag............................................ 130
Rear Door Won’t Open ........................... 141
Remote Transmitter ................................ 136
Two-way Keyless Access Remote..... 138, 382
Types and Functions................................ 129
Kickdown (Dual Clutch Transmission) .... 386
18 ACURA RLX E-AWD-31TY36400.book 604 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

607
Index
Side Airbags............................................... 54
Side Curtain Airbags .................................. 56
SiriusXM ® Radio ....................................... 242
Snow Tires ................................................ 529
Sounds Unique to the SPORT HYBRID SH-
AWD ® System ........................................... 13
Spare Tire (Optional) ....................... 555, 587
Spark Plugs ............................................... 586
Specifications ........................................... 586
Specified Fuel ................................... 490, 586
SPORT HYBRID Super Handling-All Wheel
Drive
TM (SPORT HYBRID SH-AWD ®)....... 444
SPORT Mode ............................................. 395
SPORT Mode Indicator ....................... 88, 395
SRS Airbags (Airbags) ................................ 48
Steering Wheel Adjusting ................................................ 171
Stopping ................................................... 468
Summer Tires ............................................ 529
Supplemental Restraint System (SRS) ....... 48
Surround View Camera System ............... 480
Switches (Around the Steering
Wheel) ............................................ 4, 5, 152
System Message Indicator ......................... 86
T
Temperature
High Temperature Indicator ...................... 85
Low Temperature Indicator ....................... 85
Temperature Sensor ................................ 209 Temporary Tire Repair Kit
........................ 544
Tie-down Anchors .................................... 192
Time (Setting) ........................................... 128
Tire Pressure Monitoring System (TPMS) ..................................................... 447
Indicator ............................................ 86, 572
Tires ........................................................... 521
Air Pressure ..................................... 522, 587
Chains ..................................................... 529
Checking and Maintaining ....................... 521
Flat Tire (Puncture) ................................... 543
Inspection ................................................ 521
Labeling .................................................. 522
Regulations ............................................. 524
Rotation .................................................. 528
Spare (Optional) .............................. 555, 587
Summer .................................................. 529
Temporary Tire Repair Kit ........................ 544
Wear Indicators ....................................... 526
Winter ..................................................... 529
Tools .......................................................... 542
Towing a Trailer ....................................... 379
Towing Your Vehicle ................................ 379
Emergency .............................................. 581
Transmission ....................................... 23, 387
Dual Clutch ............................... 23, 386, 387
Fluid ........................................................ 513
Gear Position Indicator ...................... 81, 389
Number ................................................... 588
Sequential Mode ..................................... 393
TRIP Button ............................................... 115 Trip Meter
................................................. 116
Troubleshooting ....................................... 541
Blown Fuse.............................. 574, 577, 579
Brake Pedal Vibrates ............................ 29, 30
Buzzer Sounds When Opening Door.......... 29
Emergency Towing .................................. 581
Flat Tire/Puncture ............................ 543, 555
Noise When Braking .................................. 30
Overheating ............................................ 567
Power System Won’t Start ....................... 561
Premium Gasoline ........................... 490, 586
Rear Door Won’t Open...................... 29, 141
Warning Indicators .................................... 76
Trunk ......................................................... 143
Lid........................................................... 143
Light Bulbs .............................................. 586
Release Handle ........................................ 583
Unable to Open....................................... 583
Turn Signals .............................................. 155
Indicators (Instrument Panel) ..................... 86
Turn-by-Turn Directions ................... 118, 123
Turning on the Power .............................. 380
Does Not Activate ................................... 561
Jump Starting .......................................... 564
Remote Engine Start................................ 382
Two-way Keyless Access Remote ..... 138, 382
18 ACURA RLX E-AWD-31TY36400.book 607 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
