clock reset Acura RLX HYBRID 2018 Owner's Manual

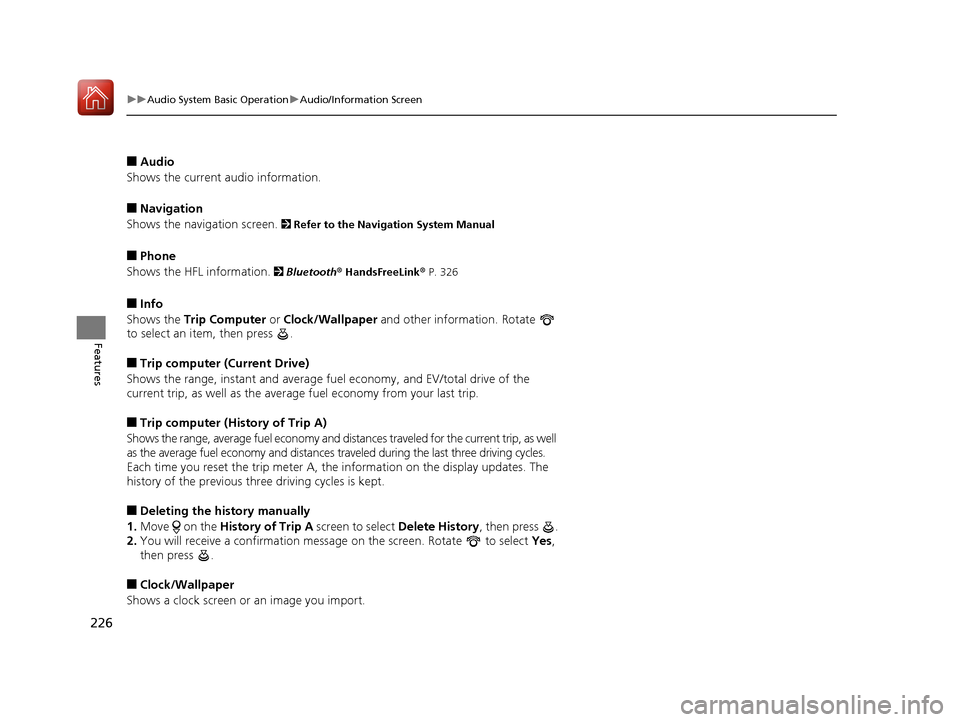

226
uuAudio System Basic Operation uAudio/Information Screen
Features
■Audio
Shows the current audio information.
■Navigation
Shows the navigation screen.
2 Refer to the Navigation System Manual
■Phone
Shows the HFL information.
2 Bluetooth ® HandsFreeLink® P. 326
■Info
Shows the Trip Computer or Clock/Wallpaper and other information. Rotate
to select an item, then press .
■Trip computer (Current Drive)
Shows the range, instant and average fuel economy, and EV/total drive of the
current trip, as well as the averag e fuel economy from your last trip.
■Trip computer (History of Trip A)
Shows the range, average fuel economy and distances traveled for the current trip, as well
as the average fuel economy and distances tr aveled during the last three driving cycles.
Each time you reset the trip meter A, the information on the display updates. The
history of the previous th ree driving cycles is kept.
■Deleting the history manually
1. Move on the History of Trip A screen to select Delete History, then press .
2. You will receive a confirmation message on the screen. Rotate to select Yes,
then press .
■Clock/Wallpaper
Shows a clock screen or an image you import.
18 ACURA RLX E-AWD-31TY36400.book 226 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

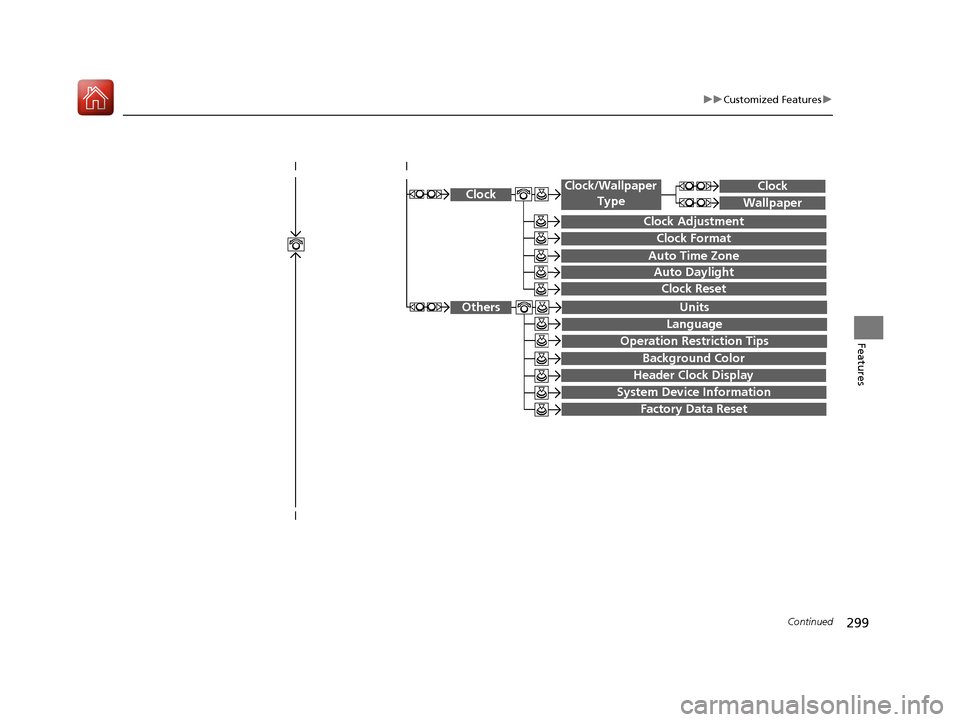

299
uuCustomized Features u
Continued
Features
System Device Information
Factory Data Reset

Background Color
Header Clock Display
Clock Reset
Auto Time Zone
Auto Daylight
Clock
Clock Adjustment
Clock Format
Clock
Units
Language
Operation Restriction Tips
Others

Wallpaper
Clock/Wallpaper
Type
18 ACURA RLX E-AWD-31TY36400.book 299 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

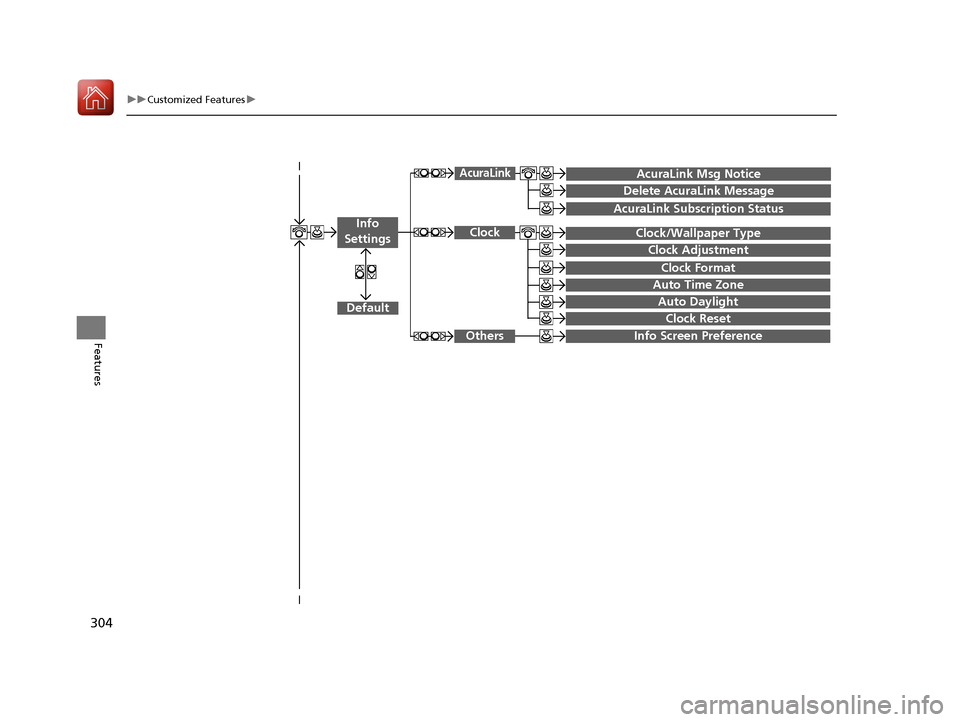

304
uuCustomized Features u
Features
Auto Daylight
Clock Reset
Info Screen Preference

Clock Format
Auto Time Zone

Clock/Wallpaper Type
Clock Adjustment
Clock
Default
Others
Info
Settings
AcuraLink Subscription Status
AcuraLink Msg Notice
Delete AcuraLink Message
AcuraLink

18 ACURA RLX E-AWD-31TY36400.book 304 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

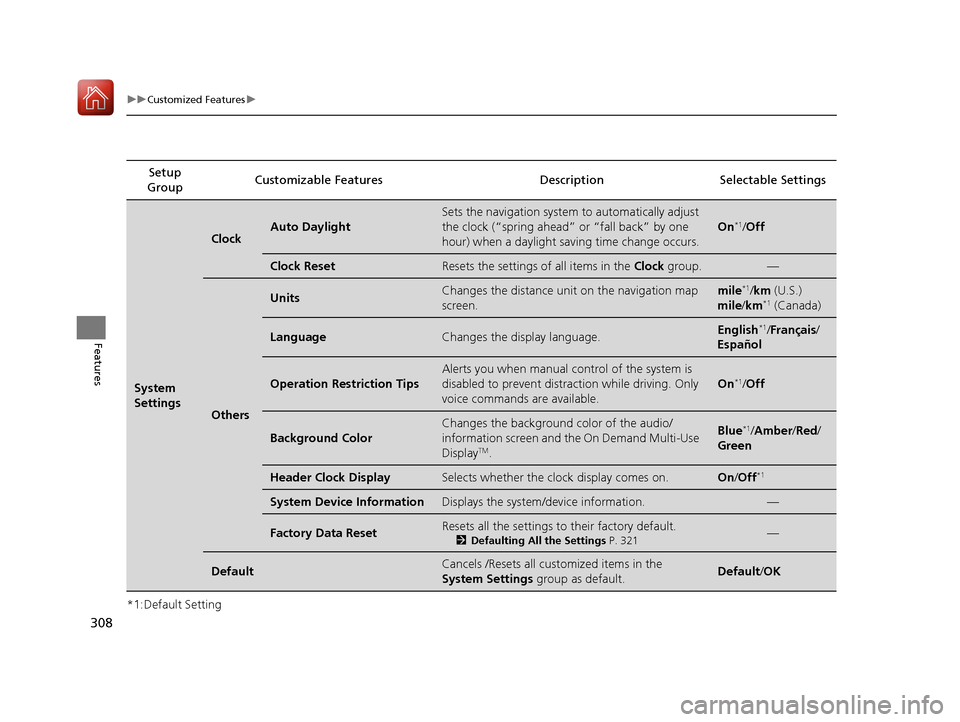

308
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Descri
ption Selectable Settings
System
Settings
ClockAuto Daylight
Sets the navigation system to automatically adjust
the clock (“spring ahead” or “fall back” by one
hour) when a daylight saving time change occurs.
On*1/ Off
Clock ResetResets the settings of all items in the Clock group.—
Others
UnitsChanges the distance unit on the navigation map
screen.mile*1/km (U.S.)
mile /km*1 (Canada)
LanguageChanges the display language.English*1/Français /
Español
Operation Restriction Tips
Alerts you when manual control of the system is
disabled to prevent distraction while driving. Only
voice commands are available.
On*1/ Off
Background Color
Changes the background color of the audio/
information screen and the On Demand Multi-Use
Display
TM.
Blue*1/Amber /Red/
Green
Header Clock DisplaySelects whether the clock display comes on.On /Off*1
System Device InformationDisplays the system /device information.—
Factory Data ResetResets all the settings to their factory default.
2Defaulting All the Settings P. 321—
DefaultCancels /Resets all customized items in the
System Settings group as default.Default/OK
18 ACURA RLX E-AWD-31TY36400.book 308 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

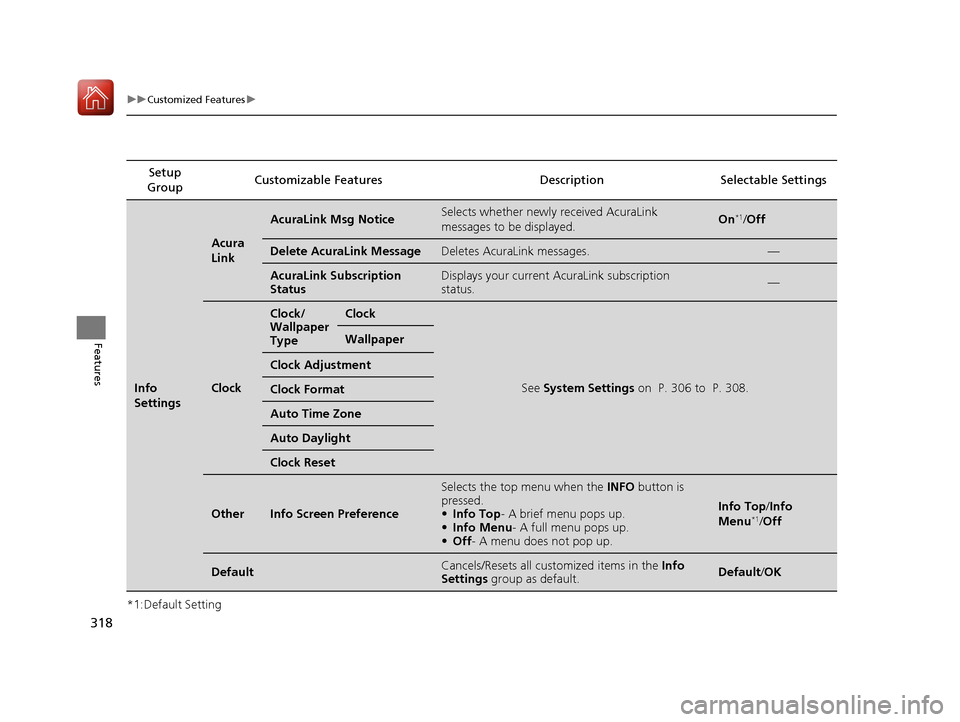

318
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Info
Settings
Acura
Link
AcuraLink Msg NoticeSelects whether newly received AcuraLink
messages to be displayed.On*1/Off
Delete AcuraLink MessageDeletes AcuraLink messages.—
AcuraLink Subscription
StatusDisplays your current AcuraLink subscription
status.—
Clock
Clock/
Wallpaper
TypeClock
See System Settings on P. 306 to P. 308.
Wallpaper
Clock Adjustment
Clock Format
Auto Time Zone
Auto Daylight
Clock Reset
OtherInfo Screen Preference
Selects the top menu when the INFO button is
pressed.
• Info Top - A brief menu pops up.
• Info Menu - A full menu pops up.
• Off - A menu does not pop up.
Info Top/ Info
Menu*1/ Off
DefaultCancels/Resets all customized items in the Info
Settings group as default.Default/OK
18 ACURA RLX E-AWD-31TY36400.book 318 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

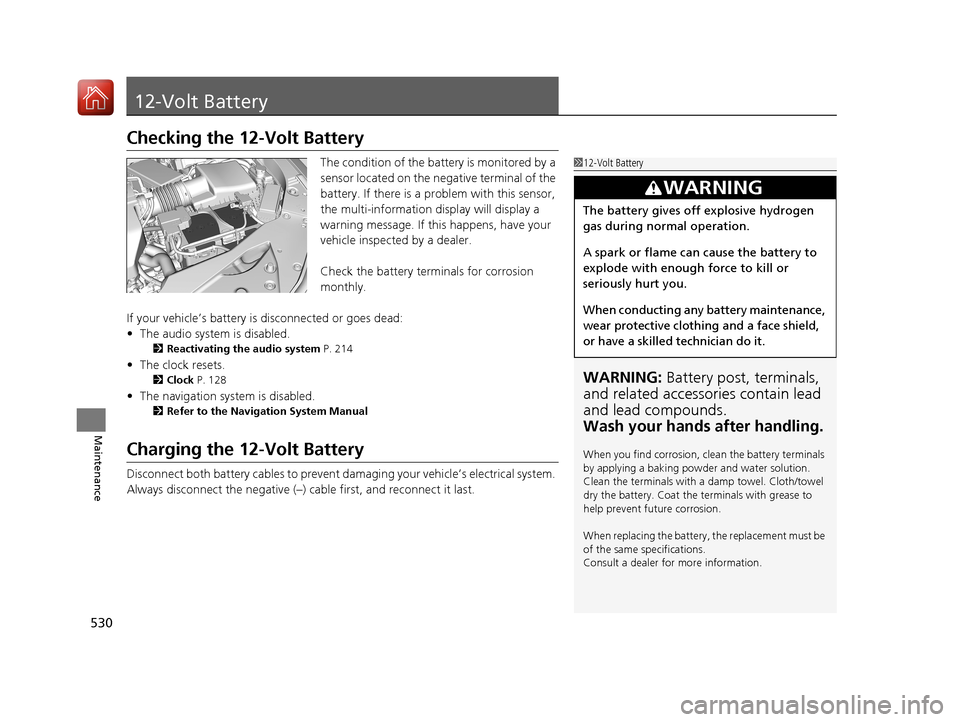

530
Maintenance
12-Volt Battery
Checking the 12-Volt Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the multi-information display will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery terminals for corrosion
monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Reactivating the audio system P. 214
•The clock resets.
2 Clock P. 128
•The navigation system is disabled.
2 Refer to the Navigation System Manual
Charging the 12-Volt Battery
Disconnect both battery cables to prevent da maging your vehicle’s electrical system.
Always disconnect the negative (–) cable first, and reconnect it last.
1 12-Volt Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery maintenance,
wear protective clothing and a face shield,
or have a skilled technician do it.
18 ACURA RLX E-AWD-31TY36400.book 530 ページ ２０１７年７月２０日　木曜日　午後６時 ８分

606
Index
P
Paddle Shifters (Sequential Mode).......... 394
Pandora® ................................................... 267
Panic Mode ............................................... 148
Parking ...................................................... 468
Parking Brake ............................................ 452
Parking Sensor System .............................. 470
Passenger Airbag Off Indicator ................. 58
Passing Indicators ..................................... 156
POWER Button .......................................... 152
Power Distribution Monitor ............. 124, 227
Power Rear Sunshade ............................... 198
Power System Turning on............................................... 380
POWER SYSTEM Indicator .......................... 80
Power Windows ........................................ 149
Precautions While Driving
Rain ......................................................... 385
Pregnant Women ....................................... 43
Puncture (Tire) .................................. 543, 555
R
Radiator..................................................... 511
Radio (AM/FM) .......................................... 237
Radio (SiriusXM ®)...................................... 242
Radio Data System (RDS) .......................... 239
Range ........................................................ 117
RDS (Radio Data System) .......................... 239
Reactive Force Pedal ................................. 396
Readiness Codes (Emissions Testing) ....... 591READY Indicator
......................................... 80
Rear Defogger/Heated Door Mirror
Button ..................................................... 168
Rear Seat Heaters ..................................... 197
Rear Temperature Control Dial ............... 208
Rearview Mirror ....................................... 172
Refueling .................................................. 490
Fuel Gauge.............................................. 112
Gasoline .......................................... 490, 586
Low Fuel Indicator ..................................... 83
Regenerative Energy and Regenerative
Braking ...................................................... 12
Regulations ............................... 449, 524, 589
Remote Engine Start with Vehicle
Feedback ................................................. 382
Remote Transmitter ................................. 136
Replacement
Battery .................................................... 531
Bulbs ....................................................... 515
Fuses ....................................... 574, 577, 579
Tires ........................................................ 527
Wiper Blade Rubber ................................ 518
Reporting Safety Defects ......................... 590
Resetting a Trip Meter ............................. 116
Reverse Tilt Door Mirror .......................... 173
Right Selector Wheel ............................... 114
Road Departure Mitigation (RDM) ......... 418
On and Off.............................................. 420
S
Safe Driving ................................................ 33
Safety Labels .............................................. 73
Safety Message ............................................ 1
Seat Belts .................................................... 38
Adjusting the Shoulder Anchor ................. 42
Automatic Seat Belt Tensioners ................. 40
Checking .................................................. 44
e-pretensioners ......................................... 40
Fastening .................................................. 41
Installing a Child Seat wi th a Lap/Shoulder Seat
Belt ......................................................... 67
Pregnant Women...................................... 43
Reminder ............................................ 39, 83
Warning Indicator ............................... 39, 83
Seat Heaters ............................. 195, 196, 197
Seats .......................................................... 175
Adjusting ................................................ 175
Front Seats.............................. 175, 178, 180
Seat Heaters ........................... 195, 196, 197
Security System ........................................ 146
Immobilizer System Indicator..................... 87
Security System Alarm Indicator ................ 88
Selecting a Child Seat ................................ 64
Sequential Mode ...................................... 393
Sequential Mode Operation ................... 394
Setting the Clock ...................................... 128
Shift Button ........................................ 23, 387
Operation ............................................... 389
Shifting (Transmission) ...................... 23, 387
Shoulder Anchor ........................................ 42
18 ACURA RLX E-AWD-31TY36400.book 606 ページ ２０１７年７月２０日　木曜日　午後６時 ８分
